Product Overview

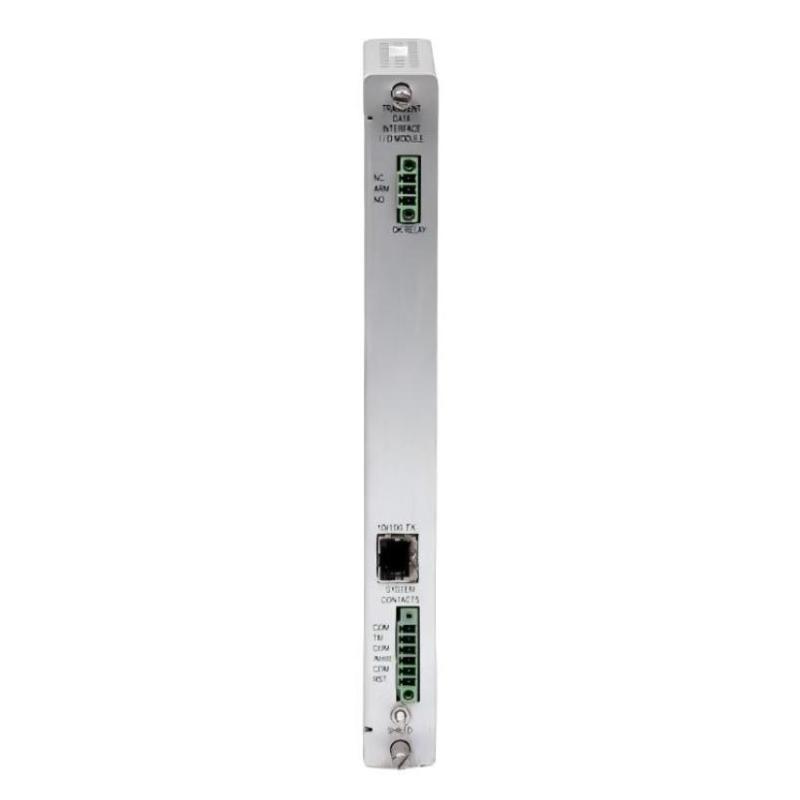

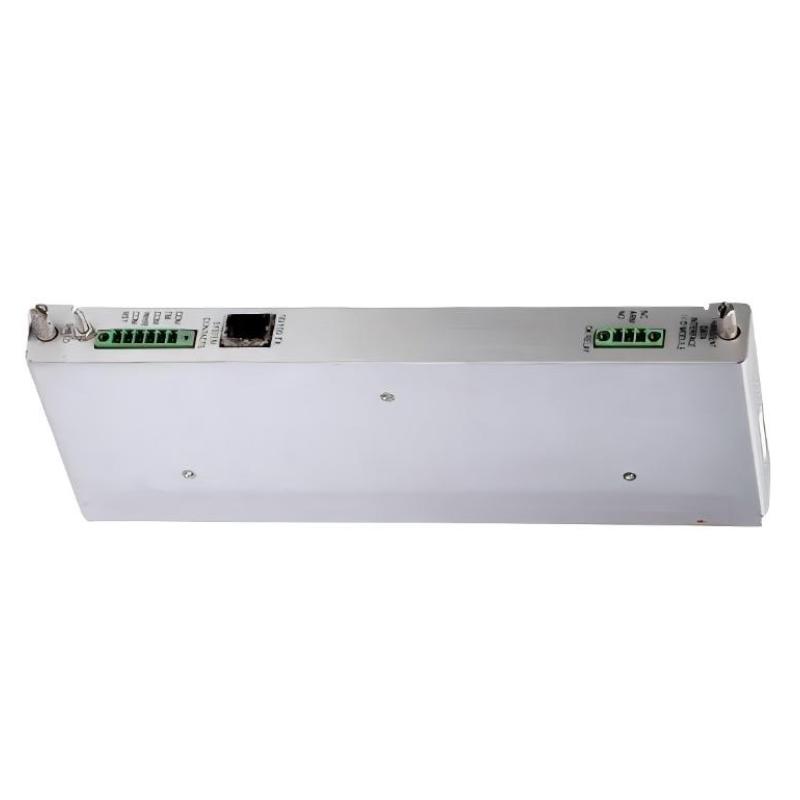

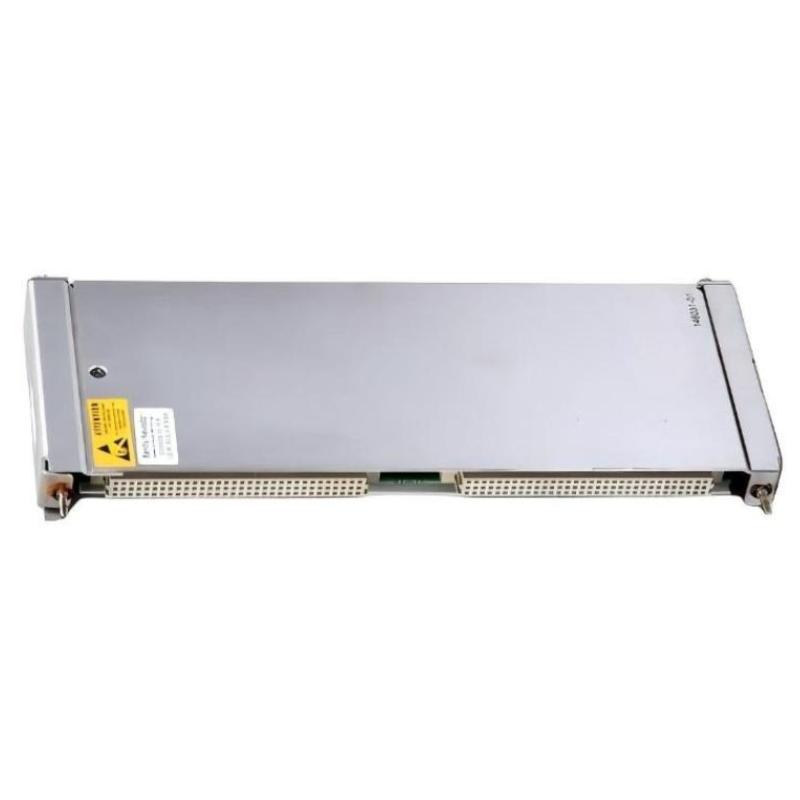

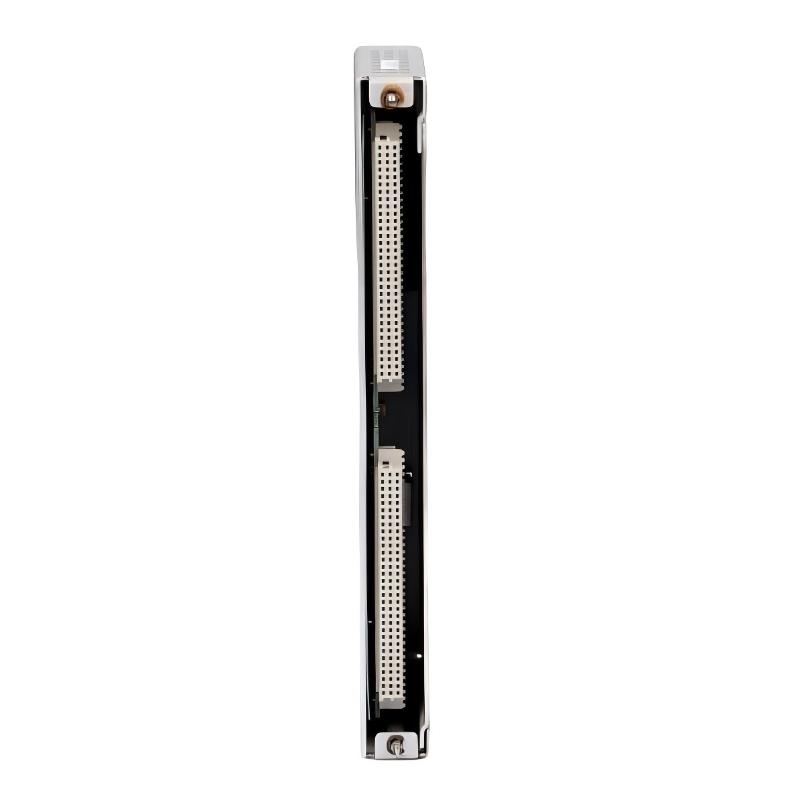

The Bently Nevada 3500/22 (146031-02) 100Base-FX Fiber Optic I/O Module is a fiber optic input/output module designed for the Bently Nevada 3500 machinery protection system.
This module provides high-speed optical communication using the 100Base-FX standard, enabling reliable data transmission over long distances while eliminating electromagnetic interference (EMI). It is typically used in industrial environments where signal integrity and communication stability are critical.
As part of the 3500/22 system, this module works alongside the transient data interface module to support advanced monitoring and communication functions.
Technical Specifications
| Parameter | Details |
|---|---|
| Manufacturer | Bently Nevada |
| Model | 3500/22 |
| Part Number | 146031-02 |
| Product Type | Fiber Optic I/O Module |
| Function | Optical data communication |
| Dimensions | 241.3 × 24.4 × 99.1 mm |
| Weight | 0.2 kg |
| Installation | Rack-mounted (3500 system rack) |
| Application | Industrial communication systems |
| Environment | Industrial-grade |
| Communication Type | 100Base-FX (Fiber Optic Ethernet) |
| Data Capability | High-speed data transmission |
| Compatibility | Bently Nevada 3500/22 system |
Function and Working Principle
This module operates as an optical communication interface within the 3500 system.
Working Principle:
-
Converts electrical signals into optical signals
-
Transmits data through fiber optic cables
-
Receives optical signals and converts them back to electrical signals
-
Enables high-speed communication between system components
Key Functions:
-
Fiber optic data transmission
-
Electrical-to-optical signal conversion
-
High-speed communication support
-
EMI-resistant data transfer
Role in Industrial Control Systems
The Bently Nevada 3500/22 (146031-02) 100Base-FX Fiber Optic I/O Module plays an important role by:
-
Enabling long-distance communication within industrial systems
-
Eliminating electromagnetic interference (EMI)
-
Supporting stable and high-speed data transfer
-
Enhancing system reliability and communication integrity
It is especially useful in large-scale or electrically noisy environments.
Industrial Applications
This module is commonly used in:
-
Turbine monitoring systems
-
Power generation plants
-
Oil and gas facilities
-
Petrochemical and refining industries
-
Remote monitoring systems
-
Distributed control systems (DCS)
It is ideal for applications requiring robust and interference-free communication.
Installation and System Integration
For proper operation:
-
Installed in a Bently Nevada 3500 rack system
-
Connected using fiber optic cabling
-
Paired with the 3500/22 TDI module
-
Configured for 100Base-FX communication
-
Installed following manufacturer guidelines
Proper setup ensures optimal performance and data integrity.
Compatible System Components
This module works with:
-
Bently Nevada 3500/22 Transient Data Interface Module
-
3500 rack systems
-
Fiber optic network infrastructure
-
Monitoring and protection modules
-
External control and analysis systems
Together, these components create a high-performance optical communication system.
Recommended Alternative Models
| Model | Type | Key Feature | Application |
|---|---|---|---|
| 146031-02 | Fiber I/O Module | 100Base-FX optical communication | Long-distance, EMI environments |
| 146031-01 | Standard I/O Module | Electrical communication | General setups |
| 288055-01 | TDI Module | Data acquisition | Core monitoring |
| 138607-01 | Advanced TDI Module | Enhanced diagnostics | High-performance systems |
| 3500/20 | RIM Module | System interface | Communication backbone |
Key Advantages
-
High-speed 100Base-FX fiber optic communication
-
Strong immunity to electromagnetic interference
-
Supports long-distance data transmission
-
Reliable performance in harsh industrial environments
-
Seamless integration with 3500 systems
-
Compact and lightweight design
Technical FAQs
What is the main function of this module?
It provides fiber optic communication for the 3500/22 system using the 100Base-FX standard.
Why use fiber optic communication?
To eliminate electromagnetic interference and enable stable long-distance data transmission.
Where is it typically used?
In industrial environments requiring reliable and high-speed communication, such as power plants and oil & gas facilities.
Conclusion
The Bently Nevada 3500/22 (146031-02) 100Base-FX Fiber Optic I/O Module is a high-performance communication component designed for modern industrial monitoring systems.
It provides:
-
High-speed fiber optic data transmission
-
Strong resistance to electromagnetic interference
-
Reliable integration with 3500 systems
-
Stable and long-distance communication capability
For engineers and system integrators, this module is a critical solution for achieving robust and interference-free industrial communication.
