Product Overview

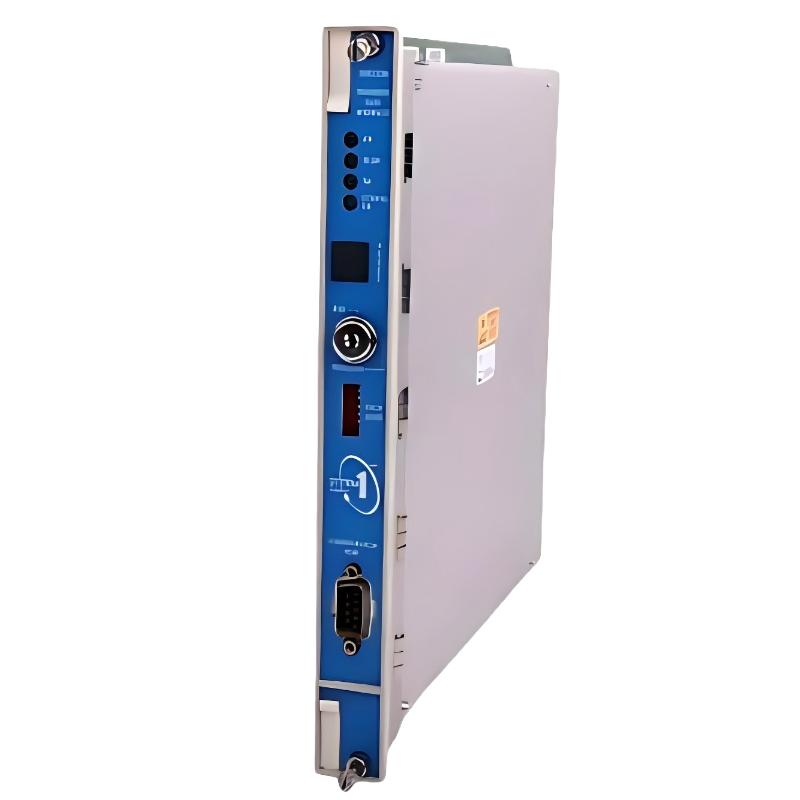

The Bently Nevada 3500/22 (146031-01) Transient Data Interface Module is a Transient Data Interface (TDI) module designed for use within the Bently Nevada 3500 machinery protection system.
This module provides a standard interface for data acquisition and communication, enabling the system to collect, process, and transmit machinery condition data. It plays a key role in supporting monitoring, diagnostics, and predictive maintenance applications.
Compared with fiber optic variants, this module is typically used in standard electrical communication environments, offering reliable performance in industrial control systems.
Technical Specifications
| Parameter | Details |
|---|---|
| Manufacturer | Bently Nevada |
| Model | 3500/22 |
| Part Number | 146031-01 |
| Product Type | Transient Data Interface Module |
| Function | Data acquisition and communication interface |
| Dimensions | 241.3 × 24.4 × 99.1 mm |
| Weight | 0.2 kg |
| Installation | Rack-mounted (3500 system rack) |
| Application | Machinery monitoring and protection systems |
| Environment | Industrial-grade |
| Data Capability | Transient and real-time data processing |
| Compatibility | Bently Nevada 3500 system |
Function and Working Principle
The module operates as a communication and data processing interface within the 3500 system.
Working Principle:
-
Connects to the 3500 system rack backplane
-
Collects data from connected monitoring modules
-
Processes transient and steady-state signals
-
Transmits data to external systems for analysis
Key Functions:
-
Transient data acquisition
-
System communication interface
-
Real-time monitoring support
-
Data transmission to control systems
Role in Industrial Control Systems
The Bently Nevada 3500/22 (146031-01) Transient Data Interface Module plays an important role by:
-
Serving as a key interface for the 3500 monitoring system
-
Supporting continuous machinery condition monitoring
-
Enabling predictive maintenance strategies
-
Providing reliable data exchange within the system
It helps ensure that critical equipment operates safely and efficiently.
Industrial Applications
This module is widely used in:
-
Turbine monitoring systems
-
Compressor and pump protection systems
-
Oil and gas facilities
-
Power generation plants
-
Petrochemical industries
-
Industrial machinery monitoring systems
It is suitable for applications requiring stable and reliable data communication.
Installation and System Integration
For proper operation:
-
Installed in a Bently Nevada 3500 rack
-
Connected to the system backplane
-
Integrated with monitoring modules
-
Configured according to system requirements
-
Installed following manufacturer guidelines
Proper installation ensures accurate data transmission and system stability.
Compatible System Components
This module typically works with:
-
Bently Nevada 3500 rack systems
-
Monitoring and protection modules
-
Rack Interface Modules (RIM)
-
Power supply modules
-
External control and monitoring systems
These components together form a complete machinery monitoring solution.
Recommended Alternative Models
| Model | Type | Key Feature | Application |
|---|---|---|---|
| 146031-01 | TDI Module | Standard communication interface | General industrial use |
| 146031-02 | Fiber I/O Module | Fiber optic (100Base-FX) | Long-distance, EMI environments |
| 288055-01 | TDI Module | Transient data acquisition | Core monitoring |
| 138607-01 | Advanced TDI Module | Enhanced diagnostics | High-performance systems |
| 3500/20 | RIM Module | Rack communication | System integration |
Key Advantages
-
Compact and lightweight design
-
Reliable transient data acquisition
-
Stable communication performance
-
Easy integration into 3500 systems
-
Suitable for standard industrial environments
-
Supports machinery monitoring and diagnostics
Technical FAQs
What is the function of this module?
It provides transient data acquisition and communication within the 3500 system.
Is it a fiber optic module?
No, this is a standard electrical I/O module (not fiber optic).
Where is it typically used?
In industrial machinery monitoring systems requiring reliable data communication.
Conclusion
The Bently Nevada 3500/22 (146031-01) Transient Data Interface Module is a fundamental component in industrial monitoring systems, providing stable and efficient data interface capabilities.
It offers:
-
Reliable transient data acquisition
-
Standard communication interface
-
Seamless integration with 3500 systems
-
Compact and efficient design
For engineers and system integrators, this module is a dependable and essential solution for machinery protection and condition monitoring applications.
