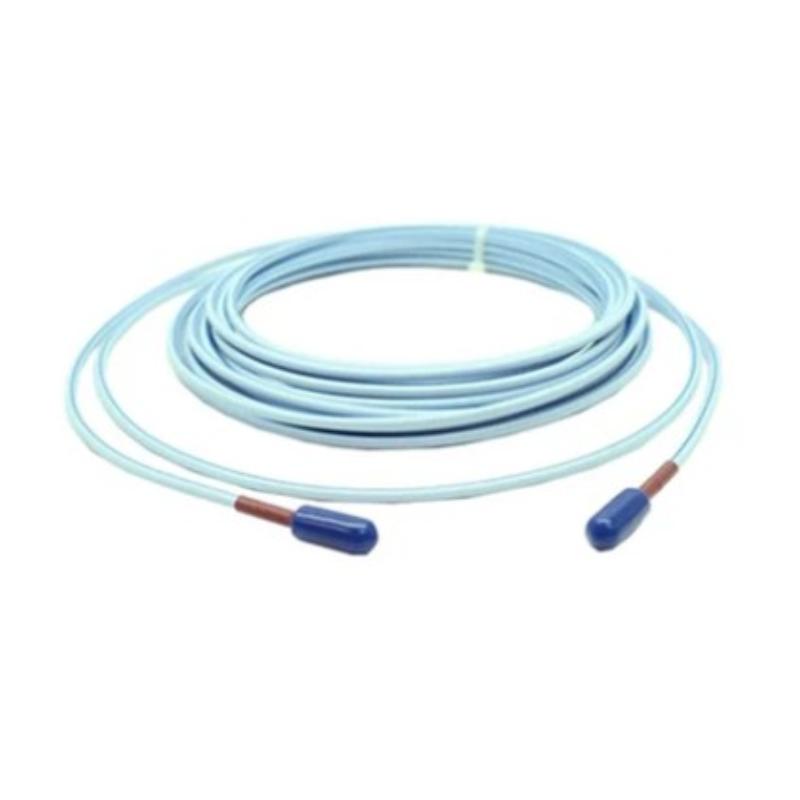

Bently Nevada 330930-040-00-CN Extension Cable — Technical Specifications, Applications, Advantages, and Related Models

1. Product Overview

The Bently Nevada 330930-040-00-CN is an extension cable belonging to the 3300 NSv proximity transducer system. It is designed to connect compatible proximity probes to the corresponding driver electronics, helping transmit the electrical signal required for shaft displacement and vibration monitoring.

This model specifies a 4.0 m extension cable, a standard cable configuration without stainless-steel armor, and a country-specific approval option identified by the suffix CN.

Unlike a proximity probe, the extension cable does not directly measure shaft movement. Instead, it forms part of the electrical connection between the probe and the compatible Proximitor sensor. Correct cable selection is essential because cable length, electrical characteristics, connector type, and the connected probe all affect the performance of the complete measurement channel.

The 3300 NSv system is intended for applications where installation restrictions, small shaft targets, counterbore limitations, or side-view and rear-view constraints make a compact proximity transducer arrangement useful.

2. Technical Parameters

Weight and dimension clarification: The 0.14 kg figure is an approximate cable-only estimate based on nominal cable mass per metre. It is not a guaranteed shipping weight. Because this is a flexible cable assembly, its packaged dimensions depend on how it is coiled and packed; the cable’s nominal length and connector dimensions are more useful for installation planning.

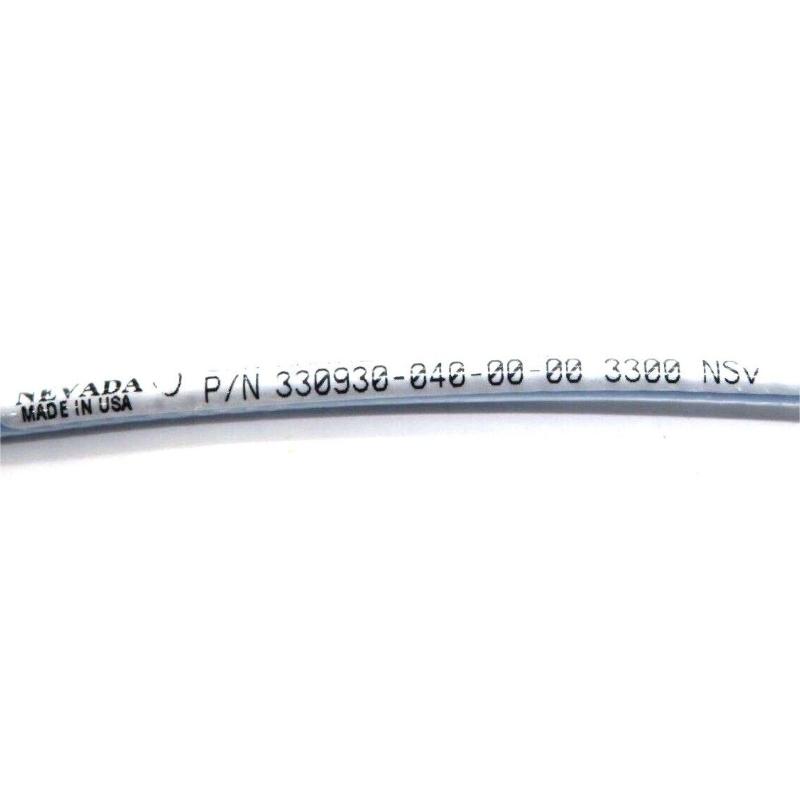

3. Model Number Breakdown

The complete ordering number identifies the cable length, cable construction, and approval configuration.

The CN suffix should not be treated as a universal certification by itself. The approval documentation supplied with the exact cable should be checked against the requirements of the installation site.

When replacing a cable, the complete ordering code matters. A cable of the same length but with a different armor, connector, or approval configuration may not be an appropriate substitute.

4. Product Introduction

4.1 Purpose of the extension cable

The 330930 extension cable provides the electrical connection between a compatible 3300 NSv proximity probe and its Proximitor sensor. It helps maintain the electrical characteristics required for the proximity transducer system to operate correctly.

In a typical installation, the probe is positioned near a rotating shaft or another suitable conductive target. The extension cable connects the probe to the driver electronics, which produce the measurement signal used by the machinery monitoring equipment.

The cable is therefore an important component of the measurement channel, even though it does not independently measure displacement or vibration.

4.2 Electrical design

The cable uses a nominal 75 Ω coaxial construction with FEP insulation. Its electrical characteristics, including capacitance and impedance, are important to the operation of the complete transducer system.

Using an arbitrary coaxial cable in place of the specified extension cable can alter the system response. For this reason, replacement cables should be selected according to the approved system configuration rather than by connector appearance alone.

4.3 Four-metre cable length

The 4.0 m length provides additional distance between the probe and the associated electronics. This can be useful when the probe is installed close to a machine bearing or casing while the electronics are mounted elsewhere on the equipment or in a nearby cabinet.

The selected cable length must remain compatible with the probe and driver arrangement. Cable length should not be changed without checking the requirements of the complete measurement system.

4.4 Unarmored construction

The 00 configuration is specified without stainless-steel armor. This keeps the cable assembly relatively flexible and avoids the additional bulk of an armored section.

The unarmored cable is best suited to installations where the cable can be routed and secured away from sharp edges, excessive vibration at the mounting point, hot surfaces, and potential mechanical damage.

Where the installation requires additional mechanical protection, an appropriately specified armored configuration may be more suitable.

4.5 Integration with the 3300 NSv system

The cable is designed for use within the 3300 NSv proximity transducer system. A typical system includes:

• A compatible 3300 NSv proximity probe.

• A compatible 3300 NSv extension cable.

• A matching 3300 XL NSv Proximitor sensor.

• Compatible monitoring equipment and the necessary installation hardware.

All components must be matched correctly. The cable’s connector, electrical properties, and length are part of the overall transducer-system configuration.

5. Product Applications

5.1 Centrifugal air compressors

Centrifugal air compressors may operate continuously in manufacturing plants, utilities, and industrial process facilities. A compatible proximity transducer system can monitor shaft movement and provide measurement signals to the associated machinery monitor.

The 330930 extension cable helps connect the probe at the machine to the driver electronics at the designated installation point.

5.2 Refrigeration compressors

Industrial refrigeration compressors can require continuous condition monitoring to support reliable operation. In suitable installations, the cable forms part of the proximity measurement channel used to monitor shaft displacement or vibration-related movement.

The cable must be routed according to the installation requirements and kept within the permitted environmental limits.

5.3 Process gas compressors

Process gas compressors are used in chemical processing, gas handling, and other industrial applications. Monitoring their shaft behavior can help maintenance teams observe changes in operating condition.

The extension cable supports the electrical connection between the probe and driver. The monitoring equipment interprets the resulting signal; the cable itself does not diagnose a mechanical fault.

5.4 Turbines and other rotating machinery

On compatible machinery, the extension cable can form part of a shaft-displacement measurement system. The probe is installed at the required measurement point, and the cable connects it to the associated electronics.

Correct routing and connector security are important for maintaining signal integrity in a machine environment.

5.5 Small-shaft monitoring

The 3300 NSv family is intended for applications where standard proximity transducer arrangements may be restricted by small targets, counterbores, or limited side-view and rear-view clearance.

The 330930 cable supports these systems by providing the required connection between the probe and Proximitor sensor.

5.6 Industrial condition monitoring

In a continuous monitoring installation, shaft-related signals can be reviewed over time to identify changes in machinery behavior. The extension cable helps preserve the electrical connection required for those measurements.

Stable connections, correct cable selection, and sound installation practices are important for obtaining dependable data.

5.7 Predictive maintenance systems

A proximity transducer system can contribute to predictive maintenance by providing repeated measurements that can be compared with historical trends. The cable plays a supporting role by connecting the sensing component to the measurement electronics.

Maintenance decisions should be based on the monitoring data, machine operating conditions, and suitable engineering assessment rather than on the cable alone.

6. Main Product Advantages

6.1 Designed for the NSv measurement system

The extension cable is intended for use with compatible 3300 NSv probes and Proximitor sensors. Selecting the correct system cable helps maintain the electrical characteristics required by the transducer arrangement.

6.2 Four-metre reach

The 4.0 m cable provides flexibility in locating the probe and associated electronics. It can help accommodate the physical layout of machinery and nearby monitoring equipment.

6.3 Flexible unarmored construction

The unarmored version is relatively compact and flexible, which can simplify routing in installations where the cable has adequate mechanical protection.

6.4 Defined electrical characteristics

The nominal 75 Ω coaxial construction and specified cable capacitance are important to the intended transducer system. Using the correct cable reduces the risk of introducing an unapproved electrical configuration.

6.5 Compact connector arrangement

The miniature coaxial connectors support the compact connection requirements of the NSv system. Their small dimensions can be useful where space around the equipment is restricted.

6.6 Supports continuous measurement

A properly installed extension cable helps maintain the electrical path required for continuous shaft monitoring. This supports the operation of the complete measurement channel.

6.7 Straightforward replacement identification

The model number identifies the cable family, length, construction option, and approval option. This makes it easier to distinguish the required replacement from similar cables with different configurations.

6.8 Suitable for industrial installations

When installed within the specified environmental and mechanical limits, the cable can be used as part of industrial machinery monitoring equipment.

Its suitability for a particular site depends on the operating temperature, cable routing, mechanical protection, connector environment, and required certification.

7. Installation and Maintenance Recommendations

1. Verify the complete part number. Confirm that 330930-040-00-CN matches the required cable length and construction.

2. Check the connected components. Ensure that the cable is compatible with the installed NSv probe and Proximitor sensor.

3. Inspect the connectors. Check for damaged threads, bent connector parts, contamination, or other visible defects before installation.

4. Follow the cable routing plan. Keep the cable away from sharp edges, moving parts, and sources of excessive heat.

5. Avoid excessive bending. Respect the minimum bend radius specified for the applicable cable assembly.

6. Secure the cable appropriately. Prevent unnecessary pulling, twisting, and movement at the connector ends.

7. Confirm the approval requirements. Verify that the CN option and supplied certification are appropriate for the installation location.

8. Inspect the complete measurement channel. After installation, check the probe, cable, driver, and monitoring equipment as a complete system.

9. Document the replacement. Record the model number, cable route, installation date, and relevant commissioning checks.

10. Replace damaged components with approved parts. Do not attempt to compensate for an incorrect cable configuration by changing unrelated monitoring settings.

8. Five Related Models and Configurations

The following table lists related 3300 NSv extension-cable configurations and a related system component. Cable-length variants should be ordered using the full confirmed part number; the listed alternatives are intended as selection references rather than automatic substitutes.

Before ordering a length variant, confirm that the complete configuration is available and appropriate for the installed system. The weight of each cable depends on the actual assembly and packaging; the nominal cable mass can be used for preliminary estimates only.

9. Five Other Commonly Used Models from the Same Brand

The following products cover related proximity sensing and machinery monitoring functions. Some are probes or cables, while others are electronic components. They serve different roles and are not direct substitutes for the 330930 extension cable.

Compatibility note: A 3300 NSv extension cable should not automatically be replaced by a 3300 XL extension cable. The probe family, driver, cable electrical characteristics, and complete measurement-channel requirements must all be checked before selecting an alternative.

10. Purchasing Checklist

11. Product Summary

The Bently Nevada 330930-040-00-CN is a 4.0 m extension cable designed for the 3300 NSv proximity transducer system. Its main function is to connect a compatible proximity probe to the corresponding Proximitor sensor while maintaining the electrical characteristics required for shaft-displacement measurement.

The model’s defining characteristics are its 4.0 m length, standard unarmored cable configuration, nominal 75 Ω coaxial construction, FEP insulation, and country-specific approval suffix.

Its principal benefit is providing a correctly specified connection within a compatible machinery monitoring channel. Proper selection, routing, connector handling, and verification of system compatibility are essential for dependable operation.

For procurement and replacement, confirm the complete part number, actual cable construction, required approvals, and compatibility with the installed probe and driver. The approximate 0.14 kg figure is a cable-only estimate; the actual net and shipping weights should be confirmed for the supplied assembly.
