Product Overview

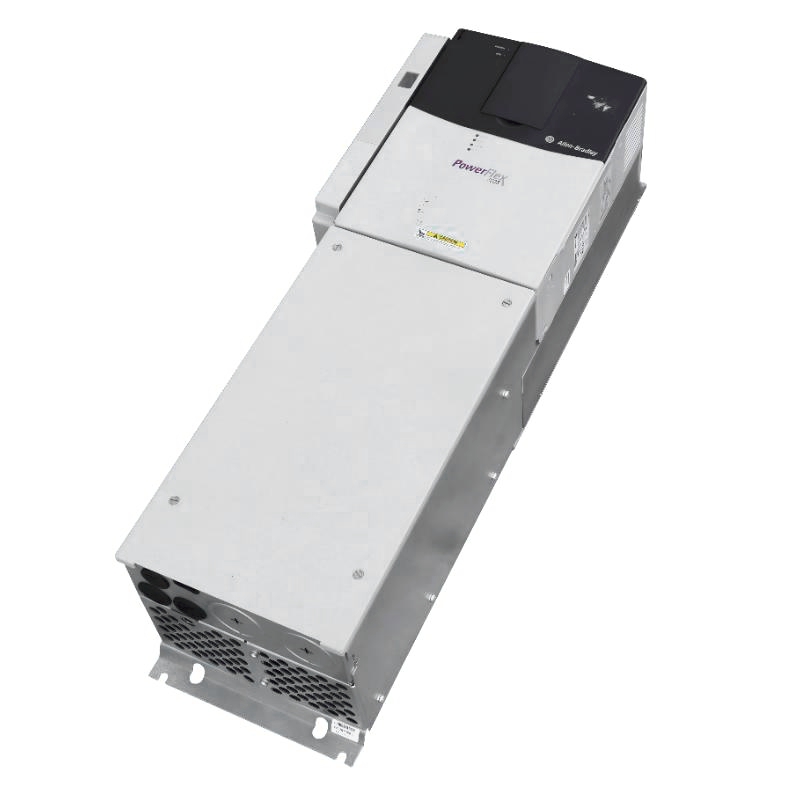

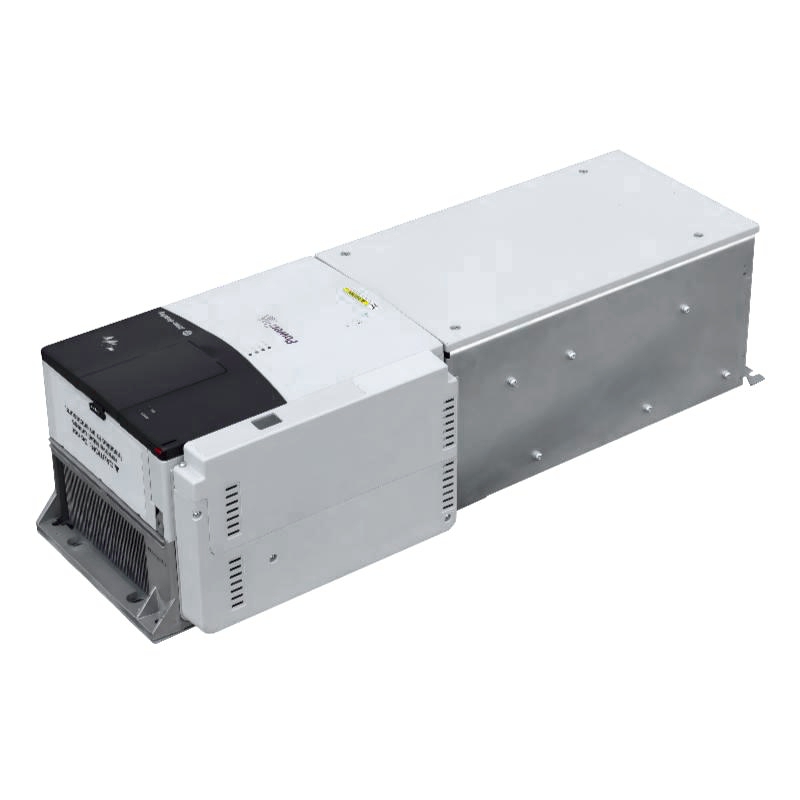

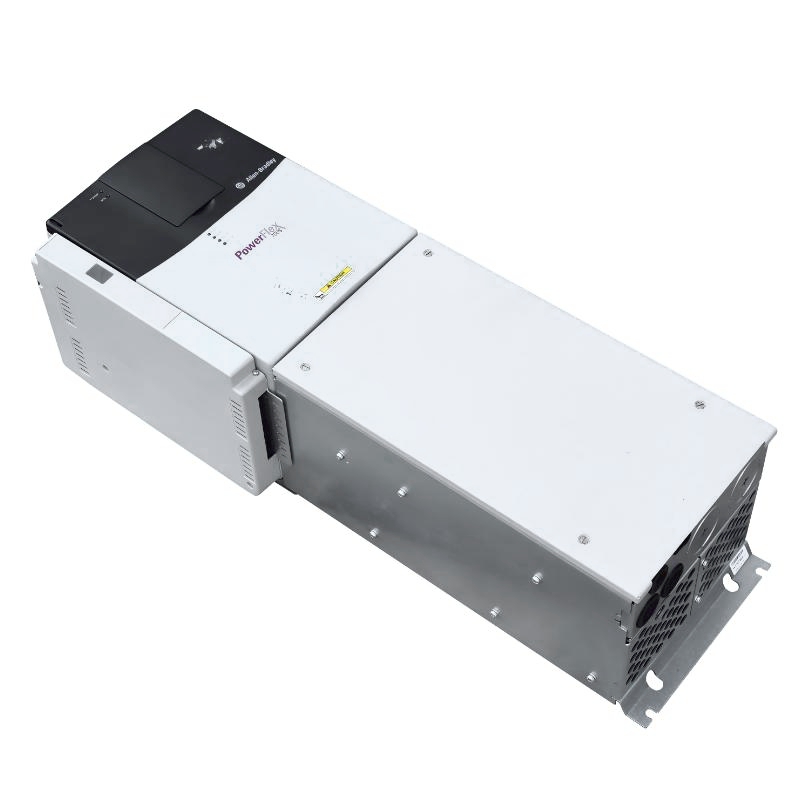

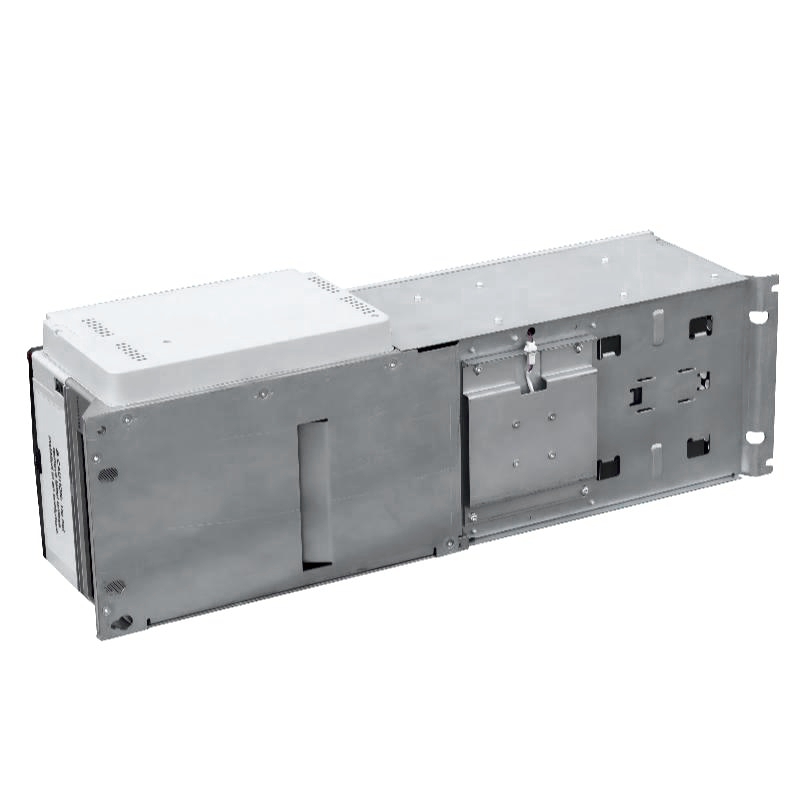

The Allen Bradley 20DC170A0ENNANANE is a PowerFlex 700S adjustable-frequency AC drive rated at 170 A, with a normal-duty power rating of 90 kW and a heavy-duty rating of 75 kW. It operates from a 400 V three-phase AC supply and uses Phase II control with an expanded cassette and standard incremental encoder configuration. This combination is intended for industrial motor-control applications requiring regulated speed and torque within a coordinated automation system.
The PowerFlex 700S differs from a basic speed-control drive through its advanced control architecture. Phase II control supports field-oriented motor regulation, allowing the drive to manage motor response according to configured operating commands and feedback information. This is useful in machinery where speed consistency, acceleration behavior, and torque response affect the production process.
The 20DC170A0ENNANANE includes conformal coating and an EMC filter with a common-mode choke. Its specified configuration does not include a Human Interface Module, internal brake IGBT, drive-mounted brake resistor, or internal communication module. The expanded cassette and incremental encoder arrangement are also relevant when matching the drive to an existing motor-control system.
In a material-handling installation, for example, the drive can regulate a conveyor motor as the production sequence changes. A PLC coordinates sensors, interlocks, and adjacent machinery, while the drive manages the motor’s operating response. In other industrial applications, similar control functions can support machinery that requires repeatable acceleration, regulated speed, or controlled torque.
The 170 A current rating and 90 kW normal-duty rating establish the drive’s capacity under the specified operating conditions. Final application suitability also depends on the motor nameplate data, load characteristics, operating cycle, cooling conditions, and required control functions.
Technical Specifications
| Parameter | Specification |
|---|---|
| Manufacturer | Allen-Bradley |
| Model | 20DC170A0ENNANANE |
| Product Family | PowerFlex 700S |
| Product Type | Adjustable-Frequency AC Drive |
| Drive Series | 20D |
| Frame Size | Frame 6 |
| Rated Input Voltage | 400 V AC |
| Input Phases | Three-phase |
| Rated Output Current | 170 A |
| Normal-Duty Power Rating | 90 kW |
| Heavy-Duty Power Rating | 75 kW |
| Control Architecture | Phase II control |
| Control Method | Field-oriented control |
| Cassette Configuration | Expanded cassette |
| Encoder Configuration | Standard incremental encoder |
| Analog Inputs | 3 |
| Analog Outputs | 2 |
| Digital Inputs | 6 |
| Digital Outputs | 2 |
| Human Interface Module | Not included |
| Internal Brake IGBT | Not included |
| Drive-Mounted Brake Resistor | Not included |
| Internal Communication Module | Not included |
| EMC Filter | Included, with common-mode choke |
| Conformal Coating | Included |
| Enclosure Rating | IP20 / NEMA/UL Type 1 |
| Maximum Output Frequency | 400 Hz |
| Dimensions | 850.0 × 403.9 × 275.5 mm |
| Weight | 71.44 kg |
Product Features
- 170 A rated output current: Supports compatible motor applications within the drive’s electrical and thermal operating limits.
- 90 kW normal-duty rating: Provides the specified power capacity for normal-duty operation.
- 75 kW heavy-duty rating: Establishes the applicable power rating for heavier load conditions.
- Phase II control architecture: Supports advanced motor regulation within the PowerFlex 700S family.
- Field-oriented control: Regulates motor operation according to configured control parameters and available feedback.
- Incremental encoder interface: Supports compatible encoder-based feedback arrangements.
- Expanded cassette: Provides the specified control hardware configuration for this model.
- EMC filtering: Includes a filter with a common-mode choke for the specified installation arrangement.
- Conformal coating: Provides the specified protective coating on electronic assemblies.
- Integrated control I/O: Includes three analog inputs, two analog outputs, six digital inputs, and two digital outputs.
- No onboard HIM: The supplied configuration does not include a Human Interface Module.
- External braking provision: Does not include an internal brake IGBT or drive-mounted brake resistor.
Working Principle
The 20DC170A0ENNANANE converts incoming three-phase AC power into a controlled electrical output for the connected motor. Its Phase II control architecture supports field-oriented control, enabling the drive to regulate motor operation according to configured speed, torque, and operating requirements.
Three-Phase AC Supply → PowerFlex 700S Drive → Controlled Electrical Output → AC Motor → Mechanical Load
The incoming supply feeds the drive’s power-conversion section, which establishes the internal DC bus and generates a controlled output for the motor. The drive adjusts its output according to the selected control mode and operating commands.
Field-oriented control manages the motor’s flux-producing and torque-producing current components. This allows the drive to regulate motor behavior across changing operating conditions. The resulting performance depends on the motor characteristics, drive parameters, and feedback arrangement.
The standard incremental encoder configuration supports applications that use encoder feedback for closed-loop motor regulation. The encoder supplies signals representing motor movement, which the control system can use to evaluate the motor’s response to a command. Correct encoder wiring and parameter configuration are therefore important during commissioning.
The onboard analog and digital I/O connects the drive to external automation equipment. A PLC can provide run commands and reference signals while monitoring configured status information. The drive handles motor regulation, while the controller coordinates the wider machine sequence.
This model does not include an internal brake IGBT or drive-mounted brake resistor. Where dynamic braking is required, the system needs a suitable external braking arrangement compatible with the drive and the load’s stopping requirements.
Role in a PowerFlex 700S Motor Control Architecture
The 20DC170A0ENNANANE serves as the motor-regulation stage between the three-phase AC supply and the connected motor. It processes operating commands and encoder feedback according to its configured control strategy, while external automation equipment coordinates the production sequence.
Three-Phase AC Supply → PowerFlex 700S Drive → AC Motor → Mechanical Transmission → Driven Equipment
| System Component | Function |
|---|---|
| Allen-Bradley 20DC170A0ENNANANE | Regulates motor operation using Phase II control |
| Three-Phase AC Supply | Provides electrical power to the drive |
| Power-Conversion Section | Generates controlled electrical output for the motor |
| Incremental Encoder | Supplies feedback signals for compatible motor-control applications |
| PLC or Industrial Controller | Coordinates operating commands, interlocks, and machine sequences |
| Analog and Digital I/O | Carries configured command, reference, and status signals |
| AC Motor | Converts electrical energy into mechanical output |
| Mechanical Transmission | Transfers motor torque to the driven equipment |
| Branch-Circuit Protection | Provides the required electrical protection for the installation |
| External Braking Equipment, Where Required | Supports applications requiring dynamic braking |
| Supervisory Interface | Supports operator interaction and system monitoring |
Industrial Applications
| Application | Typical Use |
|---|---|
| Industrial Conveyors | Regulating motor speed during material transport |
| Heavy Material Handling | Coordinating compatible motors with automated handling sequences |
| Manufacturing Machinery | Controlling motor response within production cycles |
| Processing Equipment | Adjusting motor operation according to process requirements |
| Packaging Machinery | Regulating compatible motor-driven mechanisms |
| Machine Tools | Supporting controlled motor operation in suitable machine configurations |
| Industrial Winding Systems | Managing compatible motor applications requiring regulated speed or torque |
| Automated Production Lines | Coordinating motor operation with sensors and adjacent equipment |
| Industrial Material Processing | Controlling compatible high-power motor loads |
| Motor Drive Replacement Projects | Replacing a matching PowerFlex 700S configuration in an established installation |
Installation and Maintenance
- Confirm the drive configuration: Verify that 20DC170A0ENNANANE matches the required PowerFlex 700S control architecture, current rating, and option arrangement.
- Check the incoming supply: Confirm that the three-phase AC source meets the drive’s electrical input requirements.
- Establish electrical isolation: Follow the applicable lockout/tagout procedure and verify that stored electrical energy has been discharged before servicing the drive.
- Review motor requirements: Compare the motor nameplate current, voltage, power, and duty cycle with the drive’s 90 kW normal-duty and 75 kW heavy-duty ratings.
- Inspect the installation environment: Check ventilation, ambient conditions, enclosure requirements, and mounting arrangements against the applicable installation instructions.
- Verify electrical protection: Check that the branch-circuit protective devices are suitable for the drive and the installed power system.
- Inspect power connections: Check the incoming supply terminals, motor connections, grounding, and cable condition before energizing the system.
- Verify encoder wiring: Confirm that the incremental encoder signals, wiring arrangement, and configured feedback parameters are compatible with the application.
- Configure drive parameters: Enter the appropriate motor data, control settings, feedback parameters, and operating limits.
- Review braking requirements: Establish an appropriate external braking arrangement if dynamic braking is needed, since this configuration does not include an internal brake IGBT or drive-mounted brake resistor.
- Perform controlled commissioning: Verify motor direction, encoder response, speed regulation, acceleration, deceleration, and operating behavior under controlled conditions.
- Record maintenance results: Document the drive reference, parameter settings, encoder configuration, control wiring, protection arrangement, and commissioning findings.
Related Components
| Component | Function |
|---|---|
| Allen-Bradley 20DC170A0ENNANANE | PowerFlex 700S adjustable-frequency AC drive with Phase II control |
| Three-Phase AC Supply | Provides the drive’s input electrical power |
| Compatible AC Motor | Converts controlled electrical power into mechanical output |
| Incremental Encoder | Supplies motor feedback for compatible control arrangements |
| PLC or Industrial Controller | Coordinates drive commands and machine sequences |
| Motor Cable | Connects the drive output to the motor |
| Branch-Circuit Protective Devices | Provide the required electrical protection |
| External Braking Equipment, Where Required | Supports applications requiring dynamic braking |
| Analog Signal Devices | Supply compatible process references or command signals |
| Operator Interface | Supports monitoring and control through the configured automation system |
Recommended Related Models
| Model / Product Family | Product Type | Typical Application |
|---|---|---|
| Allen-Bradley 20DC170A0ENNANANE | PowerFlex 700S AC Drive, 170 A | Phase II control with expanded cassette and standard incremental encoder |
| Allen-Bradley 20DC125A0ENNANANE | PowerFlex 700S AC Drive, 125 A | Lower-current motor-control applications |
| Allen-Bradley 20DC085A0ENNANANE | PowerFlex 700S AC Drive, 85 A | Lower-current applications using the PowerFlex 700S platform |
| Allen-Bradley PowerFlex 700S Phase II | Adjustable-Frequency AC Drive Family | Industrial applications requiring advanced motor regulation |
| Compatible Incremental Encoders | Motor Feedback Devices | Providing feedback signals for supported closed-loop control arrangements |
Key Advantages
- Provides 170 A rated output current for compatible motor applications.
- Supports 90 kW normal-duty and 75 kW heavy-duty operation.
- Uses Phase II control for advanced motor regulation.
- Supports incremental encoder feedback in compatible control arrangements.
- Includes analog and digital I/O for external automation integration.
- Incorporates EMC filtering and conformal coating in the specified configuration.
Technical FAQs
How should the 90 kW normal-duty rating and 75 kW heavy-duty rating be applied when selecting a motor?
The appropriate rating depends on the motor’s load profile and operating cycle. Normal-duty and heavy-duty applications impose different demands on the drive, so selection should account for motor current, torque requirements, acceleration, and expected overload conditions.
What is the purpose of the expanded cassette in this configuration?
The expanded cassette identifies the specified hardware arrangement for this PowerFlex 700S model. It is relevant when matching the drive to an existing control system or planning a replacement with the same control architecture.
How does incremental encoder feedback affect commissioning?
The encoder provides feedback signals used by compatible closed-loop control arrangements. Incorrect wiring, incompatible signals, or unsuitable feedback parameters can affect speed regulation and motor response, so the feedback path should be checked during commissioning.
What must be considered when the application requires frequent stopping?
Frequent stopping can increase the braking demands placed on the drive and motor. Because this configuration does not include an internal brake IGBT or drive-mounted brake resistor, the required braking arrangement and operating cycle must be considered as part of the system design.
