- Bently Nevada
- 330780-X1-05 148367-24

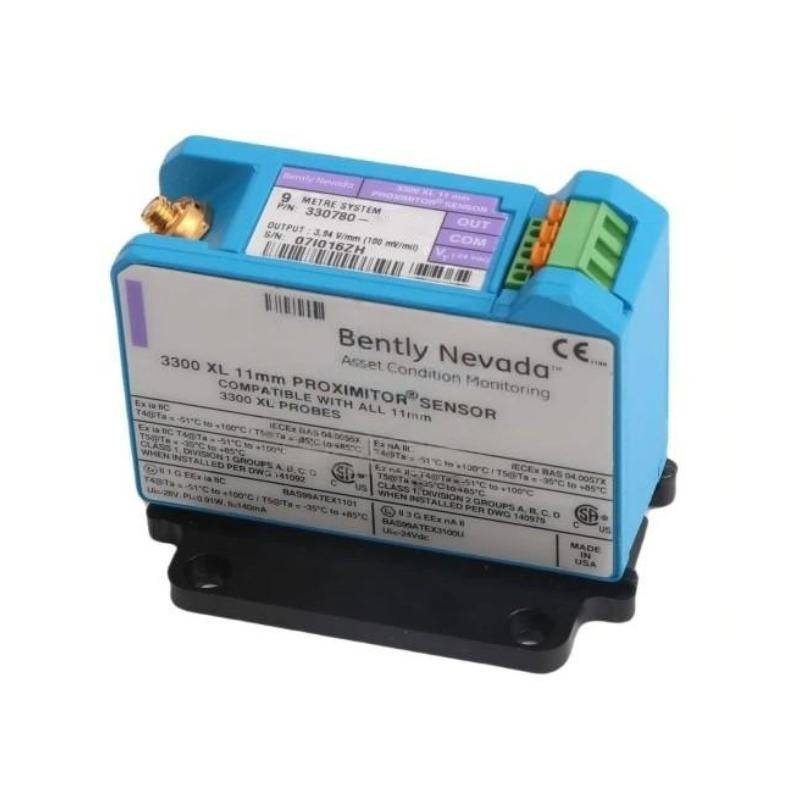

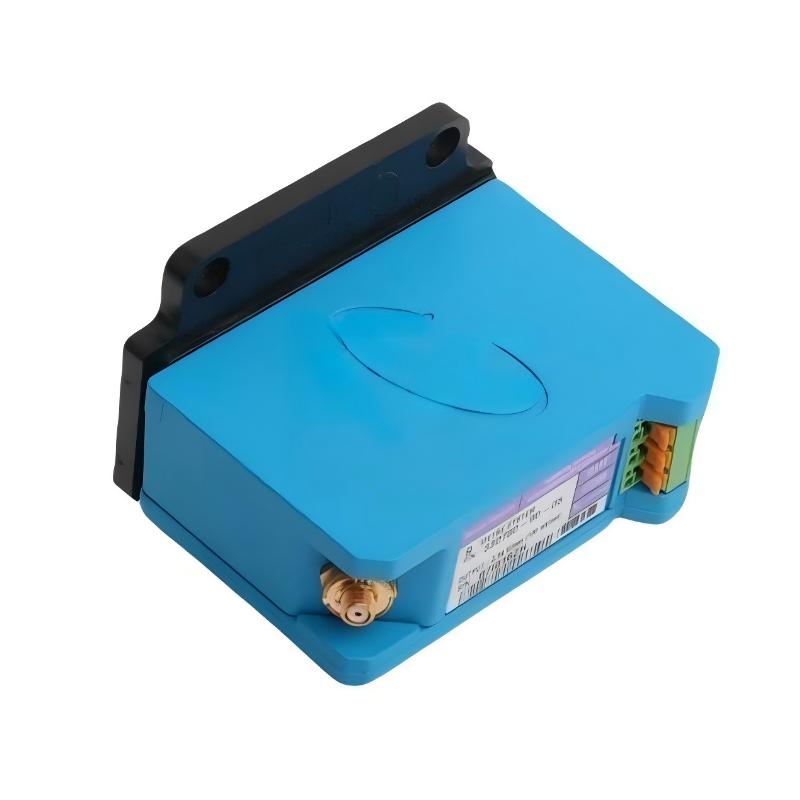

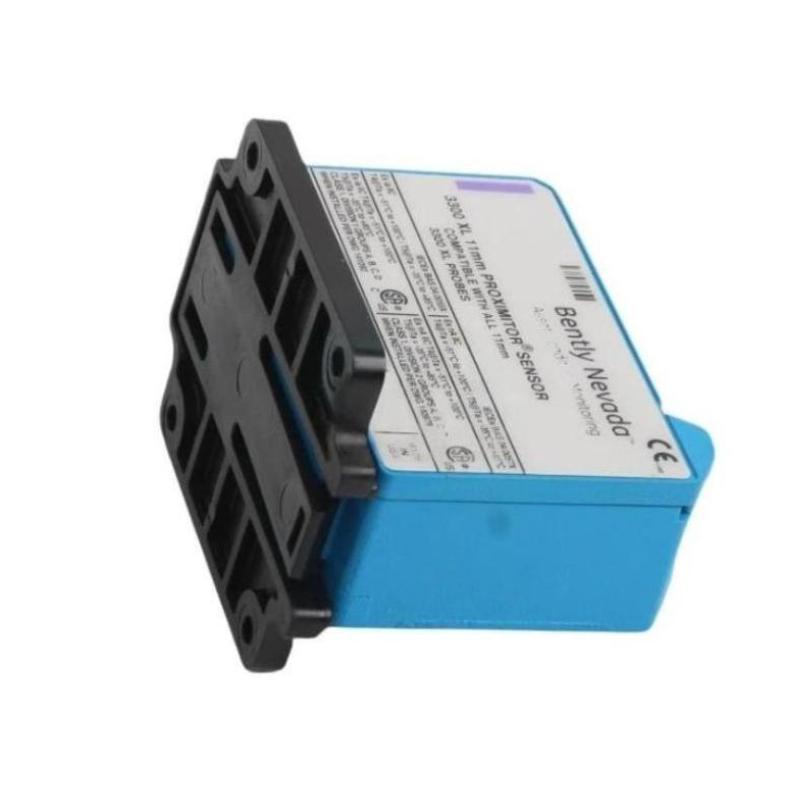

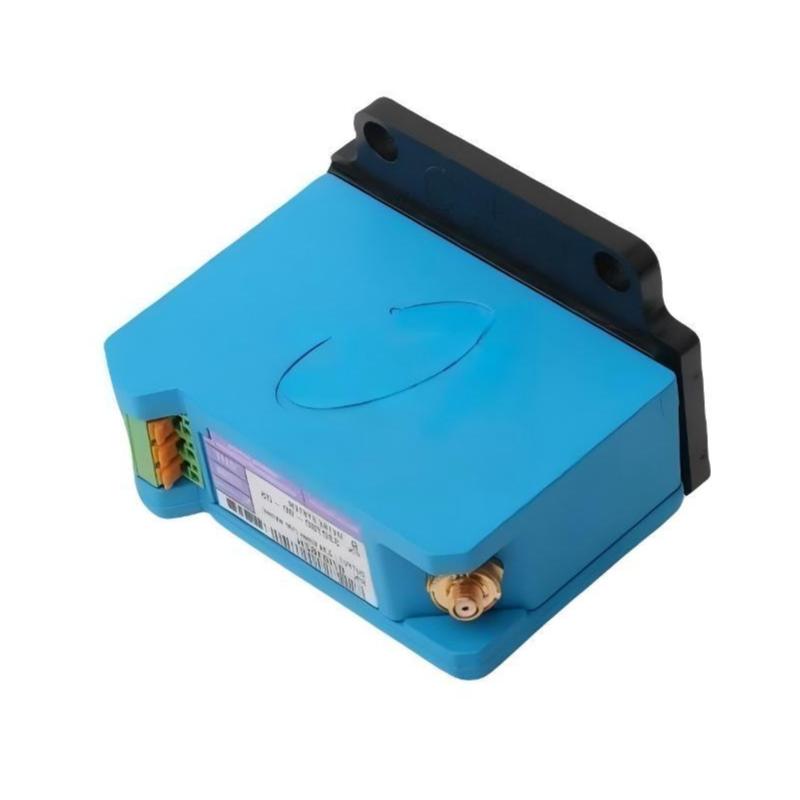

- 3300 XL 11 mm Front Sensor
- USA
- 81.3 x 35.1 x 58.4 mm
- 0.255 kg
- Xiamen, China
- New & In Stock
- T/T, PayPal, Western Union
- 1 Year
- 1-3 Working Days
- DHL, UPS, TNT, FedEx and EMS.
- 24-Hour Service
- COO
- 2
Our advantage
Global Logistics
We have a 10-year logistics and express cooperation agreement, so our products can be shipped to any place in the world.
Brand new and original
Our products are imported in bulk from the place of origin. Because of the cooperative relationship, our products are all original and 100% new.
24-hour service
We provide 7*24 hours service to our customers. We will be there whenever you need us.
Price advantage
All our products are priced very favorably because we have our own warehouse and supply.
| Company Information | |||
| [email protected] | |||
| Mobile | +8615980777398 | ||
| +8615980777398 | |||
| 15980777398 |
Product Overview
In modern industrial condition monitoring and machinery protection systems, high-precision vibration and displacement measurement is essential for ensuring safe and stable equipment operation. The Bently Nevada 330780-X1-05 (148367-24) 3300 XL 11 mm Front Sensor is designed for reliable non-contact sensing of rotating machinery in demanding industrial environments.
As part of the 3300 XL sensor family, this model integrates compact mechanical design with stable measurement performance, making it suitable for applications where installation space and signal integrity are both critical factors. It is widely used in continuous monitoring systems that require long-term reliability and accurate data acquisition.
Technical Specifications
| Parameter | Details |
|---|---|
| Manufacturer | Bently Nevada |
| Model | 330780-X1-05 |
| Alternate Part Number | 148367-24 |
| Series | 3300 XL |
| Product Type | 11 mm Front Sensor |
| Sensor Type | Proximity / Vibration Sensor |
| Dimensions | 81.3 × 35.1 × 58.4 mm |
| Weight | 0.255 kg |
| Measurement Type | Non-contact vibration and displacement |
| Output Signal | Analog voltage |
| Operating Temperature | Industrial-grade range |
| Installation | Panel / machine mount |
| System Compatibility | 3300 XL transducer systems |
Function and Working Principle
The 330780-X1-05 sensor utilizes eddy current proximity technology to measure the distance between the probe tip and a conductive target surface without physical contact.
Working principle:
- The sensor generates a high-frequency electromagnetic field
- A conductive target enters the field and induces eddy currents
- These currents modify the electromagnetic field characteristics
- The system converts these variations into a proportional electrical signal
This allows precise real-time measurement of vibration and shaft displacement while eliminating mechanical wear and ensuring stable long-term operation.
Role in Industrial Control Systems
Within industrial automation and machinery protection systems, the 330780-X1-05 plays a key role in:
- Monitoring vibration and displacement of rotating machinery
- Providing real-time data for protection systems
- Supporting predictive maintenance strategies
- Enabling early fault detection and diagnostics
Its compact design makes it suitable for installations where space is limited but measurement accuracy is critical.
Industrial Applications
The 330780-X1-05 sensor is widely used in industries that rely on continuous machinery monitoring:
- Power generation systems
- Oil and gas facilities
- Petrochemical processing plants
- Turbines, compressors, and pumps
- Heavy industrial manufacturing
- Process automation environments
It is engineered for stable performance in harsh and electrically noisy environments.
Installation and System Integration
Proper installation is essential for achieving optimal performance:
- Mounted near rotating shafts with precise alignment
- Installed using compact mechanical housing design
- Integrated into 3300 XL monitoring systems
- Connected to signal conditioning and data acquisition units
- Calibrated during system commissioning
- Requires secure mounting to minimize vibration interference
Correct installation ensures accurate signal output and long-term stability.
Compatible System Components
The 330780-X1-05 typically operates within a complete monitoring ecosystem, including:
- Proximitor sensor modules
- 3300 XL interface and extension systems
- Vibration monitoring racks
- Machinery protection systems
- Diagnostic and condition monitoring platforms
These components work together to form a complete industrial asset protection solution.
Recommended Alternative Models
| Model | Type | Key Feature | Application |
|---|---|---|---|
| 330780-X1-05 | 11 mm Sensor | Compact configuration | Space-limited installations |
| 330780-51-05 | 11 mm Sensor | Standard cable version | General monitoring |
| 330780-90-05 | 11 mm Sensor | Extended cable design | Large systems |
| 330780-91-05 | 11 mm Sensor | Long-distance installation | Distributed systems |
| 330730 Series | 8 mm Sensor | Compact probe design | Tight installation spaces |
Key Advantages
- High-accuracy non-contact measurement
- Compact and space-efficient design
- Stable performance in industrial environments
- Strong resistance to electromagnetic interference
- Compatible with 3300 XL architecture
- Supports continuous condition monitoring applications
Technical FAQs
What is the main function of the 330780-X1-05 sensor?
It measures vibration and shaft displacement using eddy current non-contact sensing technology.
What is the advantage of its compact design?
It allows installation in confined spaces where standard sensor configurations may not fit.
Is it suitable for continuous operation?
Yes, it is designed for 24/7 industrial machinery monitoring.
Conclusion
The Bently Nevada 330780-X1-05 (148367-24) 3300 XL 11 mm Front Sensor is a compact and reliable solution for industrial vibration monitoring and machinery protection systems. With its non-contact measurement technology and space-efficient design, it ensures accurate real-time data acquisition in demanding industrial environments.
For engineers and maintenance professionals, this sensor provides a dependable option for improving system reliability, enhancing diagnostics, and supporting predictive maintenance strategies.
