Product Overview

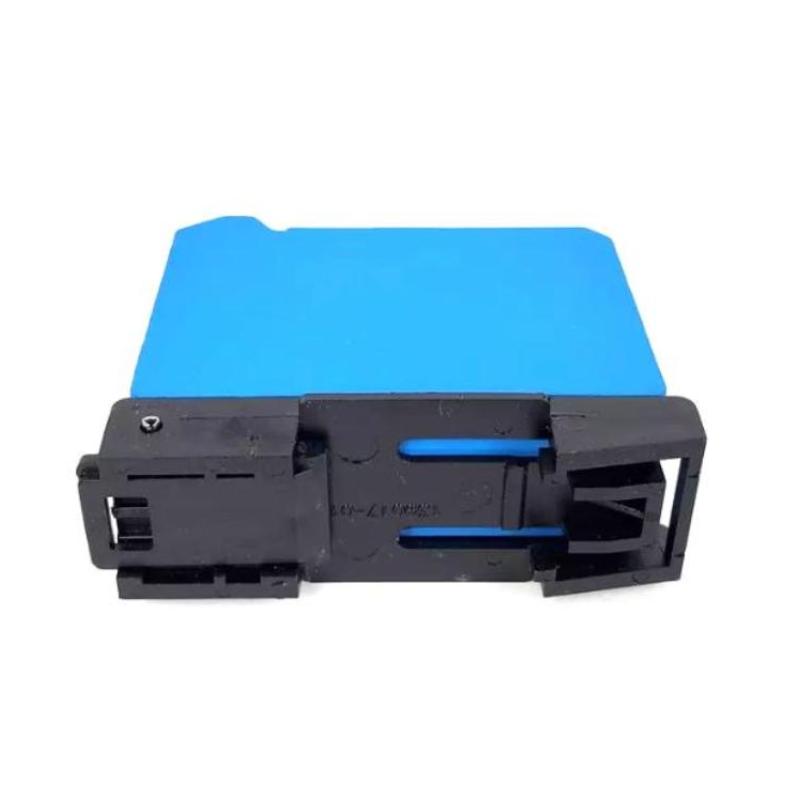

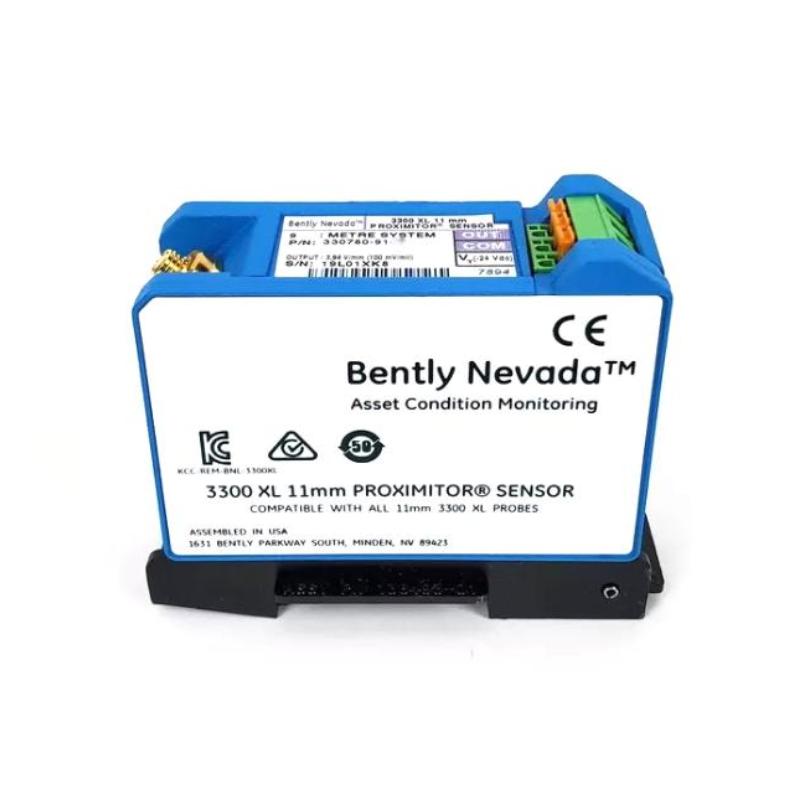

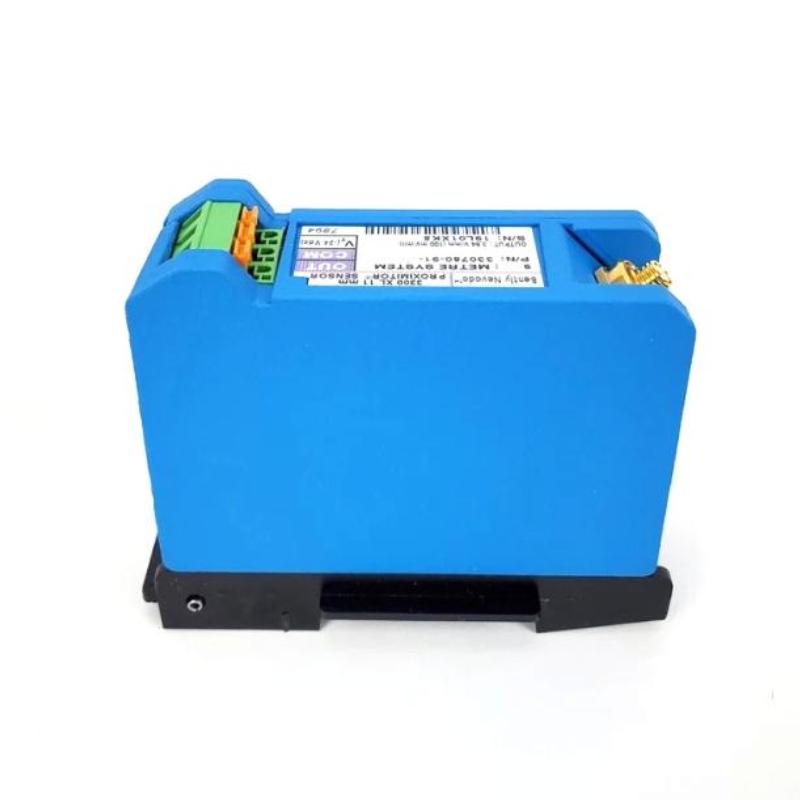

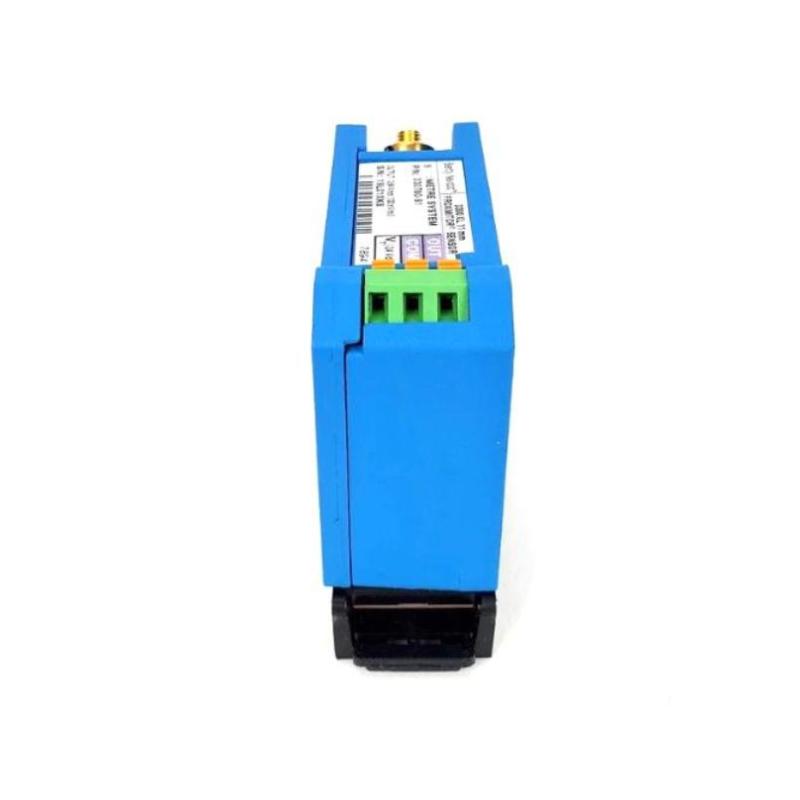

In industrial machinery protection and condition monitoring systems, accurate and continuous vibration and displacement measurement is crucial for ensuring equipment reliability and preventing unplanned failures. The Bently Nevada 330780-91-CN 3300 XL 11 mm Front Sensor is engineered to deliver high-precision non-contact sensing for rotating machinery in demanding industrial environments.

As part of the 3300 XL sensor series, this model features a 9.0-meter integrated cable with a region-specific CN variant, providing flexible installation and reliable performance in standardized industrial configurations. It is widely adopted in condition monitoring systems where long-term stability and measurement accuracy are essential.

Technical Specifications

Function and Working Principle

The 330780-91-CN sensor uses eddy current proximity sensing technology to measure the distance between the probe tip and a conductive target surface without physical contact.

Working principle:

• The probe emits a high-frequency electromagnetic field
• When a conductive surface approaches, eddy currents are induced
• These eddy currents modify the electromagnetic field
• The system converts these variations into a proportional electrical signal

This enables precise real-time monitoring of vibration and shaft displacement with no mechanical wear and stable performance.

Role in Industrial Control Systems

Within industrial automation and machinery protection architectures, the 330780-91-CN plays a vital role by:

• Delivering continuous vibration and displacement data
• Supporting machinery protection and alarm systems
• Feeding real-time signals into condition monitoring platforms
• Enabling predictive maintenance strategies

Its extended cable length and region-specific configuration support flexible installation in standardized industrial systems.

Industrial Applications

The 330780-91-CN sensor is widely used in industries that depend on precise machinery condition monitoring:

• Power generation plants
• Oil and gas processing facilities
• Petrochemical and refining industries
• Turbines, compressors, and pumps
• Heavy industrial manufacturing systems
• Continuous process automation environments

It is engineered to perform reliably in harsh and high-interference conditions.

Installation and System Integration

Proper installation is critical to ensure accurate performance and long-term stability:

• Mounted near rotating shafts with precise gap adjustment
• Routed using the 9.0-meter integrated cable for flexible system layout
• Securely installed to minimize vibration interference
• Connected to 3300 XL monitoring and interface systems
• Integrated into machinery protection and diagnostic platforms
• Requires calibration during system commissioning

Correct installation ensures stable signal output and measurement accuracy.

Compatible System Components

The 330780-91-CN typically operates within a complete monitoring architecture that includes:

• Proximitor sensor modules
• 3300 XL extension and interface units
• Vibration monitoring racks
• Data acquisition and processing systems
• Machinery protection and diagnostic modules

Together, these components form a complete industrial condition monitoring solution.

Recommended Alternative Models

Key Advantages

• High-precision non-contact measurement
• Extended 9.0-meter installation flexibility
• Strong resistance to electromagnetic interference
• Stable performance in harsh industrial environments
• Compatible with 3300 XL system architecture
• Supports continuous condition monitoring applications

Technical FAQs

What is the main function of the 330780-91-CN sensor?
It measures vibration and shaft displacement of rotating machinery using eddy current non-contact sensing technology.

What does the “CN” suffix indicate?
It represents a region-specific configuration variant designed for standardized system deployment.

Is this sensor suitable for continuous operation?
Yes, it is designed for reliable long-term industrial monitoring applications.

Conclusion

The Bently Nevada 330780-91-CN 3300 XL 11 mm Front Sensor is a dependable and high-performance solution for industrial condition monitoring and machinery protection systems. With its non-contact sensing technology, extended cable design, and region-specific configuration, it delivers accurate real-time data that supports predictive maintenance, enhances operational reliability, and improves overall system performance.

For engineers and maintenance professionals, this sensor provides a reliable foundation for effective vibration monitoring and long-term equipment health management.
