Product Overview

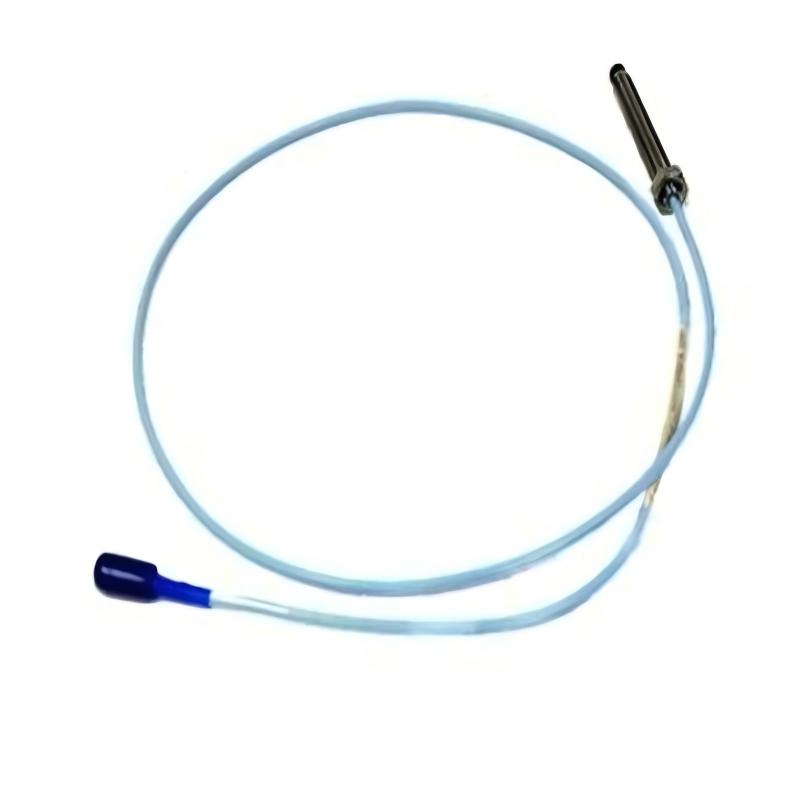

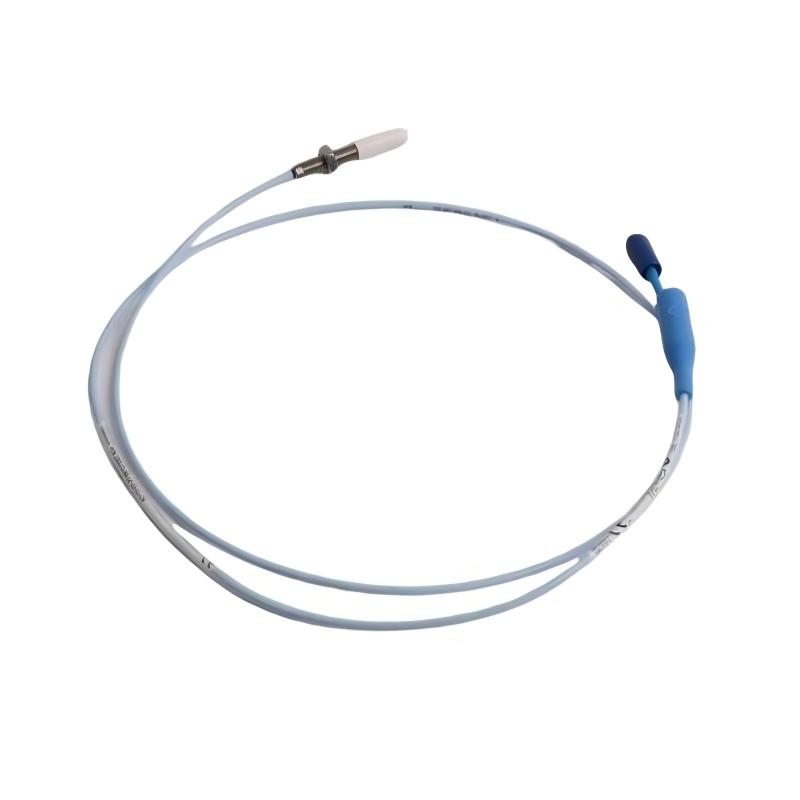

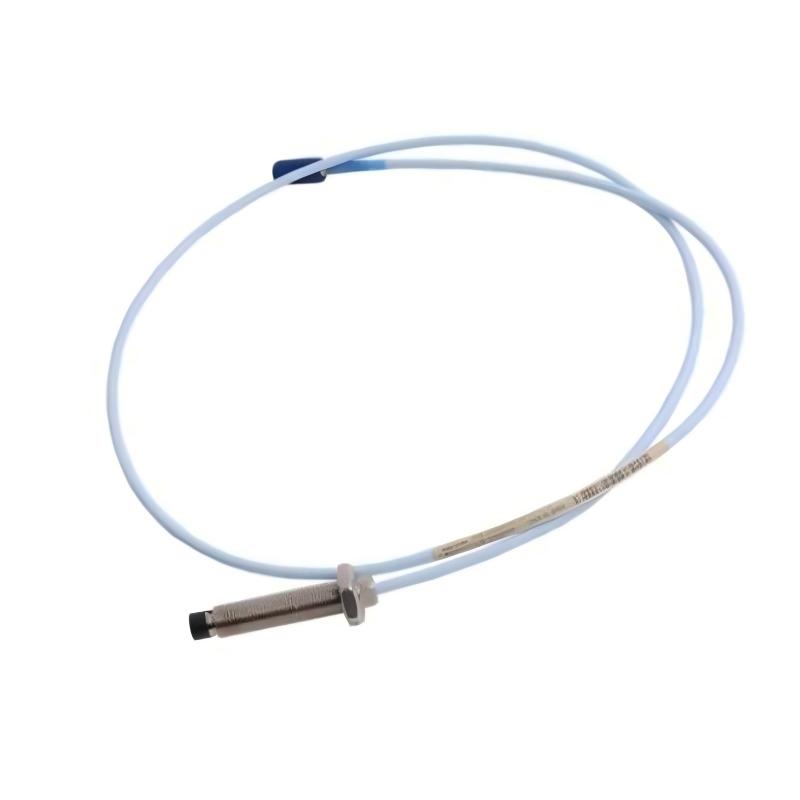

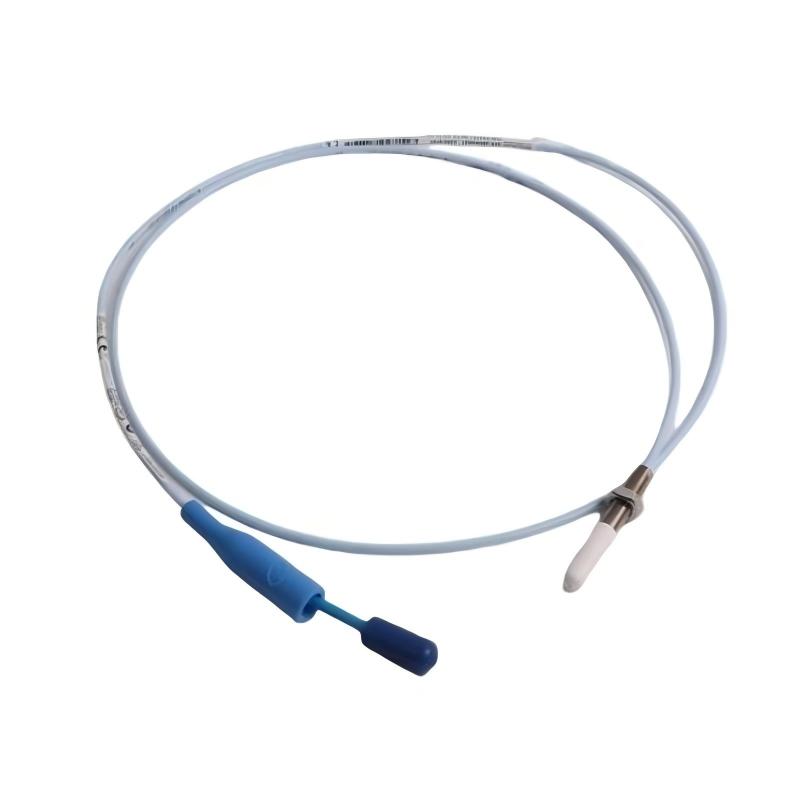

Accurate shaft vibration and position monitoring are essential for maintaining the reliability and safety of critical rotating machinery. The Bently Nevada 330705-02-18-10-02-00 3300 XL 11 mm Reverse Mounting Probe is a precision non-contact displacement sensor designed specifically for applications where conventional front-mounted probes cannot be installed.
As a member of the 3300 XL 11 mm Proximity Transducer System, this reverse mounting probe utilizes advanced eddy current sensing technology to continuously monitor shaft vibration, shaft position, and rotor displacement without making physical contact with the rotating component. The reverse mounting design provides greater installation flexibility while maintaining the high accuracy and stability expected from the 3300 XL series.
The 330705-02-18-10-02-00 features a reverse mounting configuration, 11 mm sensing tip, 1-meter total cable length, rugged industrial construction, and lightweight 0.17 kg design, making it suitable for turbines, compressors, generators, pumps, motors, and other rotating equipment where installation space or mechanical layout requires rear-mounted sensing.
Technical Specifications
| Parameter | Details |
|---|---|
| Manufacturer | Bently Nevada |
| Model | 330705-02-18-10-02-00 |
| Product Type | 3300 XL 11 mm Reverse Mounting Probe |
| Sensor Technology | Eddy Current Non-Contact Displacement Sensor |
| Product Series | 3300 XL 11 mm Proximity Transducer System |
| Mounting Style | Reverse Mount |
| Probe Diameter | 11 mm |
| Probe Configuration | Reverse Mounting Design |
| Total Length | 1 meter |
| Connector Type | Miniature Coaxial ClickLoc Connector |
| Measurement Functions | Shaft Vibration, Shaft Position, Rotor Displacement |
| Mounting Method | Reverse Threaded Installation |
| Operating Principle | Eddy Current Measurement |
| Dimensions | Total Length: 1 meter |
| Weight | 0.17 kg |
| Environmental Rating | Industrial Grade |
Product Features
The 330705-02-18-10-02-00 is designed to provide reliable condition monitoring while simplifying installation in applications with restricted mounting access.
Key features include:
- Reverse mounting design for specialized installation requirements
- High-precision non-contact displacement measurement
- Stable performance during continuous industrial operation
- Excellent resistance to vibration and electromagnetic interference
- Rugged industrial construction for harsh environments
- Long operational life with minimal maintenance
- Compatible with the complete Bently Nevada 3300 XL monitoring platform
Its reverse mounting configuration makes it particularly suitable for machinery where front-mounted probes are impractical.
Working Principle
The 330705-02-18-10-02-00 operates using proven eddy current sensing technology.
The probe tip generates a high-frequency electromagnetic field directed toward a conductive rotating shaft. As the shaft rotates, eddy currents are induced on its surface. Variations in the shaft-to-probe distance alter the electromagnetic field, generating proportional electrical signals.
These signals are transmitted to a compatible Proximitor Sensor, which converts them into accurate measurements of:
- Shaft vibration
- Shaft displacement
- Rotor eccentricity
- Axial shaft position
- Dynamic shaft movement
Because the measurement process is completely non-contact, the probe delivers excellent long-term stability and minimizes mechanical wear.
Role in Industrial Machinery Protection
The 330705-02-18-10-02-00 is an important component of machinery protection and predictive maintenance systems.
| Monitoring Function | Description |
|---|---|
| Shaft Vibration Monitoring | Detects abnormal vibration levels |
| Shaft Position Measurement | Monitors radial and axial shaft movement |
| Rotor Displacement Analysis | Tracks dynamic shaft movement |
| Machinery Protection | Supports alarm and shutdown systems |
| Condition Monitoring | Enables continuous equipment diagnostics |
| Predictive Maintenance | Identifies developing mechanical faults before failure |
Continuous monitoring allows maintenance teams to improve equipment availability while reducing unplanned outages.
Industrial Applications
The 330705-02-18-10-02-00 is widely used in industrial applications requiring reverse-mounted vibration sensors.
| Industry | Typical Equipment |
|---|---|
| Power Generation | Steam turbines, gas turbines, generators |
| Oil & Gas | Compressors, pumps, turbo-expanders |
| Petrochemical | Process compressors and rotating machinery |
| Refining | High-speed rotating equipment |
| Mining | Heavy-duty motors and crushers |
| Marine | Propulsion systems and auxiliary machinery |
| Steel Industry | Rolling mills and drive systems |
| Manufacturing | Critical production equipment |
Its reverse mounting capability provides additional flexibility for complex machine layouts.
Installation and System Integration
Proper installation is essential for achieving reliable monitoring performance.
Recommended installation practices include:
- Verify the correct reverse mounting probe configuration.
- Install the probe securely using the specified reverse mounting arrangement.
- Set the correct probe gap according to machinery specifications.
- Route the cable to avoid excessive bending or mechanical stress.
- Connect the probe to a compatible Proximitor Sensor.
- Verify signal output during commissioning.
- Calibrate the monitoring system before placing the equipment into operation.
Correct installation improves both measurement accuracy and long-term system reliability.
Compatible System Components
The 330705-02-18-10-02-00 is designed for seamless integration into complete machinery monitoring systems.
| Compatible Component | Function |
|---|---|
| Bently Nevada Proximitor Sensor | Converts probe signals into monitoring outputs |
| 3300 XL Extension Cable | Connects the probe to signal conditioning electronics |
| 3300 XL Monitoring Module | Processes vibration and displacement data |
| Machinery Protection System | Provides equipment safety monitoring |
| PLC System | Receives machinery status information |
| DCS Platform | Centralized equipment monitoring |
| Condition Monitoring Software | Trend analysis and fault diagnostics |
Together, these components provide a comprehensive machinery protection solution.
Recommended Alternative Models
| Model | Product Type | Key Feature | Typical Application |
|---|---|---|---|
| 330705-02-18-10-02-00 | 3300 XL 11 mm Reverse Mounting Probe | Reverse mounting configuration | Restricted installation environments |
| 330704-00-070-10-02-00 | 3300 XL 11 mm Proximity Probe | 70 mm standard probe | General machinery monitoring |
| 330704-005-040-10-02-00 | 3300 XL 11 mm Proximity Probe | Compact 40 mm housing | Space-constrained installations |
| 330704-000-090-50-02-00 | 3300 XL 11 mm Proximity Probe | 5-meter cable version | Remote installation |
| 330704-000-100-10-01-RU | 3300 XL 11 mm Proximity Probe | 100 mm probe body | Heavy industrial machinery |
Key Advantages
- Reverse mounting design for flexible installation
- High-precision non-contact vibration measurement
- Reliable shaft position and displacement monitoring
- Excellent resistance to industrial environments
- Stable long-term measurement performance
- Supports predictive maintenance programs
- Fully compatible with Bently Nevada 3300 XL systems
- Reduces equipment downtime and maintenance costs
Technical FAQs
What is the Bently Nevada 330705-02-18-10-02-00 used for?
It is a reverse mounting proximity probe designed for continuous monitoring of shaft vibration, shaft position, and rotor displacement in rotating industrial machinery.
Why choose a reverse mounting probe?
A reverse mounting probe is ideal for machinery where installation space or mechanical design prevents the use of a conventional front-mounted proximity probe.
Which equipment typically uses this probe?
It is commonly installed on steam turbines, gas turbines, compressors, generators, electric motors, pumps, and other critical rotating equipment.
What components are required for a complete monitoring system?
The probe is typically used together with a Bently Nevada Proximitor Sensor, extension cable, 3300 XL monitoring module, machinery protection system, PLC or DCS platform, and condition monitoring software.
Conclusion
The Bently Nevada 330705-02-18-10-02-00 3300 XL 11 mm Reverse Mounting Probe is a high-performance industrial sensor developed for accurate non-contact monitoring of vibration, shaft displacement, and shaft position in rotating machinery where reverse installation is required.
Featuring a reverse mounting design, 11 mm sensing tip, 1-meter total cable length, rugged industrial construction, and lightweight 0.17 kg design, it delivers dependable measurement accuracy and seamless integration into industrial machinery protection systems.
For engineers, maintenance specialists, and automation professionals, the 330705-02-18-10-02-00 provides a reliable solution for improving equipment reliability, enabling predictive maintenance, and extending the service life of critical rotating assets.
