Product Overview

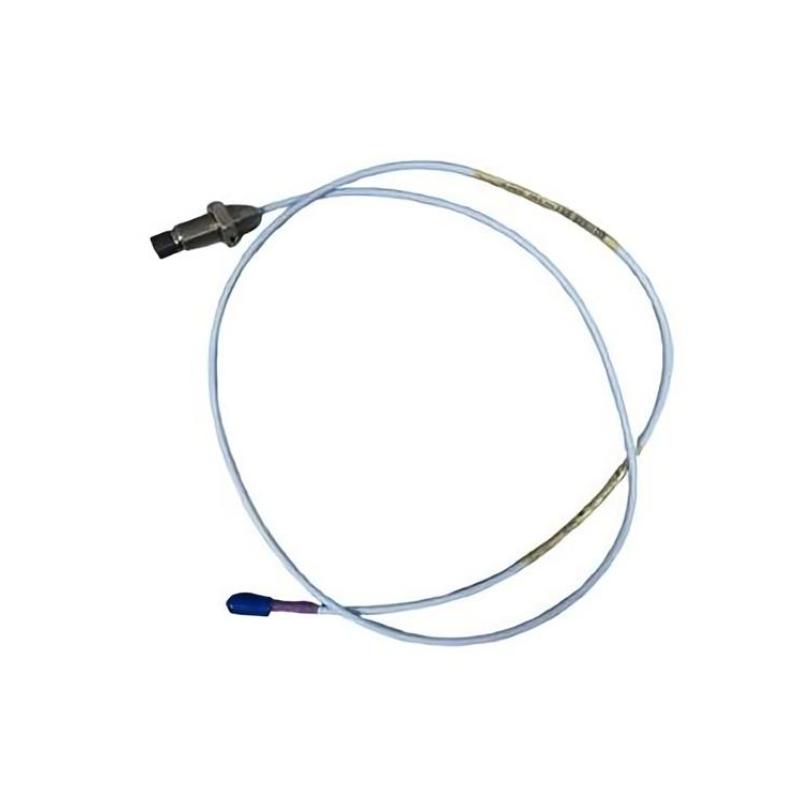

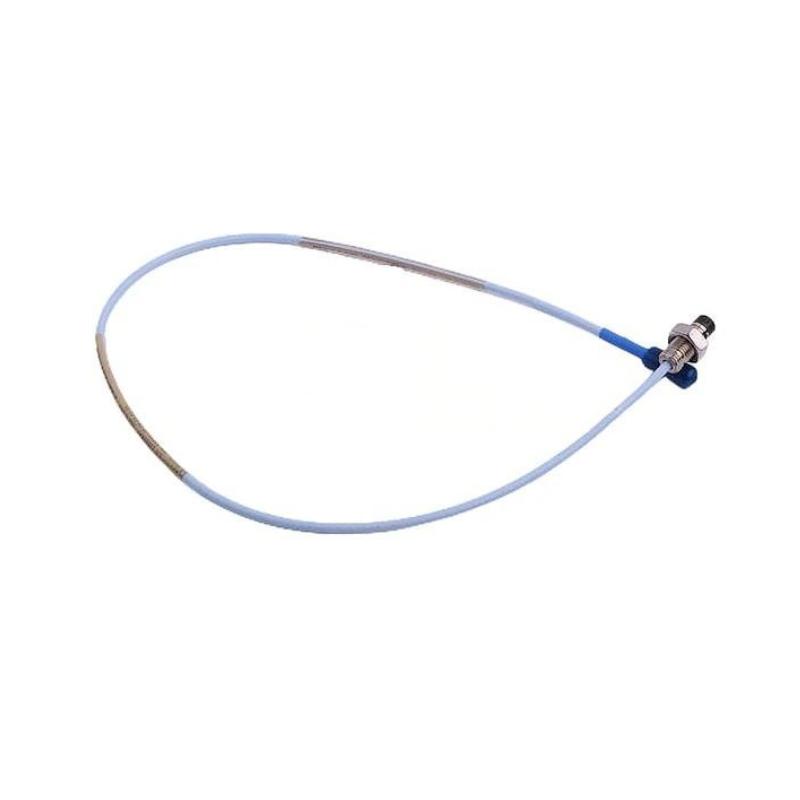

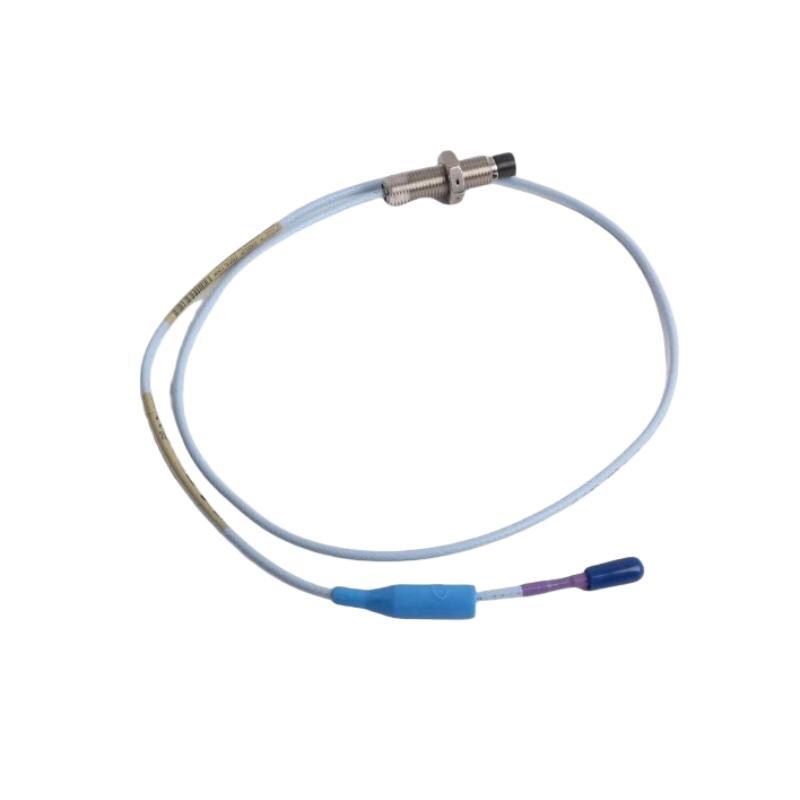

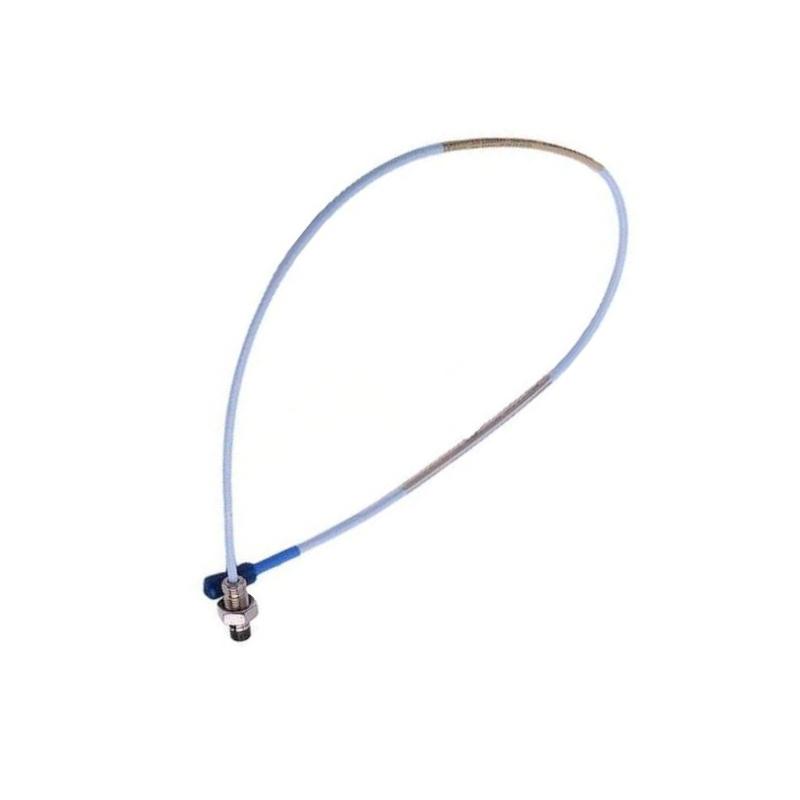

Maintaining the health of rotating machinery requires accurate and continuous condition monitoring. The Bently Nevada 330704-005-040-10-01-00 3300 XL 11 mm Proximity Probe is a high-performance non-contact displacement sensor designed to provide precise measurement of shaft vibration, shaft position, eccentricity, and rotor displacement in industrial rotating equipment.
As a member of the renowned 3300 XL 11 mm Proximity Transducer System, this probe utilizes advanced eddy current sensing technology to deliver highly stable and repeatable measurements without physical contact. Its rugged industrial construction allows reliable operation in demanding environments where continuous equipment monitoring is essential.
The 330704-005-040-10-01-00 features a 40 mm probe case length, 11 mm sensing tip, M14 × 1.5 threaded body, armored cable construction, and 1-meter total cable length, making it an excellent solution for turbines, compressors, generators, pumps, motors, and other critical rotating assets.
Technical Specifications
| Parameter | Details |
|---|---|
| Manufacturer | Bently Nevada |
| Model | 330704-005-040-10-01-00 |
| Product Type | 3300 XL 11 mm Proximity Probe |
| Sensor Technology | Eddy Current Non-Contact Displacement Sensor |
| Product Series | 3300 XL 11 mm Proximity Transducer System |
| Probe Diameter | 11 mm |
| Probe Case Length | 40 mm |
| Thread Type | M14 × 1.5 |
| Probe Construction | Armored Probe |
| Total Length | 1 meter |
| Connector Type | Miniature Coaxial ClickLoc Connector |
| Mounting Method | Threaded Installation |
| Measurement Functions | Shaft Vibration, Shaft Position, Rotor Displacement |
| Operating Principle | Eddy Current Measurement |
| Dimensions | Total Length: 1 meter |
| Weight | 0.17 kg |
| Industrial Grade | Yes |
Product Features
Designed for industrial reliability, the 330704-005-040-10-01-00 offers outstanding measurement accuracy and long service life.
Key features include:
- High-resolution non-contact displacement measurement
- Compact 40 mm probe body for confined installation spaces
- Excellent immunity to vibration and industrial interference
- Rugged armored construction for harsh operating environments
- Stable output over extended operating periods
- Fully compatible with the Bently Nevada 3300 XL monitoring platform
- Supports continuous online machinery condition monitoring
Its compact dimensions make it especially suitable for installations with limited mounting space while maintaining excellent sensing performance.
Working Principle
The 330704-005-040-10-01-00 operates using proven eddy current sensing technology.
A high-frequency electromagnetic field is generated at the probe tip. When positioned close to a conductive rotating shaft, eddy currents are induced on the shaft surface. Variations in the distance between the probe and the shaft change the strength of the electromagnetic field, producing proportional electrical signals.
These signals are processed by a compatible Proximitor Sensor, providing precise measurements for:
- Radial shaft vibration
- Axial shaft position
- Rotor displacement
- Shaft eccentricity
- Dynamic machine movement
This non-contact measurement principle eliminates mechanical wear and enables highly reliable long-term monitoring.
Role in Industrial Machinery Protection
Within industrial condition monitoring systems, the 330704-005-040-10-01-00 performs several important functions.
| Monitoring Function | Description |
|---|---|
| Shaft Vibration Monitoring | Detects abnormal rotor vibration |
| Shaft Position Measurement | Measures axial and radial displacement |
| Rotor Displacement Analysis | Monitors dynamic shaft movement |
| Machinery Protection | Supports automatic shutdown systems |
| Condition Monitoring | Enables continuous equipment diagnostics |
| Predictive Maintenance | Identifies early-stage mechanical faults |
These capabilities help improve equipment availability while reducing maintenance costs and unplanned shutdowns.
Industrial Applications
The 330704-005-040-10-01-00 is widely used across numerous industrial sectors where rotating machinery reliability is critical.
| Industry | Typical Equipment |
|---|---|
| Power Generation | Steam turbines, gas turbines, generators |
| Oil & Gas | Compressors, pumps, turbo-expanders |
| Petrochemical | Process compressors and centrifugal machinery |
| Mining | Crushers, grinding mills, conveyor drives |
| Steel Industry | Rolling mills and heavy-duty motors |
| Marine | Main propulsion systems and auxiliary machinery |
| Water Treatment | High-capacity centrifugal pumps |
| Manufacturing | Industrial motors and rotating production equipment |
Its industrial-grade construction ensures dependable operation under continuous-duty conditions.
Installation and System Integration
Proper installation is essential for achieving optimal measurement accuracy.
Recommended installation practices include:
- Verify the correct probe model before installation.
- Securely mount the probe using the M14 × 1.5 threaded body.
- Adjust the probe gap according to system requirements.
- Protect the armored cable from excessive mechanical stress.
- Connect the probe to the appropriate Proximitor Sensor.
- Verify output signals during commissioning.
- Perform calibration before placing the equipment into service.
Following these procedures helps maximize system performance and measurement reliability.
Compatible System Components
The 330704-005-040-10-01-00 is designed to operate as part of a complete machinery protection solution.
| Compatible Component | Function |
|---|---|
| Bently Nevada Proximitor Sensor | Signal conditioning and conversion |
| 3300 XL Extension Cable | Connects probe to the signal conditioner |
| 3300 XL Monitoring Module | Processes vibration and displacement data |
| Machinery Protection System | Provides equipment protection functions |
| PLC System | Receives machine operating status |
| DCS Platform | Centralized monitoring and control |
| Condition Monitoring Software | Trend analysis and diagnostics |
Together, these components provide comprehensive monitoring and protection for critical rotating machinery.
Recommended Alternative Models
| Model | Product Type | Key Feature | Typical Application |
|---|---|---|---|
| 330704-005-040-10-01-00 | 3300 XL 11 mm Proximity Probe | Compact 40 mm probe body | Standard rotating machinery |
| 330704-00-050-10-01-05 | 3300 XL 11 mm Proximity Probe | 50 mm probe body | General industrial monitoring |
| 330704-000-080-10-02-00 | 3300 XL 11 mm Proximity Probe | 80 mm probe body | Machinery protection systems |
| 330704-000-090-50-02-00 | 3300 XL 11 mm Proximity Probe | 5 m cable configuration | Long-distance installations |
| 330704-000-100-10-01-RU | 3300 XL 11 mm Proximity Probe | 100 mm probe body | Heavy-duty rotating equipment |
Key Advantages
- High-accuracy non-contact displacement sensing
- Compact 40 mm housing for restricted installation spaces
- Reliable shaft vibration and position monitoring
- Durable armored construction for industrial environments
- Long-term measurement stability
- Supports predictive maintenance programs
- Fully compatible with the Bently Nevada 3300 XL platform
- Helps reduce equipment downtime and maintenance costs
Technical FAQs
What is the Bently Nevada 330704-005-040-10-01-00 used for?
It is designed to monitor shaft vibration, shaft position, rotor displacement, and eccentricity in industrial rotating machinery using non-contact eddy current technology.
Which machines commonly use this proximity probe?
The probe is commonly installed on steam turbines, gas turbines, compressors, generators, electric motors, centrifugal pumps, and other critical rotating equipment.
Why choose the 40 mm probe version?
The 40 mm case length is ideal for installations where mounting space is limited while maintaining the high measurement accuracy of the 3300 XL 11 mm sensing system.
What components are required for a complete monitoring system?
A complete solution typically includes the proximity probe, a compatible Proximitor Sensor, extension cable, vibration monitoring module, machinery protection system, PLC or DCS platform, and condition monitoring software.
Conclusion
The Bently Nevada 330704-005-040-10-01-00 3300 XL 11 mm Proximity Probe is a reliable industrial sensor engineered for precise non-contact measurement of vibration and shaft displacement in critical rotating machinery.
Featuring a 40 mm probe body, 11 mm sensing tip, M14 × 1.5 threaded mounting, 1-meter total cable length, armored construction, and a lightweight 0.17 kg design, it provides outstanding measurement accuracy and dependable long-term performance.
Whether deployed in power generation, oil and gas, petrochemical processing, mining, marine applications, or advanced manufacturing, the 330704-005-040-10-01-00 delivers an effective solution for improving machinery reliability, enhancing predictive maintenance programs, and extending the operational life of valuable industrial assets.
