Product Overview

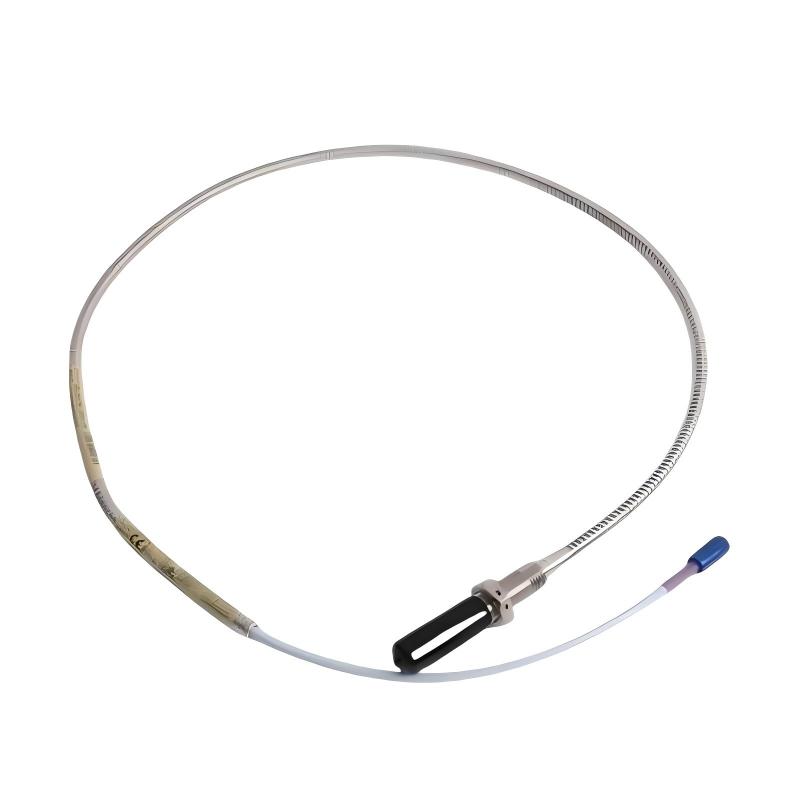

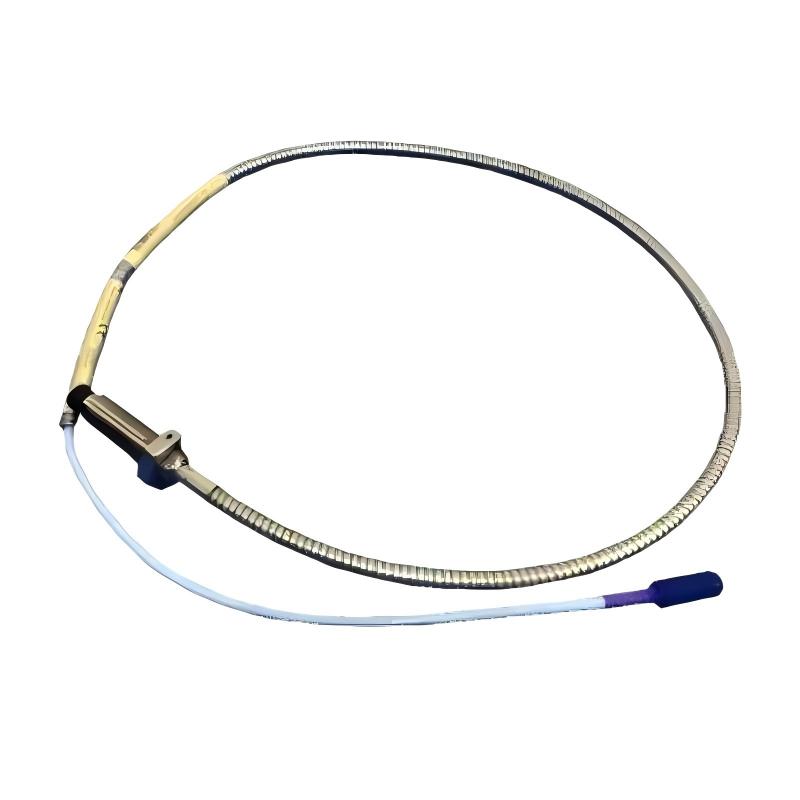

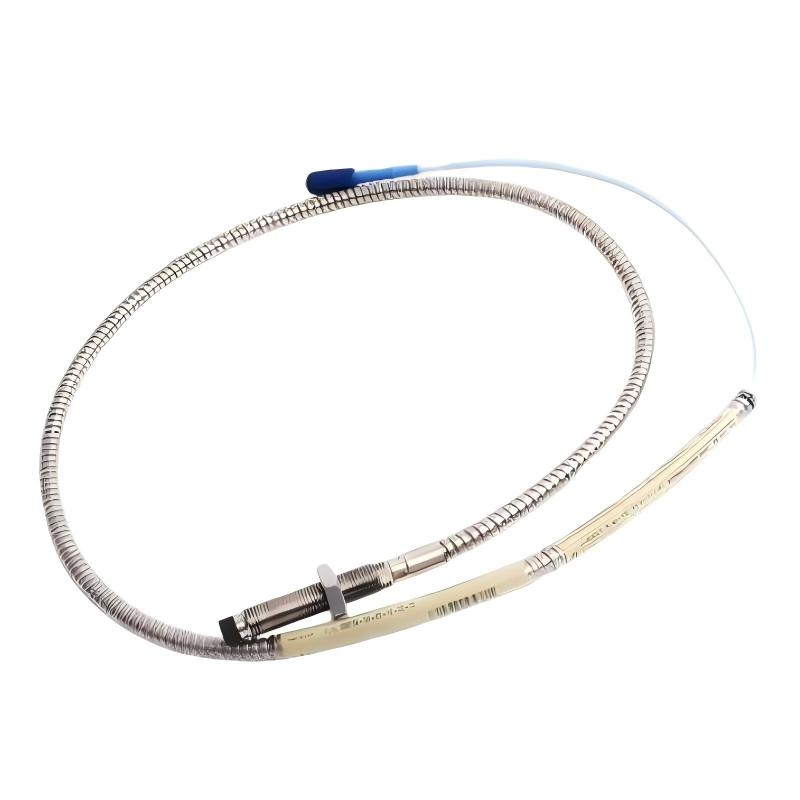

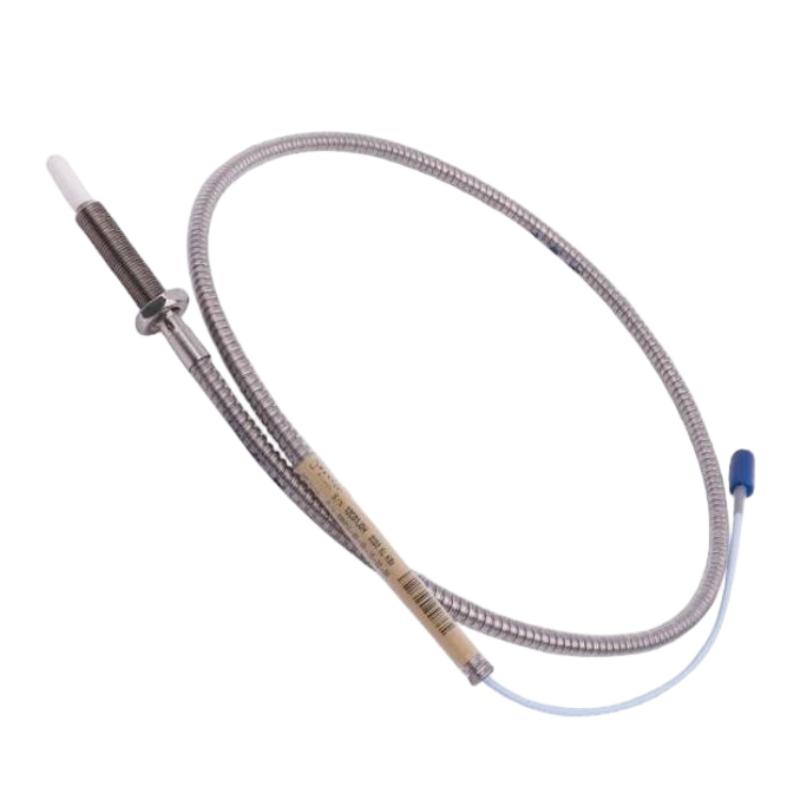

Reliable machinery condition monitoring is essential for maintaining the safety, efficiency, and availability of critical rotating equipment. The Bently Nevada 330704-000-080-10-11-00 3300 XL 11 mm Proximity Probe is a high-precision non-contact displacement sensor designed for continuous measurement of shaft vibration, radial movement, and axial position in industrial rotating machinery.

The probe is part of the 3300 XL 11 mm Proximity Transducer System, which is widely used in industrial machinery protection applications. It uses eddy current sensing technology to detect the distance between the probe tip and the rotating shaft surface, allowing accurate measurement without direct mechanical contact.

The 330704-000-080-10-11-00 features an 11 mm probe tip, M14 × 1.5 threaded mounting design, 80 mm case length, 1-meter total length, and standard industrial configuration, providing reliable performance in demanding environments such as power plants, petrochemical facilities, and large manufacturing systems.

This proximity probe is commonly installed on turbines, compressors, generators, pumps, and other critical rotating equipment to provide continuous operating condition data and support predictive maintenance strategies.

Technical Specifications

Function and Working Principle

The Bently Nevada 330704-000-080-10-11-00 proximity probe operates based on eddy current sensing technology, providing accurate displacement measurement between the probe tip and the rotating machine shaft.

The working process includes:

• Producing an electromagnetic field at the sensing tip
• Detecting variations caused by shaft movement
• Converting displacement changes into electrical signals
• Transmitting measurement data to the Proximitor Sensor
• Providing real-time vibration and position information to monitoring systems

The probe is designed to monitor:

• Shaft vibration
• Rotor displacement
• Radial movement
• Axial shaft position
• Rotating equipment operating conditions

The non-contact measurement method reduces mechanical wear and enables stable long-term operation in high-speed machinery environments.

Role in Industrial Control and Monitoring Systems

The Bently Nevada 330704-000-080-10-11-00 plays a key role in industrial machinery protection and predictive maintenance systems.

It is commonly integrated with:

• Bently Nevada Proximitor Sensors
• 3300 XL monitoring systems
• Machinery protection racks
• Vibration analysis systems
• Turbine monitoring systems
• Industrial condition monitoring platforms

The probe continuously provides mechanical condition data, helping engineers identify abnormal machine behavior and prevent unexpected equipment failures.

Typical functions include:

Industrial Applications

The Bently Nevada 330704-000-080-10-11-00 is widely used in industries that depend on reliable rotating machinery operation.

The probe is particularly suitable for applications where equipment reliability and continuous operation are essential.

Installation and System Integration

Proper installation is required to achieve accurate vibration measurement and stable system performance.

Recommended installation procedures include:

• Confirm probe model compatibility before installation.
• Install the probe using the correct M14 × 1.5 mounting thread.
• Adjust the probe gap according to monitoring requirements.
• Connect the probe to the matching Proximitor Sensor.
• Verify output signals during commissioning.
• Configure monitoring parameters according to equipment conditions.

Incorrect installation may result in:

• Incorrect vibration values
• Signal instability
• False alarms
• Reduced monitoring accuracy

Correct mechanical alignment and electrical configuration ensure reliable operation.

Compatible System Components

The Bently Nevada 330704-000-080-10-11-00 is commonly used together with the following components:

Together, these components create a complete machinery protection and monitoring solution.

Recommended Alternative Models

Key Advantages

• High-accuracy non-contact displacement measurement
• Reliable shaft vibration monitoring
• 11 mm sensing tip design
• Suitable for high-speed rotating equipment
• Armored construction for industrial environments
• Supports predictive maintenance applications
• Compatible with Bently Nevada monitoring systems
• Improves machinery reliability and protection

Technical FAQs

What is the Bently Nevada 330704-000-080-10-11-00 used for?

The Bently Nevada 330704-000-080-10-11-00 is a 3300 XL 11 mm proximity probe designed for monitoring shaft vibration, displacement, and position in rotating machinery.

What equipment can use this proximity probe?

It is commonly installed on turbines, compressors, generators, pumps, and other critical rotating machines.

How does the proximity probe measure vibration?

The probe uses eddy current technology to detect changes in the distance between the sensor tip and the rotating shaft without physical contact.

What components are required for operation?

A complete system normally includes the proximity probe, Proximitor Sensor, extension cable, and machinery monitoring equipment.

Conclusion

The Bently Nevada 330704-000-080-10-11-00 3300 XL 11 mm Proximity Probe is a reliable non-contact displacement sensor designed for industrial machinery protection and condition monitoring applications.

With its 11 mm sensing tip, 80 mm case length, 1-meter total length, M14 × 1.5 mounting design, and 0.17 kg lightweight structure, it provides accurate shaft vibration measurement, stable performance, and dependable integration with industrial monitoring systems.

For maintenance engineers, automation specialists, and rotating equipment professionals, the 330704-000-080-10-11-00 provides an effective solution for improving equipment reliability, reducing unexpected downtime, and supporting long-term operation of critical industrial machinery.
