Product Overview

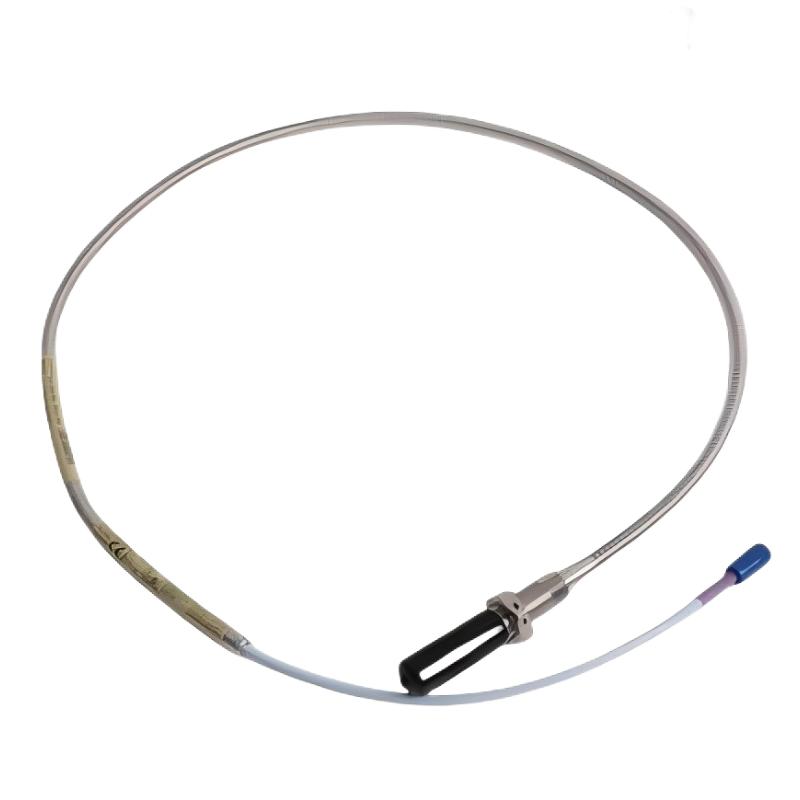

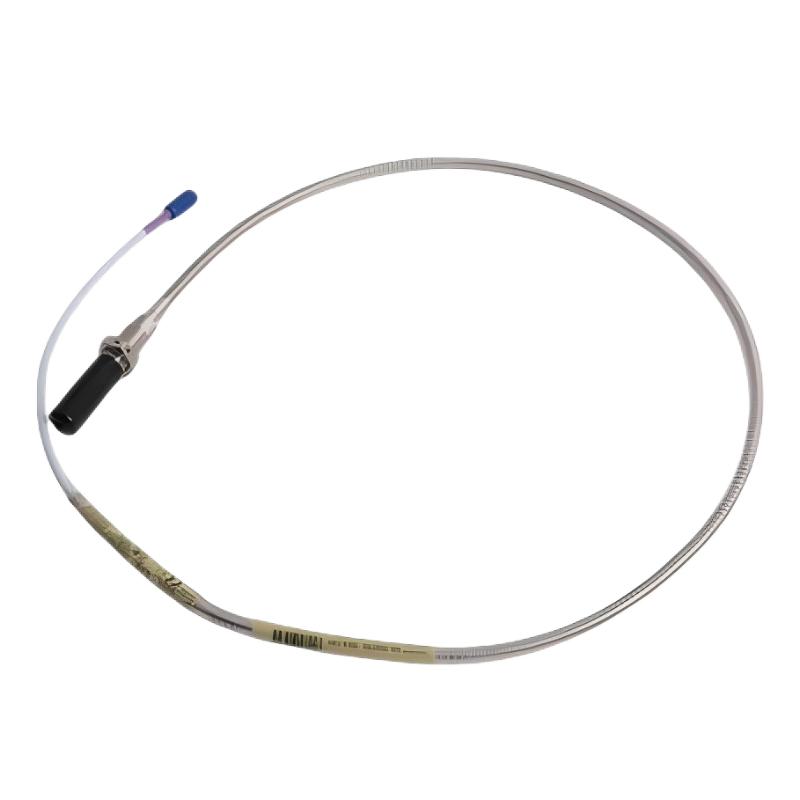

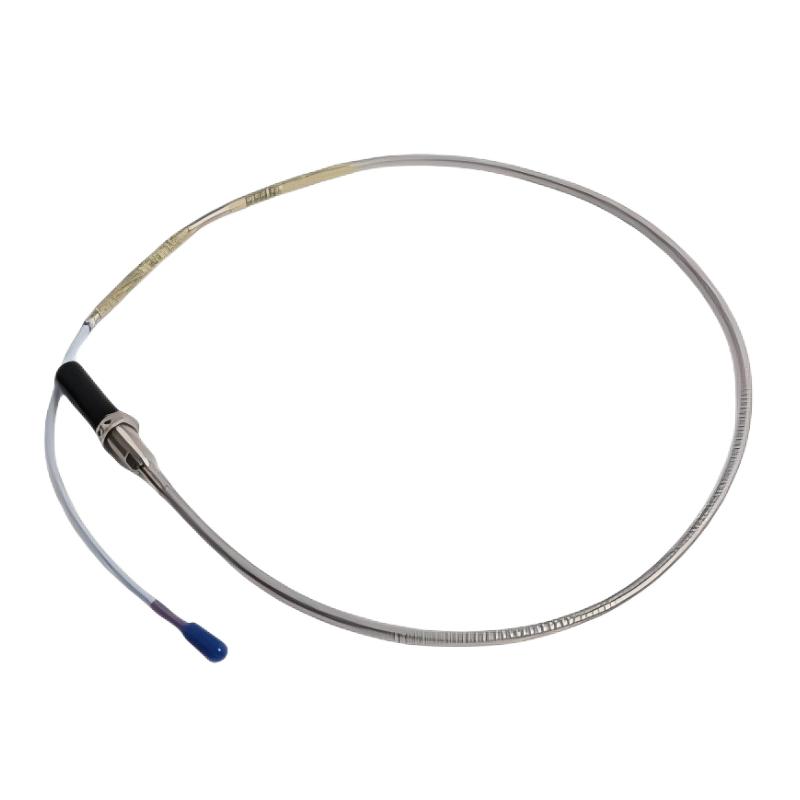

Accurate condition monitoring is essential for protecting critical rotating equipment and improving industrial equipment reliability. The Bently Nevada 330704-000-080-10-02-00 3300 XL 11 mm Proximity Probe is a precision non-contact displacement sensor designed for continuous monitoring of shaft vibration, radial displacement, and axial position in rotating machinery.

As part of the 3300 XL 11 mm Proximity Transducer System, this probe uses advanced eddy current sensing technology to measure the distance between the probe tip and the rotating shaft surface. This non-contact measurement method eliminates mechanical wear between the sensor and machine components, providing stable and reliable performance in demanding industrial environments.

The 330704-000-080-10-02-00 features an 11 mm probe tip, M14 × 1.5 threaded mounting design, 80 mm case length, 1-meter total length, and standard configuration, making it suitable for turbines, compressors, generators, pumps, and other critical rotating equipment requiring continuous vibration monitoring.

Technical Specifications

Function and Working Principle

The Bently Nevada 330704-000-080-10-02-00 proximity probe operates using eddy current sensing technology to provide accurate displacement measurement between the sensor tip and rotating shaft.

The working process includes:

• Generating a high-frequency electromagnetic field around the probe tip
• Detecting changes in the electromagnetic field caused by shaft movement
• Converting displacement changes into electrical output signals
• Sending measurement data to the Proximitor Sensor
• Providing vibration and position information to monitoring equipment

The probe is mainly used for measuring:

• Shaft vibration
• Rotor displacement
• Radial movement
• Axial position
• Rotating equipment operating conditions

The non-contact design allows continuous monitoring without mechanical contact, reducing maintenance requirements and improving measurement stability.

Role in Industrial Control and Monitoring Systems

The Bently Nevada 330704-000-080-10-02-00 plays an important role in machinery protection and predictive maintenance systems.

It is commonly integrated with:

• Bently Nevada Proximitor Sensors
• 3300 XL monitoring systems
• Machinery protection racks
• Industrial vibration monitoring systems
• Turbine control systems
• Condition monitoring platforms

The proximity probe provides essential operating information that helps engineers detect mechanical problems and maintain equipment performance.

Typical functions include:

Industrial Applications

The Bently Nevada 330704-000-080-10-02-00 is widely applied in industries where rotating equipment reliability is critical.

Its reliable measurement performance makes it suitable for continuous operation in industrial environments.

Installation and System Integration

Proper installation ensures accurate measurement results and stable monitoring performance.

Recommended installation procedures include:

• Confirm probe specifications before installation.
• Install the probe using the correct M14 × 1.5 mounting thread.
• Adjust the probe gap according to system requirements.
• Connect the probe to a compatible Proximitor Sensor.
• Verify signal output during commissioning.
• Configure monitoring parameters according to machine conditions.

Incorrect installation may cause:

• Incorrect vibration measurements
• Signal fluctuation
• False equipment alarms
• Reduced monitoring accuracy

Correct mechanical alignment and electrical setup are essential for reliable operation.

Compatible System Components

The Bently Nevada 330704-000-080-10-02-00 is commonly used with the following components:

These components work together to create a complete rotating machinery monitoring solution.

Recommended Alternative Models

Key Advantages

• High-accuracy non-contact displacement measurement
• Reliable shaft vibration monitoring
• 11 mm sensing tip for extended measurement capability
• Armored construction for industrial environments
• Stable operation under high-speed machinery conditions
• Supports predictive maintenance programs
• Compatible with Bently Nevada monitoring systems
• Improves rotating equipment protection

Technical FAQs

What is the Bently Nevada 330704-000-080-10-02-00 used for?

The Bently Nevada 330704-000-080-10-02-00 is a 3300 XL 11 mm proximity probe used to measure shaft vibration, displacement, and position in rotating equipment.

What industries use this proximity probe?

It is commonly used in power plants, oil and gas facilities, petrochemical plants, manufacturing systems, and other industries with critical rotating machinery.

Why use a non-contact proximity probe?

A non-contact design prevents mechanical wear and provides reliable continuous measurement for high-speed rotating equipment.

What components are needed for a complete system?

A complete monitoring system typically includes the proximity probe, Proximitor Sensor, extension cable, and machinery protection equipment.

Conclusion

The Bently Nevada 330704-000-080-10-02-00 3300 XL 11 mm Proximity Probe is a high-performance monitoring sensor designed for industrial machinery protection and condition monitoring applications.

With its 11 mm sensing design, 80 mm case length, 1-meter total length, and 0.17 kg lightweight structure, it provides accurate vibration measurement, reliable shaft displacement monitoring, and stable integration with industrial monitoring systems.

For maintenance engineers, automation specialists, and rotating equipment professionals, the 330704-000-080-10-02-00 provides an effective solution for improving equipment reliability, reducing downtime, and supporting long-term operation of critical industrial machinery.
