Product Overview

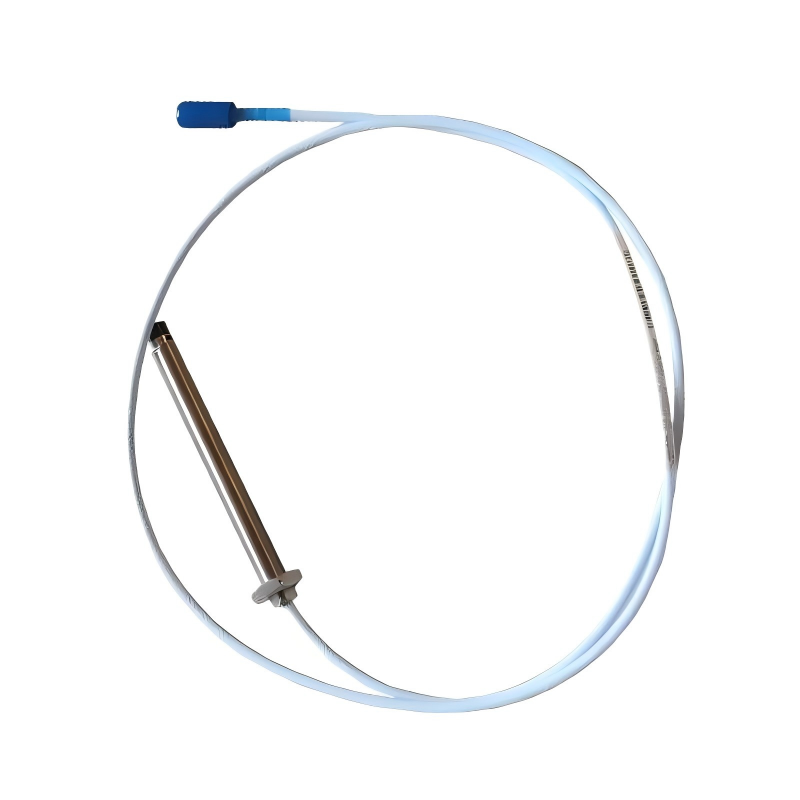

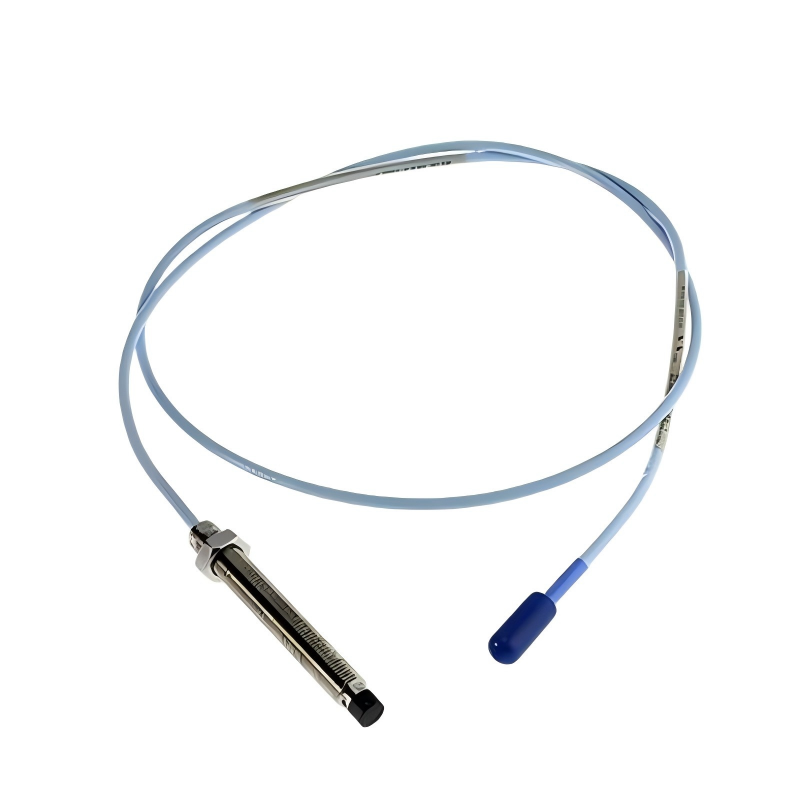

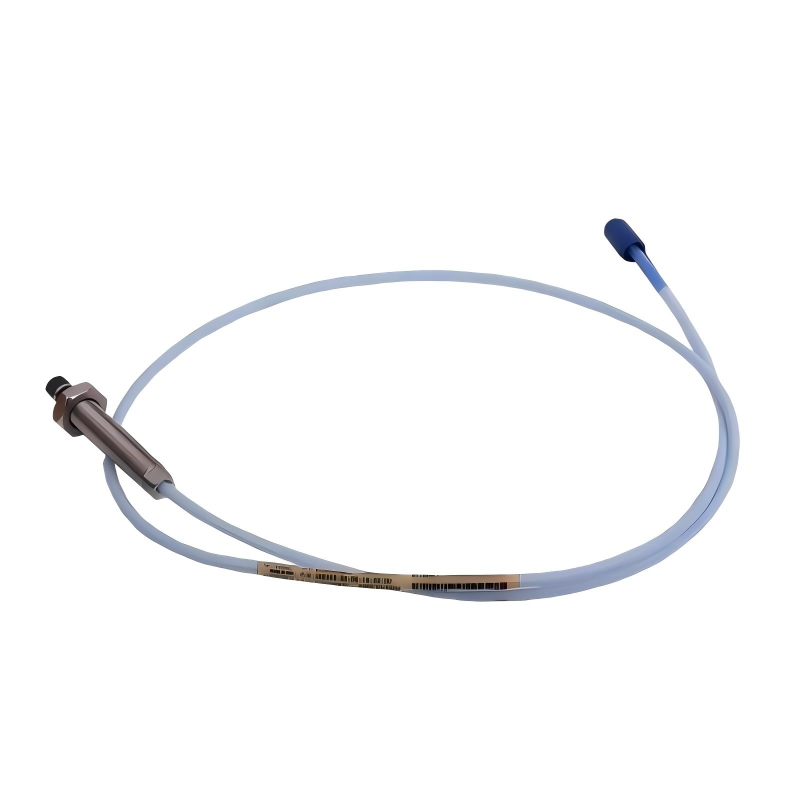

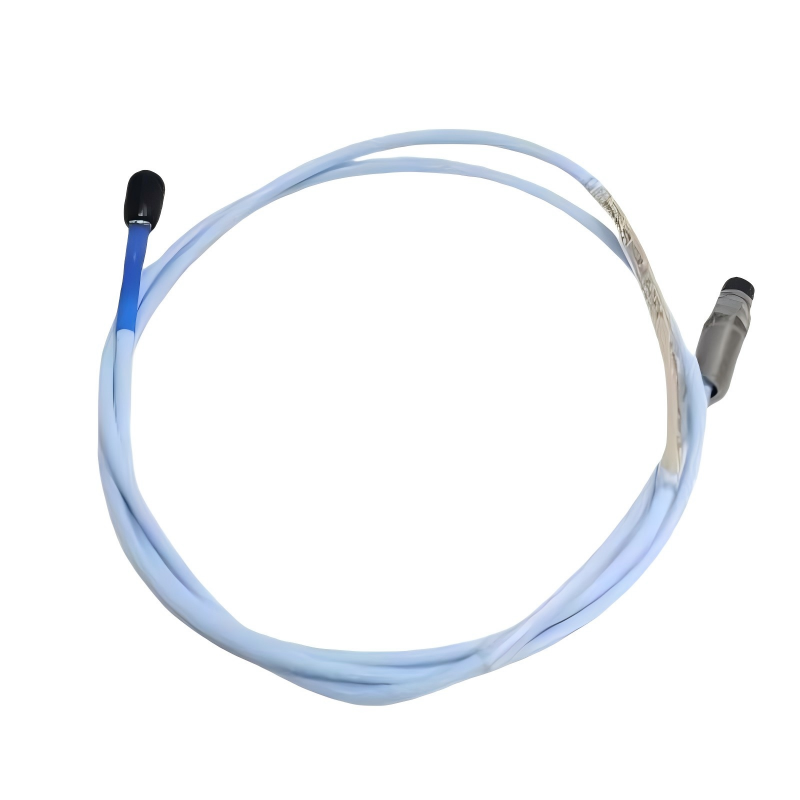

The Bently Nevada 330703-020-100-90-02-00 3300 XL 11 mm Proximity Probe is a high-performance industrial sensor designed for precise shaft displacement measurement and vibration monitoring in critical rotating machinery applications.
As part of the 3300 XL 11 mm Proximity Probe series, this model provides reliable non-contact measurement of shaft movement, rotor vibration, and mechanical position changes. The probe uses eddy current sensing technology to monitor the distance between the probe tip and the rotating shaft surface, delivering accurate condition data for machinery protection systems.
The 330703-020-100-90-02-00 model is configured with a 9-meter total length, making it suitable for installations where the distance between the machinery measurement point and monitoring equipment requires extended cable routing.
With a weight of 1.29 kg, this extended-length proximity probe provides reliable signal transmission for large industrial equipment and complex machinery layouts.
Typical applications include:
- Steam turbine monitoring systems
- Gas turbine protection systems
- Large compressor monitoring
- Generator vibration analysis
- Industrial rotating equipment protection
- Critical machinery predictive maintenance
Technical Specifications
| Parameter | Description |
|---|---|
| Manufacturer | Bently Nevada |
| Model | 330703-020-100-90-02-00 |
| Product Series | 3300 XL 11 mm Proximity Probe |
| Product Type | Proximity Probe |
| Measurement Function | Shaft displacement and vibration monitoring |
| Sensor Technology | Eddy Current Sensing |
| Probe Diameter | 11 mm |
| Total Length | 9 Meters |
| Weight | 1.29 kg |
| Installation Type | Industrial proximity sensor installation |
| Application | Rotating machinery condition monitoring |
Working Principle
The Bently Nevada 330703-020-100-90-02-00 Proximity Probe operates using eddy current sensing technology to measure shaft position and vibration without physical contact.
The operating process includes:
- The probe generates an electromagnetic field around the shaft sensing area.
- The rotating shaft changes the electromagnetic field according to the measurement gap.
- The probe detects variations caused by shaft displacement and vibration.
- The sensor converts these changes into electrical output signals.
- The monitoring system analyzes the collected information.
This non-contact measurement method provides stable operation, reduces mechanical wear, and enables continuous monitoring of high-speed rotating machinery.
Main Features
1. Extended 9-Meter Cable Configuration
The 9-meter total length design allows installation flexibility for large industrial equipment.
Advantages:
- Suitable for large machinery layouts
- Supports remote monitoring system installation
- Simplifies equipment integration
- Provides flexible cable routing options
The extended configuration is ideal for applications where monitoring equipment is located away from the machine.
2. High-Precision Shaft Displacement Measurement
The 330703-020-100-90-02-00 provides accurate shaft position monitoring.
Key advantages:
- Precise vibration detection
- Stable displacement measurement
- Continuous machine condition feedback
- Improved equipment protection
Accurate measurement data helps identify mechanical problems before serious failures occur.
3. Reliable 3300 XL 11 mm Probe Technology
The probe is designed for demanding industrial environments.
Main benefits:
- Stable measurement performance
- Reliable signal output
- Long operational service life
- Suitable for continuous monitoring
The 3300 XL 11 mm design supports reliable operation in critical machinery applications.
4. Non-Contact Measurement Design
The probe measures shaft movement without direct contact.
Benefits:
- Reduced mechanical wear
- Improved measurement stability
- Suitable for high-speed rotating equipment
- Lower maintenance requirements
5. Designed for Critical Machinery Protection
The proximity probe provides important monitoring information for machinery protection systems.
Monitoring functions include:
- Shaft vibration detection
- Rotor position measurement
- Mechanical condition analysis
- Predictive maintenance support
Industrial Applications
Large Turbine Monitoring
The Bently Nevada 330703-020-100-90-02-00 is commonly used in large turbine protection systems.
Applications:
- Rotor vibration monitoring
- Shaft displacement measurement
- Turbine condition analysis
- Equipment protection
Reliable vibration information helps maintain safe and stable turbine operation.
Compressor Monitoring Systems
Large compressors require accurate monitoring due to continuous high-speed operation.
Applications:
- Rotor movement detection
- Shaft position monitoring
- Vibration trend analysis
- Mechanical fault prevention
The extended cable length supports installation in large compressor systems.
Generator Protection Applications
Industrial generators require reliable shaft monitoring.
Applications:
- Rotor vibration measurement
- Shaft displacement analysis
- Mechanical condition evaluation
- Equipment reliability improvement
Industrial Rotating Equipment
The probe is suitable for various rotating machinery applications.
Applications:
- Pumps
- Motors
- Turbo machinery
- Process equipment
- Heavy industrial machines
Installation Guide
Mechanical Installation
Recommended installation steps:
- Confirm the Bently Nevada 330703-020-100-90-02-00 model.
- Check the mounting position and installation requirements.
- Clean the probe mounting area.
- Install the proximity probe securely.
- Adjust the probe position correctly.
- Verify mechanical stability.
Proper mechanical installation ensures accurate measurement performance.
Electrical Installation
Before wiring:
- Disconnect system power.
- Inspect the extended cable condition.
- Verify connector condition.
- Confirm compatibility with monitoring equipment.
Installation steps:
- Connect the probe cable.
- Secure all connections.
- Verify signal continuity.
- Connect to the monitoring system.
- Confirm stable signal transmission.
Correct electrical installation ensures reliable monitoring performance.
Calibration and Setup
Recommended calibration procedure:
- Install the probe at the correct measurement point.
- Adjust the probe clearance.
- Verify output signal.
- Configure monitoring parameters.
- Confirm stable measurement values.
Proper calibration ensures accurate vibration and displacement readings.
Commissioning Procedure
Recommended commissioning steps:
- Inspect probe installation.
- Check cable routing and connections.
- Confirm monitoring system communication.
- Test sensor output signals.
- Verify vibration readings.
- Confirm alarm functions.
Proper commissioning ensures effective machinery protection.
Common Faults and Troubleshooting
| Fault Symptom | Possible Cause | Recommended Solution |
|---|---|---|
| No signal output | Cable connection issue | Check probe cable connections |
| Incorrect vibration reading | Improper probe adjustment | Verify probe clearance |
| Signal instability | Cable interference | Improve cable routing |
| Signal loss | Cable damage | Inspect extended cable |
| False alarm | Incorrect monitoring settings | Review system parameters |
| Probe malfunction | Sensor damage | Replace proximity probe |
Maintenance Recommendations
To maintain reliable operation:
- Inspect probe installation regularly
- Check long cable condition
- Monitor vibration trends
- Verify probe clearance
- Inspect connectors
- Perform routine machinery inspections
Regular maintenance improves monitoring reliability and extends sensor service life.
Advantages of Bently Nevada 330703-020-100-90-02-00 3300 XL 11 mm Proximity Probe
- High-precision shaft displacement measurement
- Extended 9-meter installation capability
- Reliable vibration monitoring
- Non-contact sensing technology
- Suitable for large industrial machinery
- Stable signal transmission
- Supports predictive maintenance
- Long-term operational reliability
Frequently Asked Questions
What is Bently Nevada 330703-020-100-90-02-00?
The Bently Nevada 330703-020-100-90-02-00 3300 XL 11 mm Proximity Probe is an industrial sensor used for shaft displacement and vibration monitoring in rotating machinery.
What is the main function of this proximity probe?
Its main function is to measure shaft movement and vibration changes for machinery protection and condition monitoring.
Why does this model use a 9-meter cable?
The 9-meter cable configuration allows installation where the monitoring system is located farther from the rotating equipment.
Where is this model commonly used?
It is commonly used in turbines, compressors, generators, and other large rotating industrial equipment.
What is the weight of this proximity probe?
The weight is 1.29 kg.
Conclusion
The Bently Nevada 330703-020-100-90-02-00 3300 XL 11 mm Proximity Probe is a reliable solution for large industrial machinery monitoring applications requiring extended installation distance and accurate vibration measurement.
With precise shaft displacement detection, 9-meter cable flexibility, stable signal performance, and proven industrial reliability, it helps improve machinery protection, reduce unexpected downtime, and support predictive maintenance strategies.
The Bently Nevada 330703-020-100-90-02-00 is an excellent choice for critical rotating equipment requiring dependable long-distance monitoring capability.
