- Bently Nevada
- 330703-000-090-50-02-00
- 3300 XL 11 mm Proximity Probe
- USA
- 5 meters
- 0.25 kg
- Xiamen, China
- New & In Stock
- T/T, PayPal, Western Union
- 1 Year
- 1-3 Working Days
- DHL, UPS, TNT, FedEx and EMS.
- 24-Hour Service
- COO
- 1
Our advantage
Global Logistics
We have a 10-year logistics and express cooperation agreement, so our products can be shipped to any place in the world.
Brand new and original
Our products are imported in bulk from the place of origin. Because of the cooperative relationship, our products are all original and 100% new.
24-hour service
We provide 7*24 hours service to our customers. We will be there whenever you need us.
Price advantage
All our products are priced very favorably because we have our own warehouse and supply.
| Company Information | |||
| [email protected] | |||
| Mobile | +8615980777398 | ||
| +8615980777398 | |||
| 15980777398 |
Product Overview

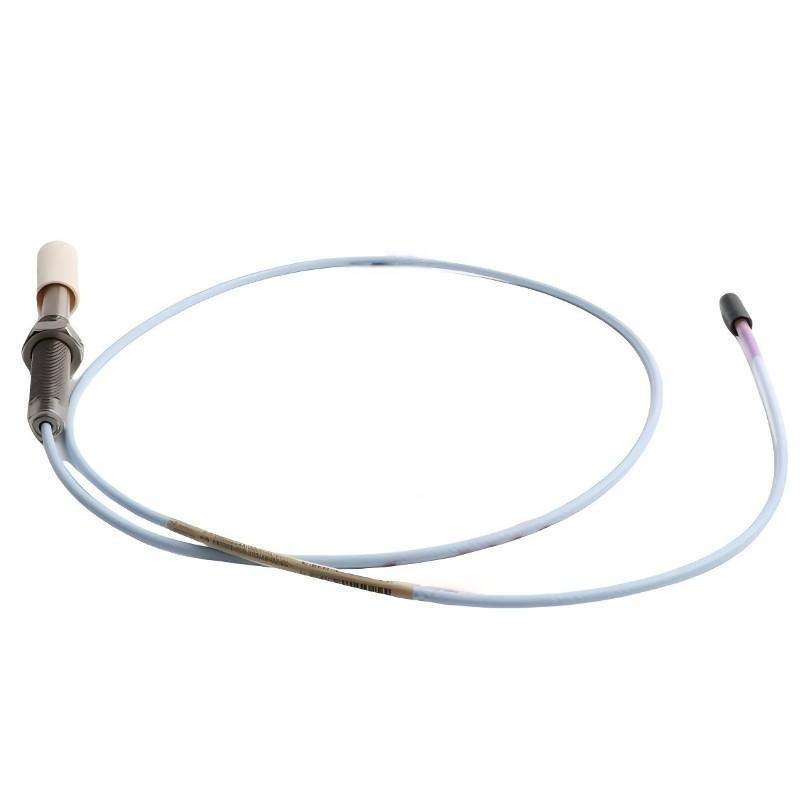

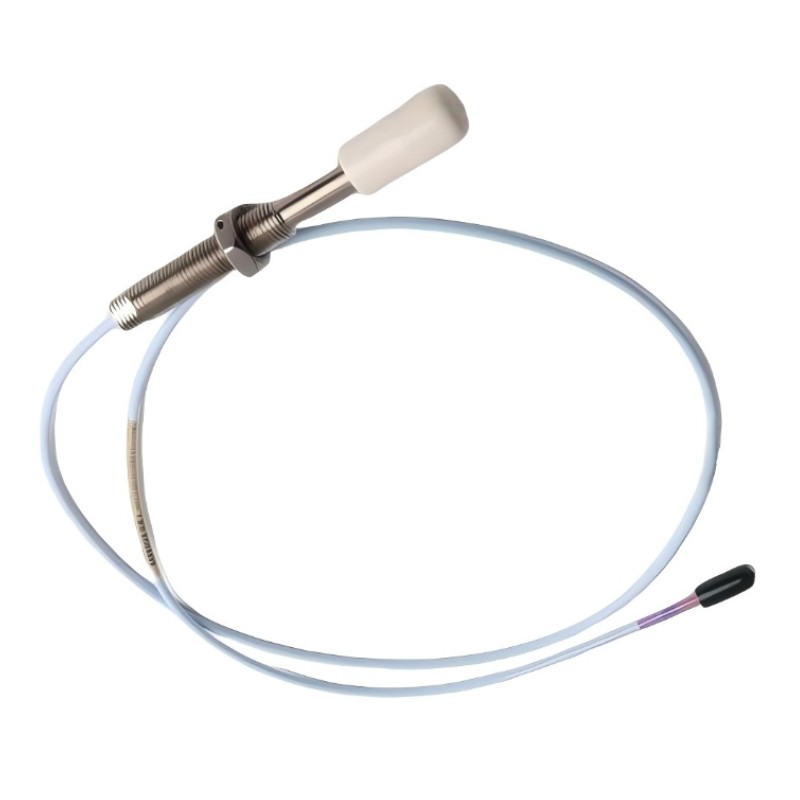

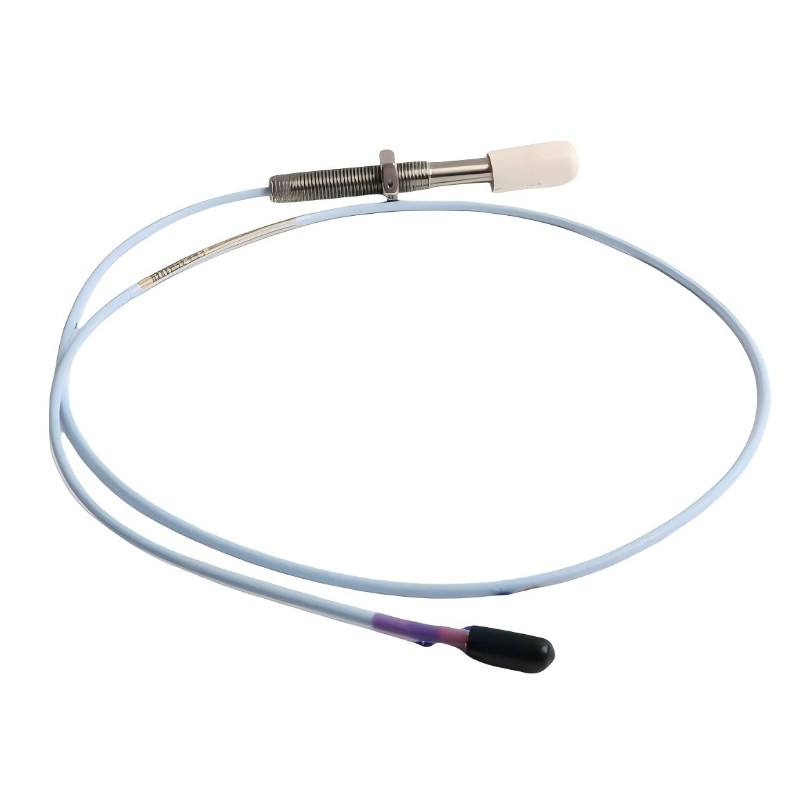

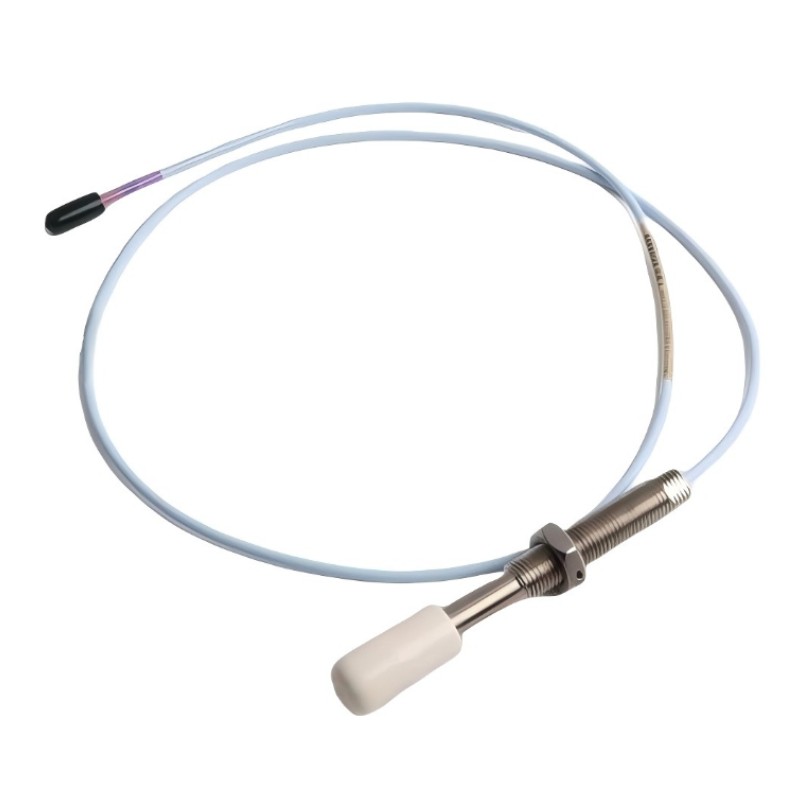

The Bently Nevada 330703-000-090-50-02-00 3300 XL 11 mm Proximity Probe is a high-precision non-contact displacement sensor designed for continuous monitoring, machinery protection, and condition analysis of critical rotating equipment.
As part of the 3300 XL 11 mm Proximity Probe series, this model provides reliable measurement of shaft vibration, radial displacement, and axial position. The probe uses advanced eddy current sensing technology to detect changes in the distance between the probe tip and rotating shaft surface without physical contact, ensuring stable measurement performance in demanding industrial environments.
The 330703-000-090-50-02-00 features a 90 mm case length and a 5-meter total cable length, providing enhanced installation flexibility for machinery where the monitoring electronics are located at a greater distance from the sensor installation point. With a weight of 0.25 kg, this extended cable configuration is suitable for large industrial equipment requiring flexible system layouts.
This proximity probe is commonly used in rotating machinery protection systems across industries such as power generation, oil and gas, petrochemical processing, and heavy manufacturing.
Typical applications include:
- Steam turbine vibration monitoring
- Gas turbine protection systems
- Compressor condition monitoring
- Generator shaft displacement measurement
- Large pump monitoring
- Motor vibration analysis
- Industrial predictive maintenance systems
Technical Specifications
| Parameter | Description |
|---|---|
| Manufacturer | Bently Nevada |
| Model | 330703-000-090-50-02-00 |
| Product Type | 3300 XL 11 mm Proximity Probe |
| Series | 3300 XL |
| Measurement Method | Non-contact eddy current sensing |
| Probe Type | Shaft displacement monitoring sensor |
| Case Length | 90 mm |
| Total Cable Length | 5 meters |
| Connector Type | Miniature coaxial connector |
| Cable Configuration | Standard cable |
| Weight | 0.25 kg |
| Application | Shaft vibration and position monitoring |
Working Principle
The Bently Nevada 330703-000-090-50-02-00 Proximity Probe operates using eddy current sensing technology.
The probe generates a high-frequency electromagnetic field at the sensing tip. When the rotating shaft moves closer or farther away from the probe, the gap between the shaft and probe changes. This variation modifies the electromagnetic field, and the sensor converts these changes into electrical signals representing shaft displacement and vibration.
The measurement process includes:
- The probe generates an electromagnetic sensing field.
- The rotating shaft changes the probe-to-shaft gap.
- The sensor detects electromagnetic field variations.
- The system converts the signal into displacement data.
- The monitoring system analyzes equipment operating conditions.
Because the probe does not contact the rotating shaft directly, it eliminates mechanical wear and provides reliable long-term monitoring performance.
Main Features
1. High-Precision Shaft Displacement Monitoring
The 330703-000-090-50-02-00 provides accurate monitoring of shaft movement and vibration conditions.
Key advantages:
- Precise displacement measurement
- Continuous online monitoring
- Stable signal output
- Reliable fault detection
The probe supports early identification of mechanical problems and helps maintenance teams improve equipment reliability.
2. 3300 XL 11 mm Probe Technology
The 11 mm sensing design provides reliable measurement performance for critical rotating machinery.
Benefits:
- Accurate shaft position measurement
- Stable vibration monitoring
- Suitable for large rotating equipment
- Reliable industrial operation
This technology is widely used in machinery protection systems requiring continuous monitoring.
3. 90 mm Case Length Design
The 90 mm case length provides additional installation flexibility for specific mechanical configurations.
Advantages:
- Flexible mounting options
- Suitable for different equipment structures
- Improved probe installation adaptability
- Reliable mechanical positioning
This design helps engineers integrate the probe into various industrial machinery layouts.
4. Extended 5-Meter Cable Configuration
The 5-meter total cable length allows installation flexibility when the sensor and monitoring system are separated by a longer distance.
Advantages:
- Suitable for large equipment installations
- Supports remote monitoring cabinet layouts
- Simplifies machinery system integration
- Reduces installation limitations
This cable configuration is commonly used in turbines, compressors, and large rotating machinery systems.
5. Non-Contact Eddy Current Sensing
The non-contact measurement principle provides several operational benefits:
- No mechanical contact with rotating components
- Reduced maintenance requirements
- Extended sensor service life
- Stable continuous monitoring
This makes the probe suitable for high-speed and critical rotating equipment.
Industrial Applications
Steam Turbine Monitoring
Steam turbines require accurate shaft monitoring to maintain safe and efficient operation.
Applications include:
- Rotor vibration measurement
- Shaft displacement monitoring
- Bearing condition evaluation
- Turbine protection systems
Gas Turbine Protection
Gas turbines operate under high-speed and demanding conditions.
The proximity probe supports:
- Rotor position monitoring
- Vibration analysis
- Mechanical fault detection
- Equipment protection
Compressor Condition Monitoring
Industrial compressors depend on reliable vibration monitoring for stable operation.
Applications:
- Shaft displacement measurement
- Rotor movement analysis
- Mechanical condition evaluation
- Predictive maintenance programs
Pumps and Motors
The probe supports condition monitoring for industrial rotating equipment.
Applications:
- Pump shaft monitoring
- Motor vibration analysis
- Equipment health evaluation
- Maintenance optimization
Power Generation Equipment
The proximity probe is suitable for critical power generation machinery.
Applications:
- Generator monitoring
- Turbine protection
- Rotor displacement measurement
- Machinery reliability improvement
Installation Guide
Mechanical Installation
Recommended installation procedure:
- Confirm the Bently Nevada 330703-000-090-50-02-00 model.
- Inspect the mounting location and equipment condition.
- Install the probe with correct alignment.
- Adjust the probe gap according to application requirements.
- Secure the probe assembly.
- Verify mechanical stability.
Correct mechanical installation ensures accurate vibration and displacement measurement.
Electrical Connection
Before connecting the probe:
- Inspect the 5-meter cable condition.
- Verify connector compatibility.
- Confirm monitoring system requirements.
- Ensure proper grounding.
Recommended practices:
- Avoid excessive cable bending.
- Keep cables away from strong electromagnetic interference.
- Protect connectors from contamination.
- Verify stable signal transmission after installation.
Commissioning Procedure
Recommended commissioning steps:
- Install the proximity probe correctly.
- Connect the probe cable to the monitoring system.
- Verify sensor signal output.
- Check probe gap adjustment.
- Confirm shaft displacement readings.
- Test vibration monitoring functions.
- Verify alarm and protection settings.
Proper commissioning ensures reliable machinery protection performance.
Common Faults and Troubleshooting
| Fault Symptom | Possible Cause | Recommended Solution |
|---|---|---|
| No signal output | Cable connection failure | Check cable and connector |
| Incorrect measurement value | Improper probe gap | Adjust probe position |
| Signal fluctuation | Electrical interference | Improve cable routing |
| Unstable readings | Probe contamination or damage | Inspect probe condition |
| False vibration alarm | Actual machinery abnormality | Check equipment operation |
| Sensor failure | Internal probe fault | Replace the probe |
Maintenance Recommendations
To maintain reliable operation:
- Inspect probe installation regularly
- Check the 5-meter cable condition
- Verify connector integrity
- Monitor vibration trends
- Keep mounting areas clean
- Perform periodic system inspections
Regular maintenance improves equipment reliability and reduces unexpected downtime.
Advantages of Bently Nevada 330703-000-090-50-02-00 Proximity Probe
- High-precision shaft displacement measurement
- Non-contact eddy current sensing technology
- 90 mm case length design
- Extended 5-meter cable configuration
- Flexible installation capability
- Stable signal transmission
- Reliable vibration monitoring
- Suitable for critical rotating machinery
- Supports predictive maintenance strategies
Frequently Asked Questions
What is Bently Nevada 330703-000-090-50-02-00?
The Bently Nevada 330703-000-090-50-02-00 is a 3300 XL 11 mm Proximity Probe designed for non-contact shaft vibration and displacement monitoring.
What is the main function of this proximity probe?
It measures shaft movement, vibration, and position changes to help protect critical rotating equipment and improve maintenance efficiency.
Where is this proximity probe used?
It is commonly used in turbines, compressors, generators, pumps, motors, and other industrial rotating machinery.
What is the total cable length of 330703-000-090-50-02-00?
The total cable length is 5 meters.
Conclusion
The Bently Nevada 330703-000-090-50-02-00 3300 XL 11 mm Proximity Probe is a reliable solution for industrial machinery condition monitoring and protection.
With accurate non-contact displacement measurement, a 90 mm case length, 5-meter cable configuration, and durable industrial design, this proximity probe provides dependable performance for critical rotating equipment.
The 330703-000-090-50-02-00 helps improve machine reliability, reduce unexpected failures, optimize maintenance strategies, and support advanced predictive maintenance programs in modern industrial facilities.
