Product Overview

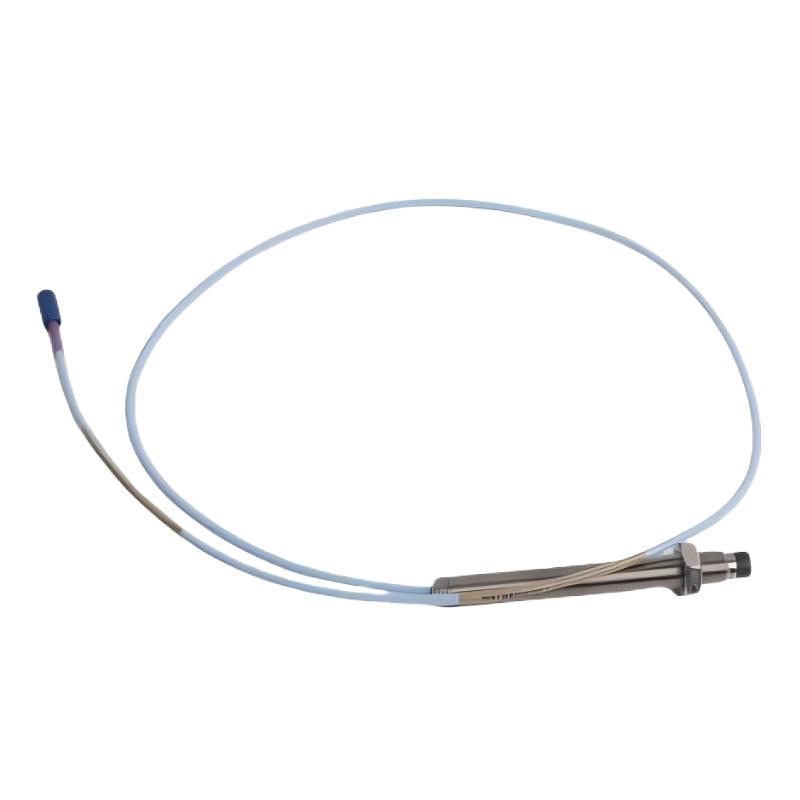

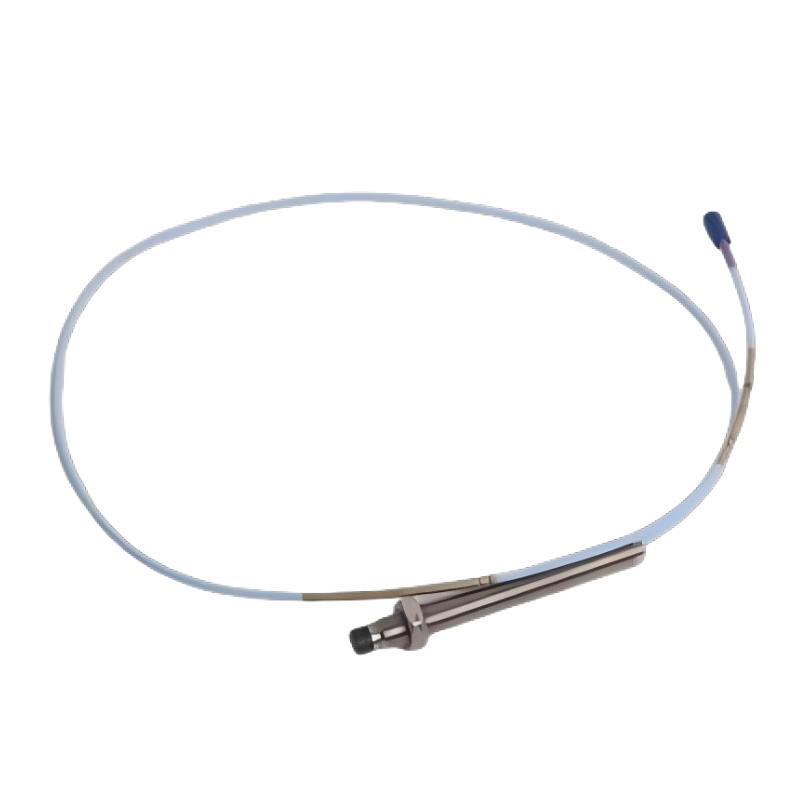

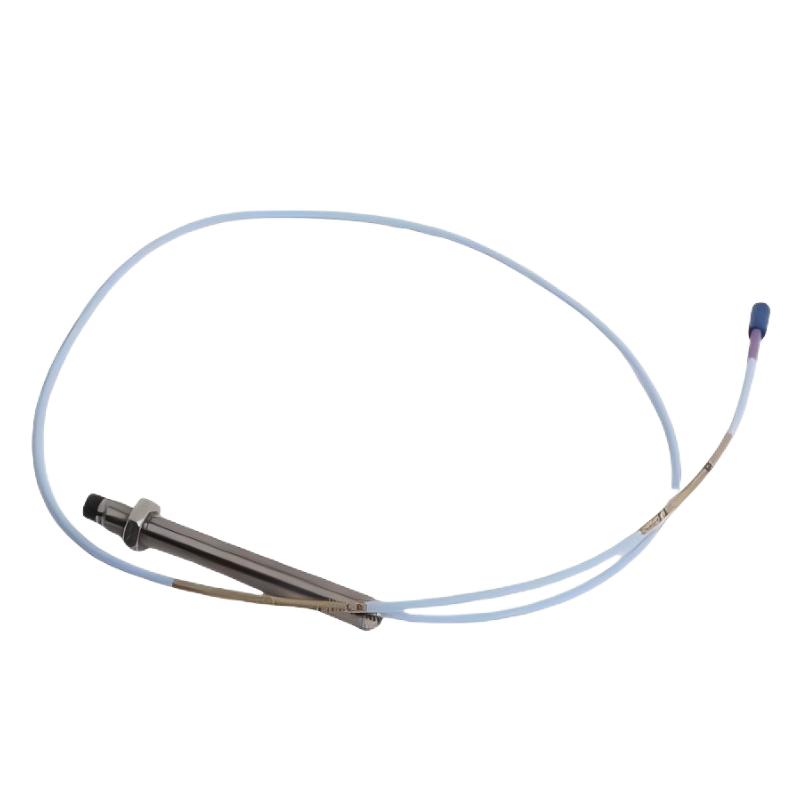

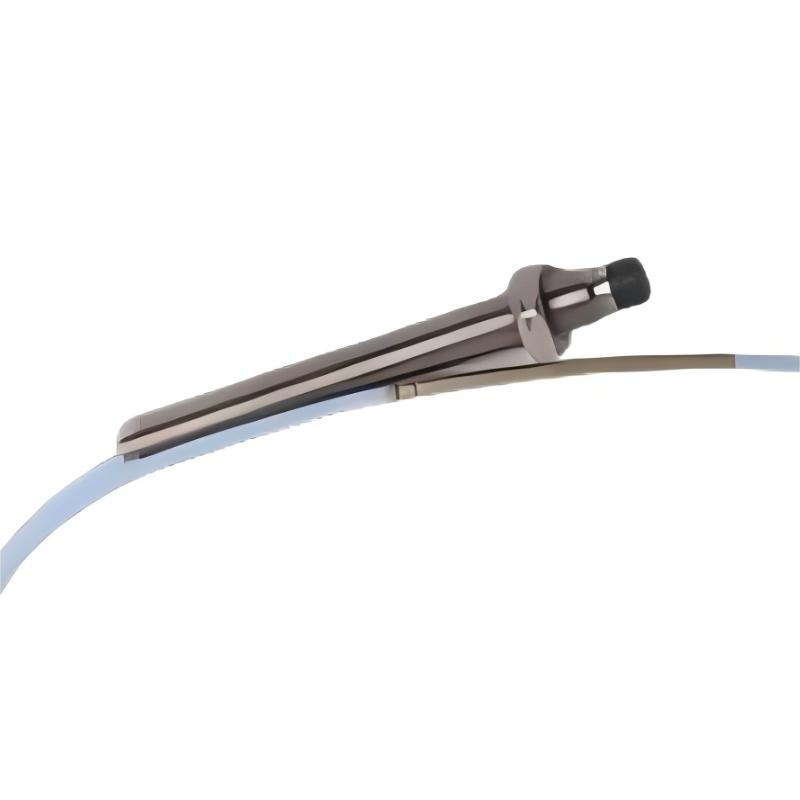

The Bently Nevada 330703-000-090-10-02-CN 3300 XL 11 mm Proximity Probe is a high-precision non-contact displacement sensor designed for continuous monitoring, protection, and condition analysis of critical rotating machinery.
As part of the 3300 XL 11 mm Proximity Probe product family, this model provides accurate measurement of shaft vibration, radial displacement, and axial position. The probe uses eddy current sensing technology to detect changes in the distance between the probe tip and the rotating shaft surface without physical contact, providing reliable performance for demanding industrial applications.
The 330703-000-090-10-02-CN features a 90 mm case length and a 1-meter total cable length, offering additional mechanical installation flexibility for equipment requiring a longer probe body configuration. With a lightweight structure of 0.07 kg, this proximity probe supports easy installation while maintaining stable measurement performance.
This model is widely used in machinery protection and predictive maintenance systems for industries where accurate shaft displacement monitoring is essential.
Typical applications include:
- Steam turbine monitoring systems
- Gas turbine protection
- Compressor condition monitoring
- Generator vibration analysis
- Pump and motor monitoring
- Rotating equipment fault diagnosis
- Industrial predictive maintenance systems
Technical Specifications
| Parameter | Description |
|---|---|
| Manufacturer | Bently Nevada |
| Model | 330703-000-090-10-02-CN |
| Product Type | 3300 XL 11 mm Proximity Probe |
| Series | 3300 XL |
| Measurement Method | Non-contact eddy current sensing |
| Probe Type | Shaft displacement measurement sensor |
| Case Length | 90 mm |
| Total Cable Length | 1 meter |
| Connector Type | Miniature coaxial connector |
| Cable Configuration | Standard cable |
| Weight | 0.07 kg |
| Application | Shaft vibration and position monitoring |
Working Principle
The Bently Nevada 330703-000-090-10-02-CN Proximity Probe operates based on eddy current sensing technology.
The probe generates a high-frequency electromagnetic field at the sensing tip. When the rotating shaft moves relative to the probe, the gap between the shaft and probe changes. The sensor detects these variations and converts them into electrical signals representing shaft displacement and vibration conditions.
The measurement process includes:
- The probe generates an electromagnetic sensing field.
- The rotating shaft changes the distance from the probe tip.
- The sensor detects changes in the electromagnetic field.
- The signal is converted into displacement information.
- The monitoring system evaluates machinery operating conditions.
Because the probe does not physically contact the rotating shaft, it reduces mechanical wear and provides reliable long-term operation.
Main Features
1. High-Precision Shaft Displacement Measurement
The 330703-000-090-10-02-CN provides accurate monitoring of shaft movement and vibration behavior.
Key advantages:
- High measurement accuracy
- Continuous online monitoring
- Stable signal output
- Reliable fault detection
The probe helps operators identify abnormal machinery conditions early and improve maintenance planning.
2. 3300 XL 11 mm Sensing Technology
The 11 mm sensing design provides reliable measurement capability for critical rotating equipment.
Benefits:
- Accurate shaft position detection
- Stable vibration measurement
- Suitable for industrial machinery
- Reliable long-term operation
This technology is widely used in applications requiring continuous equipment protection.
3. 90 mm Case Length Design
The 90 mm case length provides additional mechanical installation flexibility.
Advantages:
- Suitable for specific mounting requirements
- Flexible installation arrangement
- Improved probe positioning capability
- Reliable mechanical integration
This configuration allows engineers to adapt the probe installation according to equipment structure and space limitations.
4. Compact 1-Meter Cable Configuration
The 1-meter total cable length is suitable for close-distance monitoring applications.
Advantages:
- Easy cable routing
- Reduced installation complexity
- Compact system layout
- Convenient maintenance access
This configuration is ideal for equipment where the monitoring electronics are installed near the sensor location.
5. Non-Contact Eddy Current Measurement
The eddy current sensing principle provides several operational advantages:
- No physical contact with rotating parts
- Reduced maintenance requirements
- Extended service life
- Stable continuous monitoring
This makes the probe suitable for high-speed rotating machinery.
Industrial Applications
Steam Turbine Monitoring
Steam turbines require accurate shaft monitoring to maintain safe and efficient operation.
Applications include:
- Rotor vibration measurement
- Shaft displacement monitoring
- Bearing condition evaluation
- Turbine protection systems
Gas Turbine Protection
Gas turbines operate under demanding conditions and require reliable monitoring solutions.
Applications:
- Rotor position measurement
- Vibration monitoring
- Mechanical fault detection
- Equipment protection
Compressor Condition Monitoring
Industrial compressors rely on accurate shaft monitoring for reliable operation.
Applications:
- Shaft displacement measurement
- Rotor movement monitoring
- Vibration trend analysis
- Predictive maintenance
Pumps and Motors
The proximity probe supports condition monitoring of industrial rotating equipment.
Applications:
- Pump shaft monitoring
- Motor vibration analysis
- Equipment health evaluation
- Maintenance optimization
Power Generation Equipment
The probe is suitable for critical rotating machinery in power generation facilities.
Applications:
- Generator monitoring
- Turbine protection
- Rotor displacement measurement
- Machinery reliability improvement
Installation Guide
Mechanical Installation
Recommended installation steps:
- Confirm the Bently Nevada 330703-000-090-10-02-CN model.
- Inspect the installation location and mounting condition.
- Install the probe with correct mechanical alignment.
- Adjust the probe gap according to application requirements.
- Secure the probe assembly.
- Verify mechanical stability.
Correct mechanical installation ensures accurate vibration and displacement measurement.
Electrical Connection
Before electrical connection:
- Inspect the 1-meter cable condition.
- Verify connector compatibility.
- Confirm monitoring system requirements.
- Ensure proper grounding.
Recommended practices:
- Avoid excessive cable bending.
- Keep cables away from electromagnetic interference sources.
- Protect connectors from contamination.
- Verify stable signal output after installation.
Commissioning Procedure
Recommended commissioning steps:
- Install the proximity probe correctly.
- Connect the sensor to the monitoring system.
- Verify signal output.
- Check probe gap adjustment.
- Confirm shaft displacement readings.
- Perform vibration monitoring tests.
- Verify alarm and protection settings.
Proper commissioning ensures reliable machinery protection performance.
Common Faults and Troubleshooting
| Fault Symptom | Possible Cause | Recommended Solution |
|---|---|---|
| No signal output | Cable connection problem | Check cable and connector |
| Incorrect displacement reading | Incorrect probe gap | Adjust probe position |
| Signal fluctuation | Electrical interference | Improve cable routing |
| Unstable measurement | Probe contamination or damage | Inspect sensor condition |
| False vibration alarm | Actual equipment abnormality | Check machine operation |
| Sensor failure | Internal probe fault | Replace the probe |
Maintenance Recommendations
To maintain reliable operation:
- Inspect probe installation regularly
- Check cable condition
- Verify connector integrity
- Monitor vibration trends
- Keep mounting areas clean
- Perform periodic system inspections
Regular maintenance improves machinery reliability and reduces unexpected downtime.
Advantages of Bently Nevada 330703-000-090-10-02-CN Proximity Probe
- High-precision shaft displacement measurement
- Non-contact eddy current sensing technology
- 90 mm case length design
- Compact 1-meter cable configuration
- Lightweight industrial structure
- Reliable vibration monitoring
- Stable signal transmission
- Suitable for critical rotating equipment
- Supports predictive maintenance strategies
Frequently Asked Questions
What is Bently Nevada 330703-000-090-10-02-CN?
The Bently Nevada 330703-000-090-10-02-CN is a 3300 XL 11 mm Proximity Probe designed for non-contact shaft vibration and displacement monitoring.
What is the main function of this proximity probe?
It measures shaft movement, vibration, and position changes to help protect critical rotating machinery.
Where is this proximity probe used?
It is commonly used in turbines, compressors, generators, pumps, and other industrial rotating equipment.
What is the total cable length of 330703-000-090-10-02-CN?
The total cable length is 1 meter.
Conclusion
The Bently Nevada 330703-000-090-10-02-CN 3300 XL 11 mm Proximity Probe is a reliable solution for industrial machinery condition monitoring and protection.
With accurate non-contact displacement measurement, a 90 mm case length, 1-meter cable configuration, and lightweight construction, this proximity probe provides dependable performance for critical rotating equipment.
The 330703-000-090-10-02-CN helps improve machine reliability, reduce unexpected failures, optimize maintenance schedules, and support advanced predictive maintenance strategies in modern industrial facilities.
