Product Overview

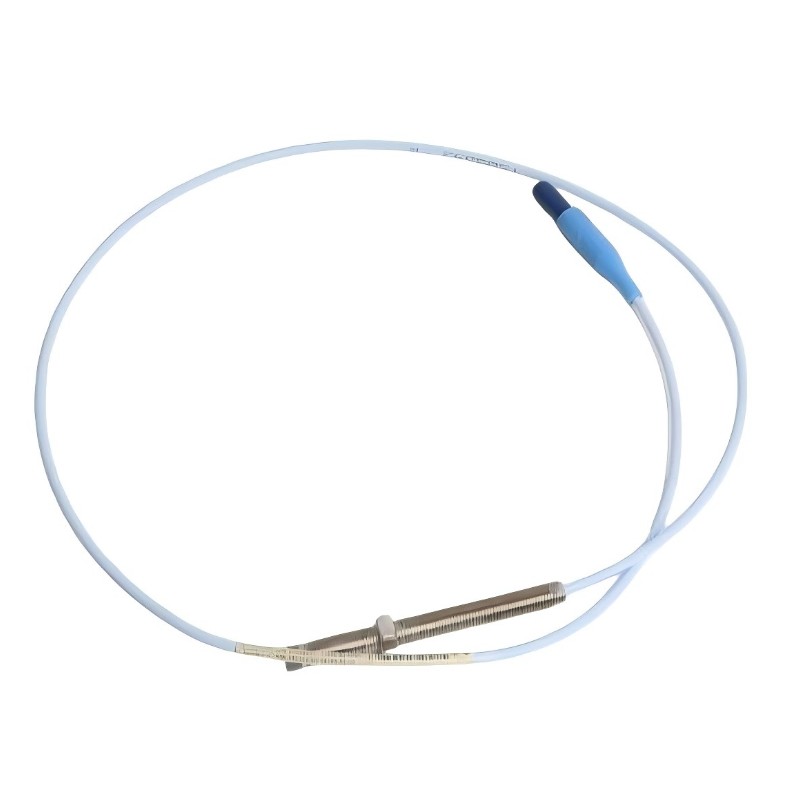

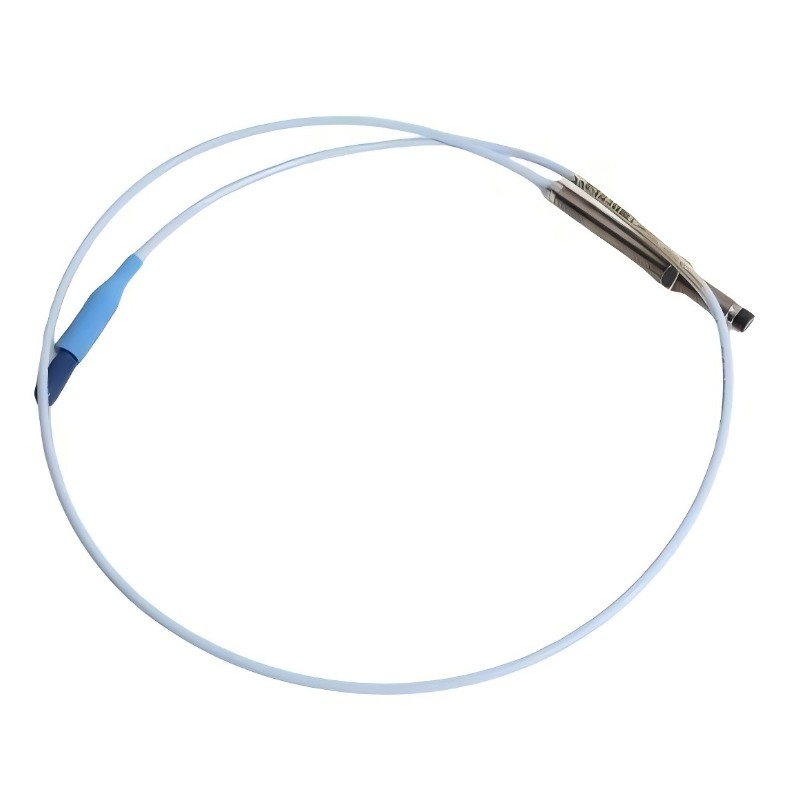

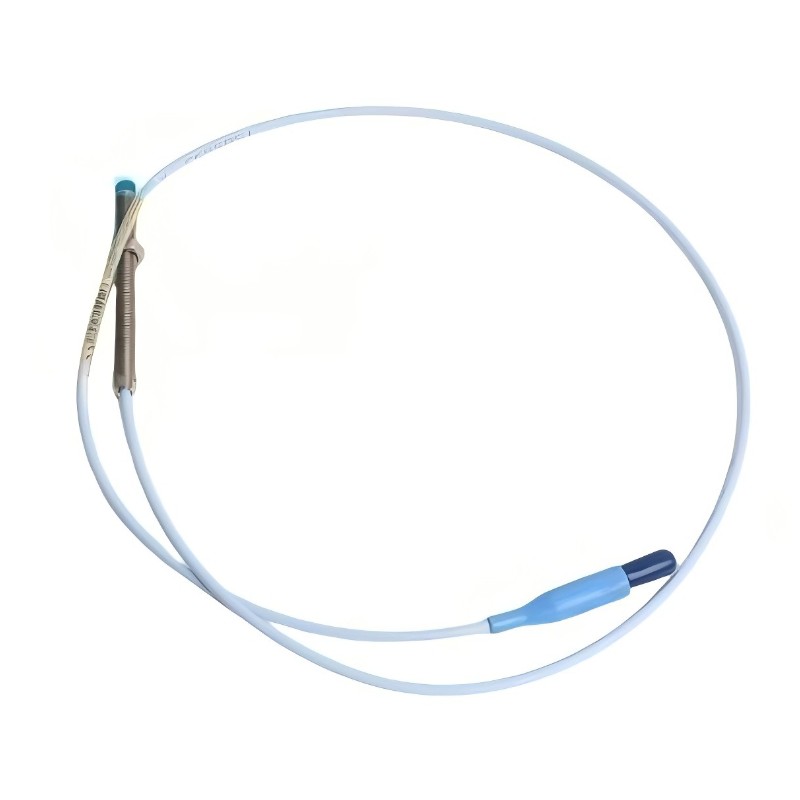

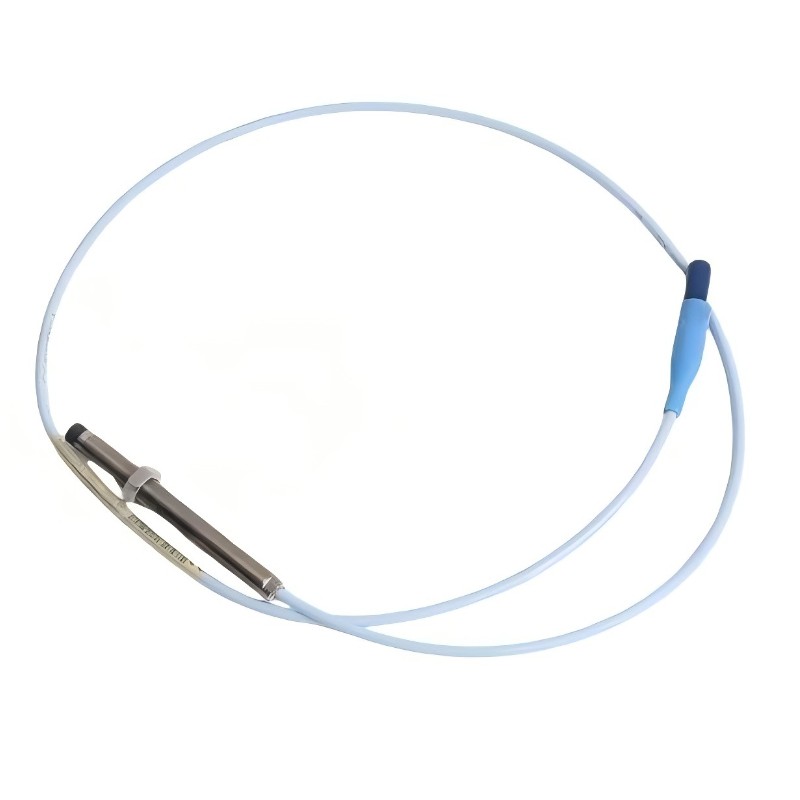

The Bently Nevada 330703-000-080-10-02-00 3300 XL 11 mm Proximity Probe is a high-precision non-contact displacement sensor designed for continuous condition monitoring and protection of critical rotating machinery.
As part of the 3300 XL 11 mm Proximity Probe series, this model is designed to provide accurate shaft vibration measurement, radial displacement detection, and axial position monitoring. The probe uses advanced eddy current sensing technology to measure the distance between the probe tip and the rotating shaft without physical contact.
The 330703-000-080-10-02-00 features an 80 mm case length and a 1-meter total cable length, providing additional mechanical installation flexibility for industrial equipment where probe positioning requirements vary. With a lightweight design of 0.07 kg, the sensor allows easy installation while maintaining reliable measurement performance.
This proximity probe is widely applied in machinery protection systems, helping operators monitor equipment health, identify abnormal operating conditions, and improve maintenance efficiency.
Typical applications include:
- Steam turbine monitoring
- Gas turbine protection
- Centrifugal compressor monitoring
- Generator vibration analysis
- Pump condition monitoring
- Motor shaft monitoring
- Industrial rotating equipment diagnostics
Technical Specifications
| Parameter | Description |
|---|---|
| Manufacturer | Bently Nevada |
| Model | 330703-000-080-10-02-00 |
| Product Type | 3300 XL 11 mm Proximity Probe |
| Series | 3300 XL |
| Measurement Method | Non-contact eddy current sensing |
| Probe Type | Shaft displacement measurement sensor |
| Case Length | 80 mm |
| Total Cable Length | 1 meter |
| Connector Type | Miniature coaxial connector |
| Cable Configuration | Standard cable |
| Weight | 0.07 kg |
| Application | Shaft vibration and position monitoring |
Working Principle
The Bently Nevada 330703-000-080-10-02-00 Proximity Probe operates using eddy current displacement measurement technology.
The probe generates a high-frequency electromagnetic field at the sensing tip. When the rotating shaft changes position, the distance between the shaft surface and the probe tip changes. This affects the electromagnetic field, and the sensor converts these changes into electrical signals representing shaft movement and vibration.
The measurement process includes:
- The probe produces an electromagnetic sensing field.
- The rotating shaft changes the probe gap distance.
- The sensor detects variations in the electromagnetic field.
- The system converts the changes into displacement signals.
- The monitoring system evaluates machine operating conditions.
The non-contact design eliminates mechanical friction between the sensor and shaft, providing stable operation and extended service life.
Main Features
1. High-Precision Shaft Displacement Monitoring
The 330703-000-080-10-02-00 provides accurate measurement of shaft movement and vibration conditions.
Key advantages:
- High measurement accuracy
- Continuous online monitoring
- Stable signal output
- Reliable fault detection
The probe helps maintenance teams detect early signs of mechanical problems and reduce unexpected equipment downtime.
2. 3300 XL 11 mm Sensing Technology
The 11 mm probe design provides reliable performance for critical rotating equipment.
Benefits:
- Accurate shaft position measurement
- Stable vibration monitoring
- Suitable for industrial machinery
- Reliable operation in demanding environments
This technology is widely used in applications requiring continuous machinery protection.
3. 80 mm Case Length Design
The 80 mm case length provides improved installation flexibility for different mechanical arrangements.
Advantages:
- Flexible mounting options
- Suitable for specific installation spaces
- Improved probe positioning capability
- Reliable mechanical integration
This configuration helps engineers select a suitable mounting arrangement for various rotating equipment designs.
4. Compact 1-Meter Cable Configuration
The 1-meter total cable length is suitable for applications where the probe is installed close to the monitoring electronics.
Advantages:
- Simple cable routing
- Reduced installation complexity
- Compact system arrangement
- Easy maintenance access
The cable design supports efficient integration into machinery monitoring systems.
5. Non-Contact Eddy Current Measurement
The non-contact sensing technology provides several operational advantages:
- No physical wear on rotating components
- Reduced maintenance requirements
- Long operational service life
- Reliable continuous monitoring
This makes the probe suitable for high-speed rotating equipment.
Industrial Applications
Steam Turbine Monitoring
Steam turbines require precise shaft monitoring to maintain safe and stable operation.
Applications include:
- Rotor vibration measurement
- Shaft displacement monitoring
- Bearing condition analysis
- Turbine protection systems
Gas Turbine Protection
Gas turbines require reliable monitoring solutions due to high-speed operation.
Applications:
- Rotor position detection
- Vibration monitoring
- Mechanical fault identification
- Equipment protection
Compressor Condition Monitoring
Industrial compressors depend on accurate shaft monitoring for reliable performance.
Applications:
- Shaft displacement measurement
- Rotor condition evaluation
- Vibration trend monitoring
- Predictive maintenance
Pumps and Motors
The proximity probe supports condition monitoring for rotating equipment.
Applications:
- Pump shaft monitoring
- Motor vibration analysis
- Equipment health evaluation
- Maintenance planning
Power Generation Equipment
The probe is suitable for critical rotating machinery in power generation facilities.
Applications:
- Generator monitoring
- Turbine protection
- Rotor displacement measurement
- Machinery reliability improvement
Installation Guide
Mechanical Installation
Recommended installation steps:
- Confirm the Bently Nevada 330703-000-080-10-02-00 model.
- Inspect the mounting location and mechanical condition.
- Install the probe with correct alignment.
- Adjust the probe gap according to equipment requirements.
- Secure the probe assembly.
- Verify mechanical stability.
Correct installation ensures accurate vibration and displacement measurement.
Electrical Connection
Before electrical connection:
- Check cable condition.
- Verify connector compatibility.
- Confirm monitoring system requirements.
- Ensure proper grounding.
Recommended practices:
- Avoid excessive cable bending.
- Keep cables away from electromagnetic interference sources.
- Protect connectors from contamination.
- Verify stable signal transmission after installation.
Commissioning Procedure
Recommended commissioning steps:
- Install the proximity probe correctly.
- Connect the probe to the monitoring system.
- Verify signal output.
- Check probe gap adjustment.
- Confirm shaft displacement readings.
- Test vibration monitoring functions.
- Verify alarm and protection parameters.
Proper commissioning ensures reliable machinery protection performance.
Common Faults and Troubleshooting
| Fault Symptom | Possible Cause | Recommended Solution |
|---|---|---|
| No signal output | Cable connection issue | Check cable and connector |
| Incorrect measurement value | Incorrect probe gap | Adjust probe position |
| Signal fluctuation | Electrical interference | Improve cable routing |
| Unstable readings | Probe contamination or damage | Inspect sensor condition |
| False vibration alarm | Actual machine problem | Check equipment operation |
| Sensor failure | Internal probe fault | Replace the probe |
Maintenance Recommendations
To maintain reliable performance:
- Inspect probe installation regularly
- Check cable condition
- Verify connector integrity
- Monitor vibration trends
- Keep mounting areas clean
- Perform periodic system inspections
Regular maintenance improves machinery reliability and helps prevent unexpected failures.
Advantages of Bently Nevada 330703-000-080-10-02-00 Proximity Probe
- High-precision shaft displacement measurement
- Non-contact eddy current sensing technology
- 80 mm case length design
- Compact 1-meter cable configuration
- Lightweight industrial structure
- Reliable vibration monitoring
- Stable signal transmission
- Suitable for critical rotating equipment
- Supports predictive maintenance strategies
Frequently Asked Questions
What is Bently Nevada 330703-000-080-10-02-00?
The Bently Nevada 330703-000-080-10-02-00 is a 3300 XL 11 mm Proximity Probe designed for non-contact shaft vibration and displacement monitoring.
What is the main function of this proximity probe?
It measures shaft movement, vibration, and position changes to help protect critical rotating machinery.
Where is this proximity probe used?
It is commonly used in turbines, compressors, generators, pumps, and other industrial rotating equipment.
What is the total cable length of 330703-000-080-10-02-00?
The total cable length is 1 meter.
Conclusion
The Bently Nevada 330703-000-080-10-02-00 3300 XL 11 mm Proximity Probe is a reliable and flexible solution for industrial machinery condition monitoring.
With accurate non-contact displacement measurement, an 80 mm case length, 1-meter cable configuration, and lightweight construction, this proximity probe provides dependable performance for critical rotating equipment.
The 330703-000-080-10-02-00 helps improve machine reliability, reduce unexpected failures, optimize maintenance schedules, and support advanced predictive maintenance strategies in modern industrial facilities.
