Product Overview

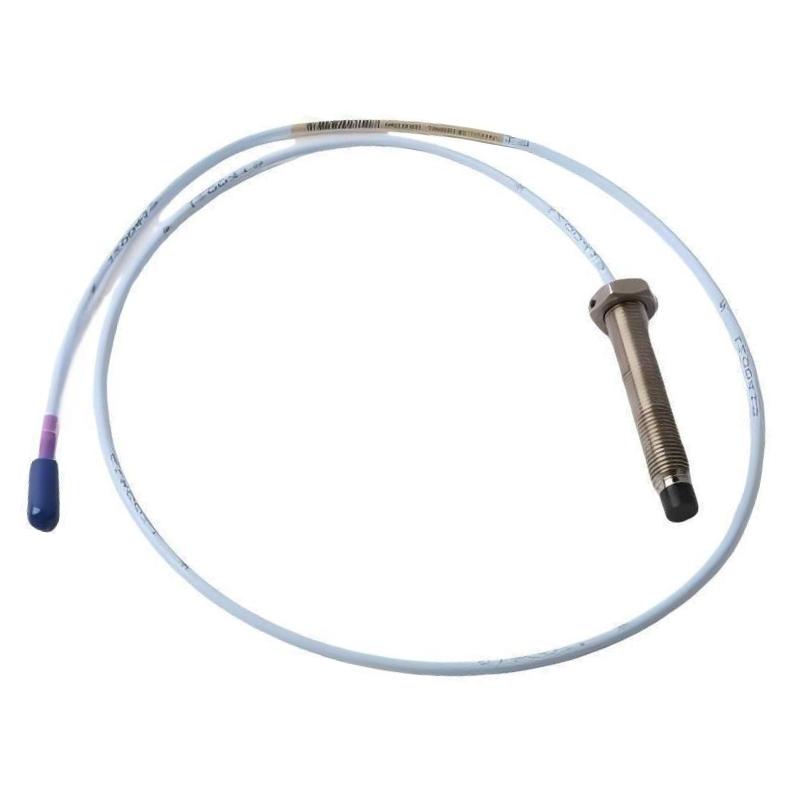

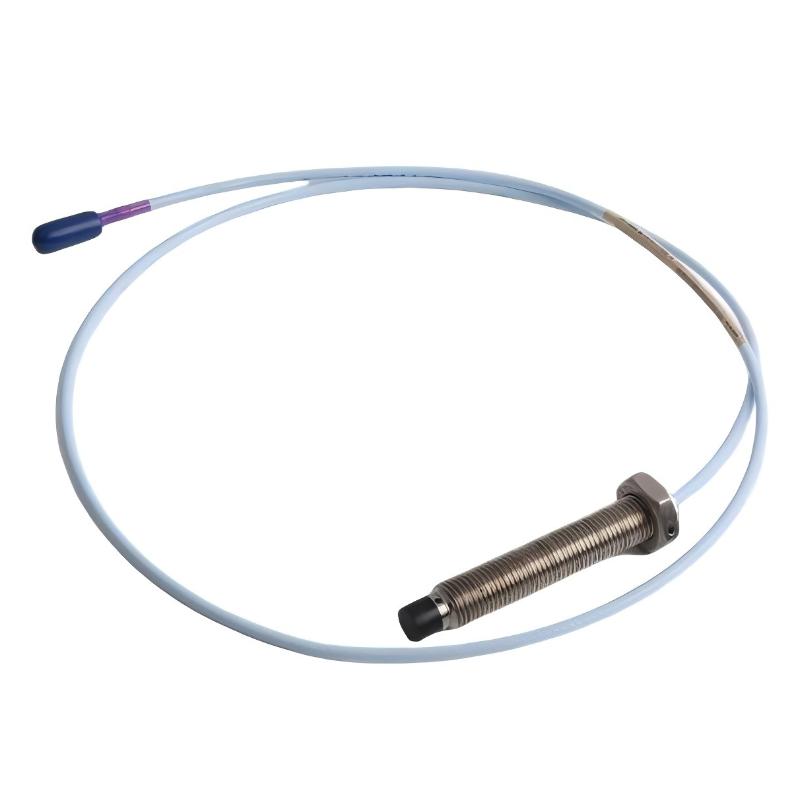

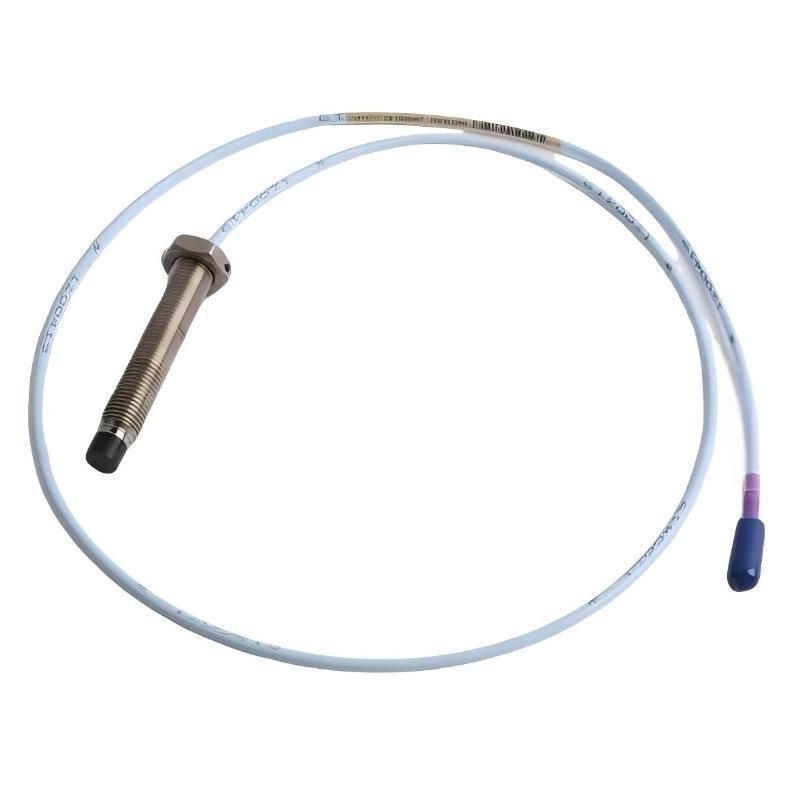

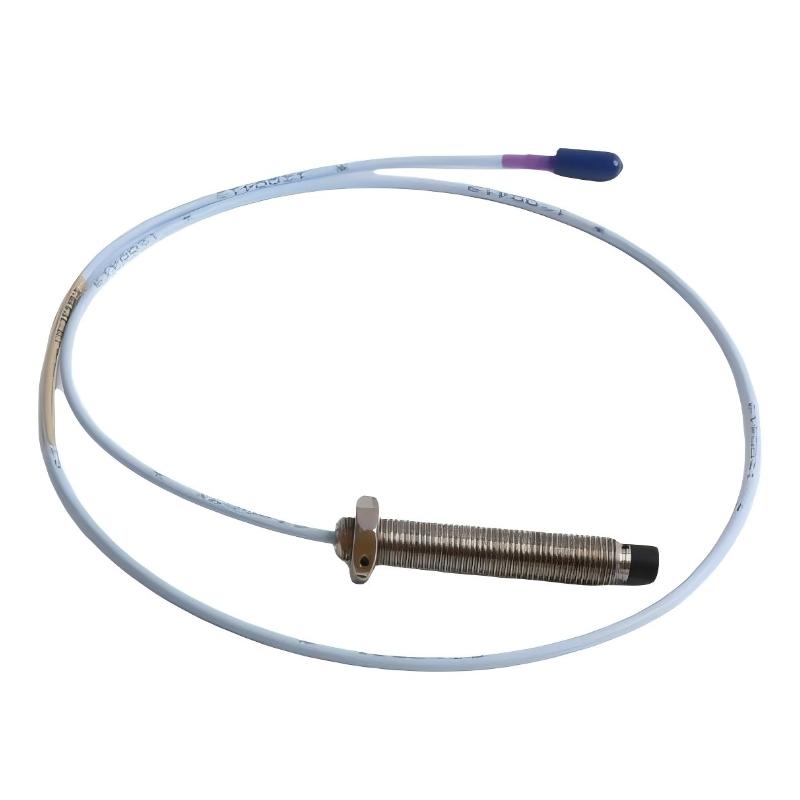

The Bently Nevada 330703-000-070-10-02 3300 XL 11 mm Proximity Probe is a high-precision non-contact displacement sensor designed for monitoring the condition and protection of critical rotating machinery.
As a member of the 3300 XL 11 mm Proximity Probe series, this model is designed to accurately measure shaft vibration, radial displacement, and axial position in industrial equipment. The probe uses eddy current sensing technology to detect changes in the gap between the probe tip and the rotating shaft without physical contact.
The 330703-000-070-10-02 features a 70 mm case length and a 1-meter total cable length, providing a compact and flexible installation solution for machinery monitoring systems. With a lightweight design of 0.07 kg, this proximity probe allows convenient installation while maintaining reliable measurement performance.
This model is commonly used in machinery protection and condition monitoring applications where accurate shaft displacement measurement is required.
Typical applications include:
- Steam turbine monitoring systems
- Gas turbine protection
- Centrifugal compressor monitoring
- Generator vibration analysis
- Pump and motor condition monitoring
- Rotating equipment diagnostics
- Predictive maintenance systems
Technical Specifications
| Parameter | Description |
|---|---|
| Manufacturer | Bently Nevada |
| Model | 330703-000-070-10-02 |
| Product Type | 3300 XL 11 mm Proximity Probe |
| Series | 3300 XL |
| Measurement Method | Non-contact eddy current sensing |
| Probe Type | Shaft displacement measurement sensor |
| Case Length | 70 mm |
| Total Cable Length | 1 meter |
| Connector Type | Miniature coaxial connector |
| Cable Configuration | Standard cable |
| Weight | 0.07 kg |
| Application | Shaft vibration and position monitoring |
Working Principle
The Bently Nevada 330703-000-070-10-02 Proximity Probe works based on eddy current displacement measurement technology.
During operation, the probe generates a high-frequency electromagnetic field at the sensing tip. When the rotating shaft moves relative to the probe, the distance between the shaft and sensor changes. These variations influence the electromagnetic field and are converted into electrical signals representing shaft movement.
The measurement process includes:
- The probe generates an electromagnetic sensing field.
- The rotating shaft changes the probe gap distance.
- The probe detects variations in the electromagnetic field.
- The signal is converted into displacement data.
- The monitoring system analyzes machine operating conditions.
Because there is no physical contact between the probe and shaft, the sensor avoids mechanical wear and provides stable long-term operation.
Main Features
1. Accurate Shaft Vibration Monitoring
The 330703-000-070-10-02 provides precise measurement of shaft displacement and vibration behavior.
Key advantages:
- High measurement accuracy
- Continuous online monitoring
- Stable signal output
- Fast response to abnormal conditions
The probe supports early detection of mechanical problems and helps prevent unexpected equipment failures.
2. 3300 XL 11 mm Sensing Technology
The 11 mm probe design provides reliable performance for industrial rotating machinery.
Benefits:
- Stable shaft position measurement
- Reliable vibration monitoring
- Suitable for critical equipment
- Strong industrial adaptability
This makes it suitable for applications requiring continuous machinery protection.
3. 70 mm Case Length Design
The 70 mm case length provides additional installation flexibility for specific mechanical arrangements.
Advantages:
- Suitable for different mounting requirements
- Improved installation adaptability
- Flexible equipment integration
- Reliable mechanical positioning
This configuration can support applications where additional mounting space is required.
4. Compact 1-Meter Cable Configuration
The 1-meter cable length provides an efficient solution for close-distance installations.
Advantages:
- Easy cable routing
- Reduced installation complexity
- Suitable for compact monitoring layouts
- Simplified maintenance access
5. Non-Contact Measurement Capability
The eddy current sensing method provides important operational benefits:
- No mechanical contact with rotating parts
- Reduced maintenance requirements
- Long operational service life
- Reliable continuous monitoring
This makes the probe suitable for high-speed rotating machinery.
Industrial Applications
Steam Turbine Monitoring
Steam turbines require accurate shaft monitoring to ensure safe operation.
Applications include:
- Rotor vibration measurement
- Shaft displacement monitoring
- Bearing condition analysis
- Turbine protection
Gas Turbine Protection
Gas turbines operate under demanding conditions and require reliable monitoring solutions.
Applications:
- Rotor position detection
- Vibration analysis
- Fault identification
- Equipment protection
Compressor Condition Monitoring
Industrial compressors rely on accurate shaft monitoring to maintain stable performance.
Applications:
- Shaft displacement measurement
- Mechanical condition evaluation
- Vibration trend analysis
- Predictive maintenance
Pumps and Motors
The proximity probe supports condition monitoring of industrial rotating equipment.
Applications:
- Pump shaft monitoring
- Motor vibration detection
- Equipment health evaluation
- Maintenance planning
Power Generation Equipment
The probe is suitable for critical rotating machinery in power plants.
Applications:
- Generator monitoring
- Turbine protection
- Rotor displacement measurement
- Reliability improvement
Installation Guide
Mechanical Installation
Recommended installation steps:
- Confirm the Bently Nevada 330703-000-070-10-02 model.
- Inspect the mounting location.
- Verify mechanical installation conditions.
- Install the probe with correct alignment.
- Adjust the probe gap according to application requirements.
- Secure the probe assembly.
Correct mechanical installation ensures accurate vibration and displacement measurement.
Electrical Connection
Before connecting the probe:
- Check cable condition.
- Verify connector compatibility.
- Confirm monitoring system requirements.
- Ensure proper grounding.
Recommended practices:
- Avoid excessive cable bending.
- Keep cables away from electromagnetic interference sources.
- Protect connectors from contamination.
- Verify signal stability after installation.
Commissioning Procedure
Recommended commissioning steps:
- Install the proximity probe correctly.
- Connect the sensor cable to the monitoring system.
- Verify signal output.
- Check probe gap adjustment.
- Confirm shaft displacement readings.
- Test vibration monitoring functions.
- Verify alarm settings.
Proper commissioning ensures reliable machinery protection.
Common Faults and Troubleshooting
| Fault Symptom | Possible Cause | Recommended Solution |
|---|---|---|
| No signal output | Cable connection problem | Check cable and connector |
| Incorrect vibration measurement | Incorrect probe gap | Adjust probe position |
| Signal fluctuation | Electrical interference | Improve cable routing |
| Unstable readings | Probe contamination or damage | Inspect sensor condition |
| False vibration alarm | Actual machinery issue | Check equipment operation |
| Sensor failure | Internal probe fault | Replace the probe |
Maintenance Recommendations
To maintain reliable performance:
- Inspect probe installation regularly
- Check cable condition
- Verify connector integrity
- Monitor vibration trends
- Keep mounting areas clean
- Perform periodic system inspections
Regular maintenance helps improve equipment reliability and reduce unexpected downtime.
Advantages of Bently Nevada 330703-000-070-10-02 Proximity Probe
- High-precision shaft displacement measurement
- Non-contact eddy current sensing technology
- Compact 1-meter cable configuration
- Lightweight industrial design
- Reliable vibration monitoring
- Stable signal transmission
- Flexible 70 mm case length design
- Suitable for critical rotating equipment
- Supports predictive maintenance strategies
Frequently Asked Questions
What is Bently Nevada 330703-000-070-10-02?
The Bently Nevada 330703-000-070-10-02 is a 3300 XL 11 mm proximity probe designed for non-contact shaft vibration and displacement monitoring.
What is the main function of this proximity probe?
It measures shaft movement and vibration conditions to help protect rotating machinery and improve equipment reliability.
Where is this proximity probe used?
It is commonly used in turbines, compressors, generators, pumps, and other industrial rotating equipment.
What is the total cable length of 330703-000-070-10-02?
The total cable length is 1 meter.
Conclusion
The Bently Nevada 330703-000-070-10-02 3300 XL 11 mm Proximity Probe is a reliable and compact solution for industrial machinery condition monitoring.
With accurate non-contact displacement measurement, a 70 mm case length, 1-meter cable configuration, and lightweight construction, this proximity probe provides dependable performance for critical rotating equipment.
The 330703-000-070-10-02 helps improve machine reliability, reduce unexpected downtime, optimize maintenance planning, and support advanced predictive maintenance strategies in modern industrial facilities.
