Product Overview

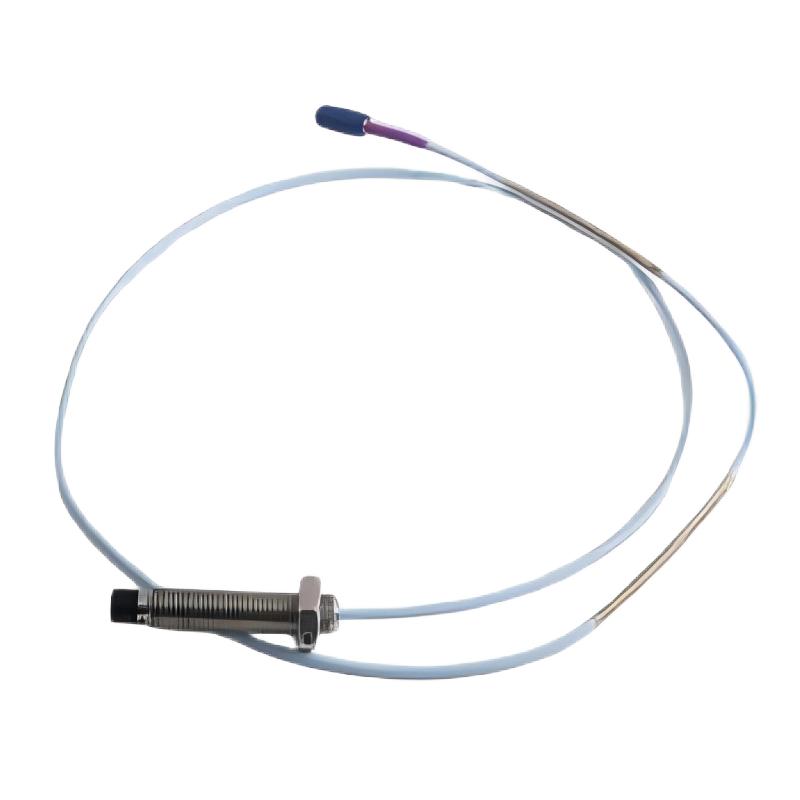

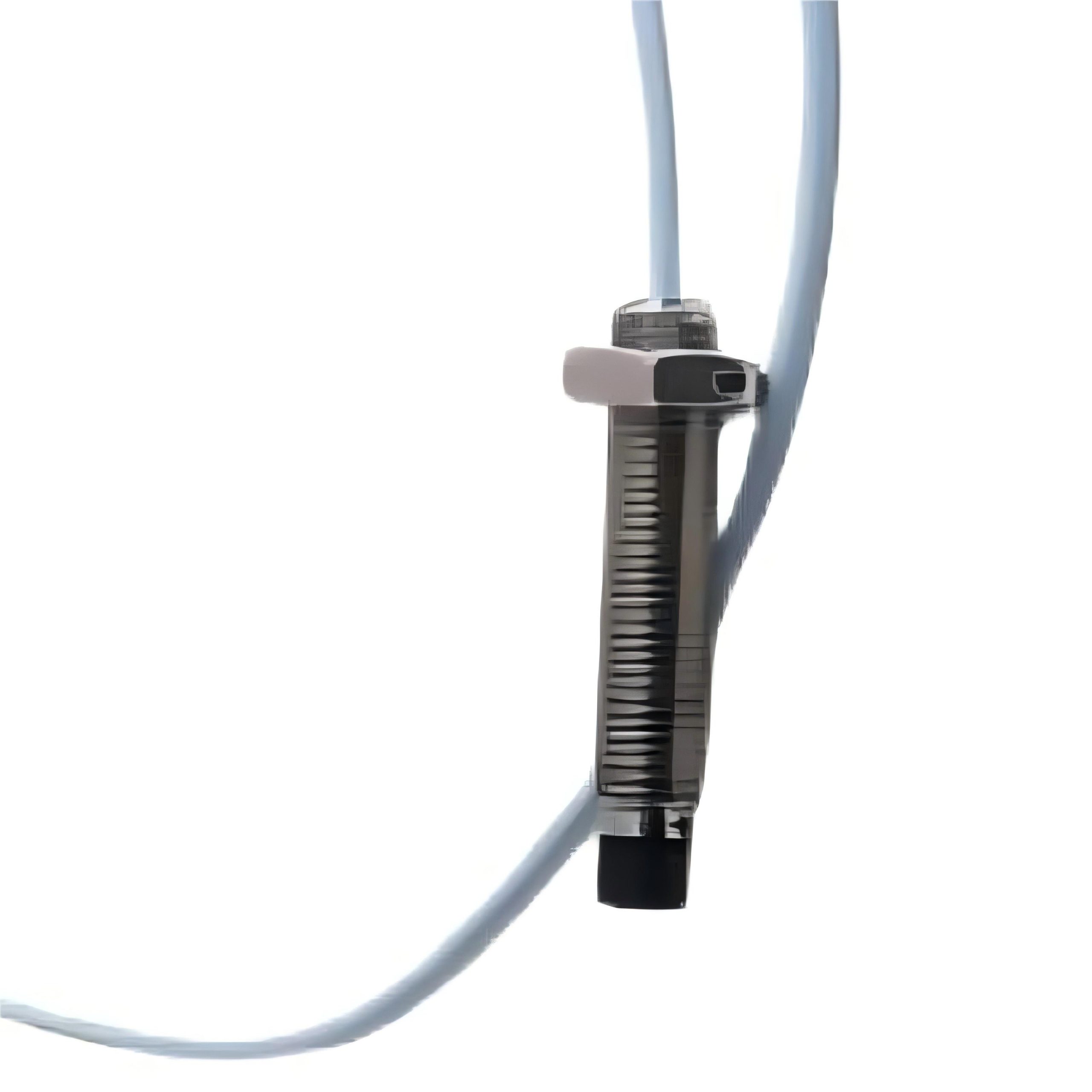

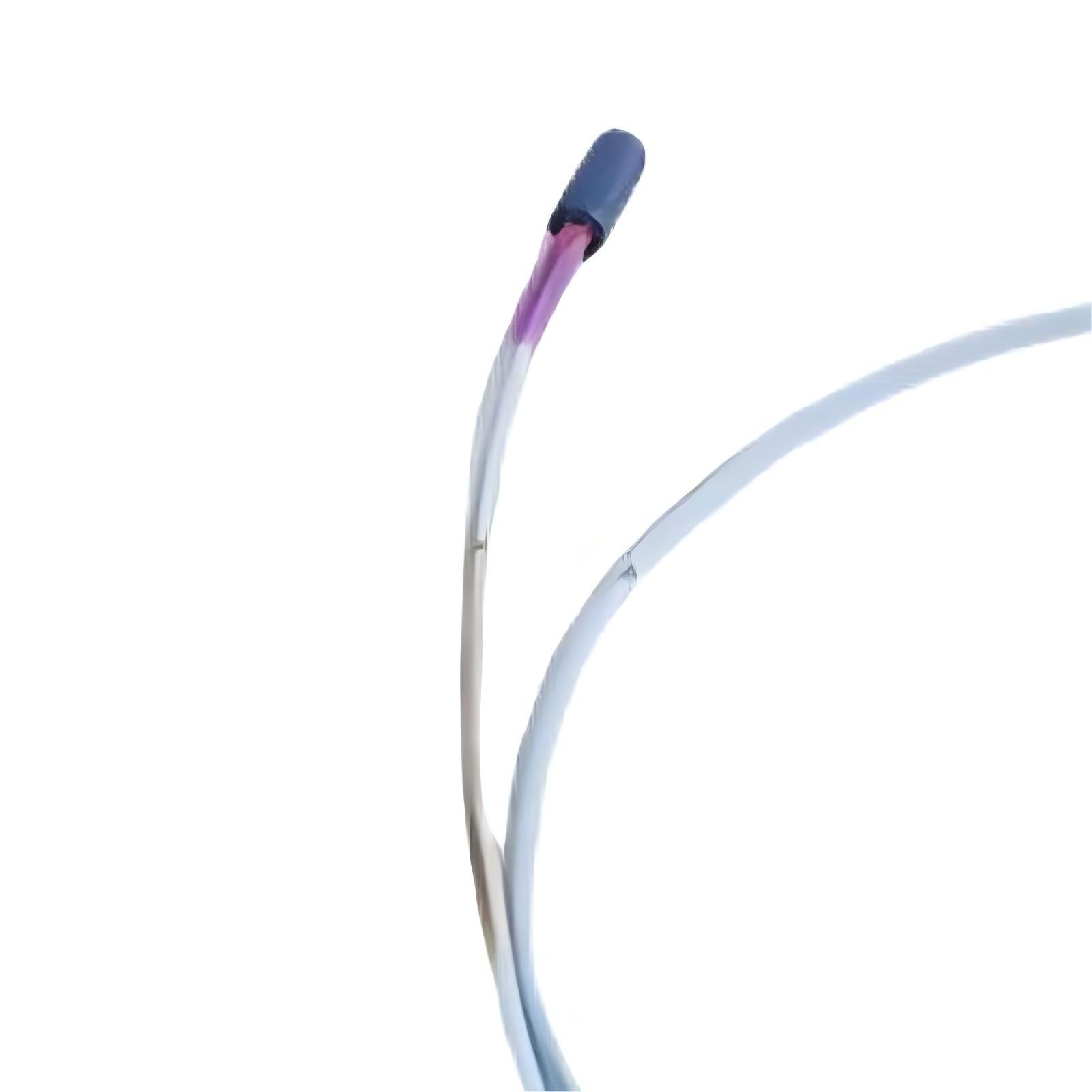

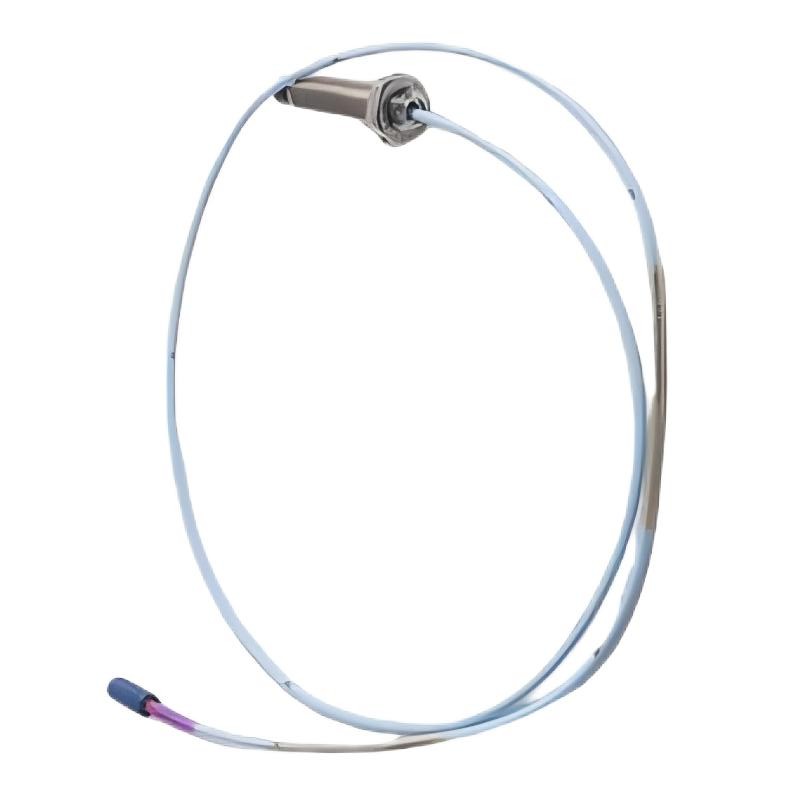

The Bently Nevada 330703-000-060-10-02-05 3300 XL 11 mm Proximity Probe is a high-precision non-contact displacement sensor designed for continuous monitoring and protection of critical rotating machinery.
As part of the 3300 XL 11 mm Proximity Probe series, this model is engineered to provide accurate shaft vibration measurement, radial displacement detection, and axial position monitoring in demanding industrial environments. The probe uses eddy current sensing technology to measure the distance between the probe tip and the rotating shaft surface without physical contact.
The 330703-000-060-10-02-05 features a compact 60 mm case length and a 1-meter total cable length, making it suitable for machinery installations where the monitoring system is located close to the measurement point. With a lightweight design of 0.07 kg, the probe provides convenient installation and reliable long-term operation.
This proximity probe is widely applied in machinery protection systems for industries requiring high equipment availability and accurate condition monitoring.
Typical applications include:
- Steam turbine monitoring
- Gas turbine protection
- Compressor vibration monitoring
- Generator condition monitoring
- Pump and motor shaft monitoring
- Industrial rotating equipment diagnostics
- Predictive maintenance systems
Technical Specifications
| Parameter | Description |
|---|---|
| Manufacturer | Bently Nevada |
| Model | 330703-000-060-10-02-05 |
| Product Type | 3300 XL 11 mm Proximity Probe |
| Series | 3300 XL |
| Measurement Method | Non-contact eddy current sensing |
| Probe Type | Shaft displacement measurement sensor |
| Case Length | 60 mm |
| Total Cable Length | 1 meter |
| Connector Type | Miniature coaxial connector |
| Cable Configuration | Standard cable |
| Weight | 0.07 kg |
| Application | Shaft vibration and position monitoring |
Working Principle
The Bently Nevada 330703-000-060-10-02-05 Proximity Probe operates using eddy current measurement technology.
The probe generates a high-frequency electromagnetic field at the sensing tip. When the rotating shaft moves closer or farther away from the probe, the electromagnetic field changes. The system converts these changes into electrical signals representing shaft displacement and vibration levels.
The operating process includes:
- The probe generates an electromagnetic sensing field.
- The rotating shaft changes the distance from the probe tip.
- The sensor detects changes in the electromagnetic field.
- The signal is converted into displacement information.
- The monitoring system analyzes machinery operating conditions.
Because the probe does not physically contact the rotating shaft, it avoids mechanical wear and provides stable measurement performance during continuous operation.
Main Features
1. High-Accuracy Shaft Displacement Monitoring
The 330703-000-060-10-02-05 provides accurate measurement of shaft movement and vibration conditions.
Key benefits:
- Precise displacement detection
- Continuous machine monitoring
- Stable signal output
- Fast response to abnormal conditions
The probe helps operators identify potential mechanical problems before they develop into serious failures.
2. 3300 XL 11 mm Probe Technology
The 11 mm sensing design provides reliable measurement capability for large rotating machinery.
Advantages:
- Improved measurement stability
- Suitable for critical equipment
- Reliable shaft position detection
- Strong industrial adaptability
The probe is commonly used in machinery protection systems requiring dependable vibration monitoring.
3. Compact 1-Meter Cable Configuration
The 1-meter cable design is suitable for installations where the probe and monitoring equipment are positioned close together.
Benefits:
- Easy installation
- Reduced cable management requirements
- Compact system layout
- Simplified maintenance
This configuration is suitable for small equipment spaces and integrated monitoring systems.
4. Non-Contact Measurement Technology
The non-contact design provides important operational advantages.
Benefits:
- No mechanical contact with rotating parts
- Reduced maintenance requirements
- Extended sensor service life
- Reliable continuous measurement
This makes the probe suitable for high-speed rotating equipment operating under demanding conditions.
5. Lightweight Industrial Design
With a weight of only 0.07 kg, the probe provides installation flexibility.
Advantages:
- Easy handling during installation
- Reduced mounting requirements
- Convenient replacement
- Suitable for compact machinery applications
Industrial Applications
Steam Turbine Condition Monitoring
Steam turbines require continuous monitoring to ensure safe and efficient operation.
The probe can be used for:
- Shaft vibration measurement
- Rotor displacement monitoring
- Bearing condition analysis
- Turbine protection
Gas Turbine Protection Systems
Gas turbines operate at high speeds and require accurate monitoring solutions.
Applications include:
- Rotor movement detection
- Vibration analysis
- Fault identification
- Equipment protection
Compressor Monitoring
Industrial compressors depend on reliable shaft monitoring.
Applications:
- Shaft displacement measurement
- Vibration trend monitoring
- Mechanical condition evaluation
- Predictive maintenance
Pumps and Motors
The proximity probe supports condition monitoring of rotating equipment.
Applications:
- Pump shaft monitoring
- Motor vibration detection
- Equipment performance analysis
- Maintenance planning
Power Generation Equipment
The probe is suitable for critical power generation systems.
Applications:
- Generator monitoring
- Turbine protection
- Rotor position measurement
- Machinery reliability improvement
Installation Guide
Mechanical Installation
Recommended installation steps:
- Confirm the Bently Nevada 330703-000-060-10-02-05 model.
- Check the installation location and mounting condition.
- Install the probe with correct alignment.
- Adjust the probe gap according to system requirements.
- Secure the probe position.
- Verify mechanical stability.
Correct installation ensures accurate vibration and displacement measurement.
Electrical Connection
Before electrical connection:
- Inspect the probe cable.
- Verify connector condition.
- Confirm monitoring system compatibility.
- Ensure proper grounding.
Recommended practices:
- Avoid excessive cable bending.
- Keep signal cables away from electrical interference.
- Protect connectors from contamination.
- Verify stable signal transmission after installation.
Commissioning Procedure
Recommended commissioning steps:
- Install the proximity probe correctly.
- Connect the probe to the monitoring system.
- Verify signal output.
- Check probe positioning.
- Confirm shaft displacement readings.
- Test vibration monitoring functions.
- Verify alarm parameters.
Proper commissioning helps ensure reliable machinery protection.
Common Faults and Troubleshooting
| Fault Symptom | Possible Cause | Recommended Solution |
|---|---|---|
| No output signal | Cable connection issue | Check cable and connector |
| Incorrect measurement | Incorrect probe installation | Adjust probe position |
| Signal fluctuation | Electrical interference | Improve cable routing |
| Unstable readings | Probe contamination or damage | Inspect probe condition |
| False vibration alarm | Machine mechanical issue | Check equipment operation |
| Sensor failure | Internal probe fault | Replace the sensor |
Maintenance Recommendations
To maintain reliable performance:
- Inspect probe installation regularly
- Check cable condition
- Verify connector integrity
- Monitor vibration trends
- Keep installation areas clean
- Perform periodic equipment inspections
Regular maintenance helps improve machinery reliability and reduce unexpected downtime.
Advantages of Bently Nevada 330703-000-060-10-02-05 Proximity Probe
- High-precision shaft displacement measurement
- Non-contact eddy current sensing technology
- Compact 1-meter cable configuration
- Lightweight industrial design
- Reliable vibration monitoring
- Stable signal performance
- Suitable for critical rotating equipment
- Supports predictive maintenance applications
Frequently Asked Questions
What is Bently Nevada 330703-000-060-10-02-05?
The Bently Nevada 330703-000-060-10-02-05 is a 3300 XL 11 mm proximity probe designed for non-contact shaft vibration and displacement monitoring.
What is the main function of this proximity probe?
It measures shaft movement and vibration conditions to help protect rotating machinery and improve equipment reliability.
Where is this proximity probe used?
It is commonly used in turbines, compressors, generators, pumps, and other critical industrial rotating equipment.
What is the total cable length of 330703-000-060-10-02-05?
The total cable length is 1 meter.
Conclusion
The Bently Nevada 330703-000-060-10-02-05 3300 XL 11 mm Proximity Probe is a compact and reliable solution for industrial machinery condition monitoring.
With accurate non-contact displacement measurement, a 1-meter cable configuration, lightweight construction, and dependable industrial performance, this proximity probe provides effective protection for critical rotating equipment.
The 330703-000-060-10-02-05 helps improve machine reliability, reduce unexpected failures, optimize maintenance schedules, and support advanced predictive maintenance strategies in modern industrial facilities.
