Product Overview

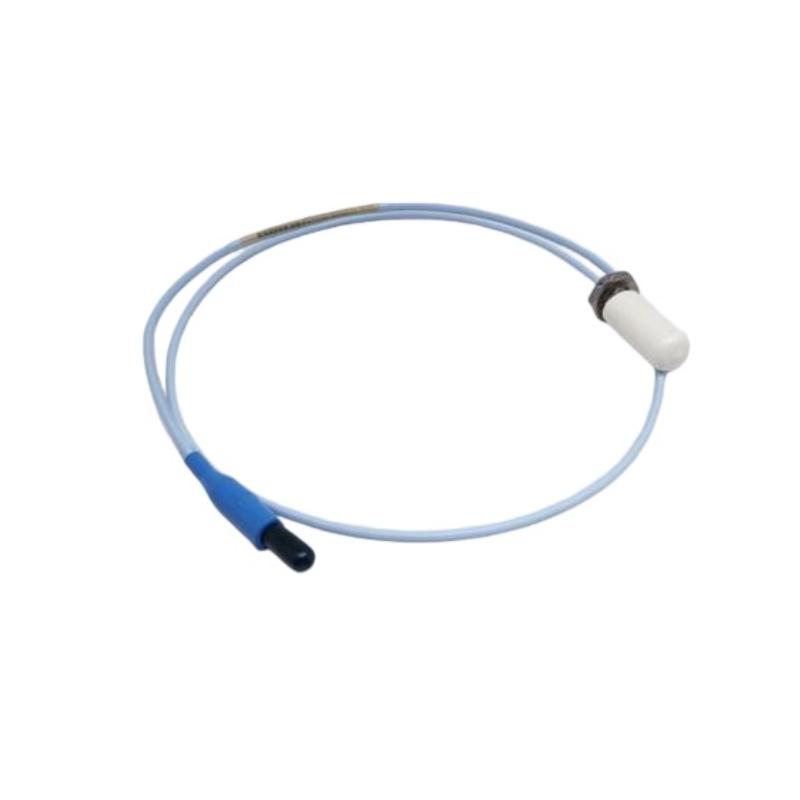

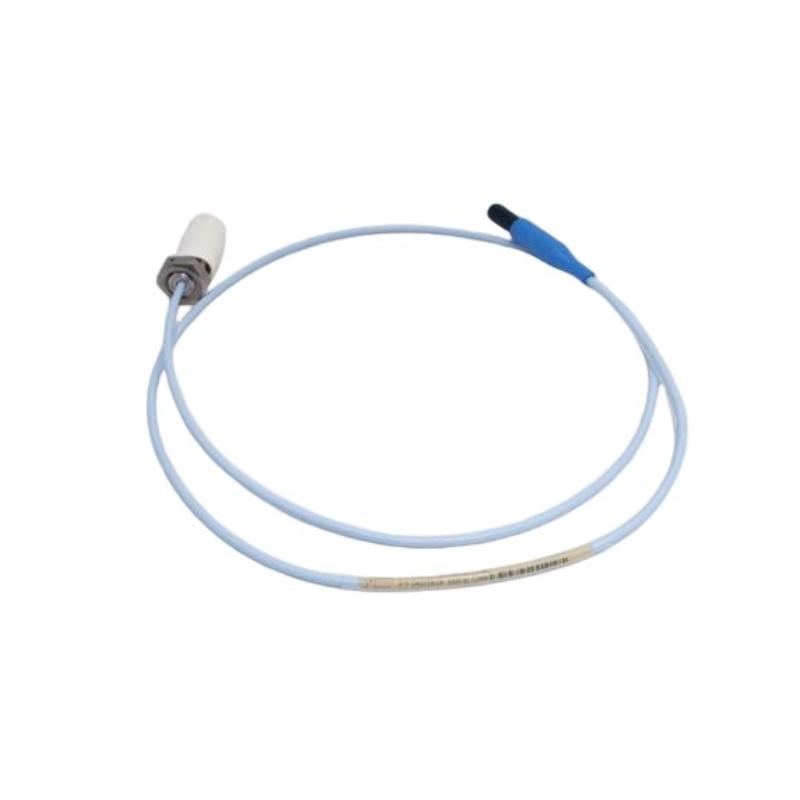

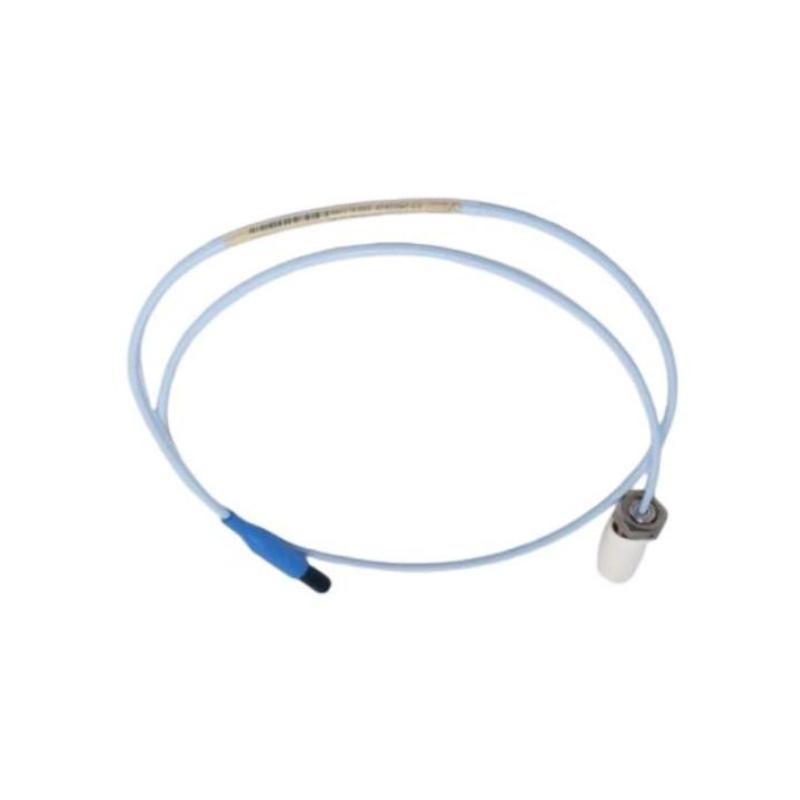

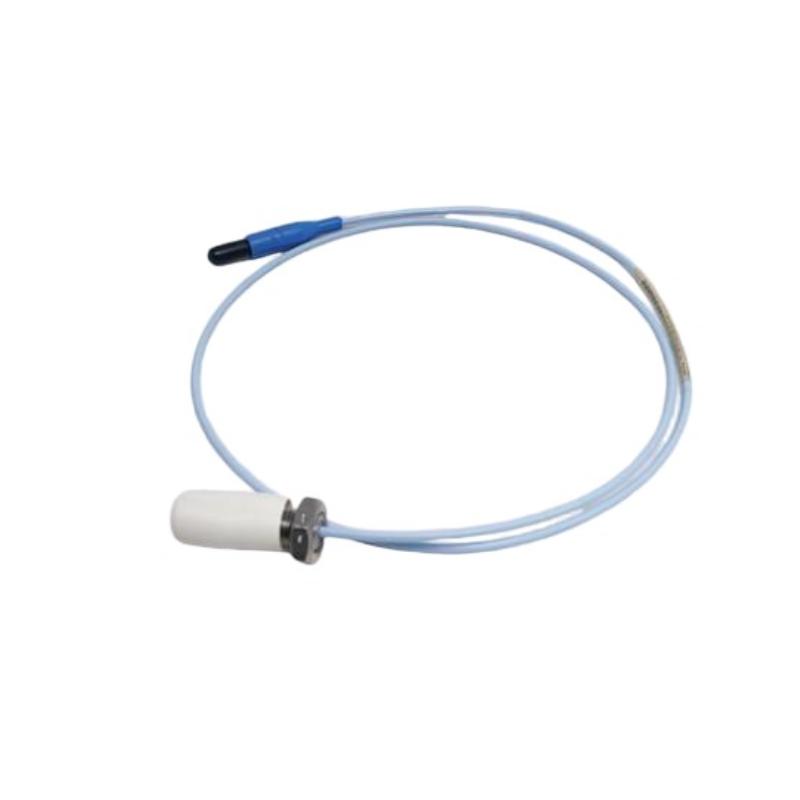

The Bently Nevada 330703-000-060-10-01-00 3300 XL 11 mm Proximity Probe is a high-performance non-contact displacement measurement sensor designed for industrial machinery monitoring and rotating equipment protection applications.
As part of the 3300 XL 11 mm Proximity Probe product family, this model is specifically developed for accurate measurement of shaft vibration, radial displacement, and axial position in critical rotating machinery. The probe uses eddy current sensing technology to continuously monitor the distance between the probe tip and the rotating shaft surface without direct mechanical contact.
The 330703-000-060-10-01-00 features a metric M14 × 1.5 mounting thread, a 60 mm case length, and a 1-meter total cable length. The compact cable configuration makes it suitable for applications where the monitoring system is installed close to the machine.
With a lightweight design of 0.07 kg, the probe provides convenient installation, reliable measurement performance, and long-term operational stability in industrial environments.
Typical applications include:
- Steam turbine vibration monitoring
- Gas turbine protection systems
- Compressor condition monitoring
- Generator shaft monitoring
- Pump vibration analysis
- Rotating equipment protection
- Predictive maintenance systems
Technical Specifications
| Parameter | Description |
|---|---|
| Manufacturer | Bently Nevada |
| Model | 330703-000-060-10-01-00 |
| Product Type | 3300 XL 11 mm Proximity Probe |
| Series | 3300 XL |
| Measurement Type | Non-contact displacement measurement |
| Thread Type | M14 × 1.5 |
| Case Length | 60 mm |
| Total Cable Length | 1 meter |
| Connector Type | Miniature coaxial ClickLoc connector |
| Cable Type | Standard Cable |
| Armor Type | Without Armor |
| Weight | 0.07 kg |
| Application | Shaft vibration and position monitoring |
Working Principle
The Bently Nevada 330703-000-060-10-01-00 Proximity Probe works based on eddy current measurement technology.
The probe generates a high-frequency electromagnetic field at the sensing tip. When the rotating shaft moves relative to the probe, the distance variation changes the electromagnetic field. The monitoring system converts these changes into accurate displacement and vibration signals.
The measurement process includes:
- The probe produces an electromagnetic sensing field.
- The rotating shaft changes the probe gap distance.
- The sensor detects electromagnetic changes.
- The signal is converted into shaft displacement data.
- The monitoring system evaluates machine operating conditions.
Because the probe operates without physical contact, it avoids mechanical wear and provides reliable monitoring for high-speed rotating machinery.
Main Features
1. High Precision Shaft Displacement Measurement
The 330703-000-060-10-01-00 provides accurate measurement of shaft movement and vibration conditions.
Key benefits:
- High measurement accuracy
- Continuous machinery monitoring
- Stable signal output
- Reliable condition detection
The probe is suitable for applications where early detection of mechanical problems is required.
2. 3300 XL 11 mm Probe Technology
The 11 mm sensing design provides a longer linear measurement range compared with smaller proximity probe designs.
Advantages:
- Improved displacement measurement capability
- Stable operation on fluid film bearing machines
- Reliable shaft position monitoring
- Suitable for large rotating equipment
The larger sensing tip helps provide stable measurement performance in demanding industrial environments.
3. Compact 1-Meter Cable Design
The 1-meter cable configuration is designed for installations where the sensor and monitoring equipment are located close together.
Advantages:
- Easy installation
- Reduced cable management requirements
- Suitable for compact machinery layouts
- Simplified wiring arrangement
This configuration improves installation efficiency in industrial control cabinets and machinery systems.
4. Non-Contact Measurement Technology
The non-contact sensing method provides important operational advantages.
Benefits include:
- No mechanical friction
- Reduced maintenance requirements
- Improved sensor lifespan
- Continuous monitoring capability
This technology is widely used in critical rotating equipment protection systems.
5. Reliable Industrial Construction
The probe is designed for demanding industrial applications.
Features:
- Durable stainless steel housing
- Stable electrical performance
- Strong environmental adaptability
- Long service life
It provides dependable performance in power generation, petrochemical, and manufacturing industries.
Industrial Applications
Steam Turbine Monitoring
Steam turbines require accurate vibration and position monitoring to maintain safe operation.
The Bently Nevada 330703-000-060-10-01-00 can be used for:
- Shaft vibration measurement
- Rotor position monitoring
- Bearing condition analysis
- Turbine protection
Gas Turbine Protection
Gas turbines operate at high speed and require continuous condition monitoring.
Typical applications:
- Rotor displacement detection
- Vibration analysis
- Mechanical fault prevention
- Equipment protection
Compressor Monitoring
Industrial compressors depend on reliable shaft monitoring systems.
Applications include:
- Shaft movement detection
- Vibration trend analysis
- Mechanical condition monitoring
- Predictive maintenance
Pumps and Motors
The proximity probe supports condition monitoring of rotating equipment.
Applications:
- Pump shaft displacement measurement
- Motor vibration monitoring
- Equipment reliability improvement
- Maintenance planning
Power Generation Equipment
The probe is suitable for critical power generation machinery.
Applications:
- Generator monitoring
- Turbine protection
- Rotating equipment diagnostics
- Machine health evaluation
Installation Guide
Mechanical Installation
Recommended installation procedure:
- Confirm the Bently Nevada 330703-000-060-10-01-00 model.
- Check the installation location.
- Verify the M14 × 1.5 mounting thread.
- Install the probe with correct alignment.
- Adjust the probe gap according to system requirements.
- Tighten and secure the installation.
Correct mechanical installation ensures accurate vibration measurement.
Electrical Connection
Before connecting the probe:
- Check cable condition.
- Confirm connector compatibility.
- Verify monitoring system requirements.
- Ensure proper grounding.
Recommended practices:
- Avoid sharp cable bending.
- Keep signal cables away from strong interference sources.
- Protect connectors from contamination.
- Confirm stable signal transmission after installation.
Commissioning Procedure
Recommended commissioning steps:
- Install the proximity probe correctly.
- Connect the cable to the monitoring system.
- Verify signal output.
- Check probe gap adjustment.
- Confirm shaft displacement values.
- Test vibration monitoring functions.
- Verify alarm settings.
Proper commissioning ensures reliable machinery protection.
Common Faults and Troubleshooting
| Fault Symptom | Possible Cause | Recommended Solution |
|---|---|---|
| No signal output | Cable connection problem | Check cable and connector |
| Incorrect vibration reading | Incorrect probe gap | Adjust probe position |
| Signal fluctuation | Electrical interference | Check cable routing |
| Measurement instability | Probe contamination or damage | Inspect probe condition |
| False vibration alarm | Actual machine problem | Check rotating equipment |
| Sensor failure | Internal probe fault | Replace the probe |
Maintenance Recommendations
To maintain reliable operation:
- Inspect probe installation regularly
- Check cable condition
- Verify connector quality
- Monitor vibration trends
- Keep mounting areas clean
- Perform regular system inspections
Proper maintenance helps improve equipment reliability and reduce unexpected downtime.
Advantages of Bently Nevada 330703-000-060-10-01-00 Proximity Probe
- High accuracy displacement measurement
- Non-contact eddy current sensing
- Compact 1-meter cable design
- Lightweight industrial structure
- Reliable vibration monitoring
- Stable signal performance
- Suitable for critical rotating equipment
- Supports predictive maintenance strategies
Frequently Asked Questions
What is Bently Nevada 330703-000-060-10-01-00?
The Bently Nevada 330703-000-060-10-01-00 is a 3300 XL 11 mm metric proximity probe designed for shaft displacement and vibration monitoring.
What is the main function of this proximity probe?
It measures shaft movement and vibration without physical contact to help protect rotating machinery.
Where is this probe used?
It is commonly used in turbines, compressors, generators, pumps, and other critical rotating equipment.
What is the cable length of 330703-000-060-10-01-00?
The total cable length is 1 meter.
Conclusion
The Bently Nevada 330703-000-060-10-01-00 3300 XL 11 mm Proximity Probe is a reliable and compact solution for industrial machinery monitoring applications.
With accurate non-contact displacement measurement, a 1-meter cable configuration, and durable industrial construction, this proximity probe provides stable performance for rotating equipment protection systems.
The 330703-000-060-10-01-00 helps improve machinery reliability, reduce unexpected failures, and support effective predictive maintenance programs in modern industrial facilities.
