- Bently Nevada
- 330703-000-040-10-02-00
- 3300 XL 11 mm Proximity Probe, Metric
- USA
- 1 meter
- 0.07 kg
- Xiamen, China
- New & In Stock
- T/T, PayPal, Western Union
- 1 Year
- 1-3 Working Days
- DHL, UPS, TNT, FedEx and EMS.
- 24-Hour Service
- COO
- 3
Our advantage
Global Logistics
We have a 10-year logistics and express cooperation agreement, so our products can be shipped to any place in the world.
Brand new and original
Our products are imported in bulk from the place of origin. Because of the cooperative relationship, our products are all original and 100% new.
24-hour service
We provide 7*24 hours service to our customers. We will be there whenever you need us.
Price advantage
All our products are priced very favorably because we have our own warehouse and supply.
| Company Information | |||
| [email protected] | |||
| Mobile | +8615980777398 | ||
| +8615980777398 | |||
| 15980777398 |
Product Overview

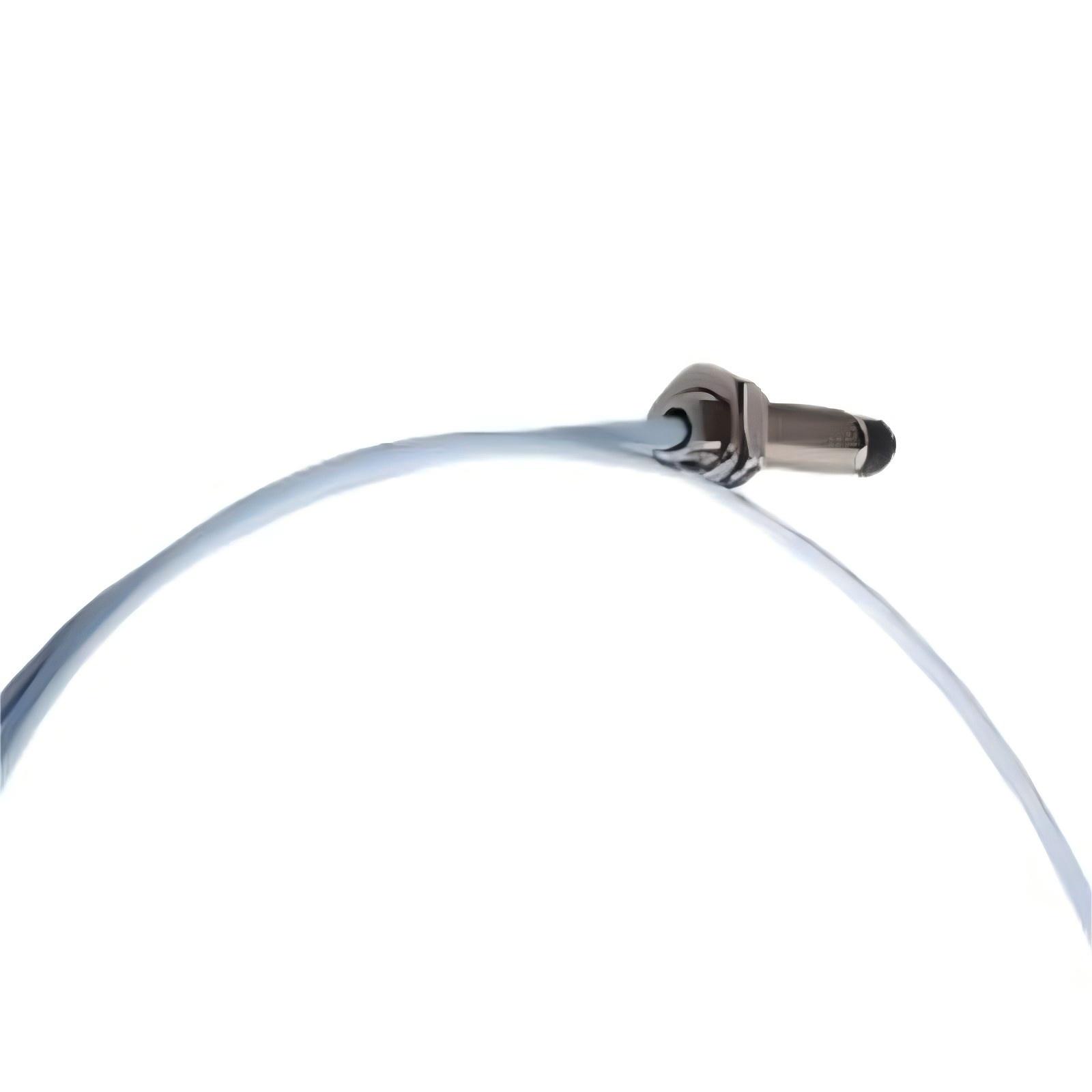

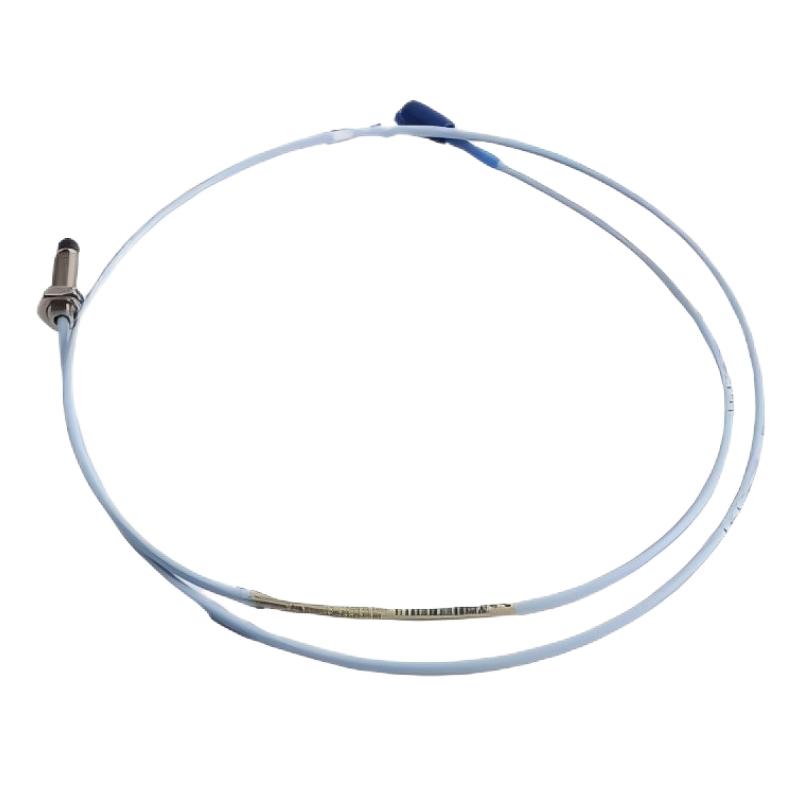

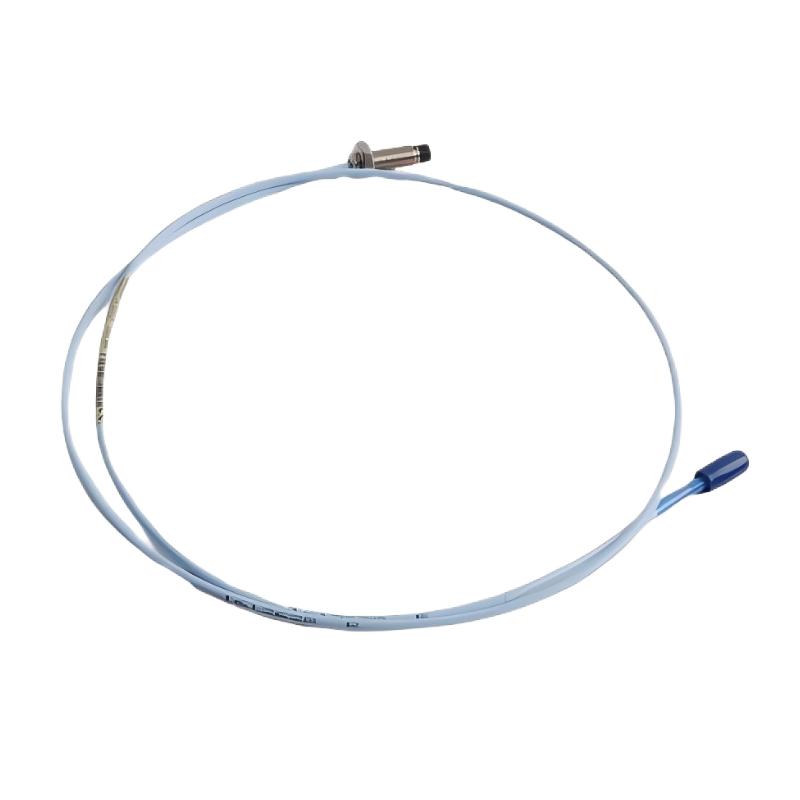

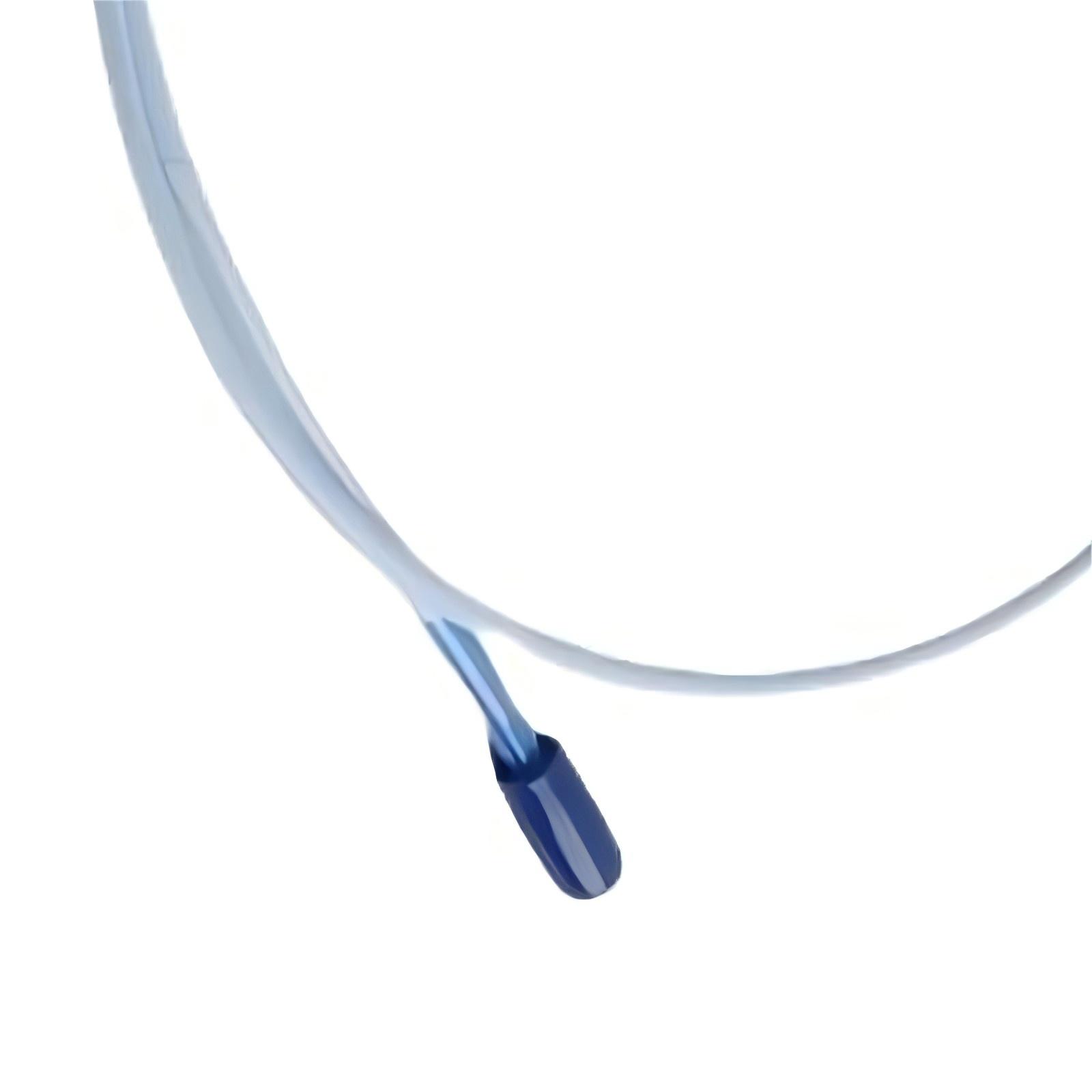

In modern industrial automation and rotating equipment applications, accurate shaft vibration and displacement measurement is essential for improving machine reliability, optimizing maintenance schedules, and preventing unexpected failures. The Bently Nevada 330703-000-040-10-02-00 3300 XL 11 mm Proximity Probe, Metric is a precision non-contact sensor designed for continuous monitoring of critical rotating machinery.
The probe utilizes advanced eddy current sensing technology to measure the distance between the sensor tip and the conductive shaft surface. By detecting changes in the electromagnetic field caused by shaft movement, the probe provides accurate vibration and displacement signals for machinery protection and condition monitoring systems.
The 3300 XL 11 mm Proximity Probe Metric Series is designed for applications requiring metric mechanical installation and reliable performance under industrial operating conditions. It is commonly installed on steam turbines, gas turbines, compressors, generators, pumps, and other high-value rotating equipment.
The Bently Nevada 330703-000-040-10-02-00 features a total length of 1 meter and a lightweight design of 0.07 kg, providing flexible installation and stable measurement performance for industrial machinery monitoring systems.
Technical Specifications
| Parameter | Details |
|---|---|
| Manufacturer | Bently Nevada |
| Model | 330703-000-040-10-02-00 |
| Product Series | 3300 XL 11 mm Proximity Probe |
| Product Type | Metric Eddy Current Proximity Probe |
| Measurement Principle | Non-contact eddy current sensing |
| Probe Diameter | 11 mm |
| Installation Type | Metric threaded mounting |
| Measurement Function | Shaft vibration and displacement monitoring |
| Total Length | 1 meter |
| Sensor Type | Proximity displacement sensor |
| Target Material | Conductive rotating shaft |
| Application | Machinery condition monitoring |
| Operating Environment | Industrial rotating equipment |
| Weight | 0.07 kg |
Function and Working Principle
The Bently Nevada 330703-000-040-10-02-00 operates through the principle of eddy current measurement.
The probe generates a high-frequency electromagnetic field around the sensing tip. When the probe approaches a conductive shaft surface, eddy currents are produced within the target material. The strength of these currents changes according to the distance between the probe and the shaft.
The sensor converts these electromagnetic changes into electrical output signals that represent shaft position, vibration amplitude, and displacement changes. The monitoring system analyzes these signals to evaluate equipment operating conditions.
Main Functions
1. Non-Contact Shaft Vibration Monitoring
The primary function of the probe is measuring shaft vibration without physical contact.
Advantages include:
- No mechanical wear during operation
- Suitable for high-speed rotating machinery
- Continuous online monitoring
- Stable measurement accuracy
- Long service life
This makes it suitable for critical equipment requiring continuous operation.
2. Shaft Displacement Measurement
The 3300 XL 11 mm Metric Proximity Probe provides precise measurement of shaft movement.
Typical monitoring applications include:
- Radial vibration measurement
- Axial shaft displacement
- Rotor position monitoring
- Shaft movement analysis
- Mechanical clearance monitoring
These measurements help operators understand the condition of rotating equipment.
3. Machinery Protection and Predictive Maintenance
The probe provides important condition information for machinery protection systems.
It helps detect:
- Rotor imbalance
- Shaft misalignment
- Mechanical looseness
- Bearing-related problems
- Abnormal vibration conditions
Early identification of mechanical issues helps reduce downtime and maintenance costs.
Role in Industrial Machinery Protection Systems
The Bently Nevada 330703-000-040-10-02-00 works as a key sensing element in rotating machinery monitoring systems.
It provides real-time measurement data that can be processed by monitoring and control equipment.
| System Component | Function |
|---|---|
| Proximity Probe | Detects shaft displacement and vibration |
| Signal Processing Unit | Converts sensor signals |
| Monitoring Module | Evaluates equipment condition |
| Protection System | Provides alarms and protection actions |
| Control System | Supervises machinery operation |
This integrated monitoring approach improves equipment safety and reliability.
Industrial Applications
Steam Turbine Monitoring
The probe is widely applied in steam turbine systems for:
- Shaft vibration measurement
- Rotor position monitoring
- Turbine protection
- Condition-based maintenance
Accurate vibration monitoring helps prevent serious mechanical damage.
Gas Turbine Applications
Typical applications include:
- High-speed rotor monitoring
- Shaft displacement detection
- Vibration protection
- Equipment condition analysis
Compressor Condition Monitoring
The probe is suitable for:
- Centrifugal compressors
- Process compressors
- Industrial compression systems
It helps detect abnormal operating conditions before production impact occurs.
Generator and Motor Monitoring
Applications include:
- Large generators
- Industrial motors
- Rotating power equipment
- Heavy-duty machinery
Installation and System Integration
Correct installation is necessary to achieve accurate measurement results.
Mechanical Installation
Recommended installation practices:
- Install the probe at the specified measurement location
- Use suitable metric mounting accessories
- Maintain correct probe gap distance
- Align the sensing tip with the shaft surface
- Secure the probe firmly
Improper installation may cause inaccurate vibration readings.
Electrical Connection
During integration, engineers should confirm:
- Correct cable connection
- Stable signal transmission
- Proper grounding
- Protection against electrical interference
- Correct monitoring system configuration
Commissioning Process
Before equipment operation:
- Verify probe installation position
- Check signal output stability
- Confirm vibration measurement values
- Test alarm functions
- Validate monitoring system operation
Proper commissioning ensures reliable long-term performance.
Compatible System Components
The Bently Nevada 330703-000-040-10-02-00 can be used with related machinery monitoring components.
| Component | Function |
|---|---|
| 3300 XL Extension Cable | Provides additional installation distance |
| Signal Conditioner | Processes proximity sensor signals |
| Vibration Monitoring Module | Performs condition analysis |
| Machinery Protection System | Provides alarm and shutdown protection |
| Industrial Control System | Supervises machine operation |
Common Fault Symptoms and Troubleshooting
| Fault Symptom | Possible Cause | Recommended Solution |
|---|---|---|
| No signal output | Cable connection failure | Check wiring connections |
| Incorrect vibration reading | Improper probe gap | Adjust probe position |
| Signal fluctuation | Electrical interference | Improve cable shielding |
| High vibration alarm | Mechanical equipment fault | Inspect rotating components |
| Sensor fault alarm | Probe or cable damage | Test sensor circuit |
| Intermittent signal | Loose installation | Check mounting and wiring |
Recommended Alternative Models
| Model | Product Type | Key Feature | Application |
|---|---|---|---|
| Bently Nevada 330703-000-040-10-02-00 | 3300 XL 11 mm Metric Proximity Probe | 1 meter configuration | Machinery monitoring |
| Bently Nevada 330703-000-040-10-01-05 | Metric Proximity Probe | Similar measurement performance | Rotating equipment protection |
| Bently Nevada 330702 Series | Eddy Current Probe | Standard 3300 XL design | Vibration monitoring |
| Bently Nevada 330701 Series | Proximity Probe | General industrial monitoring | Machinery applications |
| Bently Nevada 3300 XL 8 mm Series | Eddy Current Probe | Compact sensing option | General equipment |
Key Advantages
- Accurate non-contact shaft measurement
- Metric installation compatibility
- Reliable vibration and displacement monitoring
- Continuous online condition monitoring
- Suitable for critical rotating machinery
- Supports predictive maintenance strategies
- Reduces unexpected equipment failures
- Improves machinery protection reliability
Technical FAQs
What is the Bently Nevada 330703-000-040-10-02-00?
The Bently Nevada 330703-000-040-10-02-00 is a 3300 XL 11 mm Metric Proximity Probe designed for non-contact shaft vibration and displacement monitoring.
What does this proximity probe measure?
It measures the distance between the probe tip and the rotating shaft surface to detect vibration and displacement changes.
What industries use this sensor?
It is commonly used in power generation, oil and gas, petrochemical, manufacturing, and industrial automation applications.
Does the probe physically touch the shaft?
No. The probe uses eddy current technology and performs measurement without mechanical contact.
Conclusion
The Bently Nevada 330703-000-040-10-02-00 3300 XL 11 mm Proximity Probe, Metric is a reliable sensor designed for industrial machinery condition monitoring and protection applications.
With precise non-contact measurement technology, metric installation compatibility, and stable long-term operation, it provides essential vibration and displacement information for predictive maintenance systems.
For critical rotating equipment in power plants, petrochemical facilities, and industrial production lines, the Bently Nevada 330703-000-040-10-02-00 helps improve operational reliability, reduce maintenance risks, and enhance machinery protection performance.
