Product Overview

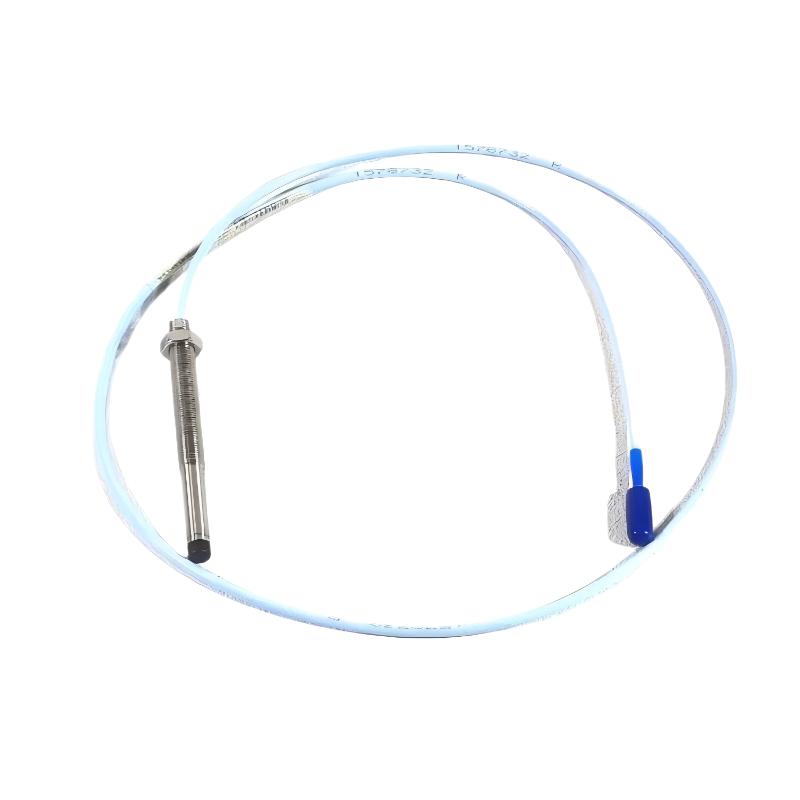

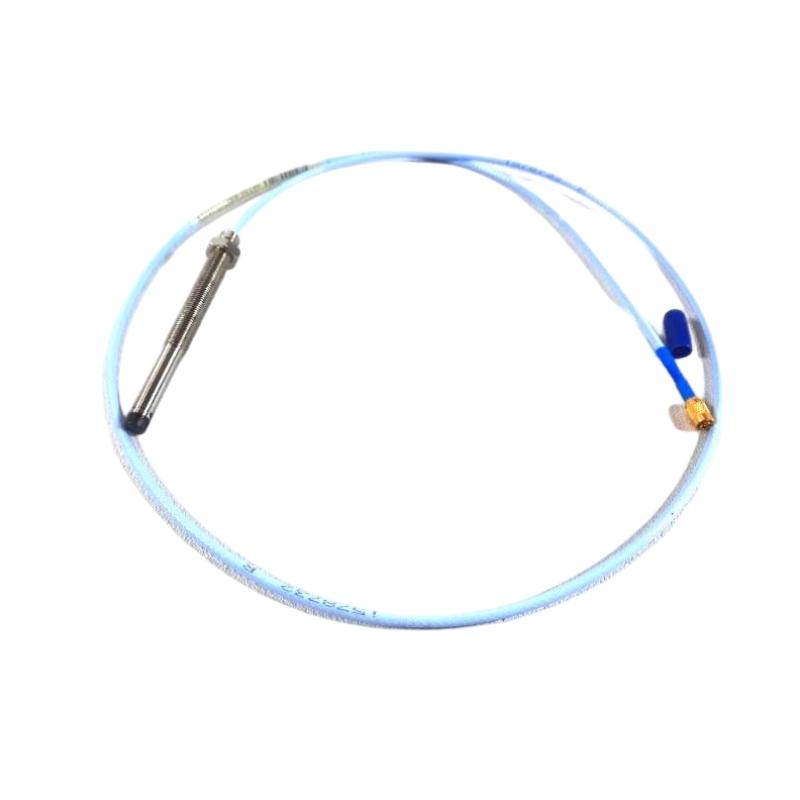

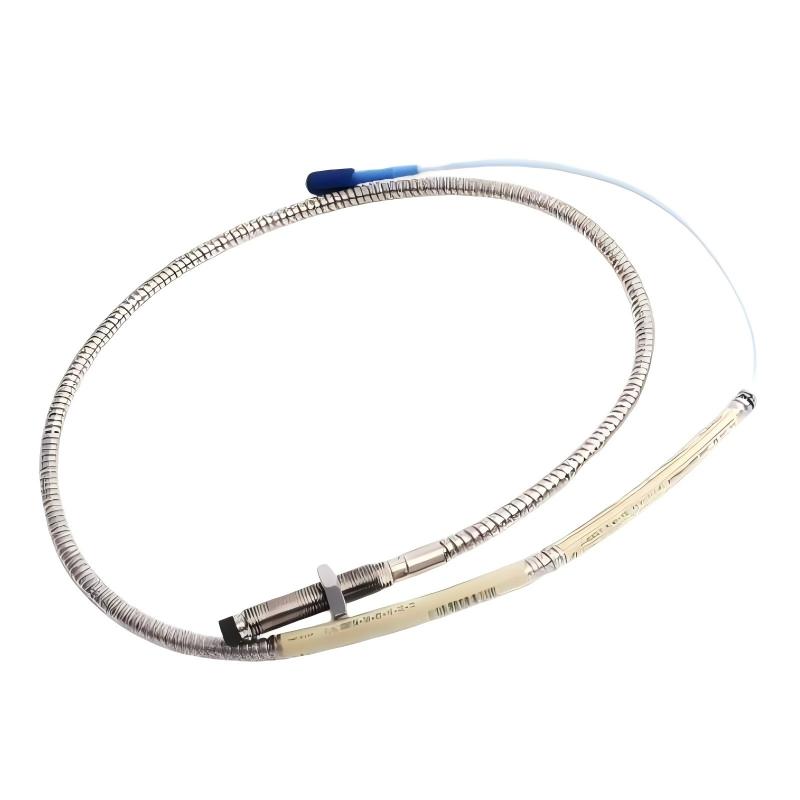

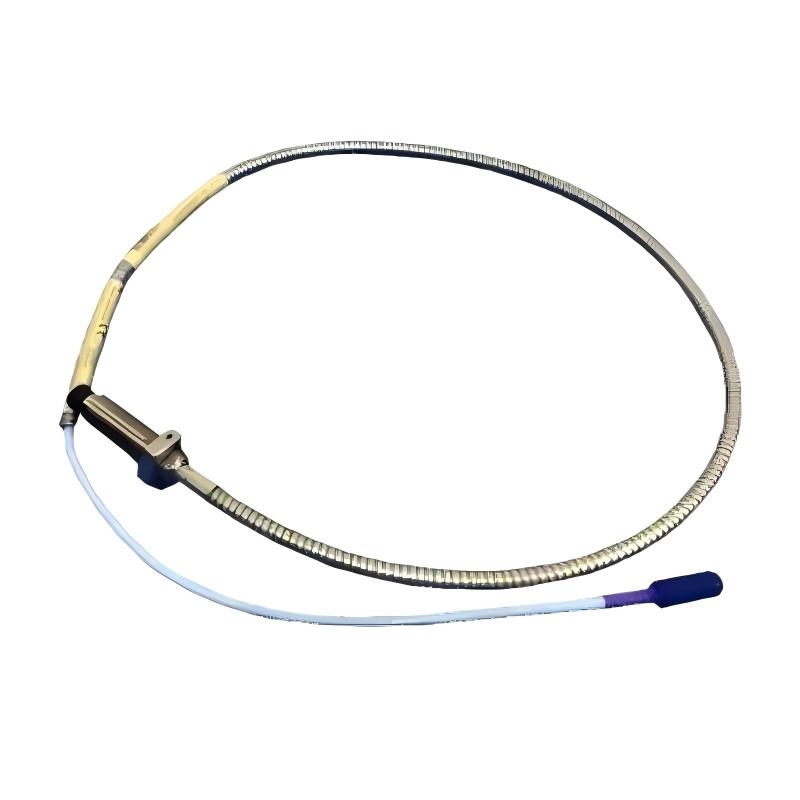

Accurate monitoring of rotating machinery is essential for improving equipment reliability, reducing maintenance risks, and preventing unexpected shutdowns in industrial environments. The Bently Nevada 330703-000-040-10-01-00 3300 XL 11 mm Proximity Probe, Metric is a high-precision non-contact sensor designed for measuring shaft vibration, displacement, and position changes in critical rotating equipment.

The probe uses eddy current sensing technology to detect the distance between the probe tip and the conductive shaft surface. Without physical contact with the rotating component, it provides continuous and reliable measurement data for machinery protection and predictive maintenance applications.

The 3300 XL 11 mm Proximity Probe Metric Series is designed for installations requiring metric mounting compatibility and extended measurement capability. It is widely used in large industrial machines such as steam turbines, gas turbines, compressors, generators, pumps, and other rotating equipment.

The Bently Nevada 330703-000-040-10-01-00 features a 1-meter total length configuration with a lightweight and compact design. It provides stable performance in demanding industrial environments where accurate shaft monitoring is required.

Technical Specifications

Function and Working Principle

The Bently Nevada 330703-000-040-10-01-00 operates based on eddy current measurement technology.

The probe creates a high-frequency electromagnetic field around the sensing tip. When the probe is placed near a metallic rotating shaft, the electromagnetic field changes according to the distance between the probe and the shaft surface.

These changes are converted into electrical signals that represent shaft displacement and vibration conditions. The monitoring system processes these signals to evaluate equipment health and identify abnormal operating conditions.

Main Functions

1. Non-Contact Shaft Vibration Measurement

The primary function of the probe is monitoring shaft vibration without physical contact.

Key benefits include:

• No mechanical wear
• Suitable for high-speed rotating equipment
• Continuous online measurement
• Reliable long-term operation

This allows the sensor to operate effectively in critical machinery protection systems.

2. Shaft Displacement and Position Monitoring

The 3300 XL 11 mm Metric Proximity Probe provides accurate shaft movement measurement.

Typical monitoring parameters include:

• Radial shaft vibration
• Axial displacement
• Rotor position changes
• Shaft movement analysis
• Mechanical clearance monitoring

Accurate displacement data helps engineers evaluate machine operating conditions.

3. Predictive Maintenance Application

The probe provides essential information for predictive maintenance strategies.

It helps identify:

• Rotor imbalance
• Shaft misalignment
• Mechanical looseness
• Bearing wear
• Abnormal vibration trends

Early detection allows maintenance teams to schedule inspections and repairs before serious equipment failures occur.

Role in Industrial Machinery Protection Systems

The Bently Nevada 330703-000-040-10-01-00 acts as an important sensing component within complete machinery monitoring systems.

It collects real-time shaft condition information and transfers measurement signals to monitoring equipment.

This combination improves machinery reliability and operational safety.

Industrial Applications

Steam Turbine Monitoring

The probe is widely applied in steam turbine systems for:

• Shaft vibration measurement
• Rotor position monitoring
• Turbine protection
• Condition-based maintenance

Continuous monitoring helps reduce the risk of unexpected turbine failures.

Gas Turbine Applications

Typical uses include:

• High-speed rotor monitoring
• Shaft displacement measurement
• Vibration analysis
• Mechanical protection

Compressor Monitoring

The probe is suitable for:

• Centrifugal compressors
• Industrial process compressors
• High-speed rotating systems

It helps detect abnormal mechanical conditions before they affect production.

Generator and Motor Monitoring

Applications include:

• Large generators
• Industrial motors
• Rotating power equipment
• Heavy machinery systems

Installation and System Integration

Proper installation is essential for maintaining measurement accuracy.

Mechanical Installation

Recommended installation procedures:

• Install the probe at the correct measurement location
• Use suitable metric mounting accessories
• Maintain correct probe gap distance
• Align the probe tip with the shaft surface
• Secure the probe mounting position

Electrical Connection

During installation, engineers should verify:

• Correct probe cable connection
• Stable signal transmission
• Proper grounding
• Cable protection from interference
• Correct monitoring system setup

Commissioning Process

Before equipment operation:

• Confirm probe installation position
• Verify output signal stability
• Check vibration measurement values
• Test monitoring functions
• Confirm alarm settings

Proper commissioning ensures reliable machinery protection.

Compatible System Components

The Bently Nevada 330703-000-040-10-01-00 can work with various monitoring components.

Common Fault Symptoms and Troubleshooting

Recommended Alternative Models

Key Advantages

• High-accuracy non-contact measurement
• Metric mounting compatibility
• Reliable shaft vibration monitoring
• Continuous online condition monitoring
• Suitable for critical rotating equipment
• Supports predictive maintenance programs
• Reduces unexpected equipment downtime
• Improves machinery protection reliability

Technical FAQs

What is the Bently Nevada 330703-000-040-10-01-00?

The Bently Nevada 330703-000-040-10-01-00 is a 3300 XL 11 mm Metric Proximity Probe designed for non-contact shaft vibration and displacement measurement.

What does this proximity probe measure?

It measures the distance between the probe tip and the rotating shaft surface to monitor vibration and displacement changes.

What equipment uses this type of probe?

It is commonly used on turbines, compressors, generators, pumps, and other critical rotating machinery.

Does the probe touch the shaft?

No. The probe uses electromagnetic sensing technology and operates without direct contact with rotating components.

Conclusion

The Bently Nevada 330703-000-040-10-01-00 3300 XL 11 mm Proximity Probe, Metric is a dependable sensor designed for industrial machinery condition monitoring and protection applications.

With accurate non-contact measurement, metric installation capability, and stable performance, it provides essential vibration and displacement data for predictive maintenance systems.

For industries such as power generation, oil and gas, petrochemical processing, and manufacturing automation, the Bently Nevada 330703-000-040-10-01-00 helps improve equipment reliability, reduce maintenance risks, and enhance operational safety.
