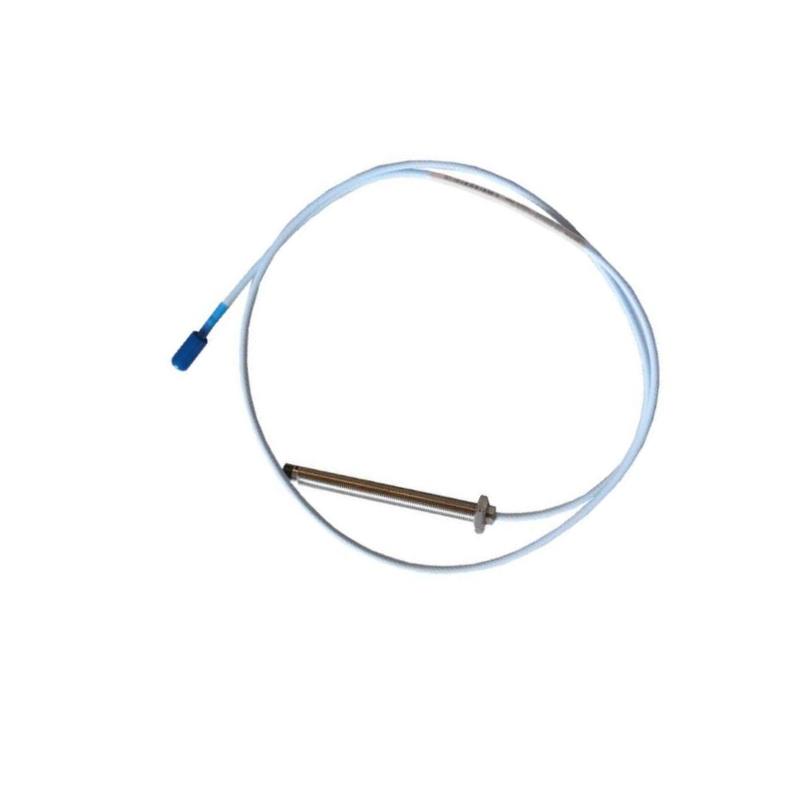

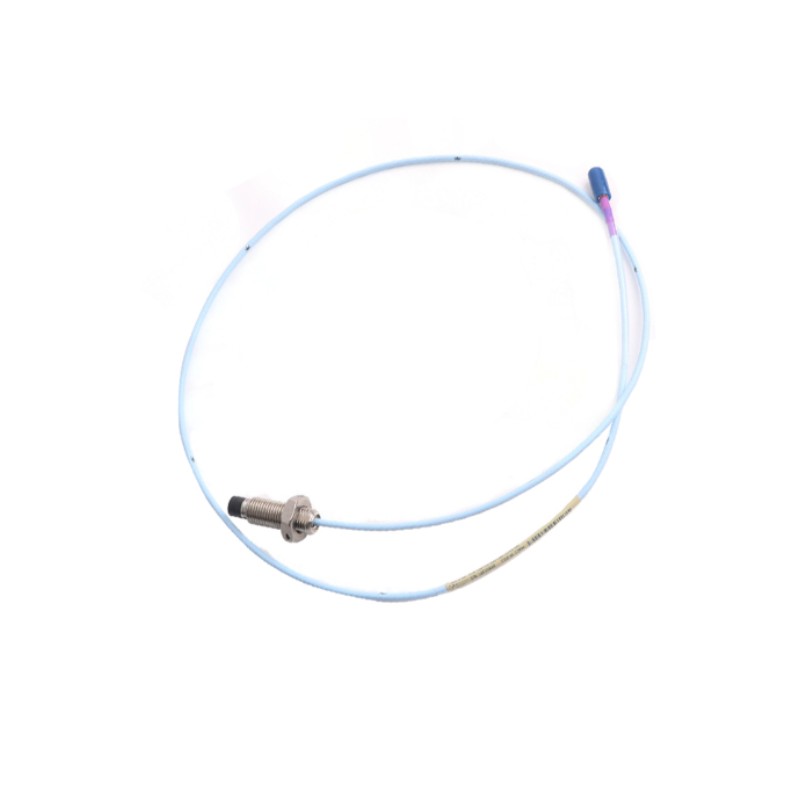

Bently Nevada 330354-040-24-05
Detailed Product Introduction, Technical Specifications, Applications, Advantages, Product Series, and Recommended Models
Product Introduction
The Bently Nevada 330354-040-24-05 is a precision 8 mm Eddy Current Proximity Probe Assembly designed for continuous monitoring of rotating machinery operating conditions. It belongs to the 3300 XL Proximity Transducer System Series and is mainly used for non-contact measurement of shaft vibration, radial displacement, and rotor position.
The product is designed for industrial machinery applications where high measurement accuracy, stable signal performance, and long-term reliability are required.
The probe uses eddy current sensing technology to detect the distance between the probe tip and the rotating shaft surface. The change in distance is converted into an electrical signal, which is then transmitted to the signal conditioning module for processing.
The 330354-040-24-05 is commonly used as part of a complete machinery monitoring system consisting of:
- Proximity Probe
- Extension Cable
- Proximitor Sensor
- Monitoring Module
- Protection System
The probe provides important operating information related to:
- Shaft vibration
- Rotor displacement
- Shaft position
- Mechanical movement
- Rotating equipment condition
Because the probe operates without physical contact with the shaft, it avoids mechanical wear and provides excellent long-term measurement stability.
The product is suitable for critical rotating equipment where early detection of abnormal conditions is necessary.
Typical applications include:
- Steam turbines
- Gas turbines
- Compressors
- Pumps
- Motors
- Generators
- Gearboxes
- Industrial rotating machinery
The main characteristics of the 330354-040-24-05 include:
- High precision displacement measurement
- Reliable non-contact sensing
- Excellent environmental resistance
- Stable output signal
- Long operating life
- Compatibility with industrial monitoring systems
Brand
Bently Nevada is an industrial brand specializing in rotating machinery monitoring, vibration measurement, and equipment protection technologies.
The product range includes:
- Eddy current proximity probes
- Extension cable assemblies
- Proximitor sensor modules
- Machinery monitoring equipment
- Vibration protection systems
The products are widely applied in industries requiring high equipment availability and continuous machinery monitoring.
Typical industries include:
- Power generation
- Oil and gas
- Petrochemical
- Chemical processing
- Marine equipment
- Heavy manufacturing
- Industrial rotating systems
The brand is recognized for precision sensing technology and reliable machinery condition monitoring solutions.
Product Series
3300 XL Proximity Transducer System Series
The 3300 XL Proximity Transducer System Series is a complete non-contact measurement system designed for monitoring rotating machinery conditions.
The system uses eddy current technology to measure the gap between the probe tip and rotating shaft.
A complete measurement system normally includes:
- Eddy Current Proximity Probe
- Extension Cable
- Proximitor Sensor
- Monitoring Module
The proximity probe acts as the primary sensing element and provides the original shaft movement signal.
The main functions of the series include:
- Shaft vibration measurement
- Radial displacement monitoring
- Axial position detection
- Rotor condition analysis
- Machinery protection
The series is widely used on high-value rotating equipment where accurate condition monitoring is required.
Technical Specifications
| Parameter | Specification |
|---|---|
| Model | 330354-040-24-05 |
| Product Type | Eddy Current Proximity Probe Assembly |
| Product Series | 3300 XL Proximity Transducer System Series |
| Sensor Technology | Eddy Current Non-contact Measurement |
| Probe Diameter | 8 mm |
| Measurement Function | Shaft Vibration and Displacement Measurement |
| Detection Principle | Electromagnetic Eddy Current Technology |
| Target Measurement | Conductive Rotating Shaft Surface |
| Probe Length | Approximately 400 mm |
| Probe Configuration | Industrial Straight Probe |
| Thread Type | Standard Industrial Mounting Thread |
| Compatible Cable System | 3300 XL Extension Cable |
| Compatible Sensor Module | Proximitor Sensor |
| Signal Type | Dynamic Displacement Signal |
| Frequency Response | DC to Approximately 10 kHz |
| Measurement Range | Standard 8 mm Probe Range |
| Operating Temperature | Approximately -52°C to +177°C |
| Storage Temperature | Approximately -55°C to +200°C |
| Environmental Capability | High Temperature Industrial Application |
| Installation Method | Threaded Installation |
| Housing Material | Stainless Steel Industrial Construction |
| Probe Tip Material | Conductive Wear Resistant Material |
| Connector Type | Industrial Sensor Connection |
| Application | Rotating Machinery Monitoring |
| Protection Function | Vibration and Position Monitoring |
| Overall Dimensions | Approximately 400 × 8 × 8 mm |
| Weight | Approximately 0.22 kg |
Product Structure and Working Principle
The 330354-040-24-05 works through eddy current measurement technology.
The measurement process includes several steps.
1. Electromagnetic Field Generation
The probe tip generates a high-frequency electromagnetic field.
When the rotating shaft moves relative to the probe, the electromagnetic field changes.
2. Shaft Distance Detection
The probe detects changes in the distance between:
- Probe tip
and
- Rotating shaft surface
The distance variation is converted into an electrical signal.
3. Signal Transmission
The generated signal travels through the extension cable to the signal conditioning module.
The system maintains:
- Signal stability
- Electrical matching
- Measurement accuracy
4. Signal Processing
The signal conditioning module processes the probe output and converts it into a usable monitoring signal.
5. Machinery Condition Evaluation
The monitoring system analyzes operating conditions such as:
- Vibration level
- Rotor movement
- Mechanical stability
- Equipment health
Product Applications
1. Steam Turbine Monitoring
The probe is widely used in steam turbine protection systems.
Applications include:
- Shaft vibration monitoring
- Rotor displacement measurement
- Turbine condition analysis
- Mechanical fault detection
2. Gas Turbine Monitoring
Gas turbines operate under high speed and high temperature conditions.
The probe supports:
- Rotor position monitoring
- Shaft vibration detection
- Equipment protection
- Operational analysis
3. Compressor Systems
The product is suitable for large industrial compressors.
Typical applications:
- Rotor movement detection
- Vibration analysis
- Mechanical condition monitoring
- Predictive maintenance
4. Generator Monitoring
The probe can be installed on generator systems.
Applications include:
- Rotor position measurement
- Shaft vibration monitoring
- Mechanical stability evaluation
5. Pump and Motor Equipment
The product supports monitoring of:
- Large pumps
- Motors
- Drive systems
- Process machinery
It helps identify abnormal operating conditions before equipment failure occurs.
Product Advantages
1. Non-contact Measurement
The probe measures shaft movement without direct physical contact.
Advantages:
- No mechanical friction
- Reduced wear
- Longer service life
- Continuous operation capability
2. High Measurement Accuracy
The product provides precise shaft movement measurement.
Benefits:
- Accurate vibration analysis
- Reliable machine protection
- Improved fault detection
3. Excellent Environmental Resistance
The probe is designed for industrial environments.
It can operate under:
- High temperatures
- Continuous vibration conditions
- Harsh industrial environments
4. Stable Signal Performance
The product provides consistent electrical output.
Advantages:
- Reliable monitoring
- Better repeatability
- Improved system stability
5. Suitable for Critical Machinery
The probe is designed for equipment where downtime must be minimized.
Applications include:
- Turbines
- Compressors
- Generators
- Pumps
- Motors
6. Supports Predictive Maintenance
Accurate measurement data helps users:
- Identify problems early
- Reduce maintenance costs
- Improve equipment availability
- Extend machine service life
7. Easy Integration
The probe can be combined with compatible extension cables and monitoring modules.
Recommended Models from the Same Series or Related Models
| Model | Product Type | Main Function | Specification | Operating Temperature | Dimensions | Weight (kg) |
|---|---|---|---|---|---|---|
| 330354-040-24-05 | Eddy Current Proximity Probe | Shaft Vibration Measurement | 8 mm Probe, 400 mm Length | -52°C to +177°C | 400 × 8 × 8 mm | 0.22 |
| 330302-000-040-10-90-01-00 | Eddy Current Probe | Shaft Displacement Measurement | 8 mm Probe, 400 mm Length | -52°C to +177°C | 400 × 8 × 8 mm | 0.22 |
| 330302-000-050-10-90-01-00 | Eddy Current Probe | Rotor Monitoring | 8 mm Probe, 500 mm Length | -52°C to +177°C | 500 × 8 × 8 mm | 0.25 |
| 330301-000-016-10-90-01-00 | Eddy Current Probe | Position Measurement | 8 mm Probe, 160 mm Length | -52°C to +177°C | 160 × 8 × 8 mm | 0.15 |
| 330190-085-01-00 | Extension Cable Assembly | Signal Extension | 8.5 m Cable | -52°C to +177°C | 8500 × 8 × 8 mm | 0.62 |
Recommended Popular Models from the Same Brand
| Model | Product Type | Main Function | Compatible System | Operating Temperature | Dimensions | Weight (kg) |
|---|---|---|---|---|---|---|
| 330354-040-24-05 | Eddy Current Probe | Shaft Monitoring | 3300 XL Series | -52°C to +177°C | 400 × 8 × 8 mm | 0.22 |
| 330130-085-11-05 | Extension Cable | Probe Signal Extension | 3300 XL System | -52°C to +177°C | 8500 × 8 × 8 mm | 0.62 |
| 330180-X1-05 161255-02 | Proximitor Sensor | Signal Conditioning | 3300 XL System | -35°C to +85°C | 120 × 80 × 55 mm | 0.58 |
| 3500/42M | Vibration Monitoring Module | Machinery Protection | 3500 System | 0°C to +65°C | 241 × 24 × 242 mm | 0.82 |
| 3500/22M | Communication Interface Module | Monitoring Communication | 3500 System | 0°C to +65°C | 241 × 24 × 242 mm | 0.79 |
Installation and Maintenance Recommendations
For reliable operation of the 330354-040-24-05, correct installation and regular inspection are recommended.
Important practices include:
- Install the probe with correct gap adjustment
- Confirm proper mechanical mounting
- Use compatible extension cables
- Protect the probe body from physical damage
- Keep connectors clean
- Avoid excessive mechanical stress
- Check output signals regularly
Proper maintenance ensures accurate measurement performance and extends the service life of the monitoring system.
Conclusion
The 330354-040-24-05 is a precision 8 mm Eddy Current Proximity Probe designed for the 3300 XL Proximity Transducer System Series.
It provides reliable non-contact measurement of shaft vibration, displacement, and rotor position for critical rotating machinery.
With high measurement accuracy, excellent temperature resistance, stable signal performance, and durable industrial construction, the product is suitable for turbines, compressors, generators, pumps, motors, and other important rotating equipment.
The 330354-040-24-05 helps improve machinery reliability, supports predictive maintenance strategies, reduces unexpected failures, and enhances the safety and efficiency of industrial operations.
