Product Overview

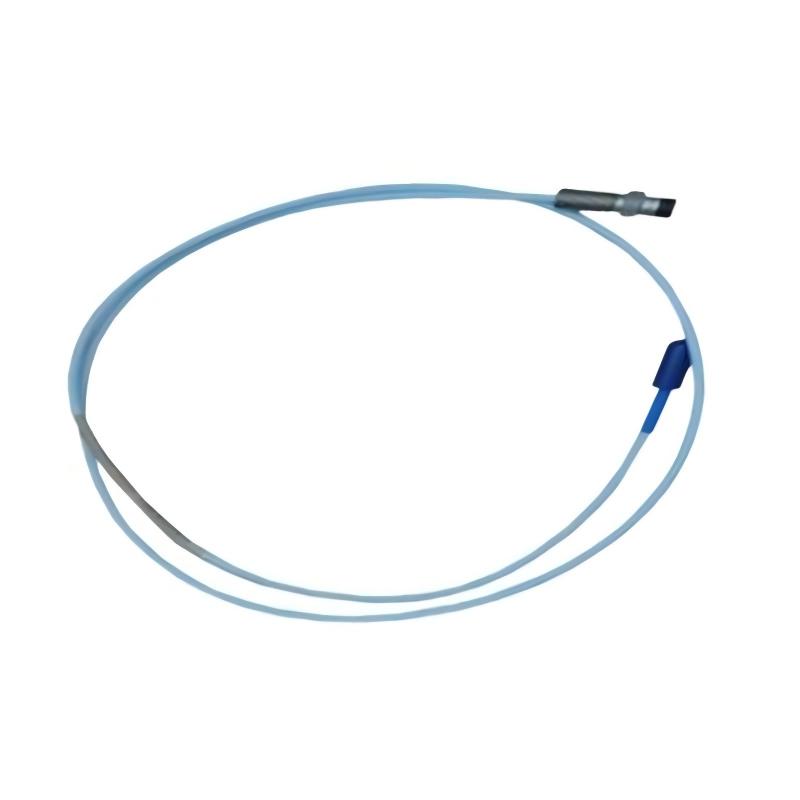

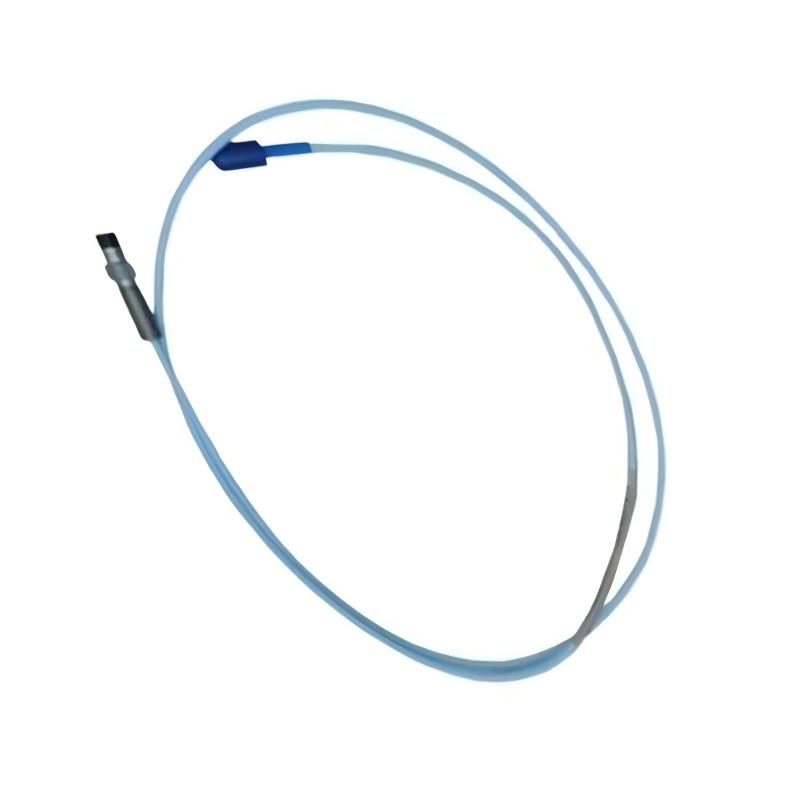

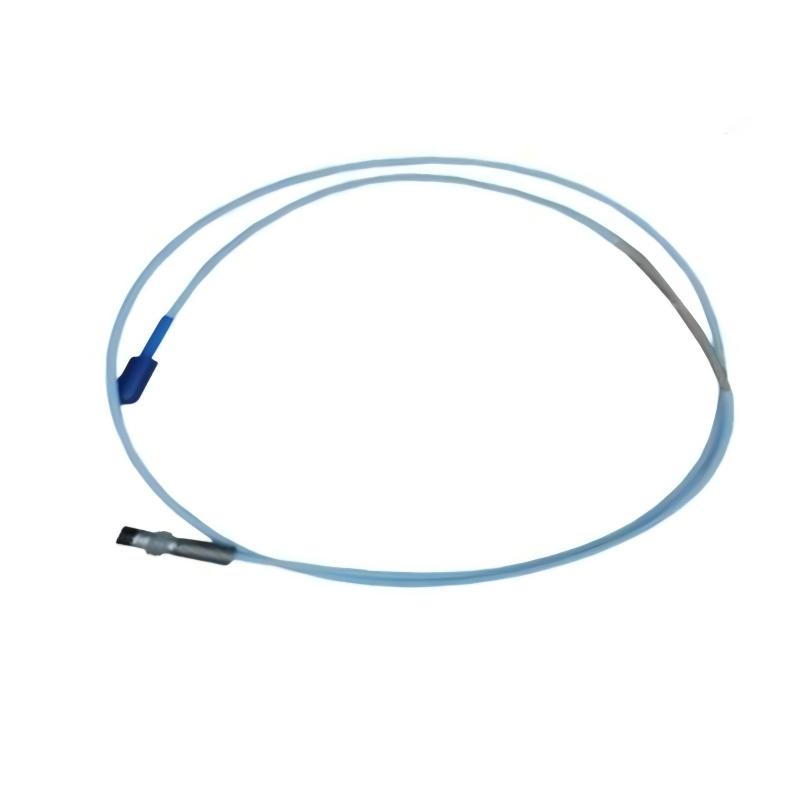

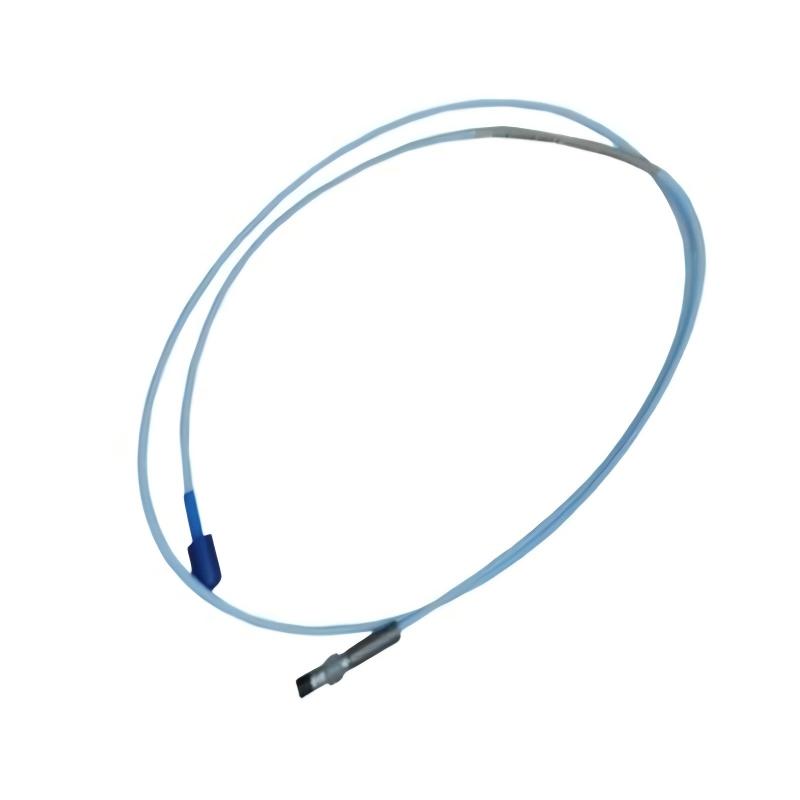

In modern industrial plants, rotating machinery requires continuous condition monitoring to ensure safe operation, reduce unexpected downtime, and improve maintenance efficiency. The Bently Nevada 330194-17-25-15-00 3300 XL 8 mm Probe is a high-performance proximity probe designed for accurate non-contact measurement of shaft vibration, displacement, and position in critical rotating equipment.
The Bently Nevada 330194-17-25-15-00 belongs to the 3300 XL 8 mm Probe series, which is widely applied in machinery protection and predictive maintenance systems. The probe uses eddy current measurement technology to detect the distance between the probe tip and the rotating shaft surface, converting mechanical movement into precise electrical signals.
This proximity probe is designed for applications requiring reliable shaft monitoring in demanding industrial environments. Its armored construction provides additional mechanical protection, improving durability and installation reliability in rotating machinery systems.
The Bently Nevada 330194-17-25-15-00 configuration includes:
- Probe Diameter: 8 mm
- Unthreaded Length: 17 mm
- Case Length: 25 mm
- Total Length: 1.5 meters
The probe is commonly used for monitoring turbines, compressors, generators, pumps, motors, and other high-value rotating equipment where early detection of mechanical problems is essential.
With a total length of 1.5 meters and a weight of 0.485 kg, the Bently Nevada 330194-17-25-15-00 provides a reliable sensing solution for industrial machinery protection applications.
Technical Specifications
| Parameter | Details |
|---|---|
| Manufacturer | Bently Nevada |
| Model | 330194-17-25-15-00 |
| Product Type | 3300 XL 8 mm Probe |
| Series | 3300 XL |
| Probe Diameter | 8 mm |
| Measurement Technology | Eddy Current Proximity Measurement |
| Probe Type | Armored Proximity Probe |
| Thread Type | M10 × 1 |
| Unthreaded Length | 17 mm |
| Case Length | 25 mm |
| Total Length | 1.5 meters |
| Application | Shaft Vibration and Position Monitoring |
| Weight | 0.485 kg |
Function and Working Principle
The Bently Nevada 330194-17-25-15-00 operates based on eddy current proximity sensing technology.
During operation, the probe generates an electromagnetic field near the rotating shaft. When the distance between the probe tip and the shaft changes, the electromagnetic field characteristics also change. These variations are converted into electrical signals that represent shaft displacement and vibration movement.
The working process includes:
- Generating a high-frequency electromagnetic field
- Detecting shaft surface movement
- Measuring changes in probe-to-shaft distance
- Converting displacement information into electrical signals
- Sending monitoring data to protection systems
The probe can be used to measure:
- Radial shaft vibration
- Axial shaft displacement
- Rotor position changes
- Mechanical clearance variations
- Rotating equipment operating conditions
This allows maintenance engineers to identify abnormal operating conditions and perform preventive maintenance before serious equipment damage occurs.
Role in Industrial Machinery Protection Systems
The Bently Nevada 330194-17-25-15-00 plays an important role in industrial equipment monitoring systems.
It is commonly integrated with:
| System Component | Function |
|---|---|
| Proximity Sensor System | Processes displacement signals |
| Machinery Monitoring System | Analyzes vibration conditions |
| PLC System | Integrates equipment information |
| DCS System | Provides process monitoring |
| Alarm System | Generates protection warnings |
| Engineering Software | Supports maintenance analysis |
By providing continuous shaft condition data, the probe helps improve equipment safety and operational reliability.
Industrial Applications
The Bently Nevada 330194-17-25-15-00 3300 XL 8 mm Probe is widely used in industries where rotating equipment reliability is critical.
| Industry | Application |
|---|---|
| Power Generation | Turbine vibration monitoring |
| Oil and Gas | Compressor condition monitoring |
| Petrochemical | Rotating machinery protection |
| Chemical Industry | Process equipment monitoring |
| Manufacturing | Motor vibration analysis |
| Marine Industry | Engine and shaft monitoring |
| Energy Industry | Generator protection |
| Industrial Plants | Pump and blower monitoring |
The probe is especially suitable for continuous monitoring applications where equipment failure may cause significant production losses.
Installation and System Integration
Proper installation is important for ensuring accurate measurement performance.
Recommended installation procedures:
- Install the probe in the correct mounting location
- Confirm proper thread engagement
- Adjust probe clearance according to application requirements
- Connect the probe with compatible monitoring equipment
- Verify signal output stability
- Perform system calibration
During commissioning, engineers should check:
- Probe mounting position
- Shaft measurement distance
- Signal quality
- Monitoring system response
- Alarm parameters
- Equipment operating condition
Correct installation helps ensure long-term measurement accuracy and system reliability.
Monitoring Functions
The Bently Nevada 330194-17-25-15-00 provides several important monitoring capabilities.
| Function | Description |
|---|---|
| Shaft Vibration Measurement | Detects mechanical vibration changes |
| Position Monitoring | Measures shaft displacement |
| Non-Contact Detection | Prevents physical sensor wear |
| Continuous Condition Monitoring | Provides real-time equipment information |
| Predictive Maintenance Support | Helps prevent unexpected failures |
These functions make the probe a key component in industrial machinery protection systems.
Maintenance and Troubleshooting
Regular inspection helps maintain accurate monitoring performance.
| Problem | Possible Cause | Recommended Solution |
|---|---|---|
| No Signal Output | Cable connection problem | Check wiring connections |
| Unstable Signal | Incorrect probe gap | Adjust installation position |
| Incorrect Measurement | Probe alignment issue | Verify mounting condition |
| Signal Interruption | Cable or connector fault | Inspect connection system |
| Abnormal Reading | Equipment vibration issue | Check machinery condition |
Proper maintenance improves system availability and extends equipment service life.
Compatible Systems
| System | Application |
|---|---|
| Bently Nevada 3300 XL Monitoring System | Machinery protection |
| Industrial Vibration Monitoring Systems | Condition monitoring |
| PLC Control Systems | Equipment data integration |
| DCS Systems | Process equipment monitoring |
| Turbine Protection Systems | Rotating equipment safety |
Recommended Related Models
| Model | Type | Application |
|---|---|---|
| Bently Nevada 330194-13-20-10-00 | 3300 XL 8 mm Probe | Shaft vibration monitoring |
| Bently Nevada 330194 Series | 3300 XL 8 mm Probe | Proximity measurement |
| Bently Nevada 330193 Series | 3300 XL 8 mm Probe | Standard vibration monitoring |
| Bently Nevada Proximitor Sensor | Signal Processing Unit | Vibration analysis |
Key Advantages
- High accuracy shaft displacement measurement
- Advanced eddy current sensing technology
- Non-contact vibration monitoring capability
- Armored construction for industrial environments
- 1.5-meter total length design
- Reliable operation in critical machinery systems
- Supports predictive maintenance strategies
- Improves equipment protection performance
- Reduces unexpected machine downtime
Technical FAQs
What is the Bently Nevada 330194-17-25-15-00 used for?
The Bently Nevada 330194-17-25-15-00 is a 3300 XL 8 mm proximity probe used for shaft vibration, displacement, and position monitoring in rotating machinery.
What technology does this proximity probe use?
It uses eddy current sensing technology for non-contact measurement.
What is the total length of the Bently Nevada 330194-17-25-15-00?
The total length is 1.5 meters.
What is the weight of the Bently Nevada 330194-17-25-15-00?
The weight is 0.485 kg.
What equipment can use this probe?
It is commonly used for turbines, compressors, generators, pumps, motors, and other rotating equipment.
What is the main purpose of the 3300 XL 8 mm Probe?
The main purpose is to provide accurate shaft vibration and displacement monitoring for industrial machinery protection.
Conclusion
The Bently Nevada 330194-17-25-15-00 3300 XL 8 mm Probe is a reliable proximity measurement solution designed for industrial rotating machinery monitoring and protection systems.
With accurate eddy current sensing technology, armored construction, and a 1.5-meter total length configuration, this probe provides stable and precise measurement performance for critical equipment applications.
For automation engineers, maintenance professionals, and industrial equipment specialists, the Bently Nevada 330194-17-25-15-00 provides an effective solution for vibration monitoring, shaft position measurement, predictive maintenance, and machinery protection.
