- Bently Nevada
- 330194-13-20-10-00

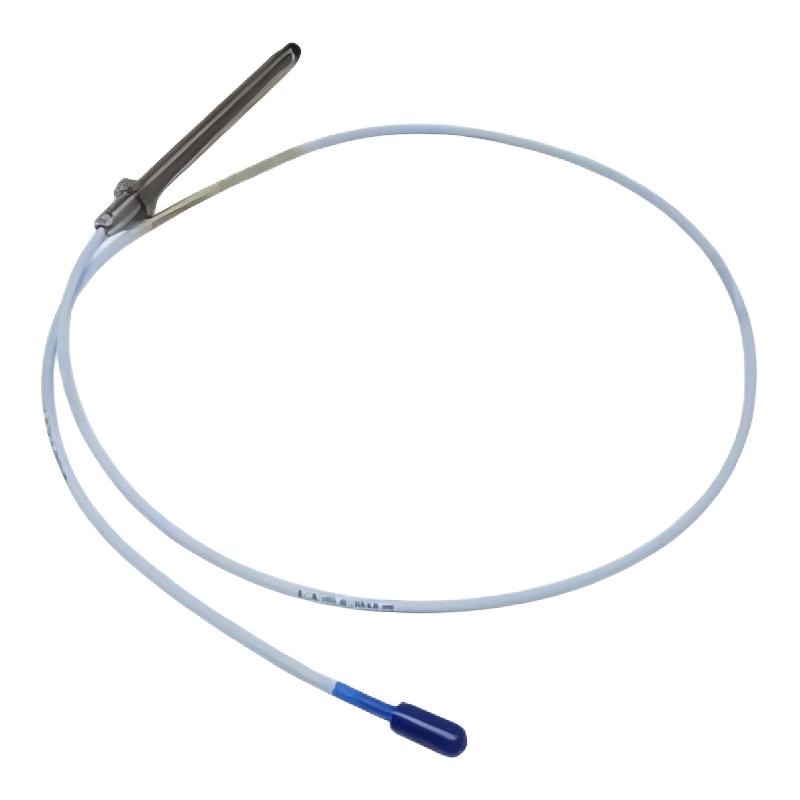

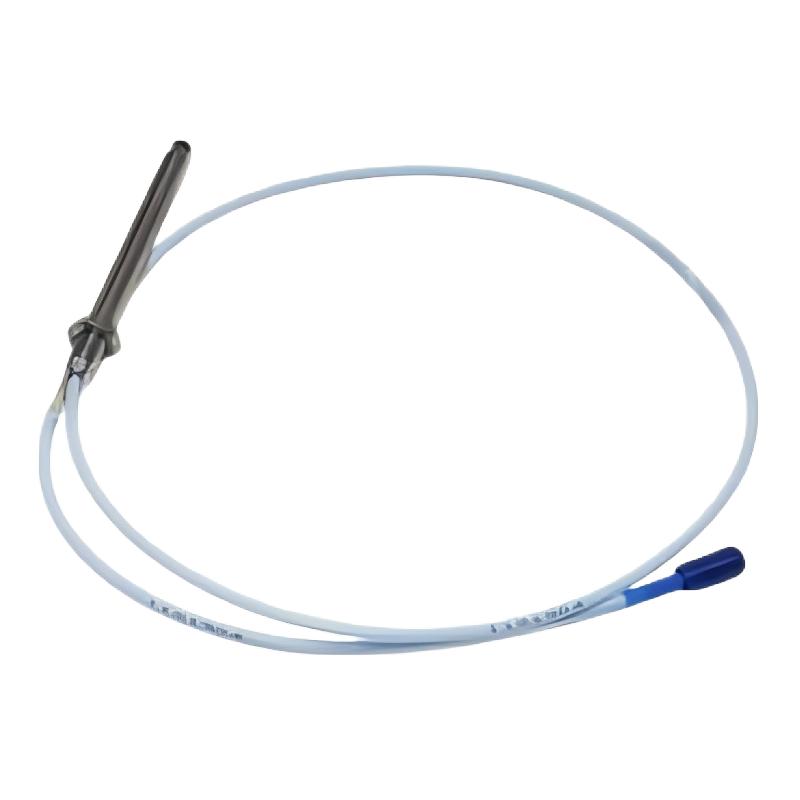

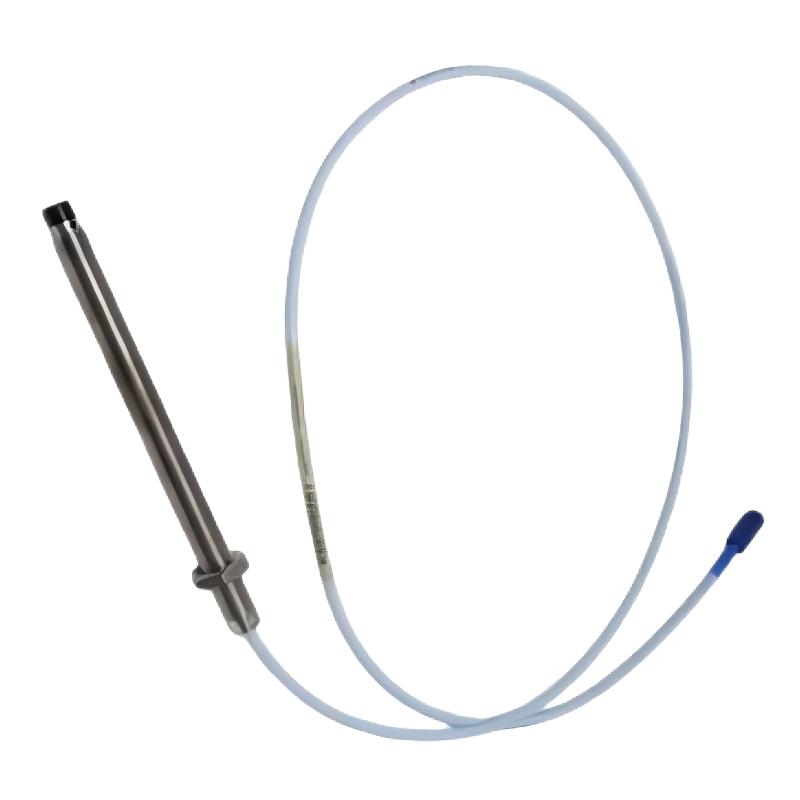

- 3300 XL 8 mm Probe
- USA
- 1 meter
- 0.323 kg
- Xiamen, China
- New & In Stock
- T/T, PayPal, Western Union
- 1 Year
- 1-3 Working Days
- DHL, UPS, TNT, FedEx and EMS.
- 24-Hour Service
- COO
- 7
Our advantage
Global Logistics
We have a 10-year logistics and express cooperation agreement, so our products can be shipped to any place in the world.
Brand new and original
Our products are imported in bulk from the place of origin. Because of the cooperative relationship, our products are all original and 100% new.
24-hour service
We provide 7*24 hours service to our customers. We will be there whenever you need us.
Price advantage
All our products are priced very favorably because we have our own warehouse and supply.
| Company Information | |||
| [email protected] | |||
| Mobile | +8615980777398 | ||
| +8615980777398 | |||
| 15980777398 |
Product Overview
In critical industrial rotating equipment, accurate vibration and displacement monitoring is essential for improving machine reliability, preventing unexpected failures, and supporting predictive maintenance strategies. The Bently Nevada 330194-13-20-10-00 3300 XL 8 mm Probe is a high-performance proximity probe designed for non-contact measurement of shaft vibration, position, and movement in industrial machinery protection systems.
The Bently Nevada 330194-13-20-10-00 belongs to the 3300 XL 8 mm Proximity Probe family and is widely used in machinery condition monitoring applications. It utilizes eddy current sensing technology to detect the distance between the probe tip and the rotating shaft, providing accurate measurement signals for vibration monitoring and shaft position analysis.
The probe is designed with an M10 × 1 thread configuration and armored construction, providing enhanced mechanical protection for industrial environments where durability and reliable installation are required.
The model configuration includes:
- Unthreaded Length Option: 13 mm
- Overall Case Length Option: 20 mm
- Total Length Option: 1 meter
The Bently Nevada 330194-13-20-10-00 is commonly installed on turbines, compressors, pumps, motors, and other high-value rotating machines where continuous monitoring and equipment protection are required.
With a total length of 1 meter and a weight of 0.323 kg, this proximity probe provides a reliable solution for industrial vibration monitoring and machinery protection applications.
Technical Specifications
| Parameter | Details |
|---|---|
| Manufacturer | Bently Nevada |
| Model | 330194-13-20-10-00 |
| Product Type | 3300 XL 8 mm Probe |
| Series | 3300 XL |
| Measurement Technology | Eddy Current Proximity Measurement |
| Probe Diameter | 8 mm |
| Thread Type | M10 × 1 |
| Probe Construction | Armored Probe |
| Unthreaded Length | 13 mm |
| Case Length | 20 mm |
| Total Length | 1 meter |
| Application | Shaft Vibration and Position Monitoring |
| Weight | 0.323 kg |
Function and Working Principle
The Bently Nevada 330194-13-20-10-00 operates using eddy current proximity measurement technology.
During operation, the probe generates an electromagnetic field at the sensing tip. When the probe is positioned near a conductive rotating shaft, changes in the distance between the probe and shaft surface affect the electromagnetic field. These variations are converted into electrical output signals representing shaft movement.
The working process includes:
- Generating an electromagnetic measurement field
- Detecting changes in shaft clearance
- Converting displacement into electrical signals
- Transmitting vibration and position data
- Supporting machinery condition analysis
The probe can monitor:
- Radial shaft vibration
- Axial shaft displacement
- Rotor position
- Machine operating conditions
- Abnormal mechanical movement
This allows maintenance teams to detect early signs of equipment problems and take preventive action.
Role in Industrial Machinery Protection Systems
The Bently Nevada 330194-13-20-10-00 plays an important role in rotating equipment monitoring systems.
It is commonly integrated with:
| System Component | Function |
|---|---|
| Proximity Sensor | Converts probe signal information |
| Monitoring System | Processes vibration data |
| PLC System | Integrates machine status information |
| DCS System | Provides process monitoring |
| Turbine Protection System | Provides equipment protection |
| Engineering Software | Supports condition analysis |
By continuously monitoring shaft movement, the probe helps improve equipment safety and operational efficiency.
Industrial Applications
The Bently Nevada 330194-13-20-10-00 3300 XL 8 mm Probe is widely used in industries requiring reliable rotating equipment monitoring.
| Industry | Application |
|---|---|
| Power Generation | Steam turbine and generator monitoring |
| Oil and Gas | Compressor vibration protection |
| Petrochemical | Rotating equipment monitoring |
| Marine Industry | Engine and shaft monitoring |
| Manufacturing | Motor condition monitoring |
| Energy Industry | Critical machine protection |
| Industrial Plants | Pump and blower monitoring |
| Chemical Industry | Process equipment protection |
The probe is especially suitable for applications where equipment reliability and continuous condition monitoring are critical.
Installation and System Integration
Correct installation is important to achieve accurate measurement performance.
Recommended installation procedures:
- Install the probe in the designated mounting position
- Confirm correct thread installation
- Adjust probe gap according to system requirements
- Connect with compatible monitoring equipment
- Verify signal output
- Perform system calibration
During commissioning, engineers should check:
- Probe mounting position
- Shaft clearance
- Signal stability
- Measurement accuracy
- Monitoring system response
- Alarm configuration
Proper installation ensures reliable long-term operation.
Monitoring Functions
The Bently Nevada 330194-13-20-10-00 provides multiple monitoring functions.
| Function | Description |
|---|---|
| Vibration Measurement | Detects shaft vibration changes |
| Position Measurement | Monitors shaft displacement |
| Non-Contact Detection | Measures without physical contact |
| Continuous Monitoring | Provides real-time equipment information |
| Predictive Maintenance Support | Helps identify potential failures |
These functions make the probe an important component in industrial machinery protection systems.
Maintenance and Troubleshooting
Regular inspection helps maintain accurate measurement performance.
| Problem | Possible Cause | Solution |
|---|---|---|
| No Signal Output | Wiring connection issue | Check cable connections |
| Incorrect Vibration Reading | Incorrect probe gap | Adjust installation distance |
| Signal Fluctuation | Mechanical interference | Inspect mounting condition |
| Communication Failure | Sensor connection problem | Verify system wiring |
| Measurement Error | Probe damage | Replace damaged component |
Proper maintenance helps extend equipment service life and improve system reliability.
Compatible Systems
| System | Application |
|---|---|
| Bently Nevada 3300 XL Monitoring System | Machinery protection |
| Vibration Monitoring Systems | Condition monitoring |
| PLC Control Systems | Equipment data integration |
| DCS Control Systems | Industrial process monitoring |
| Turbine Protection Systems | Rotating equipment safety |
Recommended Related Models
| Model | Type | Application |
|---|---|---|
| Bently Nevada 330194 Series | 3300 XL 8 mm Probe | Shaft vibration monitoring |
| Bently Nevada 330193 Series | 3300 XL 8 mm Probe | Standard proximity measurement |
| Bently Nevada Extension Cable | Probe Extension Component | Signal transmission |
| Bently Nevada Proximitor Sensor | Signal Processing Device | Vibration analysis |
Key Advantages
- High accuracy shaft displacement measurement
- Non-contact eddy current sensing technology
- Suitable for critical rotating machinery
- Armored design for industrial environments
- Reliable 1-meter probe configuration
- Supports predictive maintenance applications
- Provides continuous machine monitoring
- Improves equipment protection capability
- Reduces unexpected downtime
Technical FAQs
What is the Bently Nevada 330194-13-20-10-00 used for?
The Bently Nevada 330194-13-20-10-00 is a 3300 XL 8 mm proximity probe used for monitoring shaft vibration and displacement in rotating machinery.
What measurement technology does this probe use?
The probe uses eddy current proximity measurement technology for non-contact displacement detection.
What is the total length of the Bently Nevada 330194-13-20-10-00?
The total length is 1 meter.
What is the weight of the Bently Nevada 330194-13-20-10-00?
The weight is 0.323 kg.
What equipment can use this proximity probe?
It is commonly used for turbines, compressors, pumps, motors, generators, and other rotating machinery.
What type of thread does this probe use?
The probe uses an M10 × 1 thread configuration.
Conclusion
The Bently Nevada 330194-13-20-10-00 3300 XL 8 mm Probe is a reliable proximity measurement solution designed for industrial machinery condition monitoring and protection systems.
With accurate eddy current sensing technology, armored construction, and compatibility with industrial vibration monitoring applications, this probe helps improve equipment reliability, support predictive maintenance, and reduce operational risks.
For automation engineers, maintenance professionals, and rotating equipment specialists, the Bently Nevada 330194-13-20-10-00 provides an effective solution for shaft vibration measurement, displacement monitoring, and machinery protection applications.
