Product Overview

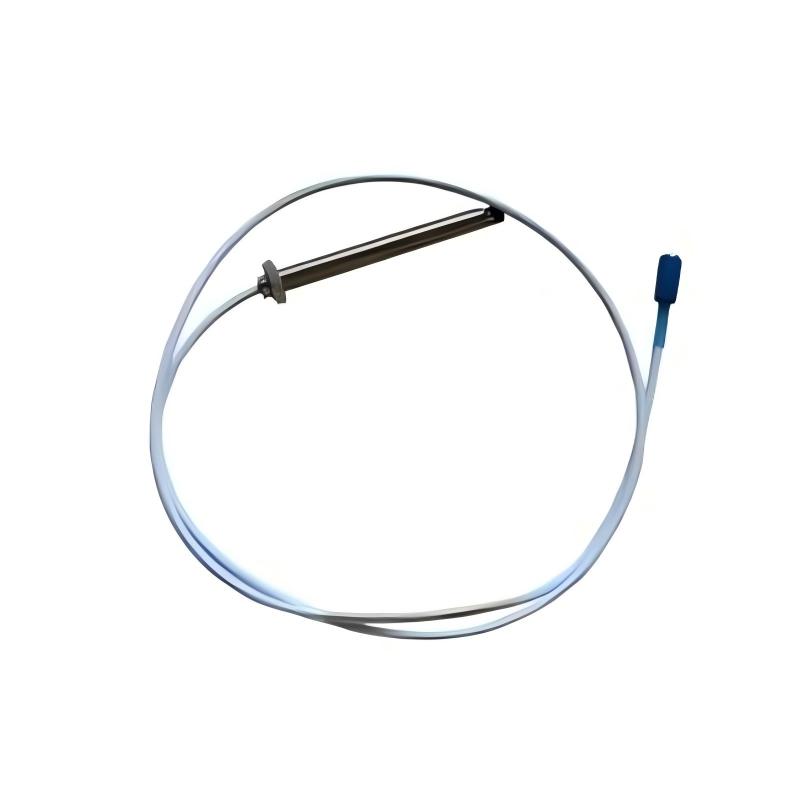

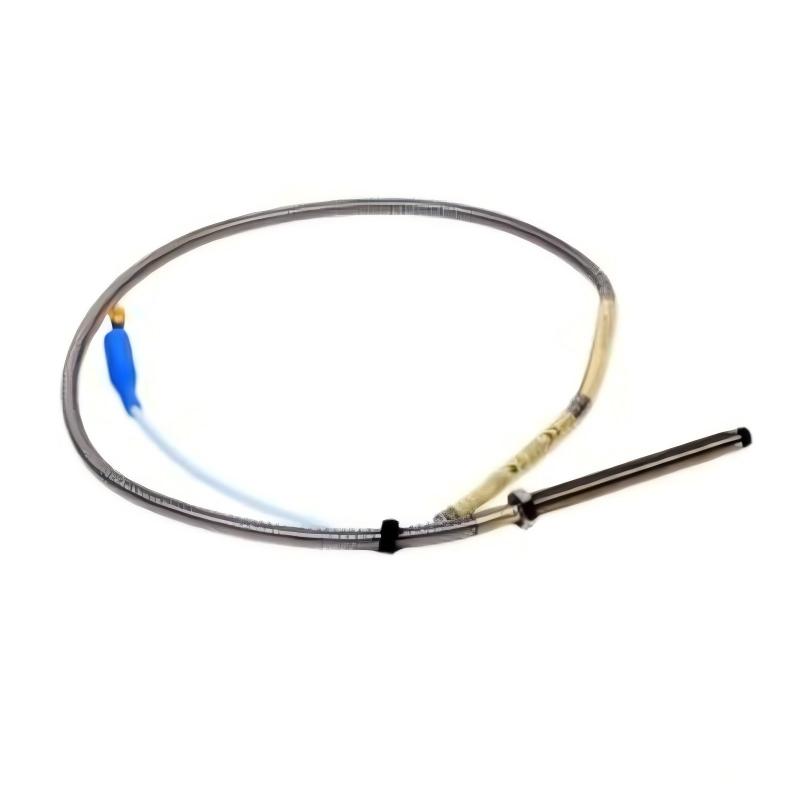

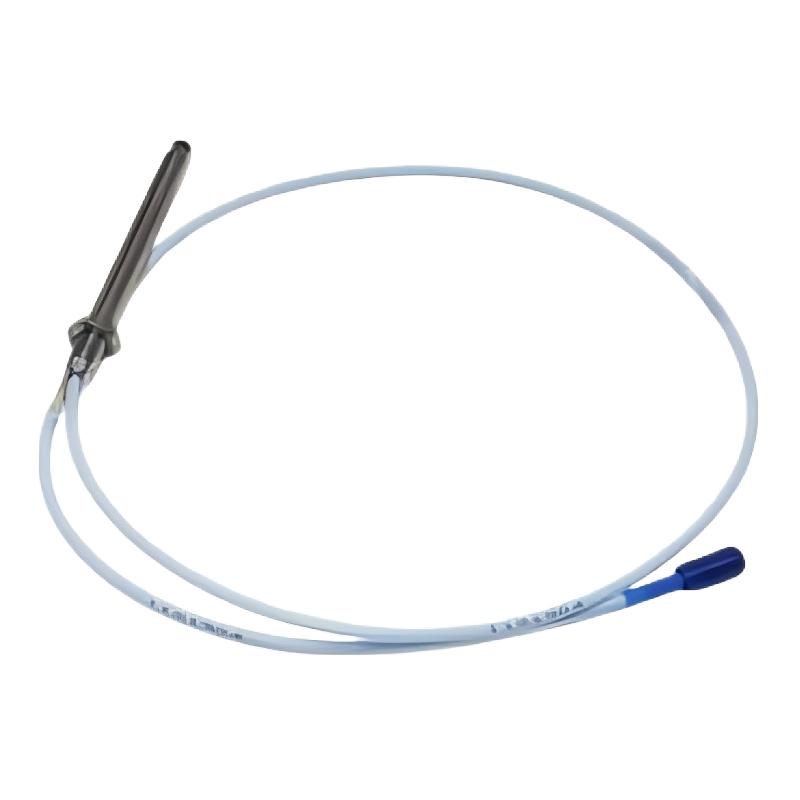

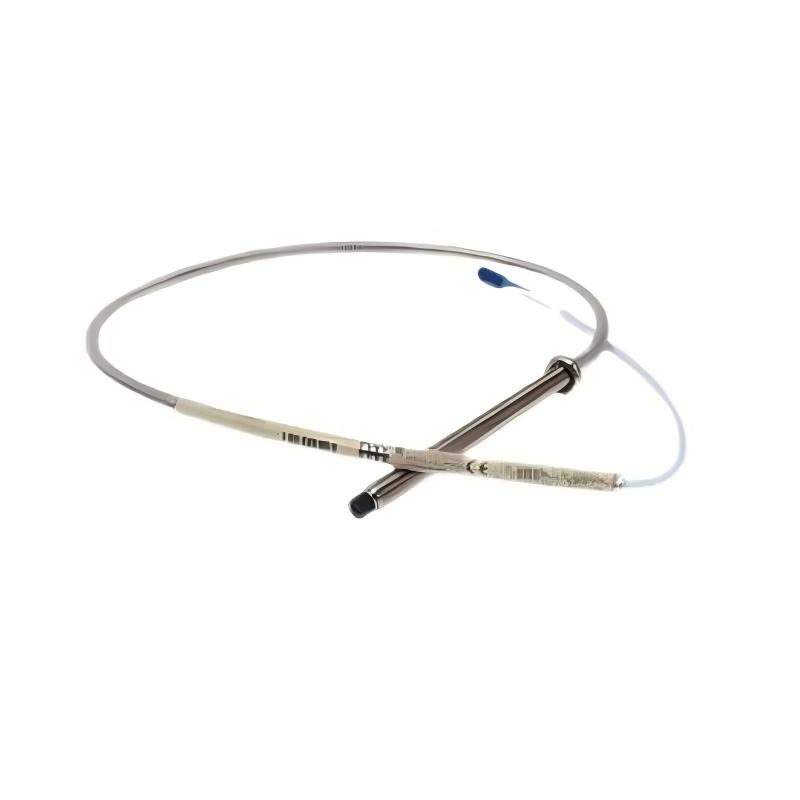

In industrial automation and rotating machinery protection systems, accurate equipment condition monitoring is essential for maintaining operational safety, improving maintenance efficiency, and reducing unexpected production interruptions. The Bently Nevada 330193-10-20-05-00 3300 XL 8 mm Probe is a high-precision proximity probe designed for continuous monitoring of shaft vibration, displacement, and position in critical rotating machinery.

The 330193-10-20-05-00 belongs to the Bently Nevada 3300 XL 8 mm Probe Series and uses advanced eddy current proximity sensing technology to provide reliable non-contact measurement. By detecting variations in the distance between the probe tip and the rotating shaft surface, the sensor converts mechanical movement into electrical signals used for machinery condition analysis and protection.

The non-contact sensing principle avoids direct contact with rotating components, reducing mechanical wear and ensuring stable measurement performance during long-term operation. The probe is widely suitable for industrial equipment such as turbines, compressors, generators, pumps, motors, and other high-speed rotating machines.

With a total length of 0.5 meters and a weight of 0.162 kg, the Bently Nevada 330193-10-20-05-00 provides a compact and lightweight solution for applications requiring short-distance installation between the sensing point and monitoring equipment.

Technical Specifications

Function and Working Principle

The Bently Nevada 330193-10-20-05-00 operates based on eddy current proximity sensing technology, enabling accurate detection of shaft movement without physical contact.

During operation, the probe generates an electromagnetic field around the sensing tip. When the conductive shaft surface changes its position relative to the probe, the electromagnetic field changes accordingly. These changes are converted into electrical output signals representing shaft displacement and vibration characteristics.

The working process includes:

• Creating a stable electromagnetic sensing field
• Measuring the gap between the probe tip and shaft surface
• Detecting shaft vibration movement
• Monitoring shaft position changes
• Transmitting measurement signals to monitoring systems

Main functions include:

• Radial vibration monitoring
• Axial displacement measurement
• Rotor position detection
• Machinery condition monitoring
• Rotating equipment protection

The non-contact measurement method allows continuous operation with improved reliability and reduced maintenance requirements.

Role in Industrial Machinery Protection Systems

The Bently Nevada 330193-10-20-05-00 is an important sensing component in rotating equipment monitoring and protection systems. It provides accurate shaft condition data to help engineers evaluate equipment performance and identify potential mechanical problems.

The probe is commonly integrated with:

These components work together to provide continuous monitoring and protection for critical industrial machinery.

Industrial Applications

The Bently Nevada 330193-10-20-05-00 is widely used in industries where rotating equipment reliability is critical.

The compact 0.5-meter design is suitable for installations where the probe location is close to the monitoring system.

Installation and System Integration

Proper installation is essential to achieve accurate measurement performance and reliable system operation.

Recommended installation procedures include:

• Install the probe at the correct measurement location
• Ensure secure mechanical mounting
• Maintain proper probe gap adjustment
• Protect cable routing from vibration and damage
• Avoid strong electromagnetic interference sources
• Verify signal output during commissioning

During startup, engineers should confirm:

• Correct probe installation position
• Stable signal output
• Accurate vibration measurement
• Proper system communication
• Correct alarm settings

Proper installation improves measurement accuracy and extends machinery monitoring reliability.

Compatible System Components

The Bently Nevada 330193-10-20-05-00 can be integrated with various industrial automation and monitoring components.

These components create a complete rotating machinery condition monitoring solution.

Recommended Alternative Models

Key Advantages

• High-precision non-contact shaft measurement
• Reliable 8 mm eddy current sensing technology
• Compact 0.5-meter length design
• Lightweight industrial construction
• Stable vibration monitoring performance
• Accurate displacement measurement
• Suitable for continuous machinery operation
• Supports predictive maintenance strategies

Technical FAQs

What is the Bently Nevada 330193-10-20-05-00 used for?

The Bently Nevada 330193-10-20-05-00 is an 8 mm proximity probe used for monitoring shaft vibration, displacement, and position in rotating machinery.

What is the total length of this probe?

The total length of the 330193-10-20-05-00 is 0.5 meters.

What sensing technology does this probe use?

It uses eddy current proximity sensing technology for accurate non-contact measurement.

What is the advantage of the 0.5-meter configuration?

The compact length allows installation in systems where the probe and monitoring equipment are positioned close together.

What equipment can use this probe?

It is commonly used on turbines, compressors, generators, pumps, motors, and other critical rotating equipment.

Conclusion

The Bently Nevada 330193-10-20-05-00 3300 XL 8 mm Probe is a compact and reliable industrial proximity sensing component designed for accurate rotating machinery monitoring.

With its advanced eddy current sensing technology, 8 mm probe design, 0.5-meter total length, and lightweight construction, it provides stable shaft vibration and displacement measurement for machinery protection and condition monitoring applications.

For maintenance engineers, automation professionals, and industrial system integrators, the Bently Nevada 330193-10-20-05-00 offers an effective solution for predictive maintenance, equipment diagnostics, machinery protection, and long-term industrial equipment reliability.
