Product Overview

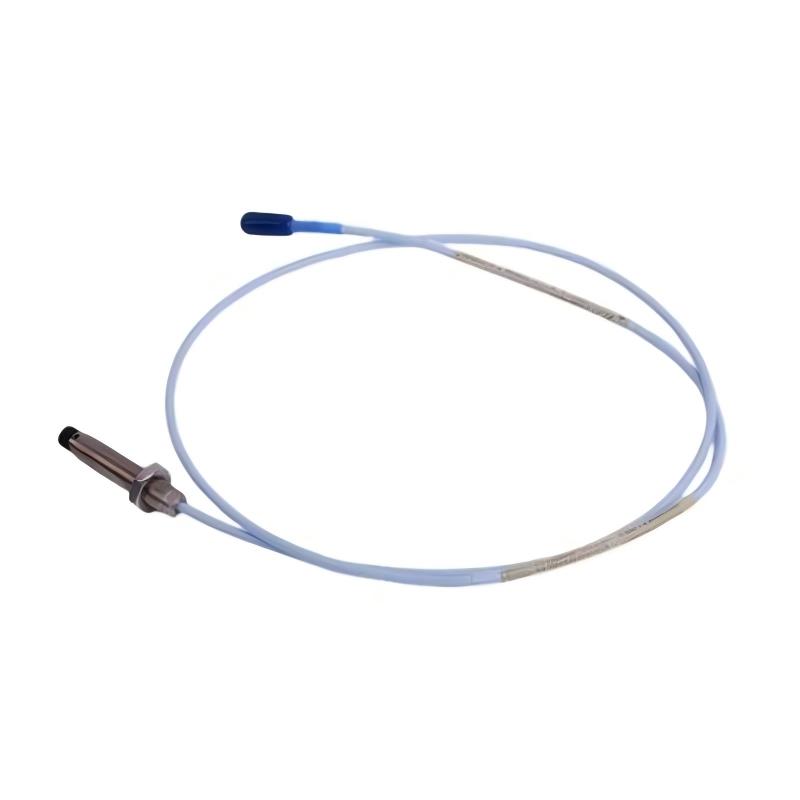

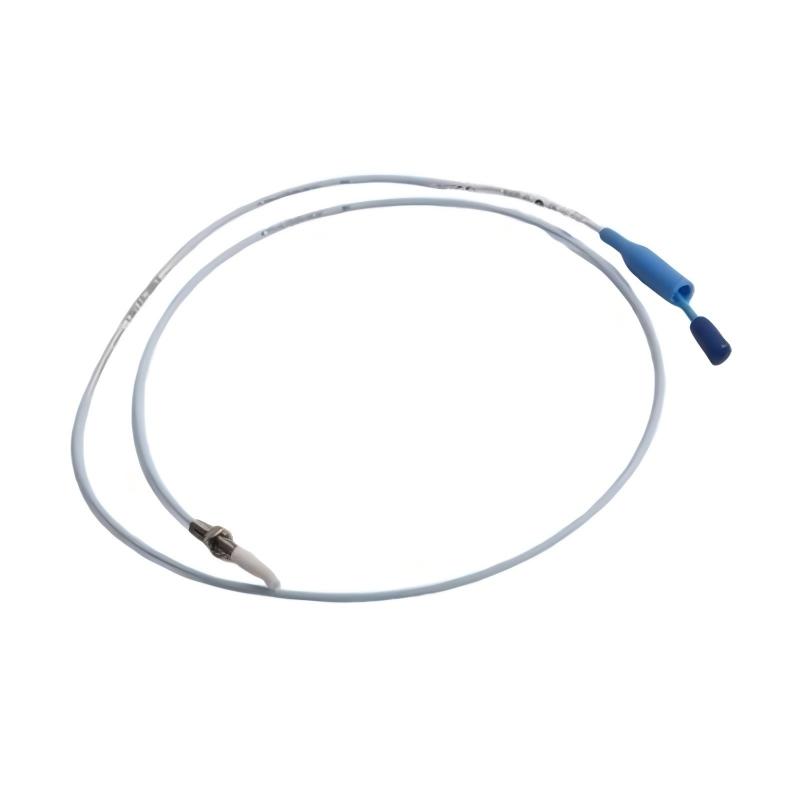

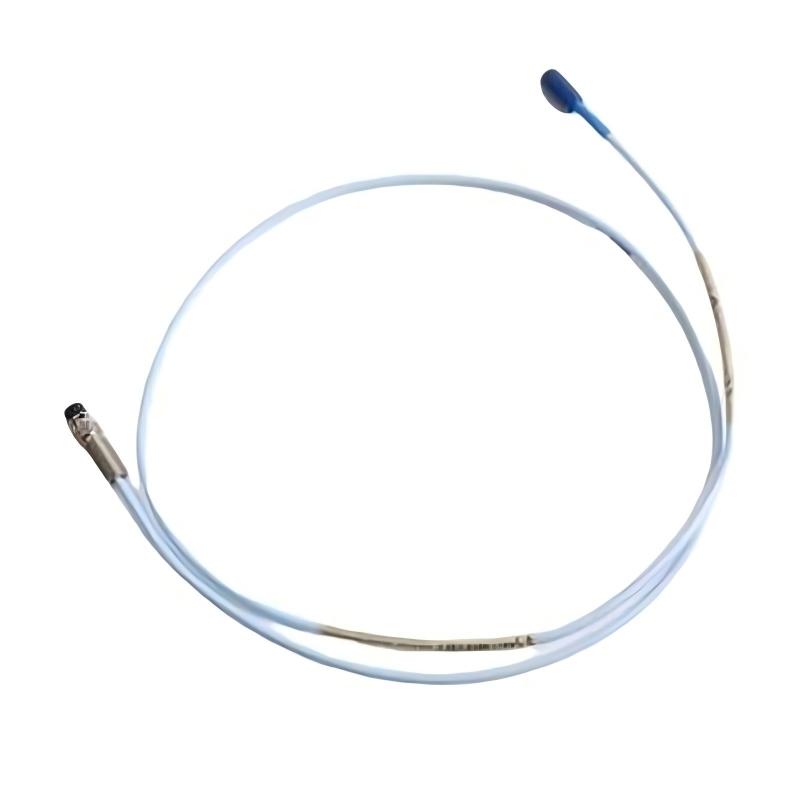

In industrial automation and rotating machinery protection systems, accurate condition monitoring is essential for maintaining equipment reliability, reducing unexpected downtime, and improving maintenance efficiency. The Bently Nevada 330193-00-05-10-00 3300 XL 8 mm Probe is a high-precision proximity probe designed for continuous measurement of shaft vibration, displacement, and position in critical rotating equipment.

The 330193-00-05-10-00 belongs to the Bently Nevada 3300 XL 8 mm Probe Series and uses eddy current proximity sensing technology to provide reliable non-contact measurement. By detecting changes in the distance between the probe tip and the rotating shaft, the sensor converts mechanical movement into electrical signals that can be analyzed by machinery monitoring and protection systems.

The non-contact measurement principle eliminates physical contact between the sensor and rotating components, reducing wear and improving long-term measurement stability. This makes the probe suitable for applications involving turbines, compressors, generators, pumps, motors, and other industrial rotating machinery.

With a total length of 1 meter and a weight of 0.323 kg, the Bently Nevada 330193-00-05-10-00 provides a compact and reliable sensing solution for standard machinery monitoring installations.

Technical Specifications

Function and Working Principle

The Bently Nevada 330193-00-05-10-00 operates using eddy current proximity sensing technology to monitor shaft movement and position.

During operation, the probe generates an electromagnetic field around the sensing tip. When the rotating shaft changes position relative to the probe, the electromagnetic field changes accordingly. These variations are converted into electrical signals that represent shaft displacement and vibration conditions.

The working process includes:

• Generating a stable electromagnetic sensing field
• Detecting the distance between probe tip and shaft surface
• Measuring shaft vibration movement
• Monitoring shaft position changes
• Sending measurement signals to monitoring equipment

Main functions include:

• Radial shaft vibration monitoring
• Axial displacement measurement
• Rotor position detection
• Machinery condition monitoring
• Rotating equipment protection

The non-contact sensing method enables continuous operation and improves measurement reliability in industrial environments.

Role in Industrial Machinery Protection Systems

The Bently Nevada 330193-00-05-10-00 is an important sensing component in machinery protection and predictive maintenance systems. It provides accurate shaft condition information to help operators evaluate equipment health and identify abnormal operating conditions.

The probe is commonly integrated with:

These components work together to provide continuous monitoring of critical rotating machinery.

Industrial Applications

The Bently Nevada 330193-00-05-10-00 is widely used in industries where rotating equipment performance and reliability are critical.

The 1-meter configuration makes it suitable for general installation environments requiring accurate shaft measurement.

Installation and System Integration

Proper installation is essential to ensure accurate measurement performance and reliable monitoring results.

Recommended installation procedures include:

• Install the probe in the correct mounting position
• Ensure proper mechanical connection
• Adjust the probe gap according to application requirements
• Protect cables from mechanical damage
• Avoid strong electromagnetic interference sources
• Verify signal output during commissioning

During commissioning, engineers should verify:

• Probe installation position
• Signal stability
• Shaft vibration readings
• Monitoring system communication
• Alarm and protection functions

Correct installation improves measurement accuracy and extends system reliability.

Compatible System Components

The Bently Nevada 330193-00-05-10-00 can be integrated with different industrial automation and monitoring components.

These components create a complete rotating machinery health monitoring solution.

Recommended Alternative Models

Key Advantages

• High-precision non-contact measurement
• Reliable 8 mm eddy current sensing technology
• Compact 1-meter length design
• Stable shaft vibration monitoring
• Accurate displacement measurement
• Suitable for continuous industrial operation
• Supports predictive maintenance strategies
• Improves rotating equipment reliability

Technical FAQs

What is the Bently Nevada 330193-00-05-10-00 used for?

The Bently Nevada 330193-00-05-10-00 is an 8 mm proximity probe used for monitoring shaft vibration, displacement, and position in rotating machinery.

What is the total length of this probe?

The total length of the 330193-00-05-10-00 is 1 meter.

What sensing technology does this probe use?

It uses eddy current proximity sensing technology for accurate non-contact shaft measurement.

What is the advantage of this probe design?

The probe provides stable measurement performance, long service life, and reliable monitoring capability for industrial rotating equipment.

What equipment can use this probe?

It is commonly used on turbines, compressors, generators, pumps, motors, and other critical rotating machinery.

Conclusion

The Bently Nevada 330193-00-05-10-00 3300 XL 8 mm Probe is a reliable industrial proximity sensing component designed for accurate rotating machinery monitoring.

With its advanced eddy current sensing technology, 8 mm probe design, 1-meter total length, and lightweight construction, it provides stable shaft vibration and displacement measurement for machinery protection and condition monitoring applications.

For maintenance engineers, automation professionals, and industrial system integrators, the Bently Nevada 330193-00-05-10-00 provides an effective solution for predictive maintenance, equipment diagnostics, machinery protection, and long-term industrial equipment reliability.
