Product Overview

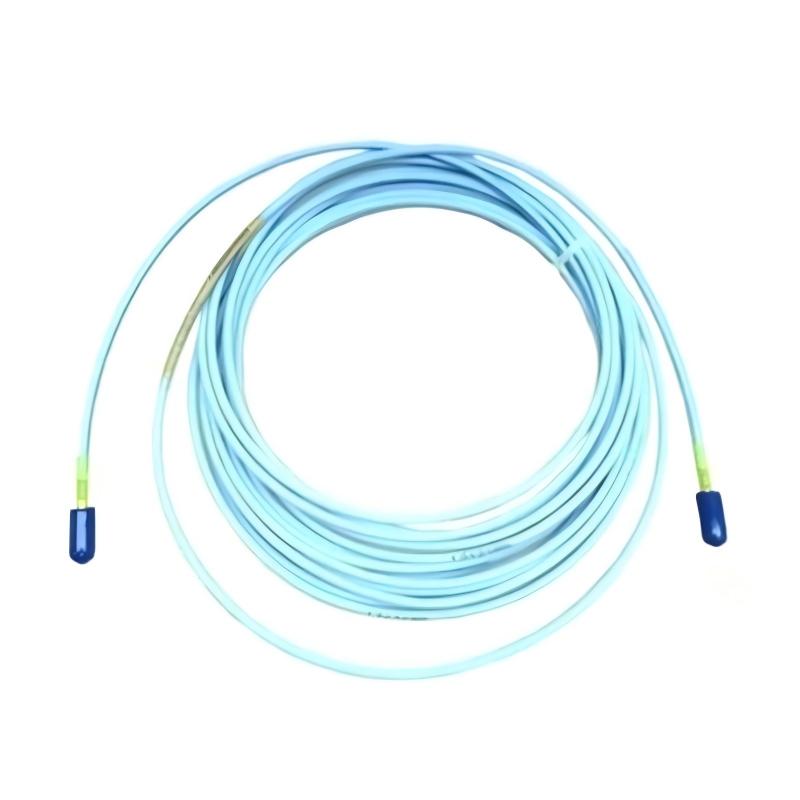

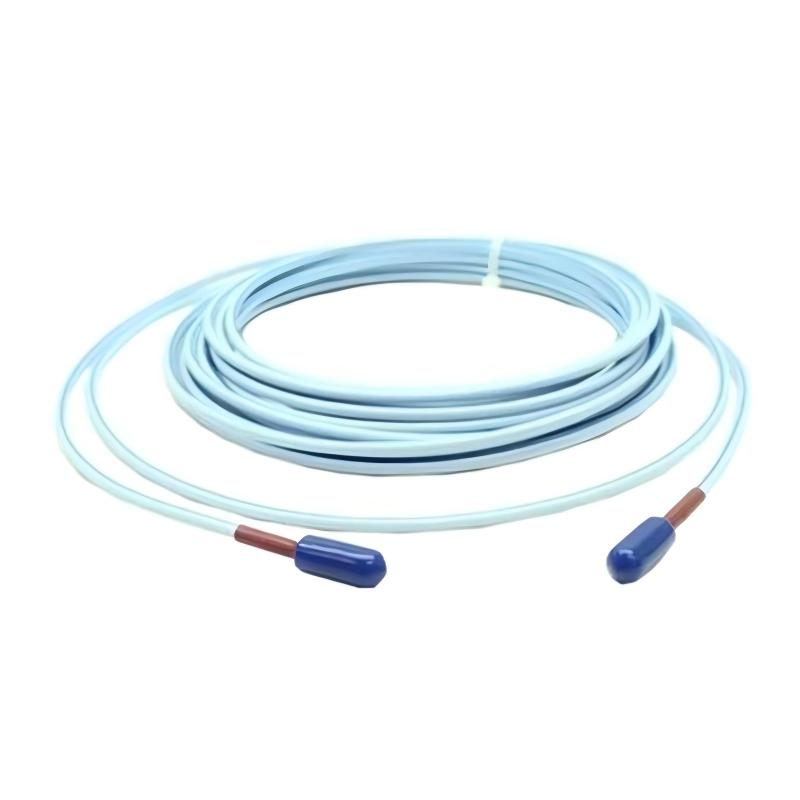

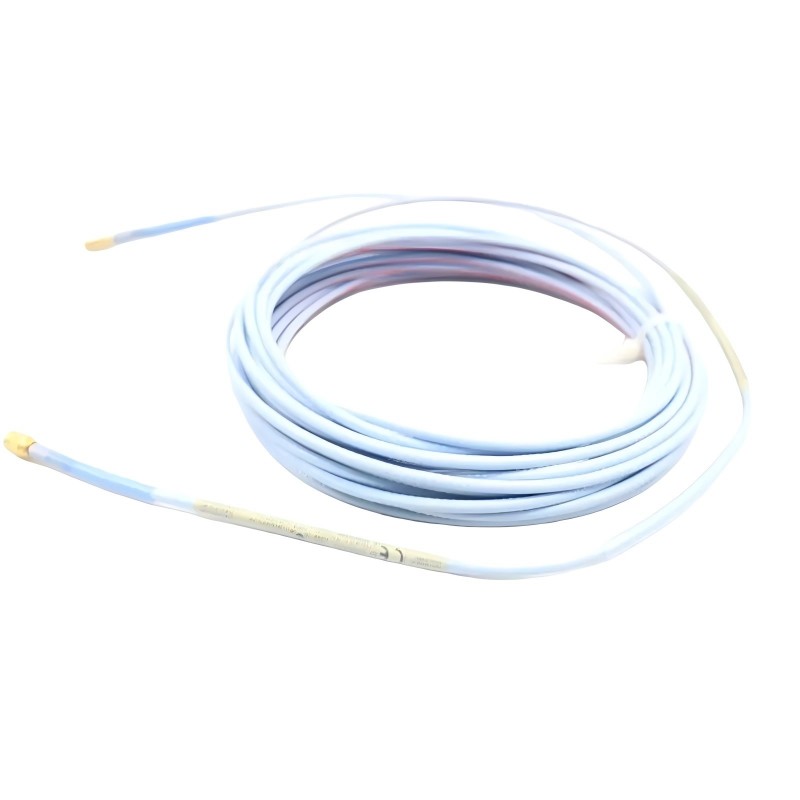

In industrial automation systems and rotating machinery protection applications, accurate shaft condition monitoring is essential for improving equipment reliability, reducing maintenance risks, and preventing unexpected downtime. The Bently Nevada 330193-00-04-05-00 3300 XL 8 mm Probe is a high-precision proximity probe designed for measuring shaft vibration, displacement, and position in critical rotating equipment.

The 330193-00-04-05-00 is part of the Bently Nevada 3300 XL 8 mm Probe Series and uses eddy current proximity sensing technology to provide accurate non-contact measurement. The probe detects changes in the distance between the sensor tip and the rotating shaft surface, converting mechanical movement into electrical signals for machinery monitoring and protection systems.

The non-contact measurement design eliminates physical wear between the sensor and the rotating component, ensuring stable operation and long service life. This makes the probe suitable for applications involving turbines, compressors, generators, pumps, motors, and other industrial rotating equipment.

With a total length of 0.5 meters and a weight of 0.162 kg, the Bently Nevada 330193-00-04-05-00 provides a compact sensing solution for installations requiring short-distance connection between the measurement point and monitoring equipment.

Technical Specifications

Function and Working Principle

The Bently Nevada 330193-00-04-05-00 operates using eddy current proximity sensing technology to measure the movement and position of rotating shafts.

During operation, the probe generates a high-frequency electromagnetic field around the sensing tip. When the rotating shaft changes its position relative to the probe, the electromagnetic field changes accordingly. The sensor converts these changes into electrical signals that represent shaft displacement and vibration conditions.

The working process includes:

• Generating an electromagnetic sensing field
• Detecting the gap between probe tip and shaft surface
• Measuring shaft vibration movement
• Monitoring shaft position changes
• Sending measurement signals to the monitoring system

Main functions include:

• Radial vibration monitoring
• Axial position measurement
• Rotor displacement detection
• Rotating equipment condition monitoring
• Machinery protection feedback

The non-contact operating principle allows continuous monitoring without mechanical contact damage.

Role in Industrial Machinery Protection Systems

The Bently Nevada 330193-00-04-05-00 plays an important role in machinery protection and predictive maintenance systems. It provides accurate shaft condition information to help operators evaluate equipment health and identify potential problems.

The probe is commonly integrated with:

These components work together to provide a complete rotating machinery monitoring solution.

Industrial Applications

The Bently Nevada 330193-00-04-05-00 is widely used in industries where reliable rotating equipment operation is critical.

Its compact 0.5-meter configuration makes it suitable for installations where the sensor and monitoring system are located close together.

Installation and System Integration

Proper installation ensures accurate measurement performance and reliable monitoring results.

Recommended installation procedures include:

• Install the probe in the correct mechanical position
• Ensure proper mounting connection
• Adjust probe gap according to system requirements
• Protect the cable from vibration and mechanical damage
• Avoid electromagnetic interference sources
• Verify output signals during commissioning

During commissioning, engineers should check:

• Probe installation position
• Signal stability
• Shaft vibration readings
• Monitoring system communication
• Alarm and protection settings

Correct installation improves measurement accuracy and extends system reliability.

Compatible System Components

The Bently Nevada 330193-00-04-05-00 can be integrated with various industrial automation and monitoring components.

These components create a complete machinery health monitoring system.

Recommended Alternative Models

Key Advantages

• High-precision non-contact shaft measurement
• Reliable 8 mm eddy current sensing technology
• Compact 0.5-meter length design
• Stable vibration and displacement monitoring
• Suitable for continuous industrial operation
• Reduces mechanical wear compared with contact sensors
• Supports predictive maintenance programs
• Improves rotating equipment reliability

Technical FAQs

What is the Bently Nevada 330193-00-04-05-00 used for?

The Bently Nevada 330193-00-04-05-00 is an 8 mm proximity probe used for monitoring shaft vibration, displacement, and position in rotating machinery.

What is the total length of this probe?

The total length of the 330193-00-04-05-00 is 0.5 meters.

What sensing technology does this probe use?

It uses eddy current proximity sensing technology for accurate non-contact measurement.

Why is a 0.5-meter cable length used?

The compact cable length is suitable for installations where the probe location is close to the monitoring equipment.

What equipment can use this probe?

It is commonly used on turbines, compressors, generators, pumps, motors, and other critical rotating equipment.

Conclusion

The Bently Nevada 330193-00-04-05-00 3300 XL 8 mm Probe is a compact and reliable industrial proximity sensing component designed for accurate rotating machinery monitoring.

With its advanced eddy current sensing technology, 8 mm probe design, short 0.5-meter configuration, and lightweight construction, it provides stable shaft vibration and displacement measurement for machinery protection and condition monitoring applications.

For maintenance engineers, automation professionals, and industrial system integrators, the Bently Nevada 330193-00-04-05-00 provides an effective solution for predictive maintenance, equipment diagnostics, machinery protection, and long-term industrial operation reliability.
