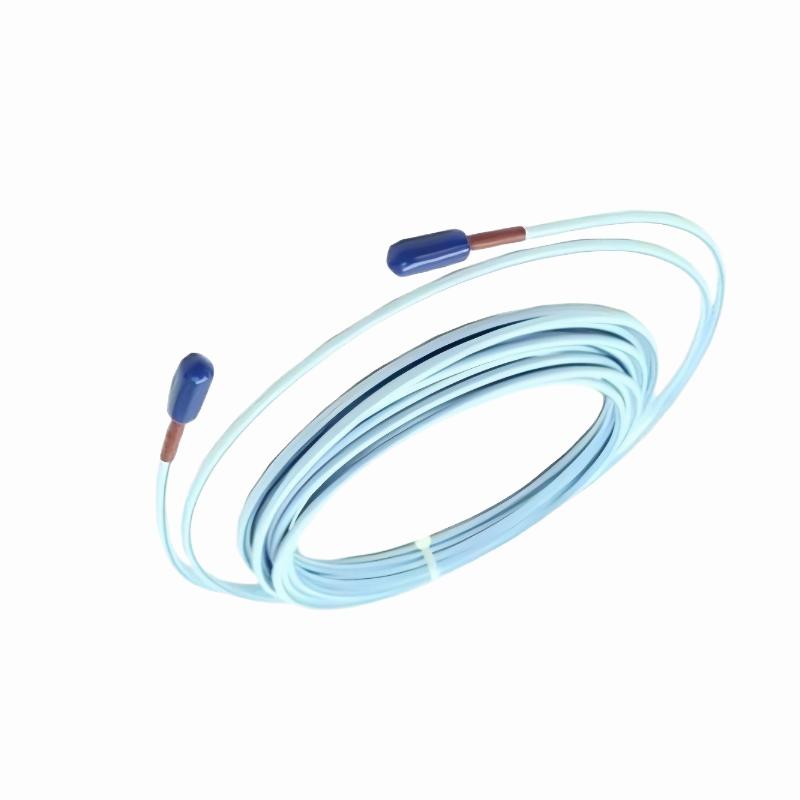

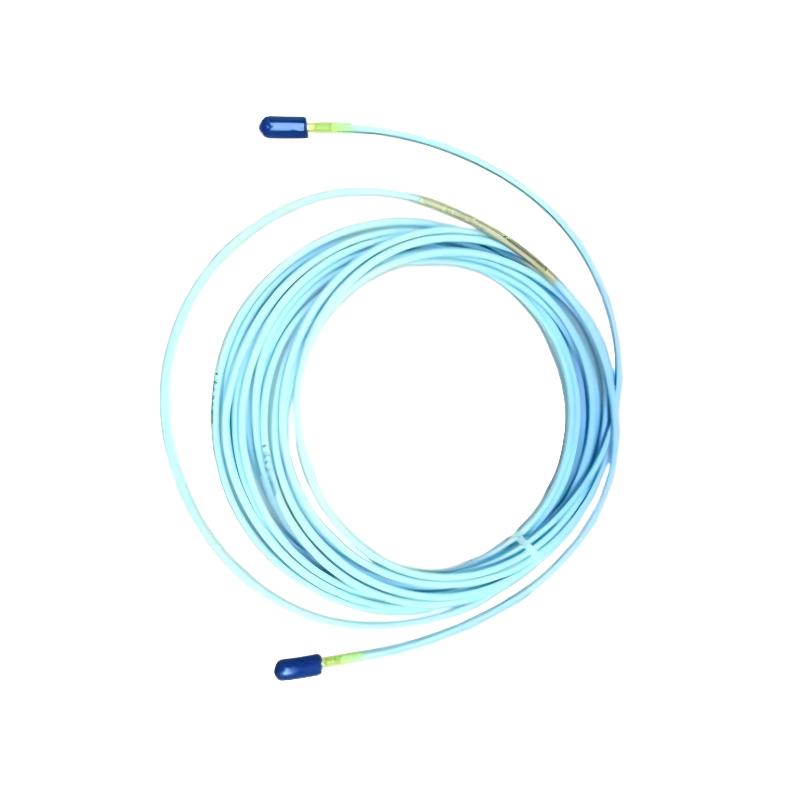

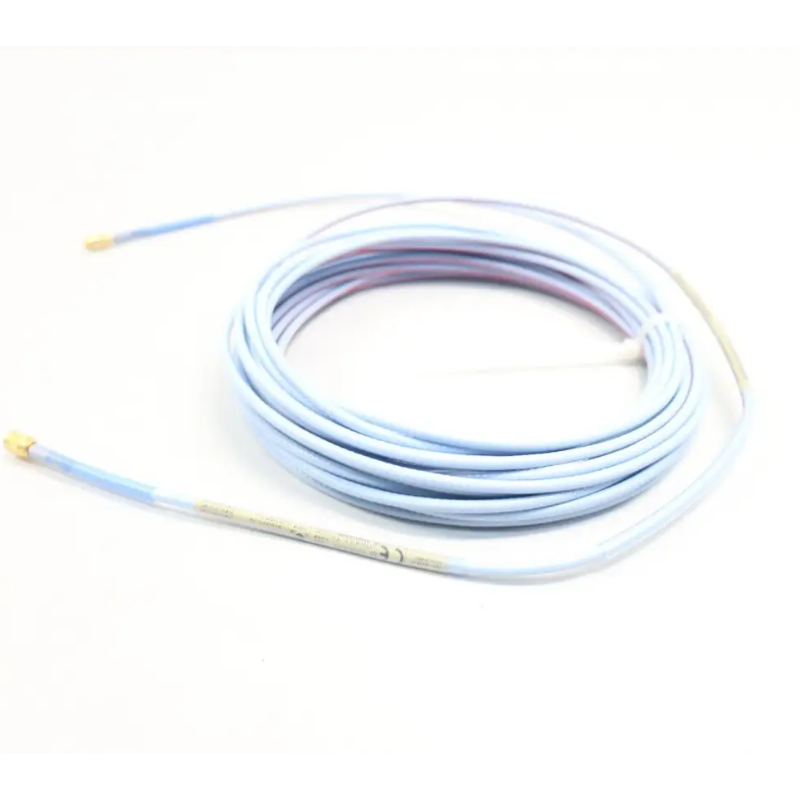

Bently Nevada 330190-085-01-00
Detailed Product Introduction, Technical Specifications, Applications, Advantages, Product Series, and Recommended Models
Product Introduction
The Bently Nevada 330190-085-01-00 is a high-performance Extension Cable Assembly designed for use in industrial proximity measurement and rotating machinery monitoring systems. It belongs to the 3300 XL Proximity Transducer System Series and is an important connection component between the proximity probe and the signal conditioning module.
The main purpose of this extension cable is to provide reliable electrical transmission between the eddy current proximity probe and the Proximitor Sensor. It maintains signal quality while allowing flexible installation of sensors in large industrial machines where the distance between the probe location and monitoring cabinet may be significant.
The 330190-085-01-00 is designed for applications requiring:
- Stable signal transmission
- Accurate shaft vibration measurement
- Reliable connection between probe and sensor module
- Long-term industrial operation
- Resistance to harsh operating environments
This extension cable is an essential part of a complete shaft monitoring system. It works together with compatible proximity probes and signal conditioning modules to create a complete non-contact measurement solution.
The cable transfers the high-frequency measurement signal generated by the proximity probe while maintaining the electrical characteristics required for accurate displacement measurement.
Typical measurement applications include:
- Radial shaft vibration monitoring
- Axial shaft position measurement
- Rotor displacement analysis
- Turbine monitoring
- Compressor protection
- Rotating equipment condition monitoring
The cable design supports industrial installations where equipment layout requires additional distance between the sensing point and the monitoring electronics.
The product provides reliable performance in applications where signal integrity is critical for machinery protection and predictive maintenance.
Brand
Bently Nevada is an industrial brand specializing in rotating machinery monitoring, vibration measurement, and equipment protection technologies.
Its product categories include:
- Eddy current proximity probes
- Extension cable assemblies
- Proximitor sensors
- Vibration monitoring modules
- Machinery protection components
The products are widely used in industries requiring high equipment reliability, including:
- Power generation
- Oil and gas
- Petrochemical
- Chemical processing
- Marine systems
- Heavy industrial equipment
- Large rotating machinery
The brand is known for precision measurement solutions, reliable signal transmission technology, and long-term operation capability in demanding industrial environments.
Product Series
3300 XL Proximity Transducer System Series
The 3300 XL Proximity Transducer System Series is a complete non-contact shaft measurement system designed for monitoring the condition of rotating machinery.
The system typically includes:
- Proximity Probe
- Extension Cable
- Proximitor Sensor
- Monitoring Module
The extension cable is a key component because it ensures accurate transmission of the probe signal from the machine installation point to the signal processing unit.
The series provides measurement capabilities including:
- Shaft vibration monitoring
- Rotor position monitoring
- Axial displacement measurement
- Mechanical condition evaluation
- Machinery protection
The extension cable system is designed to maintain electrical matching between the probe and sensor, ensuring accurate measurement performance.
The series is commonly applied in:
- Steam turbines
- Gas turbines
- Compressors
- Pumps
- Motors
- Gearboxes
- Industrial rotating equipment
Technical Specifications
| Parameter | Specification |
|---|---|
| Model | 330190-085-01-00 |
| Product Type | Extension Cable Assembly |
| Product Series | 3300 XL Proximity Transducer System |
| Cable Function | Probe Signal Extension and Transmission |
| Compatible System | Eddy Current Proximity Measurement System |
| Compatible Probe Type | 8 mm Proximity Probe System |
| Cable Length | Approximately 8.5 meters |
| Connector Type | Industrial Sensor Connector |
| Signal Type | High Frequency Dynamic Measurement Signal |
| Cable Structure | Shielded Coaxial Design |
| Shielding Method | Electromagnetic Interference Protection |
| Operating Temperature | Approximately -52°C to +177°C |
| Storage Temperature | Approximately -55°C to +200°C |
| Environmental Resistance | Industrial Harsh Environment Compatible |
| Flexibility | Suitable for Industrial Installation Routing |
| Installation Method | Fixed Equipment Installation |
| Main Function | Extends Distance Between Probe and Sensor Module |
| Signal Performance | Low Signal Loss Transmission |
| Application | Rotating Machinery Monitoring |
| Housing Material | Industrial Protective Material |
| Cable Diameter | Approximately 8 mm |
| Overall Length | Approximately 8500 mm |
| Dimensions | Approximately 8500 × 8 × 8 mm |
| Weight | Approximately 0.62 kg |
Product Structure and Working Principle
The 330190-085-01-00 operates as a signal transmission component within an eddy current proximity measurement system.
The working process includes several steps.
1. Probe Signal Generation
The proximity probe installed near the rotating shaft generates an electrical signal based on the distance between the probe tip and the shaft surface.
2. Signal Transmission Through Cable
The signal travels through the extension cable from the probe location to the Proximitor Sensor.
The cable maintains:
- Electrical matching
- Signal stability
- Measurement accuracy
3. Signal Processing
After reaching the signal conditioning module, the measurement signal is converted into a usable output signal.
The monitoring system can then analyze:
- Shaft vibration
- Rotor displacement
- Equipment condition
4. Machinery Protection Function
The transmitted signal provides important information for detecting:
- Excessive vibration
- Rotor movement changes
- Mechanical instability
- Equipment abnormalities
Product Applications
1. Steam Turbine Monitoring
The extension cable is widely used in steam turbine shaft monitoring systems.
Applications include:
- Shaft vibration measurement
- Rotor displacement monitoring
- Turbine protection
- Condition analysis
Large turbines often require extended cable lengths because monitoring electronics may be installed away from the machine.
2. Gas Turbine Systems
Gas turbines require stable measurement signals due to high-speed operation.
The cable supports:
- Rotor position monitoring
- Vibration measurement
- Equipment protection systems
3. Compressor Monitoring
Industrial compressors require continuous monitoring to maintain stable operation.
Applications include:
- Shaft movement detection
- Vibration analysis
- Mechanical condition monitoring
4. Pump and Motor Applications
The product is suitable for large industrial pumps and motors.
Typical uses include:
- Shaft displacement measurement
- Rotating equipment monitoring
- Predictive maintenance systems
5. Heavy Industrial Machinery
The extension cable can be applied to:
- Gearboxes
- Blowers
- Fans
- Marine propulsion systems
- Process machinery
- Large rotating equipment
It provides flexible installation while maintaining measurement reliability.
Product Advantages
1. Reliable Signal Transmission
The cable provides stable transmission of high-frequency measurement signals.
Advantages include:
- Reduced signal loss
- Improved measurement reliability
- Stable monitoring performance
2. Excellent Environmental Resistance
The cable is designed for industrial environments.
It can withstand:
- Temperature variation
- Mechanical stress
- Industrial operating conditions
3. Maintains Measurement Accuracy
The cable maintains the electrical characteristics required by the proximity measurement system.
This helps ensure:
- Accurate vibration measurement
- Reliable displacement monitoring
- Consistent signal quality
4. Flexible Installation Capability
The extended cable length provides greater installation flexibility.
Benefits include:
- Easier equipment layout
- Convenient cabinet installation
- Better system integration
5. Long Service Life
The industrial cable construction supports continuous operation in demanding applications.
6. Compatibility with Complete Monitoring Systems
The product can be integrated with compatible:
- Proximity probes
- Signal conditioning modules
- Machinery monitoring systems
Recommended Models from the Same Series or Related Models
| Model | Product Type | Main Function | Cable Length / Specification | Operating Temperature | Dimensions | Weight (kg) |
|---|---|---|---|---|---|---|
| 330190-085-01-00 | Extension Cable Assembly | Probe Signal Extension | 8.5 m Cable | -52°C to +177°C | 8500 × 8 × 8 mm | 0.62 |
| 330190-080-01-00 | Extension Cable Assembly | Probe Signal Transmission | 8.0 m Cable | -52°C to +177°C | 8000 × 8 × 8 mm | 0.58 |
| 330130-085-11-05 | Extension Cable | 3300 XL Probe Extension | 8.5 m Cable | -52°C to +177°C | 8500 × 8 × 8 mm | 0.62 |
| 330130-080-00-05 | Extension Cable | Sensor Connection Extension | 8.0 m Cable | -52°C to +177°C | 8000 × 8 × 8 mm | 0.58 |
| 330180-X1-05 161255-02 | Proximitor Sensor | Signal Conditioning | 3300 XL System | -35°C to +85°C | 120 × 80 × 55 mm | 0.58 |
Recommended Popular Models from the Same Brand
| Model | Product Type | Main Function | Compatible System | Operating Temperature | Dimensions | Weight (kg) |
|---|---|---|---|---|---|---|
| 330103-00-05-10-02-00 | 8 mm Proximity Probe | Shaft Vibration Measurement | 3300 XL Series | -52°C to +177°C | 100 × 8 mm | 0.15 |
| 330190-085-01-00 | Extension Cable Assembly | Probe Signal Extension | 3300 XL System | -52°C to +177°C | 8500 × 8 × 8 mm | 0.62 |
| 330180-X1-05 161255-02 | Proximitor Sensor | Signal Conditioning | 3300 XL System | -35°C to +85°C | 120 × 80 × 55 mm | 0.58 |
| 3500/42M | Vibration Monitoring Module | Machinery Protection | 3500 System | 0°C to +65°C | 241 × 24 × 242 mm | 0.82 |
| 3500/22M | Communication Interface Module | System Communication | 3500 System | 0°C to +65°C | 241 × 24 × 242 mm | 0.79 |
Installation and Maintenance Recommendations
For reliable operation of the 330190-085-01-00, proper installation procedures should be followed.
Recommended installation practices:
- Confirm correct connection between probe and extension cable
- Avoid excessive bending or mechanical damage
- Maintain proper cable routing
- Keep away from strong electromagnetic interference sources
- Ensure connectors remain clean and secure
- Perform regular inspection during equipment maintenance
Proper installation helps maintain signal quality and extends the operating life of the monitoring system.
Conclusion
The 330190-085-01-00 is a high-quality extension cable assembly belonging to the 3300 XL Proximity Transducer System Series.
It plays an essential role in transmitting accurate proximity probe signals to monitoring equipment, ensuring reliable vibration and displacement measurement for critical rotating machinery.
With stable signal transmission, strong environmental resistance, flexible installation capability, and excellent compatibility with industrial monitoring systems, the product is widely suitable for turbine, compressor, pump, motor, and other rotating equipment applications.
The 330190-085-01-00 helps improve machinery monitoring accuracy, supports predictive maintenance strategies, reduces unexpected equipment failures, and contributes to safer and more reliable industrial operation.
