Product Overview — Bently Nevada 330190‑085‑00‑05
Product Introduction

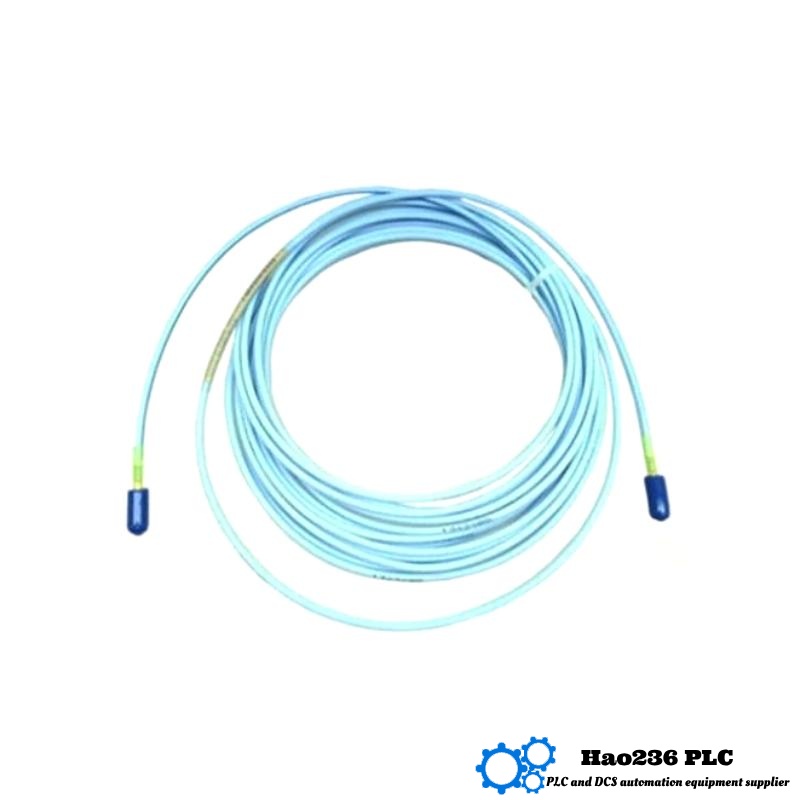

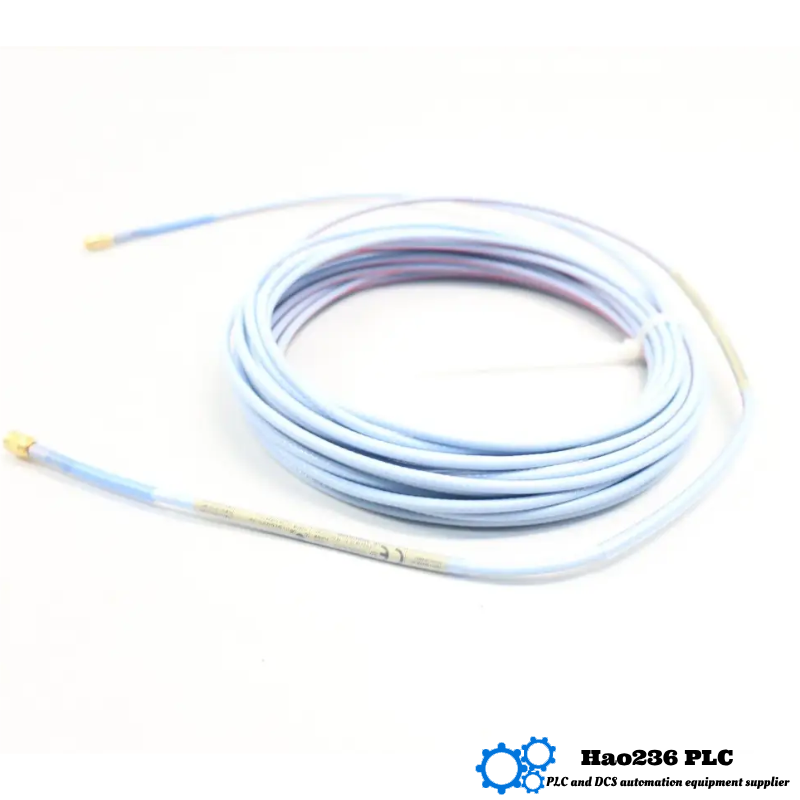

The 330190‑085‑00‑05 is an Extended Temperature Range (ETR) armored extension cable designed for the 3300 XL 8 mm proximity transducer system. Its role is to extend the cable run between a proximity probe and the Proximitor sensor electronics, especially in harsh or extreme environments. The “085” indicates 8.5 meters length; “00‑05” indicates standard cable option with agency approvals / ETR rating. Being armored, it offers better mechanical protection. It is designed for demanding industrial settings where temperature extremes, mechanical stress, or environmental hazards are present.
Technical Specifications
| Parameter | Value / Description |
|---|---|
| Brand | Bently Nevada |
| Series | 3300 XL Proximity Transducer System / Extension Cable family (ETR, armored) |
| Model Number | 330190‑085‑00‑05 |
| Cable Length | 8.5 meters (≈ 27.9 feet) |
| Cable Type / Construction | Armored extension cable; ETR specification; Standard cable conductor insulation with armor outer layer |
| Operating Temperature | ‑55 °C to +260 °C |
| Weight | Approx. 0.250 kg (250 g) |
| Connector Compatibility | Connectors compatible with 3300 XL system components |
| Material | High‑temp materials; armored sheath; insulation suitable for ETR rating |
| Environmental Hardness | Resistant to physical damage; wide temperature extremes; suitable for harsh industrial use |
| Agency / Regulatory Approvals | “00‑05” indicates that this version has “multiple approvals” (ETR, hazardous area etc.) |
Applications
This cable is used in settings where:
-
The proximity probe must be installed in harsh / high temperature zones (steam, hot surfaces).
-
Long cable run (≈ 8.5 m) between probe tip and Proximitor sensor is needed.
-
Mechanical protection is required (armor) to protect from abrasion, physical damage, or impacts.
-
Environments with extreme cold to high heat swings (from ‑55°C up to +260°C).
-
Systems monitoring shaft position / vibration / gap in turbines, compressors, motors, etc.
-
Use in petrochemical, power generation, oil & gas, offshore, industrial plants where reliability in tough conditions is critical.
Advantages
-
Wide Temperature Rating: Operates reliably from ‑55 °C to +260 °C, which covers many extreme industrial environments.
-
Mechanical Protection: Armor helps protect the cable core and outer insulation from physical damage.
-
Compatibility: Integrates seamlessly with the 3300 XL 8 mm proximity probe / Proximitor system.
-
Certifications / Approvals: “00‑05” implies relevant approvals are in place for hazardous or demanding area usage.
-
Durability: Armored + high‑temp insulation => longer lifespan under mechanical stress, heat, and environmental exposure.
-
Signal Integrity Over Distance: Good construction ensures reliable analog signals over the 8.5 m distance.
Brand & Series
-
Brand: Bently Nevada
-
Series: 3300 XL Proximity Transducer System (8 mm probes + extension cables)
-
Module Type: ETR Armored Extension Cable
Related / Similar Models (Same or Very Close Series)
Here are five models from the same family or closely related extension cables, with key parameter comparisons:
| Model | Cable Length (m) | Type / Armor / ETR | Operating Temp Range | Weight (kg) | Key Differentiator |
|---|---|---|---|---|---|
| 330190‑085‑00‑05 | 8.5 | Armored, ETR | ‑55 °C to +260 °C | ~0.250 | The subject model |
| 330190‑085‑13‑05 | 8.5 | More rugged armor variant | ‑55 °C to +260 °C | ~0.90 | Heavier armor / connector protection |
| 330190‑080‑00‑00 | 8.0 | High‑temperature, maybe non‑armored | ‑50 °C to +125 °C approx | somewhat less weight (~0.2‑0.3 kg) | Shorter cable, less armor |
| 330190‑035‑01‑00 | 3.5 | ETR non‑certified / standard armor option | ‑52 °C to +260 °C | lower weight (~0.12‑0.15 kg) | Shorter run, lighter build |
| 330190‑040‑01‑05 | 4.0 | Armored ETR | ‑52 °C to +260 °C | ~0.412 | Mid‑length, armored, approvals |
Popular Peer Models from Same Brand
Here are five commonly used / well-known Bently Nevada models in extension cable / transducer system roles:
| Model | Primary Application | Cable Length | Temp Range | Weight (kg) | Noteworthy Features |
|---|---|---|---|---|---|
| 330190‑085‑13‑05 | Ruggedized extension cable for exposed routing | 8.5 m | ‑55 °C to +260 °C | ~0.90 | Armor + connector protection |
| 330190‑085‑00‑00 | Standard extension in less extreme conditions | 8.5 m | approx ‑40 °C to +125 °C | ~0.22‑0.30 | Lower cost, lighter build |
| 330190‑040‑01‑05 | Mid‑length armored ETR cable | 4.0 m | ‑52 °C to +260 °C | ~0.41 | Often be used closer to probe |
| 330130‑085‑01‑05 | Cable variant under same family | 8.5 m | high temp, fluid exposure | ~0.95 | More features like fluid seal etc. |
| 330180‑91‑05 | Probe + extension combination | matched to probe | similar ETR rating | varies (~0.3‑0.5) | Frequently used in turbine applications |
Frequently Asked Questions (QA)
-
Q: What is the length of the 330190‑085‑00‑05 cable?
A: It is 8.5 meters (about 27.9 feet). -
Q: What is the weight of the cable?
A: Approximately 0.250 kg (250 grams). -
Q: What temperatures can it operate under?
A: From about ‑55 °C to +260 °C, making it suitable for extreme cold and high heat. -
Q: Is this cable armored or standard?
A: It is described as an armored extension cable. -
Q: With what system is it compatible?
A: It is designed for use with the 3300 XL 8 mm proximity transducer system and Proximitor sensors. -
Q: Does it have regulatory / hazardous area approvals?
A: Yes, “00‑05” indicates it does meet several approvals appropriate to the ETR extension cable role. -
Q: What environmental hazards can it handle?
A: It is built to withstand physical damage (due to armor), high/low temperature extremes, likely resistant to mechanical abrasion and perhaps mild chemicals when armor and insulation are intact. -
Q: Why use armored cable instead of a standard, non‑armored version?
A: Armor adds mechanical protection, helps avoid damage from movement, vibration, abrasion or external impact, improving cable lifespan in harsh settings. -
Q: What is “ETR” in this model designation?
A: ETR stands for Extended Temperature Range, meaning the cable is built with materials and construction that support much higher and lower temperature extremes than standard cables. -
Q: If the cable is damaged, does it affect signal integrity?
A: Yes — cable damage (armor breach, insulation damage) can lead to signal degradation, increased noise, or even failure. Proper selection, routing, and protection are important.
