Bently Nevada 330171-00-16-10-01-05

Detailed Product Introduction, Technical Specifications, Applications, Advantages, Product Series, and Recommended Models

Product Introduction

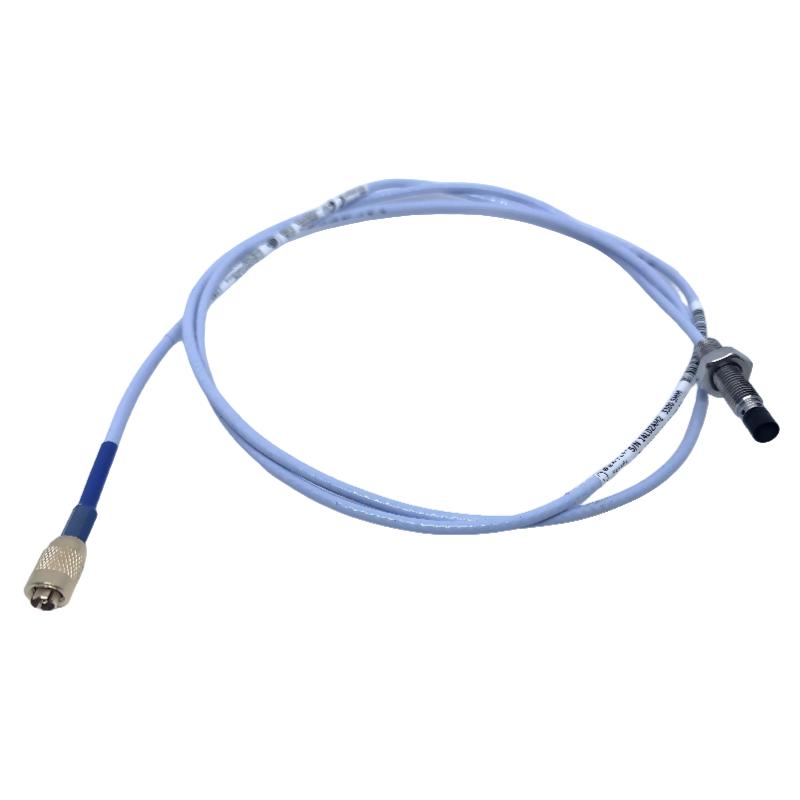

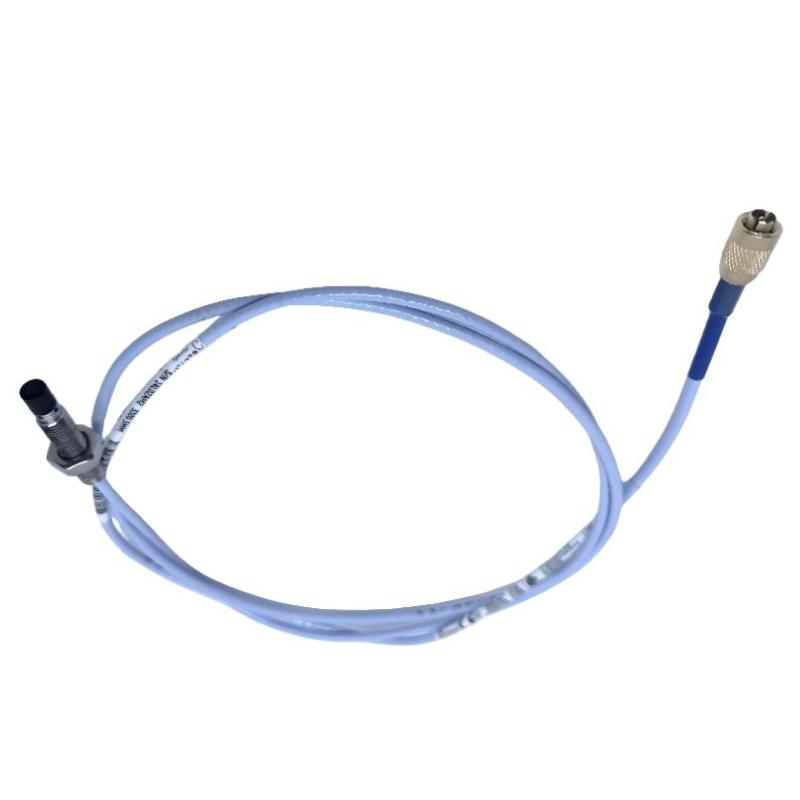

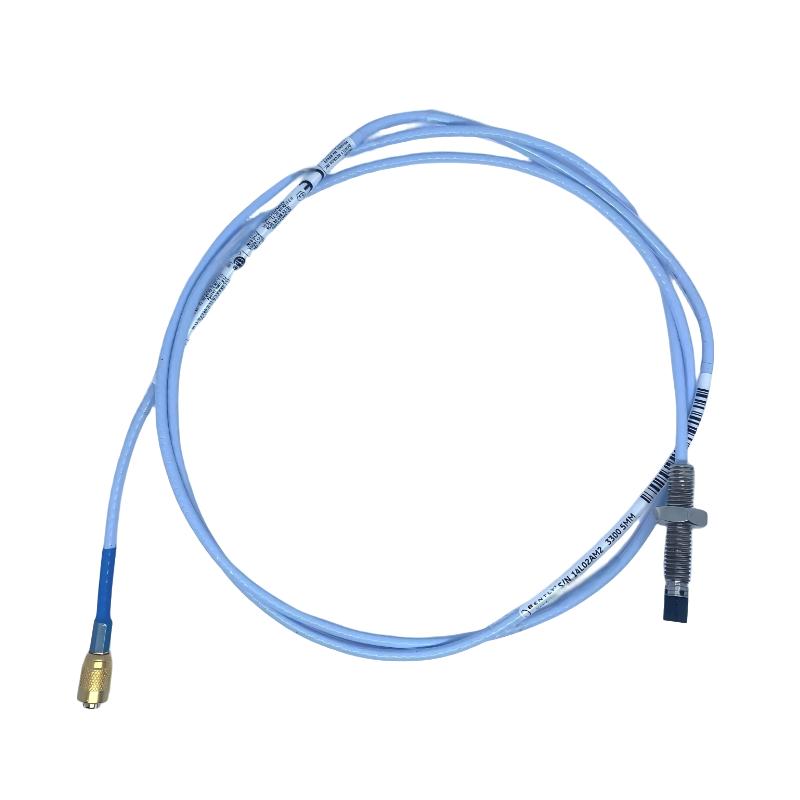

The Bently Nevada 330171-00-16-10-01-05 is a precision 8 mm eddy current proximity probe assembly designed for continuous monitoring of rotating machinery operating conditions. It belongs to the 3300 XL 8 mm Proximity Transducer Series, which is widely used for shaft vibration measurement, rotor displacement monitoring, and machinery protection applications.

This model is designed to provide accurate non-contact measurement between the probe sensing tip and the rotating shaft surface. Using advanced eddy current sensing technology, the probe can detect extremely small changes in shaft movement, vibration displacement, and rotor position without physical contact with the machine shaft.

The 330171-00-16-10-01-05 configuration is designed for applications requiring an extended probe length arrangement. The longer probe structure provides additional installation flexibility where standard probe lengths cannot meet mechanical mounting requirements. It is suitable for equipment with deeper installation points, special housing structures, or limited access conditions.

The probe assembly combines high mechanical strength, stable electrical performance, and excellent environmental resistance. It is designed for long-term operation in industrial environments where rotating equipment reliability is critical.

The probe is normally used together with compatible extension cables, signal conditioning units, and monitoring modules to create a complete machinery condition monitoring system.

During operation, the probe continuously measures the distance between the probe tip and the rotating shaft. The measured displacement signal is transmitted to the monitoring system, where it can be analyzed to identify equipment conditions such as:

• Shaft vibration changes
• Rotor imbalance
• Mechanical misalignment
• Bearing degradation
• Shaft position variation
• Excessive machine movement

Through continuous monitoring, this product helps maintenance teams improve equipment reliability, reduce unexpected failures, and optimize preventive maintenance strategies.

Brand

Bently Nevada

Bently Nevada is an industrial technology brand specializing in rotating machinery monitoring, vibration measurement, and equipment protection solutions.

Its products are widely used in industries where machinery reliability and operational safety are essential, including:

• Power generation
• Oil and gas
• Petrochemical
• Chemical processing
• Marine equipment
• Heavy manufacturing
• Industrial production systems

The brand focuses on precision measurement technology, reliable monitoring performance, and long-term operation in demanding industrial environments.

Product Series

3300 XL 8 mm Proximity Transducer Series

The 3300 XL 8 mm Proximity Transducer Series is a high-accuracy non-contact displacement measurement system designed for critical rotating machinery.

The series uses eddy current technology to measure the relative distance between the probe tip and the rotating shaft surface. Because the measurement process does not require physical contact, the system provides excellent durability and stable performance.

A complete monitoring system generally includes:

• 3300 XL 8 mm Proximity Probe
• Extension Cable
• Proximitor Sensor
• Monitoring Module
• Machinery Protection System

The series is designed to monitor important mechanical parameters including:

• Radial shaft vibration
• Axial shaft displacement
• Rotor position
• Thrust movement
• Shaft eccentricity
• Differential expansion
• Rotating equipment condition

The 3300 XL 8 mm series is commonly installed on high-value rotating equipment where continuous monitoring is required.

Technical Specifications

Product Structure and Working Principle

The 330171-00-16-10-01-05 operates based on the principle of eddy current displacement measurement.

The sensing tip produces a high-frequency electromagnetic field when connected to the signal conditioning system. When the probe approaches a conductive rotating shaft, eddy currents are generated within the shaft material.

The distance between the probe tip and shaft surface changes the electromagnetic characteristics. The system converts these changes into an electrical signal that represents the actual shaft displacement.

The measurement process includes:

1. The probe creates an electromagnetic sensing field.
2. The rotating shaft affects the field according to its movement.
3. The signal conditioning system converts the change into a measurable output.
4. The monitoring system analyzes vibration and displacement information.

This operating principle provides:

• Accurate measurement
• Fast response
• Long service life
• Stable operation
• No mechanical contact wear

Product Applications

1. Steam Turbine Monitoring

The product is commonly used for steam turbine shaft monitoring systems.

Typical applications include:

• Rotor vibration measurement
• Shaft displacement monitoring
• Turbine protection
• Bearing condition monitoring

Large turbines require continuous shaft monitoring because small mechanical changes may develop into major failures.

2. Gas Turbine Applications

Gas turbines operate under high-speed and high-temperature conditions.

The probe can be used for:

• Rotor position monitoring
• Vibration measurement
• Mechanical condition analysis
• Early fault detection

Its industrial construction allows reliable operation in demanding environments.

3. Compressor Monitoring

The probe is suitable for centrifugal compressors and industrial compressor systems.

Applications include:

• Rotor stability monitoring
• Shaft vibration detection
• Mechanical imbalance identification
• Alignment condition monitoring

Continuous monitoring improves compressor reliability and reduces unexpected downtime.

4. Large Motor and Pump Systems

Industrial motors and pumps require accurate shaft movement monitoring.

The product can be applied for:

• Motor shaft vibration analysis
• Pump rotor monitoring
• Mechanical fault detection
• Equipment protection

5. Heavy Industrial Equipment

The probe is also suitable for:

• Gearboxes
• Fans
• Blowers
• Marine propulsion systems
• Large process machinery
• Industrial rotating equipment

It supports predictive maintenance programs by providing continuous operating condition information.

Product Advantages

1. High Measurement Accuracy

The 330171-00-16-10-01-05 provides accurate shaft displacement measurement with excellent repeatability.

It can detect very small changes in shaft movement, allowing early identification of potential mechanical issues.

2. Non-contact Measurement

The probe operates without direct contact with rotating components.

Main benefits include:

• No mechanical wear
• Reduced maintenance requirements
• Long service life
• Stable continuous operation

3. Extended Probe Design

The extended 160 mm probe length provides additional installation flexibility.

It is suitable for machinery structures where standard probe lengths cannot reach the required measurement location.

4. Excellent Environmental Resistance

The product is designed for industrial environments and provides resistance against:

• High temperature
• Oil contamination
• Humidity
• Mechanical vibration
• Industrial chemicals

5. Fast Response Performance

The eddy current sensing principle provides rapid detection of shaft movement changes.

This allows quick identification of abnormal operating conditions.

6. Reliable Signal Stability

The probe maintains stable electrical characteristics during long-term operation, helping ensure accurate monitoring results.

7. Easy System Integration

The product is compatible with the 3300 XL monitoring platform and can be integrated into existing machinery protection systems.

Recommended Models from the Same Series or Related Models

Recommended Popular Models from the Same Brand

Installation and Maintenance Recommendations

To ensure accurate measurement performance, the 330171-00-16-10-01-05 should be installed according to correct mechanical and electrical requirements.

Important installation considerations include:

• Maintain correct probe gap distance
• Ensure proper mounting thread engagement
• Avoid excessive cable bending
• Protect connectors from contamination
• Keep cables away from strong electromagnetic interference sources
• Verify signal quality during commissioning

Regular inspection of the probe assembly and cable condition helps maintain measurement accuracy and improves the reliability of the machinery monitoring system.

Conclusion

The 330171-00-16-10-01-05 is a precision extended-length 8 mm eddy current proximity probe assembly belonging to the 3300 XL 8 mm Proximity Transducer Series.

With accurate non-contact measurement capability, extended installation flexibility, excellent environmental resistance, and reliable long-term performance, it is suitable for critical rotating machinery monitoring applications.

The product provides essential data for shaft vibration analysis, rotor position monitoring, and machinery protection systems.

By continuously monitoring equipment conditions, the 330171-00-16-10-01-05 helps industries improve operational safety, reduce unexpected equipment failures, optimize maintenance planning, and extend the service life of valuable rotating machinery.
