Product Overview

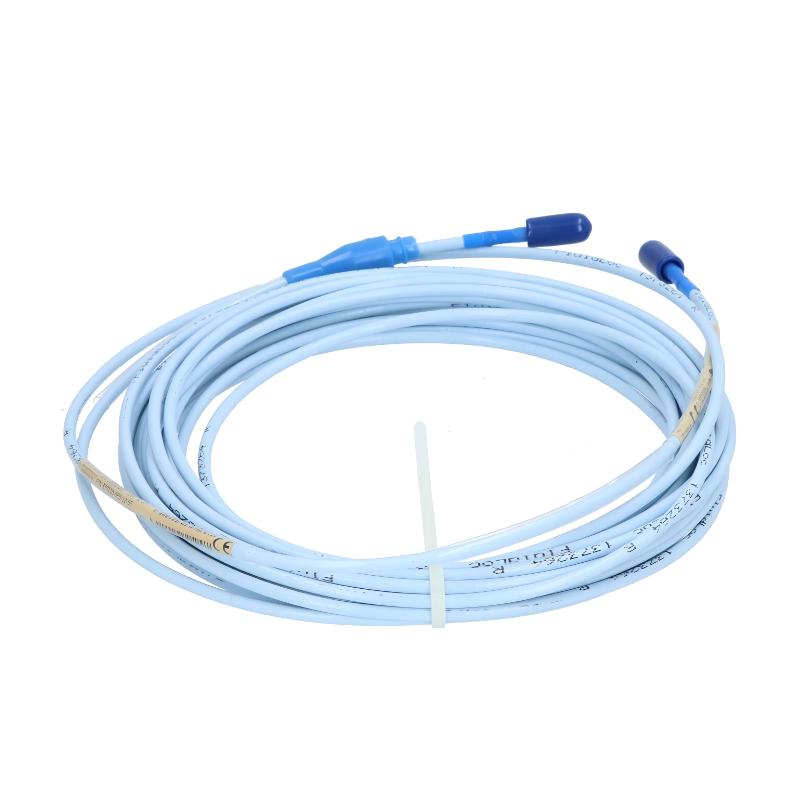

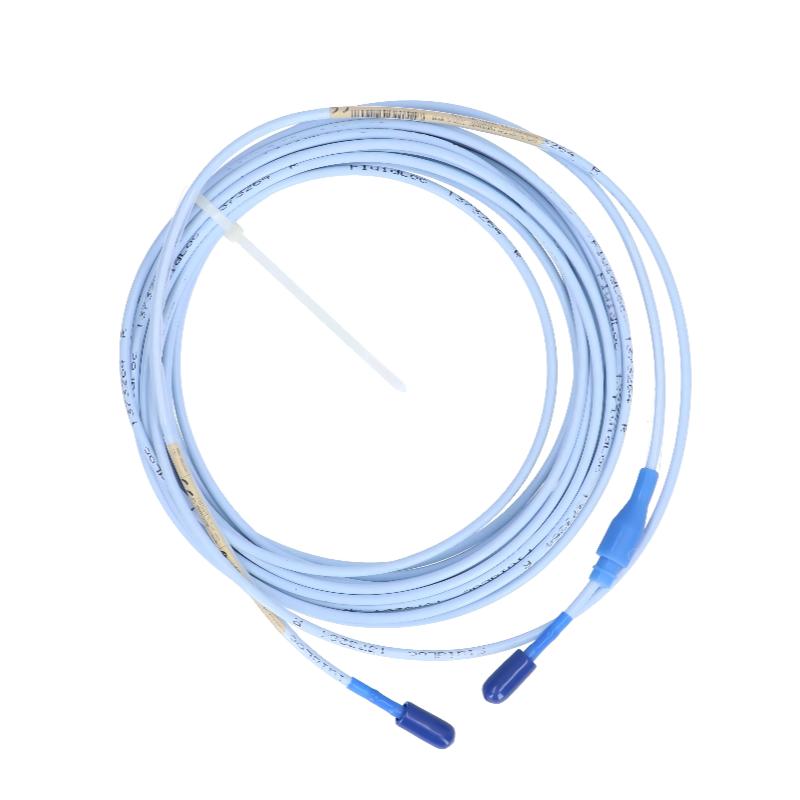

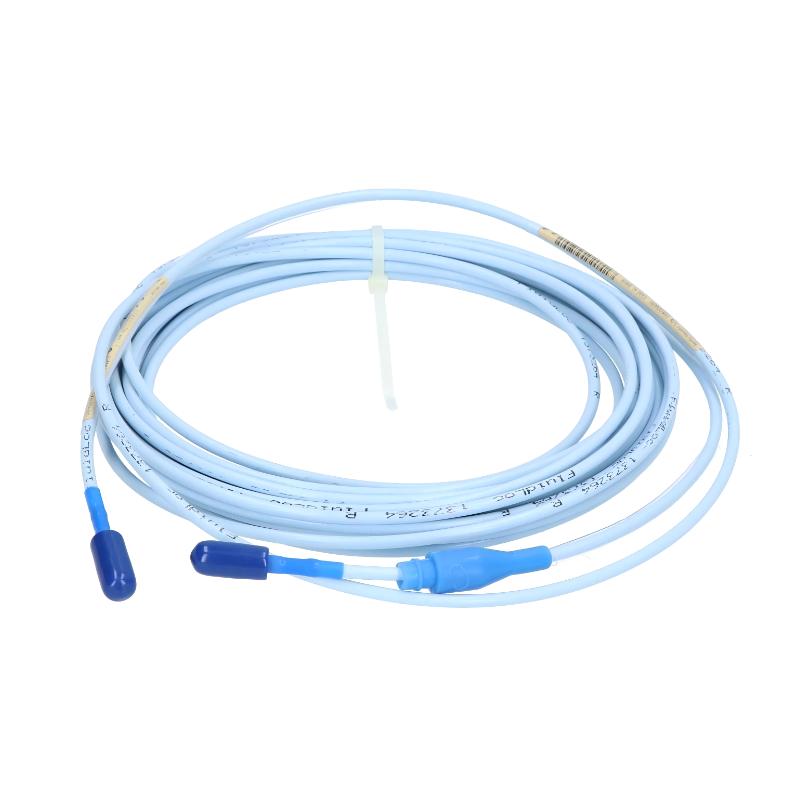

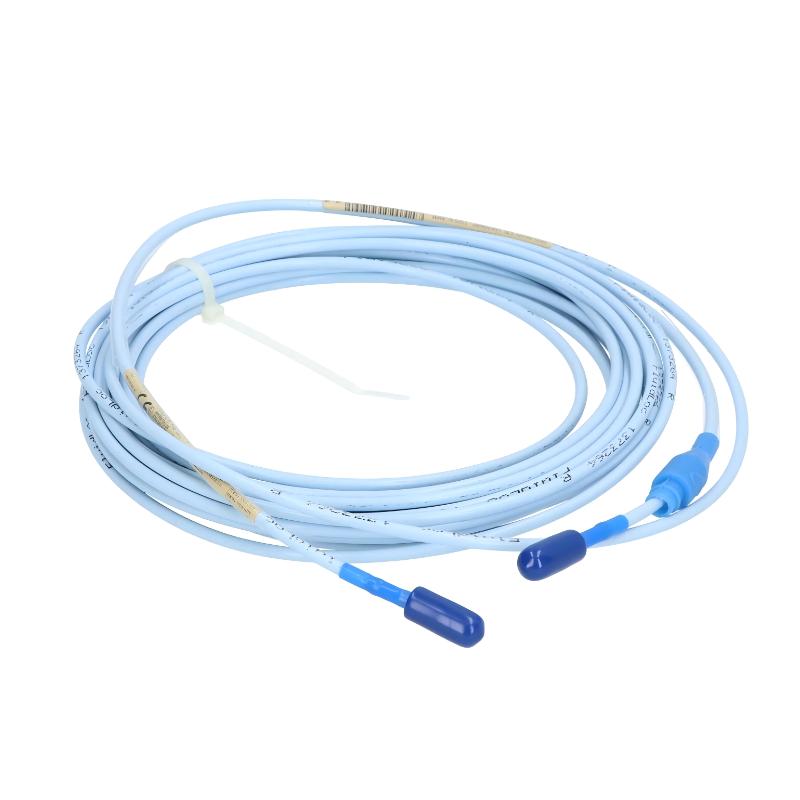

The Bently Nevada 330130-085-10-CN is a 3300 XL Standard Extension Cable used in the Bently Nevada 3300 XL proximity transducer system.

It provides the signal connection between the 3300 XL proximity probe and the Proximitor sensor, ensuring accurate transmission of vibration, displacement, and Keyphasor signals used in rotating machinery monitoring and protection systems.

With an 8.5-meter cable length, this model supports extended routing in large industrial installations while maintaining signal integrity. The “-CN” suffix indicates a specific configuration or regional variant within the Bently Nevada ordering system.

Technical Specifications

Function and Working Principle

The 330130-085-10-CN functions as a low-loss coaxial transmission cable, carrying analog signals from the proximity probe to the Proximitor sensor while preserving measurement accuracy over extended distances.

Signal Flow

1. The proximity probe detects shaft vibration using eddy-current technology.
2. Mechanical displacement is converted into an analog electrical signal.
3. The extension cable transmits the signal to the Proximitor sensor.
4. The Proximitor sensor conditions the signal for monitoring and protection systems.

Vprobe→VProximitorV_{probe} \rightarrow V_{Proximitor}Vprobe​→VProximitor​

Key Functions

• Transmits vibration, displacement, and Keyphasor signals accurately
• Maintains signal integrity over an 8.5-meter cable length
• Minimizes electromagnetic interference (EMI)
• Supports continuous machinery condition monitoring
• Integrates into a calibrated 3300 XL measurement system

System Role

The cable is part of the 3300 XL proximity transducer system, consisting of:

• 3300 XL 8 mm Proximity Probe
• 330130-085-10-CN Standard Extension Cable
• 3300 XL Proximitor Sensor

Together, these components enable:

• Shaft vibration monitoring
• Radial displacement measurement
• Rotor dynamic analysis
• Machinery protection
• Predictive maintenance diagnostics

Industrial Applications

• Steam turbines
• Gas turbines
• Centrifugal compressors
• Pumps
• Electric generators
• Industrial motors
• Fans and blowers
• Petrochemical plants
• Oil and gas facilities
• Power generation systems

Installation Guidelines

• Ensure ClickLoc connectors are fully engaged and secured.
• Avoid sharp bends or mechanical stress on the cable.
• Route separately from high-voltage cables to reduce EMI.
• Maintain proper grounding and shielding practices.
• Use only with compatible 3300 XL probes and Proximitor sensors.

Compatible Components

• Bently Nevada 3300 XL 8 mm Proximity Probes
• Bently Nevada 3300 XL Proximitor Sensors
• Bently Nevada 3500 Machinery Protection System
• Bently Nevada 3300 Monitoring System
• Industrial vibration monitoring systems

Key Advantages

• Extended routing capability (8.5 meters)
• Stable and low-noise signal transmission
• Strong resistance to electromagnetic interference
• Durable industrial-grade construction
• Fully compatible with 3300 XL systems
• Supports reliable predictive maintenance and machinery protection

Technical FAQs

Q1: What is the purpose of this extension cable?
It connects the proximity probe to the Proximitor sensor and transmits vibration and displacement signals.

Q2: What does the “CN” suffix indicate?
It represents a specific configuration or regional variant within the Bently Nevada ordering system.

Q3: Can this cable be used independently?
No. It must be used as part of a complete 3300 XL probe–cable–Proximitor system.

Q4: Where is it commonly used?
In turbines, compressors, pumps, generators, and other critical rotating machinery systems.

Conclusion

The Bently Nevada 330130-085-10-CN 3300 XL Standard Extension Cable is a precision-engineered 8.5-meter signal transmission cable designed for reliable operation in the 3300 XL proximity transducer system. It delivers stable, low-noise performance for accurate machinery protection and condition monitoring in demanding industrial environments.
