Product Overview

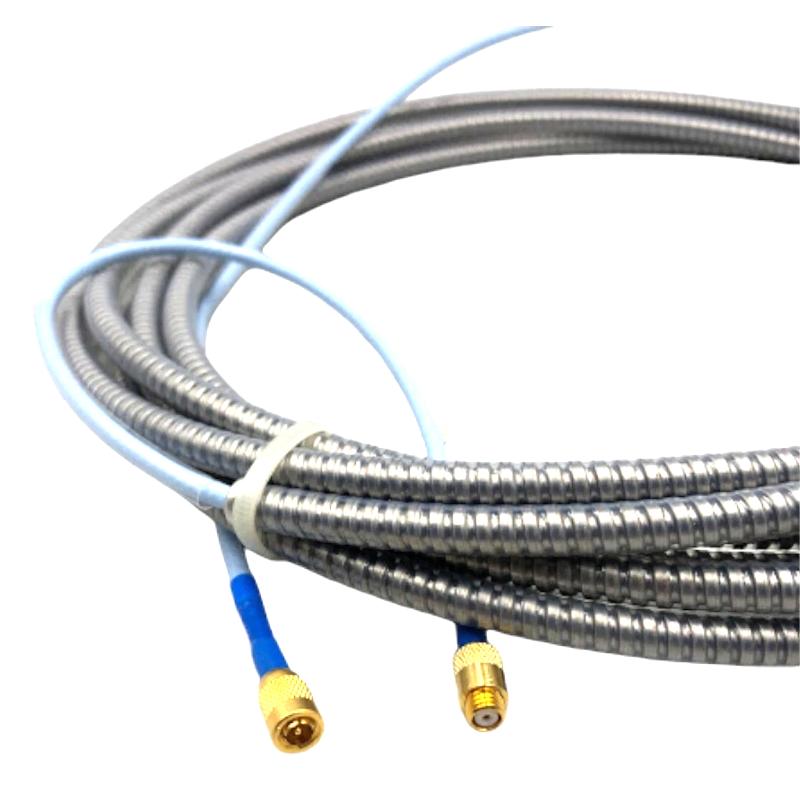

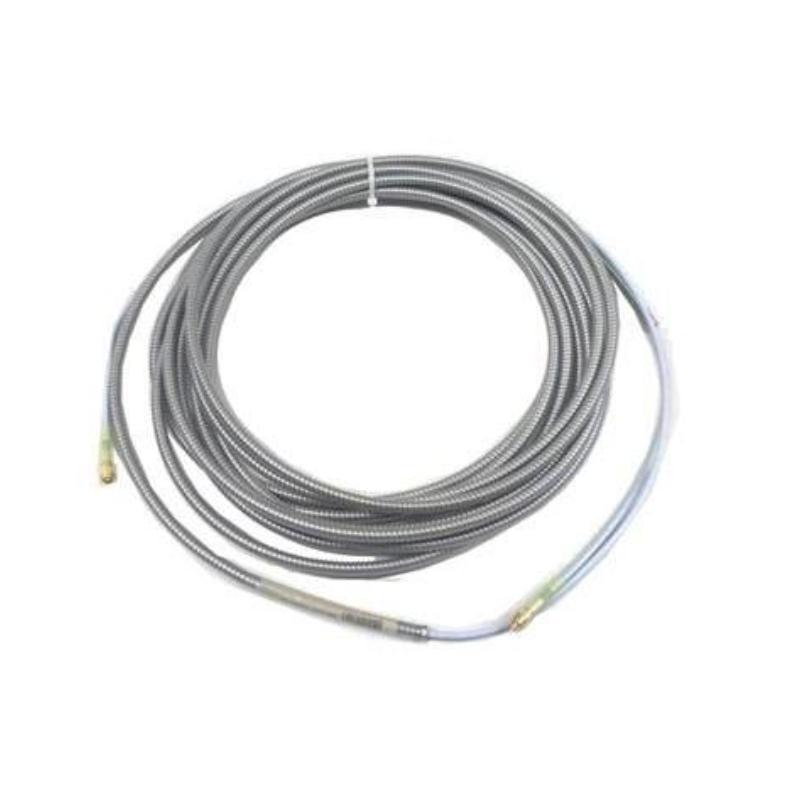

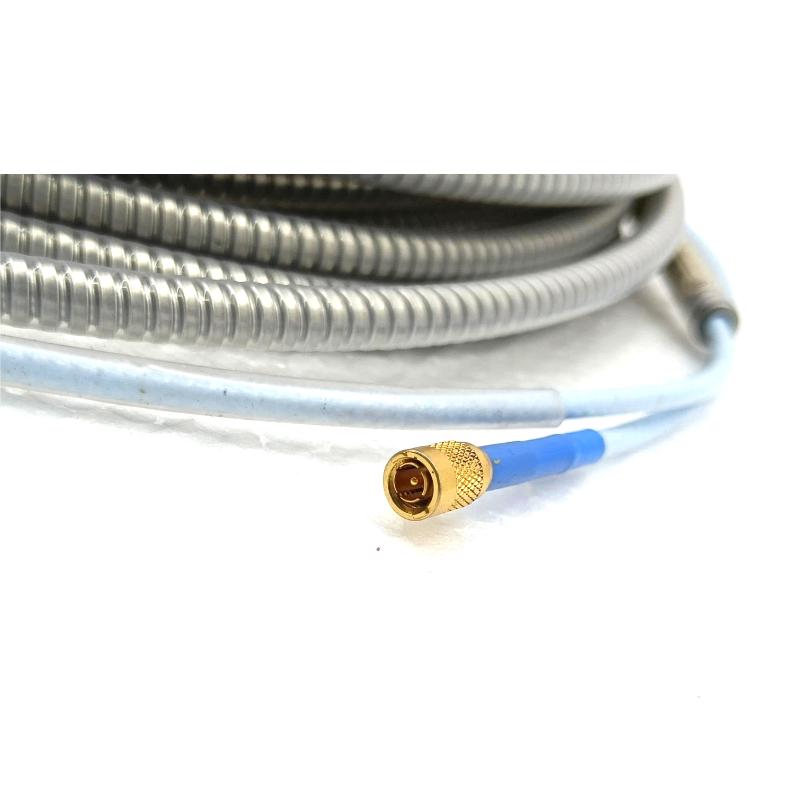

The Bently Nevada 330130-085-03-00 is a 3300 XL Standard Extension Cable used in the Bently Nevada 3300 XL proximity transducer system.

It connects the 3300 XL proximity probe to the Proximitor sensor, ensuring accurate transmission of vibration, displacement, and Keyphasor signals for rotating machinery monitoring and protection.

With an 8.5-meter cable length, this version supports longer routing distances, while the “-03-00” configuration typically indicates a heavier-duty construction variant within the product family.

Technical Specifications

Function and Working Principle

The 330130-085-03-00 functions as a low-loss coaxial signal transmission cable, carrying analog signals from the proximity probe to the Proximitor sensor while preserving measurement accuracy over extended distance.

Signal Flow

1. The proximity probe detects shaft vibration using eddy-current sensing.
2. Mechanical movement is converted into an analog electrical signal.
3. The extension cable transmits the signal with minimal attenuation.
4. The Proximitor sensor conditions the signal for monitoring and protection systems.

Vprobe→VProximitorV_{probe} \rightarrow V_{Proximitor}Vprobe​→VProximitor​

Key Functions

• Transmits vibration, displacement, and Keyphasor signals accurately
• Maintains signal integrity over an 8.5-meter cable length
• Minimizes electromagnetic interference (EMI)
• Supports continuous machinery condition monitoring
• Provides robust performance in demanding industrial environments

System Role

The cable is part of the 3300 XL proximity transducer system, consisting of:

• 3300 XL 8 mm Proximity Probe
• 330130-085-03-00 Standard Extension Cable
• 3300 XL Proximitor Sensor

Together, these components enable:

• Shaft vibration monitoring
• Radial displacement measurement
• Rotor dynamic analysis
• Machinery protection
• Predictive maintenance diagnostics

Industrial Applications

• Steam turbines
• Gas turbines
• Centrifugal compressors
• Pumps
• Electric generators
• Industrial motors
• Fans and blowers
• Petrochemical plants
• Oil and gas facilities
• Power generation systems

Installation Guidelines

• Ensure ClickLoc connectors are fully engaged and locked.
• Avoid sharp bends or excessive mechanical stress.
• Route separately from high-voltage power cables to minimize EMI.
• Maintain proper grounding and shielding practices.
• Use only with compatible 3300 XL probes and Proximitor sensors.

Compatible Components

• Bently Nevada 3300 XL 8 mm Proximity Probes
• Bently Nevada 3300 XL Proximitor Sensors
• Bently Nevada 3500 Machinery Protection System
• Bently Nevada 3300 Monitoring System
• Industrial vibration monitoring systems

Key Advantages

• Extended routing capability (8.5 meters)
• Very robust heavy-duty construction (0.876 kg)
• Excellent resistance to electromagnetic interference
• Stable low-noise signal transmission
• Fully compatible with 3300 XL systems
• Supports long-term predictive maintenance and protection strategies

Technical FAQs

Q1: What is the purpose of this extension cable?
It transmits analog signals from a proximity probe to a Proximitor sensor.

Q2: Why is this model heavier than others?
The 0.876 kg weight indicates a reinforced construction with enhanced shielding and mechanical protection for harsh industrial environments.

Q3: Can this cable be used independently?
No. It must be used as part of a complete 3300 XL probe–cable–Proximitor system.

Q4: Where is it typically used?
In turbines, compressors, pumps, generators, and other critical rotating machinery systems.

Conclusion

The Bently Nevada 330130-085-03-00 3300 XL Standard Extension Cable is a heavy-duty 8.5-meter signal transmission cable designed for demanding industrial applications. It provides reliable, low-noise signal transfer within the 3300 XL proximity transducer system, ensuring accurate machine protection and condition monitoring in critical rotating equipment.
