Product Overview

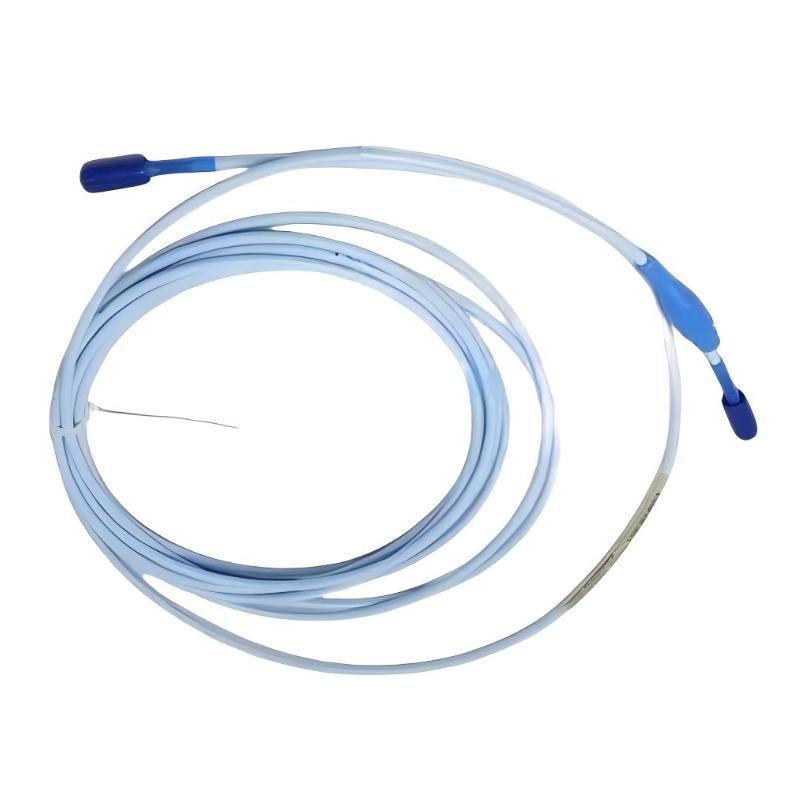

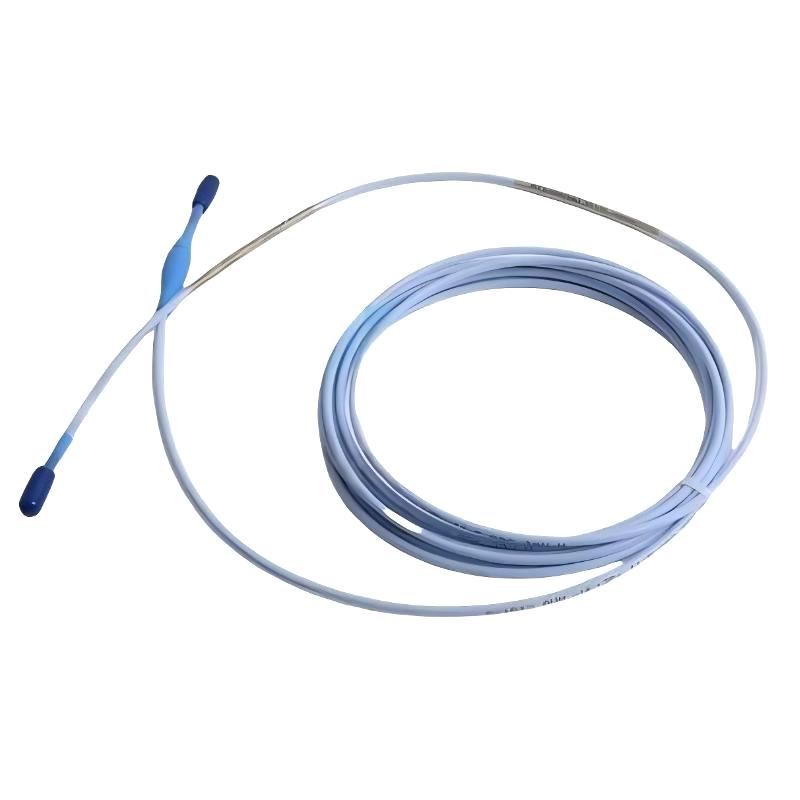

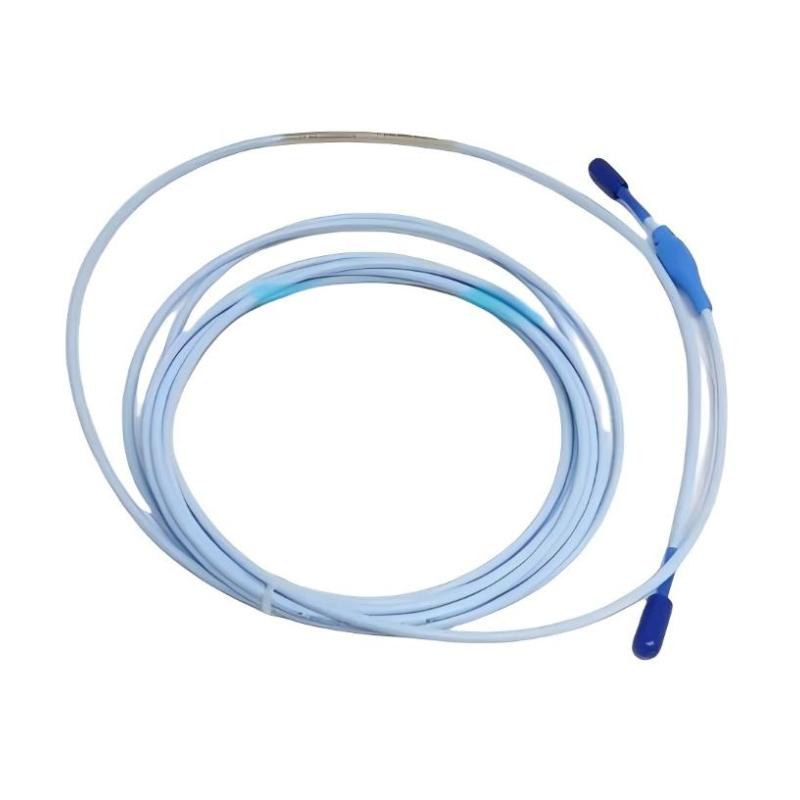

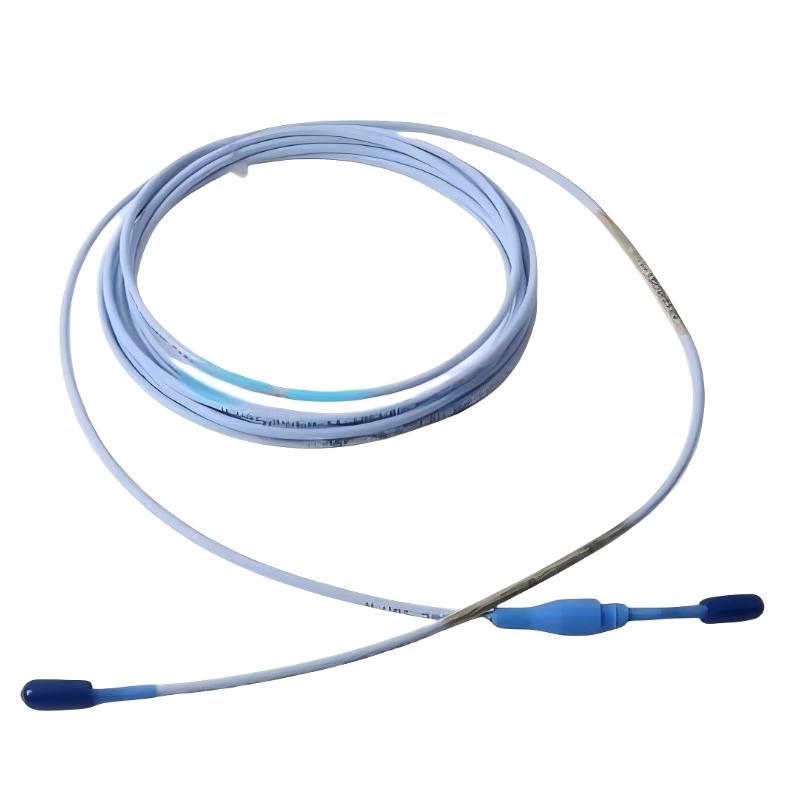

The Bently Nevada 330130-085-00-02 is a 3300 XL Standard Extension Cable used in the Bently Nevada 3300 XL proximity transducer system.

It provides the electrical connection between the 3300 XL proximity probe and the Proximitor sensor, enabling accurate transmission of vibration, displacement, and Keyphasor signals used in machinery condition monitoring and protection systems.

With an 8.5-meter cable length, this model supports slightly longer routing distances than standard 8-meter variants, offering additional installation flexibility in large industrial equipment layouts.

Technical Specifications

Function and Working Principle

The 330130-085-00-02 functions as a low-loss coaxial signal transmission cable, carrying the analog signal generated by the proximity probe to the Proximitor sensor while preserving signal integrity over an extended distance.

Signal Flow

1. The proximity probe detects shaft motion using eddy-current technology.
2. Mechanical displacement is converted into an analog electrical signal.
3. The extension cable transmits the signal to the Proximitor sensor.
4. The Proximitor sensor conditions the signal for monitoring, diagnostics, and protection systems.

Vprobe→VProximitorV_{probe} \rightarrow V_{Proximitor}Vprobe​→VProximitor​

Key Functions

• Transmits vibration, displacement, and Keyphasor signals accurately
• Maintains signal integrity over an 8.5-meter cable length
• Minimizes electromagnetic interference (EMI) and signal loss
• Supports continuous machinery condition monitoring
• Forms part of a calibrated 3300 XL transducer system

System Role

The cable is an essential component of the 3300 XL monitoring system, consisting of:

• 3300 XL 8 mm Proximity Probe
• 330130-085-00-02 Standard Extension Cable
• 3300 XL Proximitor Sensor

Together, these components enable:

• Shaft vibration monitoring
• Radial displacement measurement
• Rotor dynamic analysis
• Machinery protection
• Predictive maintenance support

Industrial Applications

• Steam turbines
• Gas turbines
• Centrifugal compressors
• Pumps
• Electric generators
• Industrial motors
• Fans and blowers
• Petrochemical facilities
• Oil and gas processing plants
• Power generation systems

Installation Guidelines

• Ensure ClickLoc connectors are fully engaged before operation.
• Avoid sharp bends or mechanical stress on the cable.
• Route away from high-voltage cables to reduce EMI.
• Maintain proper grounding and shielding practices.
• Use only with compatible 3300 XL probes and Proximitor sensors.

Compatible Components

• Bently Nevada 3300 XL 8 mm Proximity Probes
• Bently Nevada 3300 XL Proximitor Sensors
• Bently Nevada 3500 Machinery Protection System
• Bently Nevada 3300 Monitoring System
• Industrial vibration monitoring systems

Key Advantages

• Extended routing capability (8.5 meters)
• Stable and low-noise signal transmission
• High resistance to electromagnetic interference
• Durable construction for industrial environments
• Fully compatible with 3300 XL monitoring systems
• Supports reliable predictive maintenance and machinery protection

Technical FAQs

Q1: What is the purpose of this extension cable?
It connects the proximity probe to the Proximitor sensor and transmits vibration/displacement signals.

Q2: Why use an 8.5-meter cable instead of 8 meters?
It provides additional routing flexibility in large or complex machinery installations.

Q3: Can this cable operate independently?
No. It must be used as part of a complete 3300 XL transducer system.

Q4: Where is it commonly used?
In turbines, compressors, pumps, generators, and other critical rotating machinery systems.

Conclusion

The Bently Nevada 330130-085-00-02 3300 XL Standard Extension Cable is a precision-engineered 8.5-meter signal transmission cable designed for reliable operation within the 3300 XL proximity transducer system. It delivers stable, low-noise performance for accurate machine protection and condition monitoring in industrial rotating equipment applications.
