Product Overview

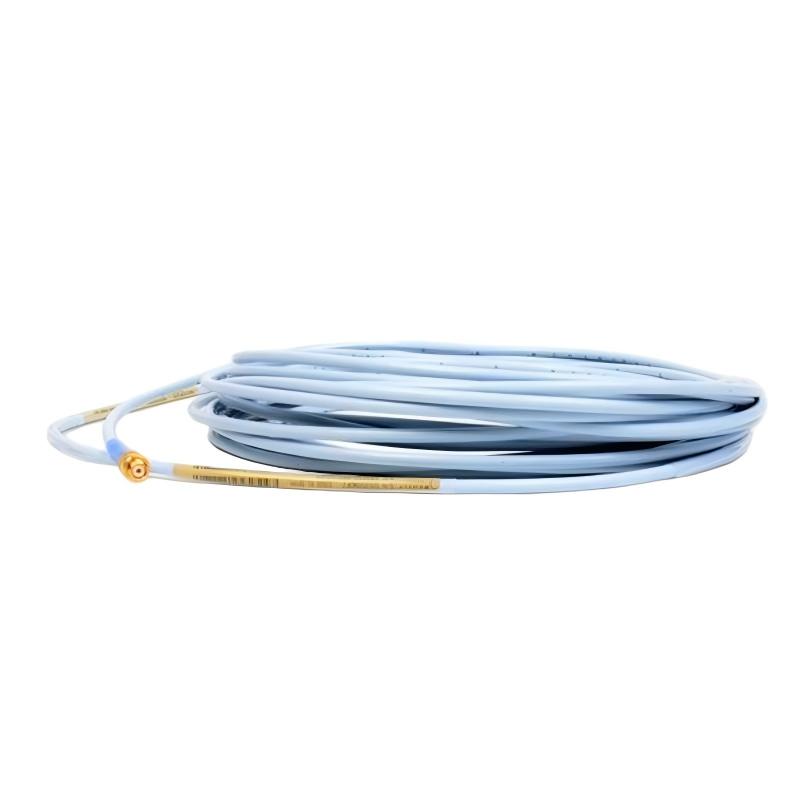

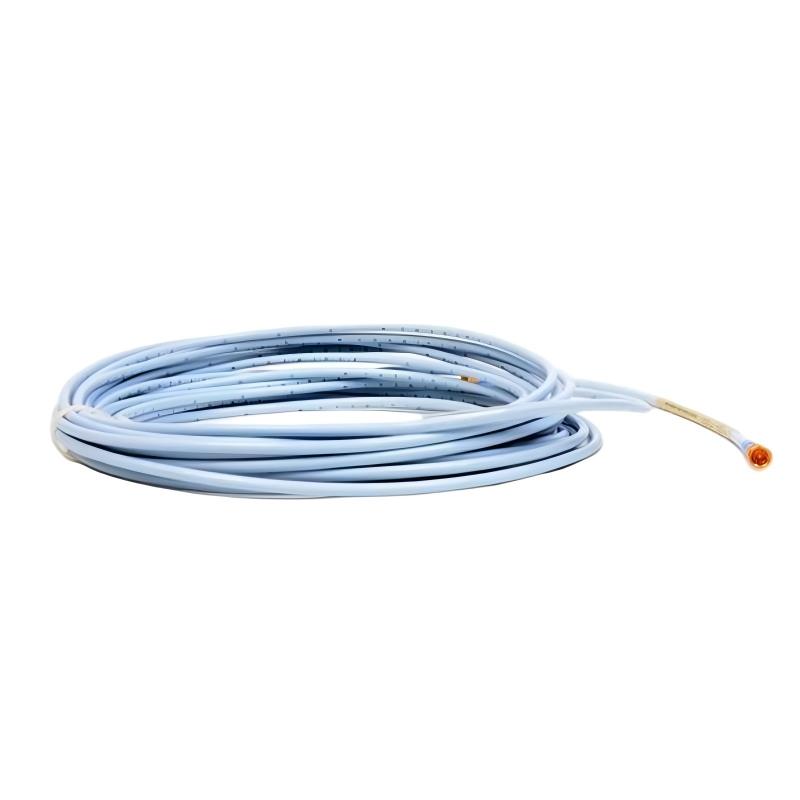

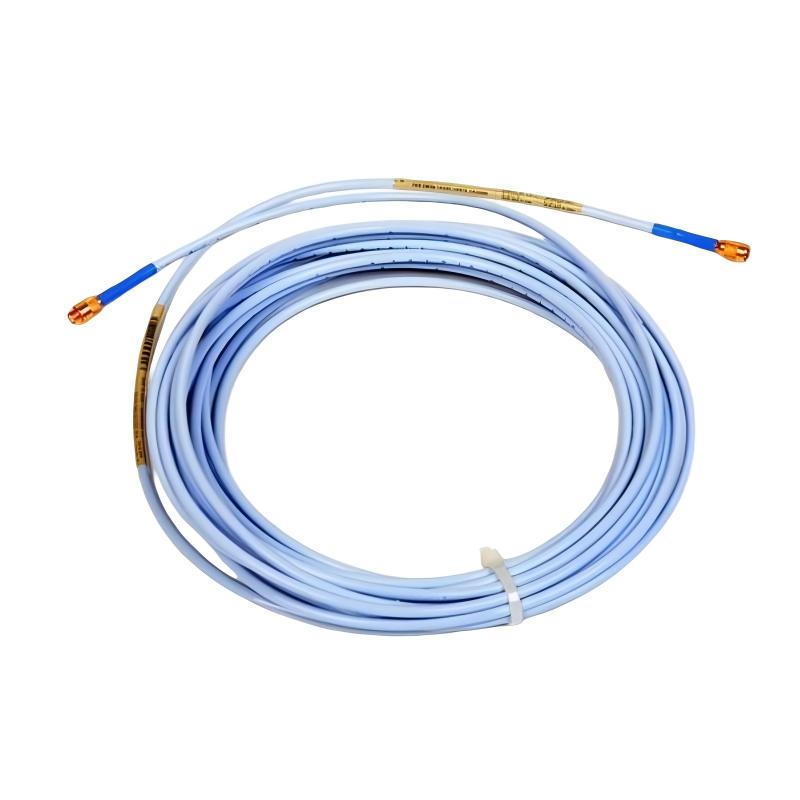

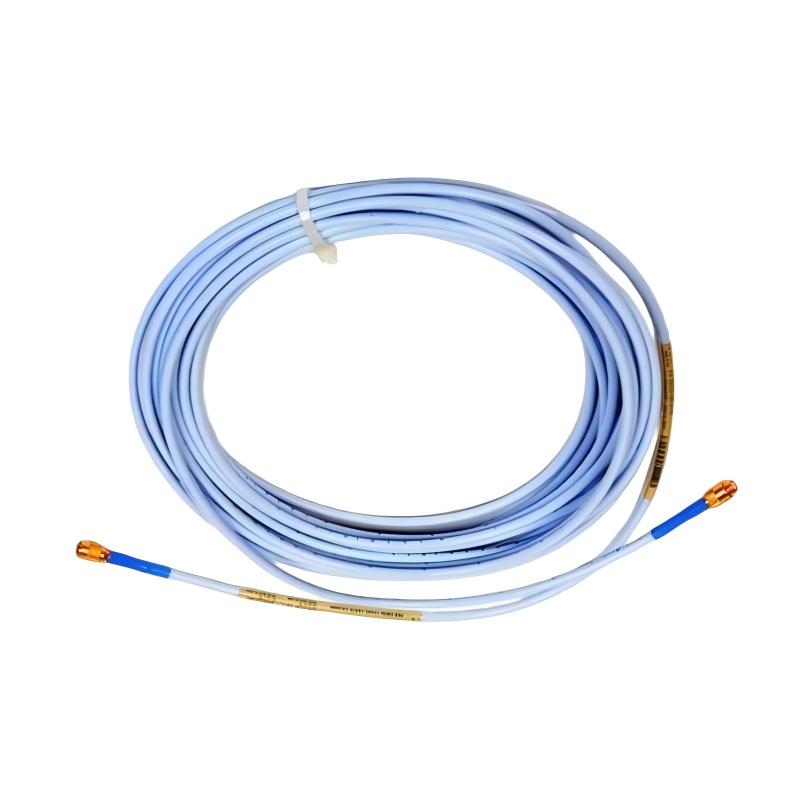

The Bently Nevada 330130-080-13-05 is a 3300 XL Standard Extension Cable used in the Bently Nevada 3300 XL proximity transducer system.

It provides the electrical connection between the 3300 XL proximity probe and the Proximitor sensor, ensuring accurate transmission of vibration, displacement, and Keyphasor signals in rotating machinery monitoring and protection applications.

This model features an 8-meter cable length and a heavy-duty construction, making it suitable for demanding industrial environments where mechanical robustness and signal stability are both required.

Technical Specifications

Function and Working Principle

The 330130-080-13-05 functions as a low-loss coaxial transmission cable, carrying analog signals generated by the proximity probe to the Proximitor sensor with minimal attenuation and interference.

Signal Flow

1. The proximity probe detects shaft vibration using eddy-current sensing.
2. Mechanical movement is converted into an analog electrical signal.
3. The extension cable transmits the signal to the Proximitor sensor.
4. The Proximitor sensor conditions the signal for monitoring and protection systems.

Vprobe→VProximitorV_{probe} \rightarrow V_{Proximitor}Vprobe​→VProximitor​

Key Functions

• Transmits high-accuracy vibration and displacement signals
• Maintains signal integrity over an 8-meter cable length
• Supports Keyphasor phase reference transmission
• Reduces electromagnetic interference (EMI) in harsh environments
• Forms part of a calibrated 3300 XL measurement chain

System Role

The cable is an integral part of the 3300 XL proximity transducer system, consisting of:

• 3300 XL 8 mm Proximity Probe
• 330130-080-13-05 Standard Extension Cable
• 3300 XL Proximitor Sensor

Together, these components provide:

• Shaft vibration monitoring
• Radial displacement measurement
• Rotor dynamic analysis
• Machinery protection and shutdown logic inputs
• Predictive maintenance diagnostics

Industrial Applications

• Steam turbines
• Gas turbines
• Centrifugal compressors
• Pumps
• Electric generators
• Industrial motors
• Fans and blowers
• Petrochemical facilities
• Oil and gas processing plants
• Power generation systems

Installation Guidelines

• Ensure ClickLoc connectors are fully engaged and secured.
• Avoid excessive bending, twisting, or tensile stress on the cable.
• Route separately from high-voltage power cables to reduce EMI.
• Maintain proper grounding and shielding practices.
• Use only with compatible 3300 XL probes and Proximitor sensors to ensure system calibration integrity.

Compatible Components

• Bently Nevada 3300 XL 8 mm Proximity Probes
• Bently Nevada 3300 XL Proximitor Sensors
• Bently Nevada 3500 Machinery Protection System
• Bently Nevada 3300 Monitoring System
• Industrial vibration monitoring systems

Key Advantages

• Stable signal transmission over 8 meters
• Heavy-duty construction for harsh industrial environments
• Excellent resistance to electromagnetic interference (EMI)
• Reliable long-term mechanical durability
• Fully compatible with 3300 XL monitoring systems
• Supports predictive maintenance and machine protection strategies

Technical FAQs

Q1: What is the purpose of this extension cable?
It transmits analog vibration and displacement signals from the proximity probe to the Proximitor sensor.

Q2: Why is this model heavier than others?
The 0.824 kg weight indicates a reinforced construction with enhanced shielding or protective jacketing for demanding environments.

Q3: Can it be used independently?
No. It must be used as part of a complete 3300 XL probe–cable–Proximitor system.

Q4: Where is it typically used?
In turbines, compressors, pumps, generators, and other critical rotating machinery systems.

Conclusion

The Bently Nevada 330130-080-13-05 3300 XL Standard Extension Cable is a heavy-duty 8-meter interconnect component designed for reliable signal transmission in the 3300 XL proximity transducer system. Its robust construction and high signal integrity make it well-suited for industrial vibration monitoring, machinery protection, and predictive maintenance in demanding operational environments.
