Product Overview

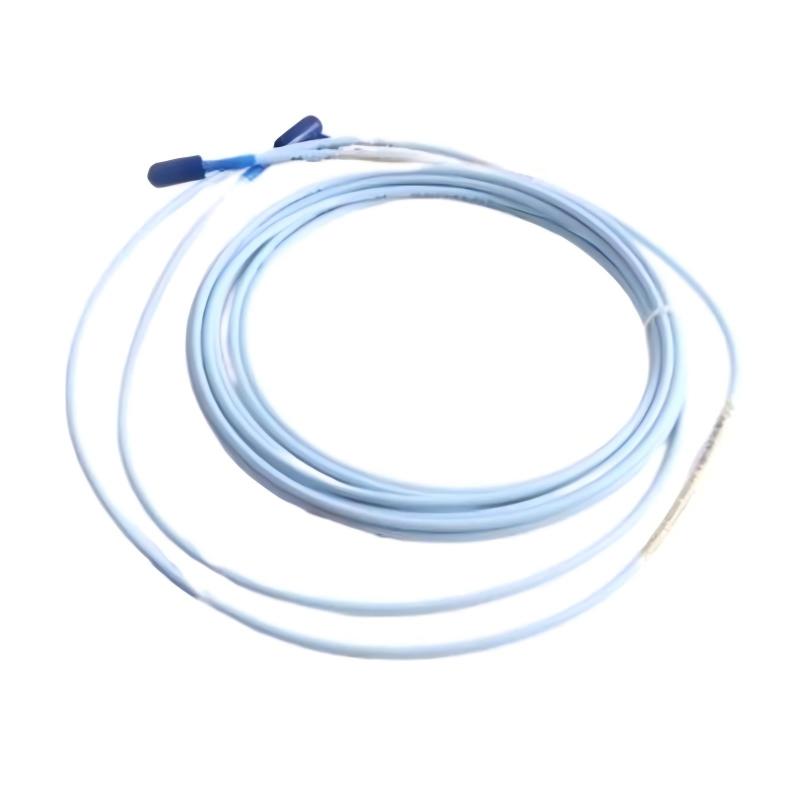

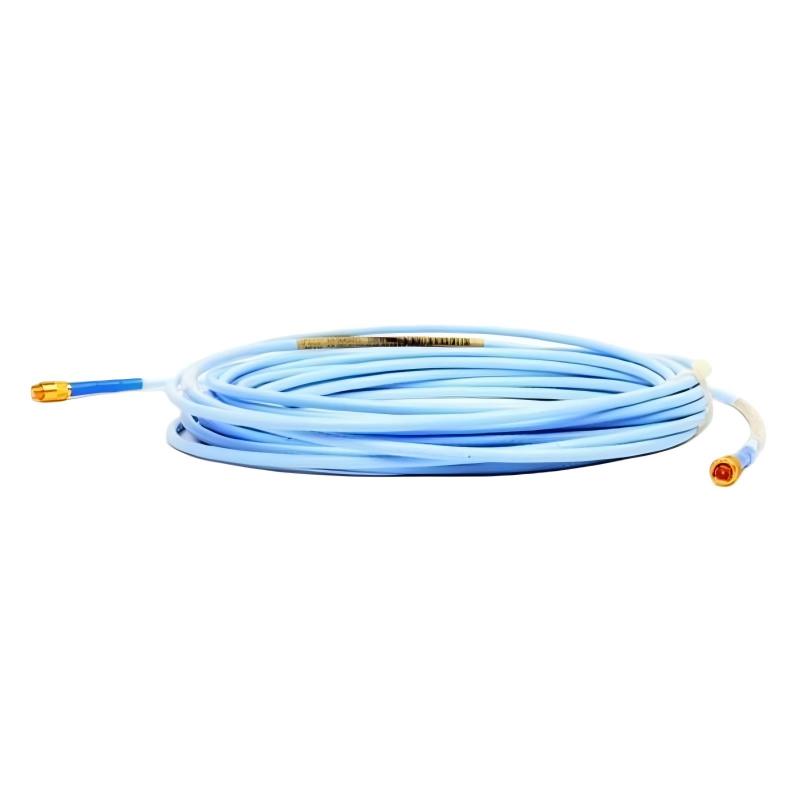

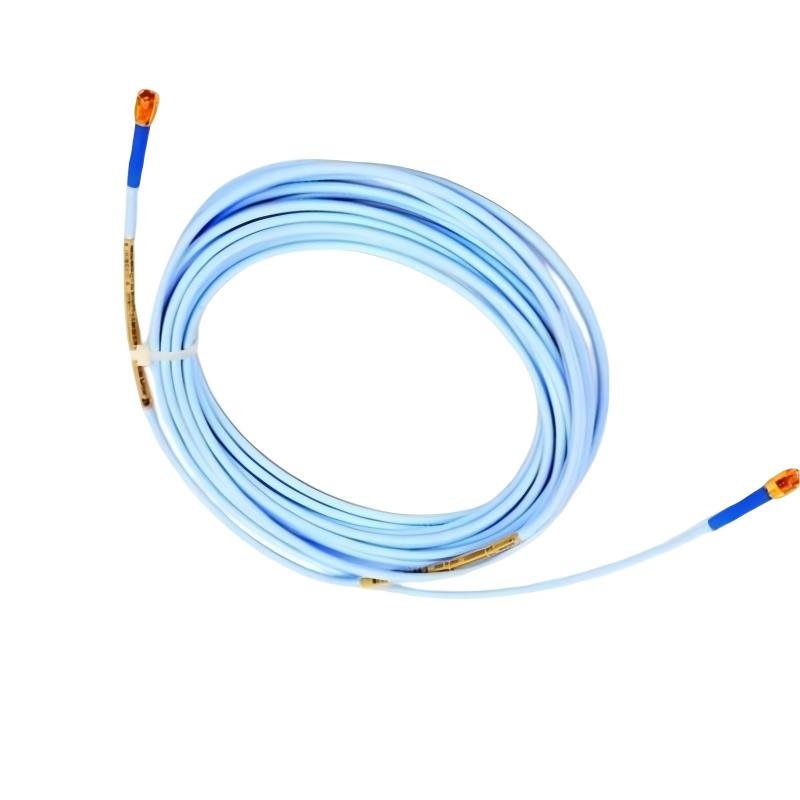

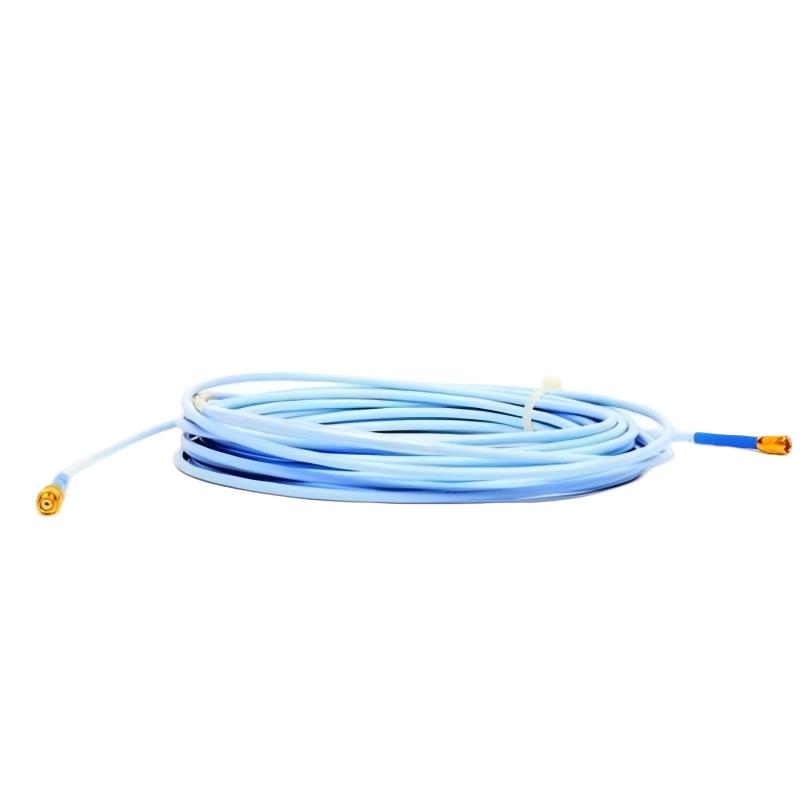

The Bently Nevada 330130-080-12-RU is a 3300 XL Standard Extension Cable used within the Bently Nevada 3300 XL proximity transducer system.

It provides the critical signal connection between the 3300 XL proximity probe and the Proximitor sensor, ensuring accurate transmission of vibration, displacement, and Keyphasor signals for machinery condition monitoring and protection applications.

With an 8-meter cable length, this model is suitable for industrial installations requiring extended routing while maintaining stable signal integrity. The “-RU” suffix denotes a specific configuration or regional ordering variant within the product coding system.

Technical Specifications

Function and Working Principle

The 330130-080-12-RU functions as a low-loss coaxial signal transmission cable, carrying analog signals generated by the proximity probe to the Proximitor sensor with minimal attenuation and interference.

Signal Flow

1. The proximity probe detects shaft vibration using eddy-current technology.
2. Mechanical movement is converted into an analog electrical signal.
3. The extension cable transmits the signal to the Proximitor sensor.
4. The Proximitor sensor conditions the signal for monitoring and protection systems.

Vprobe→VProximitorV_{probe} \rightarrow V_{Proximitor}Vprobe​→VProximitor​

Key Functions

• Transmits high-precision vibration and displacement signals
• Maintains signal integrity over an 8-meter cable length
• Supports Keyphasor reference signal transmission
• Reduces electromagnetic interference (EMI) in industrial environments
• Integral part of the calibrated 3300 XL measurement chain

System Role

The cable is part of the 3300 XL proximity transducer system, consisting of:

• 3300 XL 8 mm Proximity Probe
• 330130-080-12-RU Standard Extension Cable
• 3300 XL Proximitor Sensor

Together, these components enable:

• Shaft vibration monitoring
• Radial displacement measurement
• Rotor dynamic analysis
• Machinery protection logic inputs
• Predictive maintenance diagnostics

Industrial Applications

• Steam turbines
• Gas turbines
• Centrifugal compressors
• Pumps
• Electric generators
• Industrial motors
• Fans and blowers
• Petrochemical plants
• Oil and gas facilities
• Power generation systems

Installation Guidelines

• Ensure ClickLoc connectors are fully engaged and secured.
• Avoid sharp bends or excessive mechanical stress on the cable.
• Route away from high-voltage cables to minimize EMI.
• Maintain proper grounding and shielding practices.
• Use only with compatible 3300 XL probes and Proximitor sensors.

Compatible Components

• Bently Nevada 3300 XL 8 mm Proximity Probes
• Bently Nevada 3300 XL Proximitor Sensors
• Bently Nevada 3500 Machinery Protection System
• Bently Nevada 3300 Monitoring System
• Industrial vibration monitoring systems

Key Advantages

• Reliable signal transmission over 8 meters
• Stable performance in electrically noisy environments
• Durable industrial-grade construction
• Fully compatible with 3300 XL monitoring systems
• Supports long-term condition monitoring and machine protection

Technical FAQs

Q1: What is the function of this extension cable?
It transmits analog signals from the proximity probe to the Proximitor sensor.

Q2: What does the “RU” suffix indicate?
It represents a specific configuration or regional variant in Bently Nevada’s ordering system.

Q3: Can it operate independently?
No. It must be used as part of a complete 3300 XL probe–cable–Proximitor system.

Q4: Where is it typically used?
In turbines, compressors, pumps, generators, and other critical rotating machinery systems.

Conclusion

The Bently Nevada 330130-080-12-RU 3300 XL Standard Extension Cable is a robust 8-meter interconnect component designed for precise signal transmission within the 3300 XL proximity transducer system. It ensures stable, low-noise performance, making it essential for reliable machine protection and predictive maintenance in industrial rotating equipment.
