Product Overview

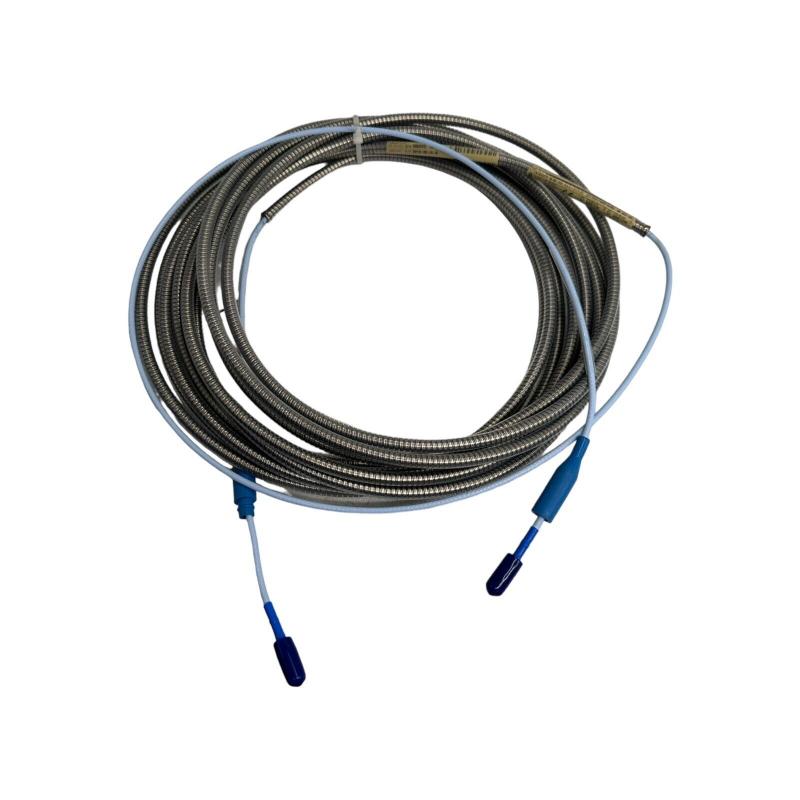

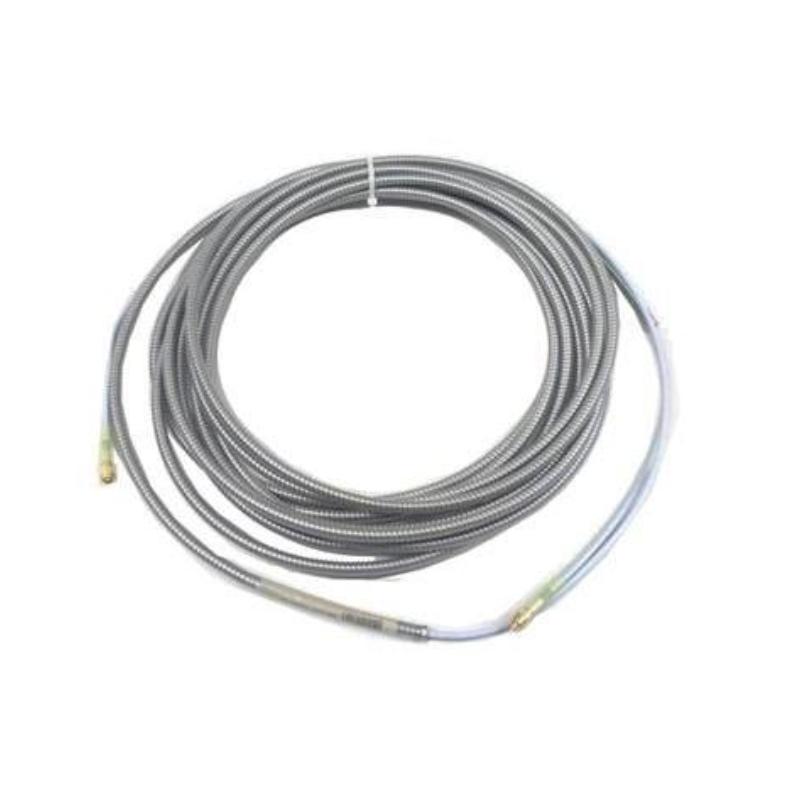

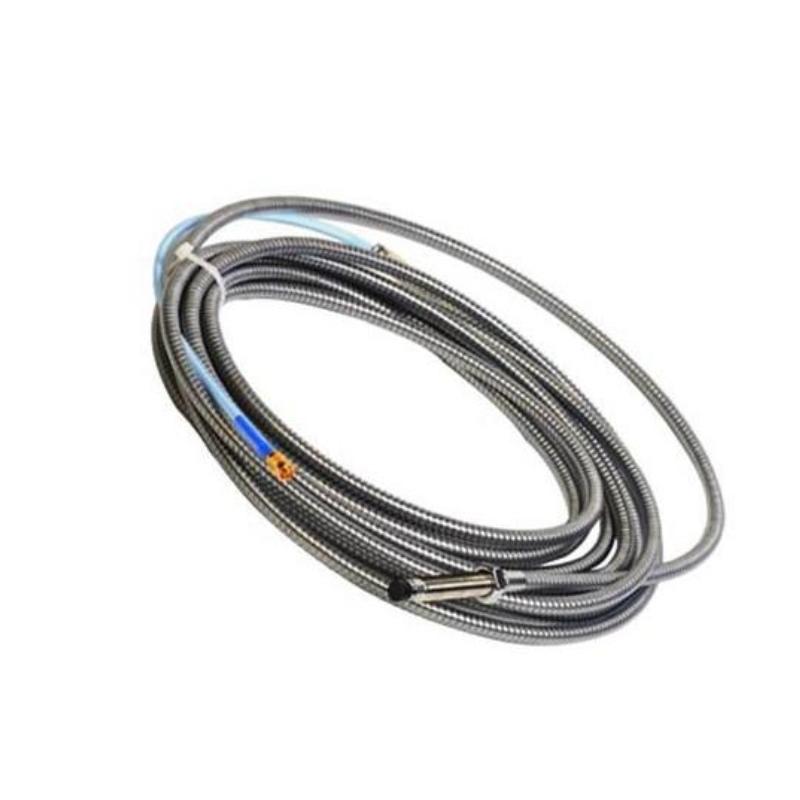

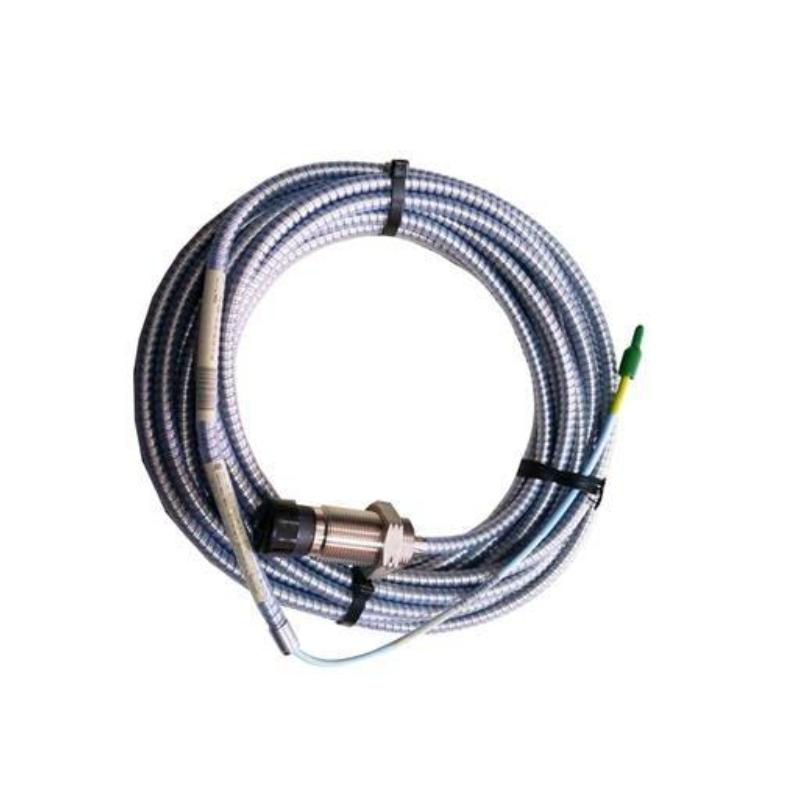

The Bently Nevada 330130-080-11-05 is a 3300 XL Standard Extension Cable designed for use with the Bently Nevada 3300 XL 8 mm Proximity Transducer System.

It provides the critical electrical connection between the 3300 XL proximity probe and the Proximitor sensor, ensuring reliable transmission of vibration, displacement, and Keyphasor signals for continuous machinery condition monitoring and protection.

With an 8-meter cable length and a heavy-duty construction, this extension cable is suitable for industrial applications requiring enhanced mechanical durability and dependable signal integrity.

Technical Specifications

Function and Working Principle

The 330130-080-11-05 functions as a precision low-loss coaxial extension cable, transmitting the analog signal generated by the proximity probe to the Proximitor sensor while minimizing attenuation and electromagnetic interference.

Signal Transmission Process

1. The proximity probe detects shaft movement using eddy-current technology.
2. The probe converts shaft displacement into an analog electrical signal.
3. The extension cable transfers the signal to the Proximitor sensor.
4. The Proximitor sensor conditions the signal for machinery monitoring and protection.

Vprobe→VProximitorV_{probe} \rightarrow V_{Proximitor}Vprobe​→VProximitor​

Key Functions

• Transfers vibration, displacement, and Keyphasor signals with high accuracy
• Maintains signal integrity over an 8-meter cable length
• Minimizes electrical noise and signal loss
• Supports continuous condition monitoring of rotating machinery
• Forms part of the calibrated 3300 XL transducer system

System Role

The cable operates as part of the 3300 XL proximity transducer system, which consists of:

• 3300 XL 8 mm Proximity Probe
• 330130-080-11-05 Standard Extension Cable
• 3300 XL Proximitor Sensor

Together, these components provide:

• Shaft vibration monitoring
• Radial displacement measurement
• Rotor dynamic analysis
• Machinery protection
• Predictive maintenance support

Industrial Applications

• Steam turbines
• Gas turbines
• Centrifugal compressors
• Pumps
• Electric generators
• Industrial motors
• Fans and blowers
• Petrochemical plants
• Oil and gas processing facilities
• Power generation systems

Installation Guidelines

• Secure all ClickLoc connectors before commissioning.
• Avoid excessive bending, twisting, or tensile loading.
• Route separately from high-voltage power cables to minimize EMI.
• Ensure proper grounding and shielding throughout installation.
• Use only with compatible 3300 XL probes and Proximitor sensors to preserve system calibration.

Compatible Components

• Bently Nevada 3300 XL 8 mm Proximity Probes
• Bently Nevada 3300 XL Proximitor Sensors
• Bently Nevada 3500 Machinery Protection System
• Bently Nevada 3300 Monitoring System
• Industrial vibration monitoring systems

Key Advantages

• Reliable signal transmission over 8 meters
• Heavy-duty cable construction for demanding industrial environments
• Excellent resistance to electromagnetic interference (EMI)
• Low signal attenuation for accurate measurements
• Fully compatible with 3300 XL monitoring systems
• Supports long-term predictive maintenance and machine protection

Technical FAQs

Q1: What is the primary purpose of this extension cable?
It transmits analog signals from a 3300 XL proximity probe to a Proximitor sensor.

Q2: Why is this version heavier than some other 8-meter cables?
Its 0.824 kg weight indicates a reinforced construction, typically providing greater mechanical durability and enhanced environmental protection.

Q3: Can this cable be used independently?
No. It is designed to operate only as part of a complete 3300 XL transducer system.

Q4: What equipment commonly uses this cable?
It is widely installed on turbines, compressors, generators, pumps, motors, and other critical rotating machinery.

Conclusion

The Bently Nevada 330130-080-11-05 3300 XL Standard Extension Cable is a heavy-duty 8-meter interconnect cable engineered for reliable signal transmission within the 3300 XL proximity transducer system. Its rugged construction, excellent signal integrity, and compatibility with Bently Nevada monitoring equipment make it an ideal choice for machinery protection and predictive maintenance in demanding industrial environments.
