Product Overview

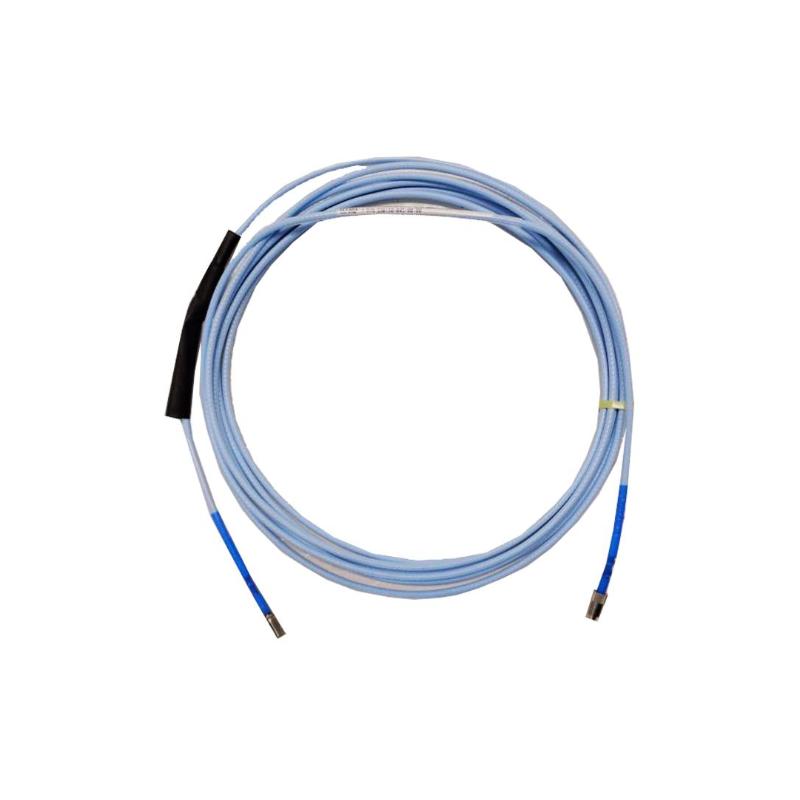

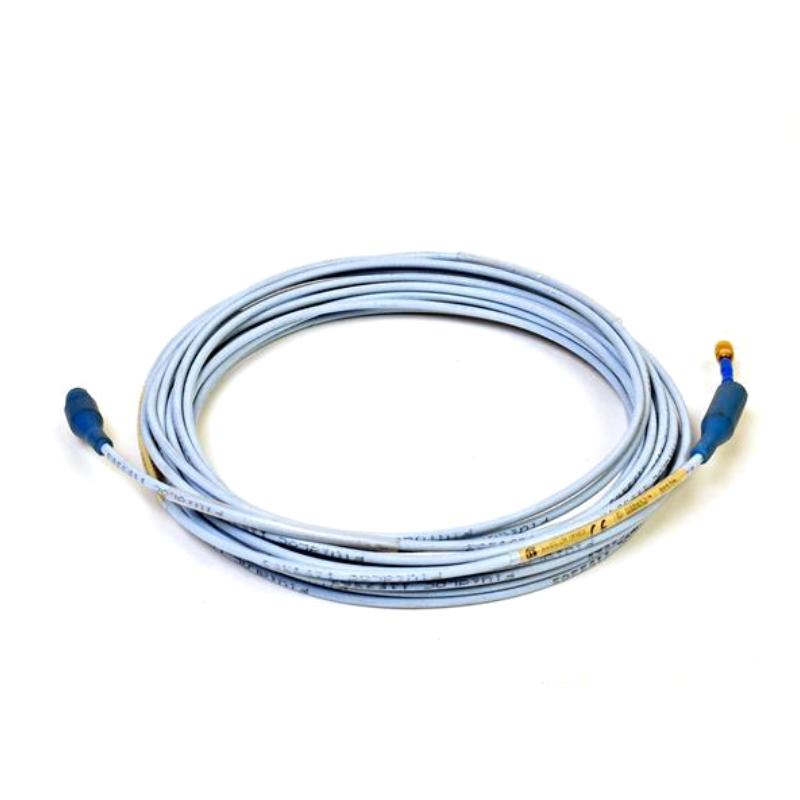

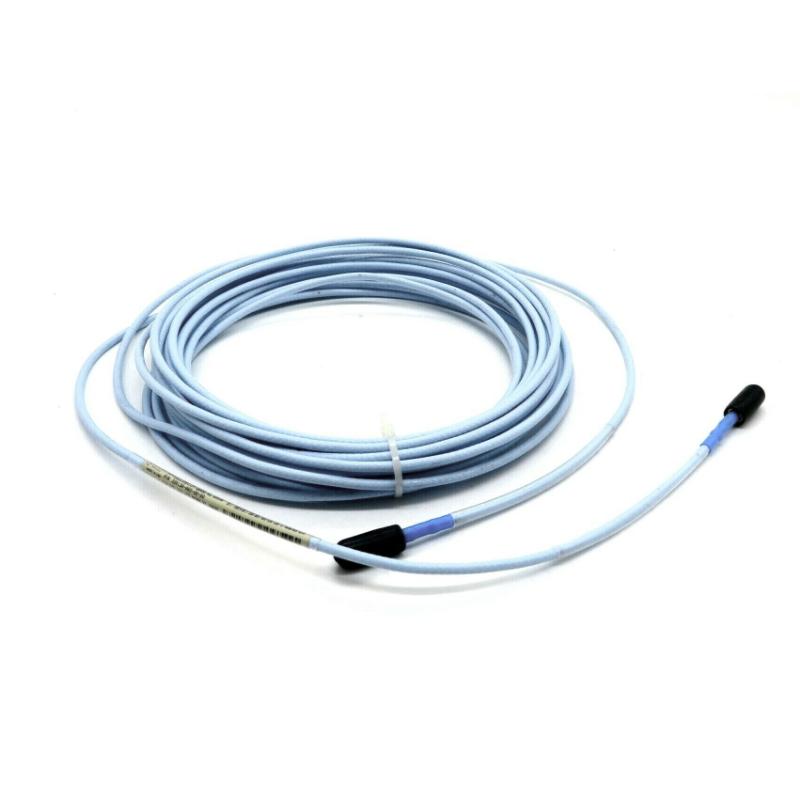

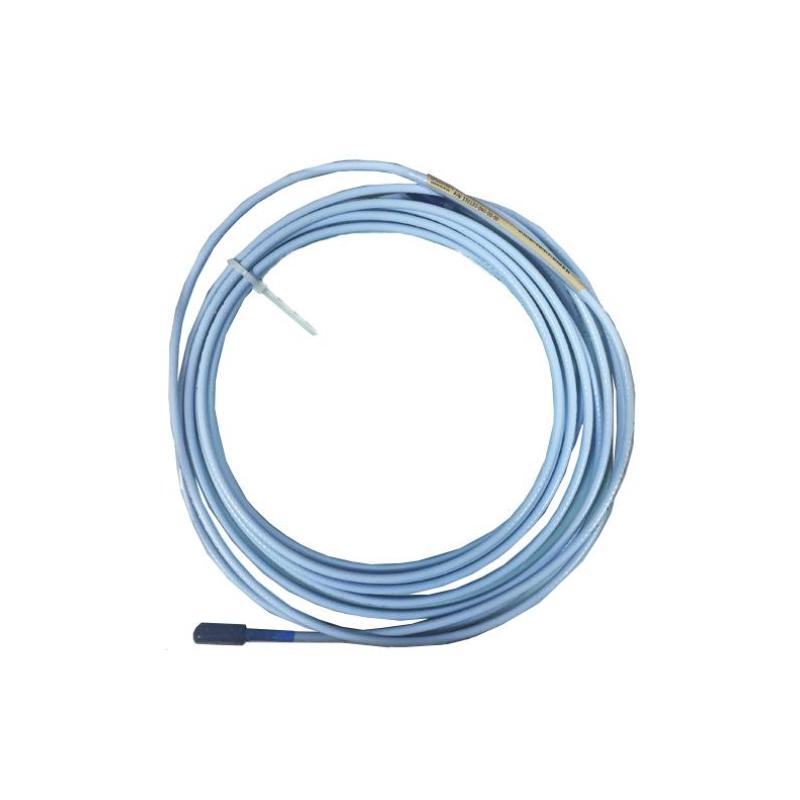

The Bently Nevada 330130-080-10-05 is a 3300 XL Standard Extension Cable engineered for use with the Bently Nevada 3300 XL 8 mm Proximity Transducer System.

It serves as the electrical connection between the 3300 XL proximity probe and the Proximitor sensor, ensuring accurate transmission of vibration, displacement, and Keyphasor signals for continuous machinery condition monitoring and protection.

Featuring an 8-meter cable length, this extension cable is suitable for installations requiring extended routing while maintaining high signal quality and measurement accuracy.

Technical Specifications

Function and Working Principle

The 330130-080-10-05 functions as a low-loss coaxial extension cable, transmitting the analog signal generated by the proximity probe to the Proximitor sensor with minimal attenuation or electrical interference.

Signal Transmission Process

1. The proximity probe detects shaft movement using eddy-current sensing.
2. The probe converts mechanical displacement into an analog electrical signal.
3. The extension cable transfers the signal to the Proximitor sensor.
4. The Proximitor sensor conditions the signal for monitoring, diagnostics, and protection systems.

Vprobe→VProximitorV_{probe} \rightarrow V_{Proximitor}Vprobe​→VProximitor​

Key Functions

• Provides reliable transmission of proximity probe signals
• Maintains signal integrity over an 8-meter cable length
• Supports vibration, displacement, and Keyphasor measurements
• Minimizes signal attenuation and electromagnetic interference (EMI)
• Forms part of the calibrated 3300 XL transducer system

System Role

The cable is an essential component of the 3300 XL monitoring system, consisting of:

• 3300 XL 8 mm Proximity Probe
• 330130-080-10-05 Standard Extension Cable
• 3300 XL Proximitor Sensor

Together, these components enable:

• Shaft vibration monitoring
• Radial displacement measurement
• Rotor dynamic analysis
• Machinery protection
• Predictive maintenance

Industrial Applications

• Steam turbines
• Gas turbines
• Centrifugal compressors
• Pumps
• Electric generators
• Industrial motors
• Fans and blowers
• Petrochemical processing plants
• Oil and gas facilities
• Power generation systems

Installation Guidelines

• Secure all ClickLoc connectors properly before operation.
• Avoid excessive bending, twisting, or tensile stress on the cable.
• Route the cable separately from high-voltage wiring to reduce EMI.
• Ensure proper grounding and shielding throughout the installation.
• Use only with compatible 3300 XL probes and Proximitor sensors to maintain system calibration.

Compatible Components

• Bently Nevada 3300 XL 8 mm Proximity Probes
• Bently Nevada 3300 XL Proximitor Sensors
• Bently Nevada 3500 Machinery Protection System
• Bently Nevada 3300 Monitoring System
• Industrial vibration monitoring and protection systems

Key Advantages

• High-quality signal transmission over 8 meters
• Low signal loss for accurate measurements
• Excellent resistance to industrial electrical noise
• Rugged construction for demanding environments
• Fully compatible with 3300 XL monitoring systems
• Supports reliable predictive maintenance and machine protection

Technical FAQs

Q1: What is the purpose of this extension cable?
It connects a 3300 XL proximity probe to a Proximitor sensor, transmitting vibration and displacement signals.

Q2: Can this cable be used with other monitoring systems?
It is designed specifically for compatible 3300 XL proximity transducer systems.

Q3: Why is the cable length important?
The cable length is part of the calibrated transducer system and helps maintain measurement accuracy.

Q4: What machinery commonly uses this cable?
It is widely used on turbines, compressors, generators, pumps, motors, and other critical rotating equipment.

Conclusion

The Bently Nevada 330130-080-10-05 3300 XL Standard Extension Cable is a precision-engineered 8-meter signal transmission cable that ensures reliable communication between the proximity probe and Proximitor sensor. Its robust construction, low signal attenuation, and compatibility with the 3300 XL system make it an ideal solution for machinery protection and condition monitoring in demanding industrial environments.
