Product Overview

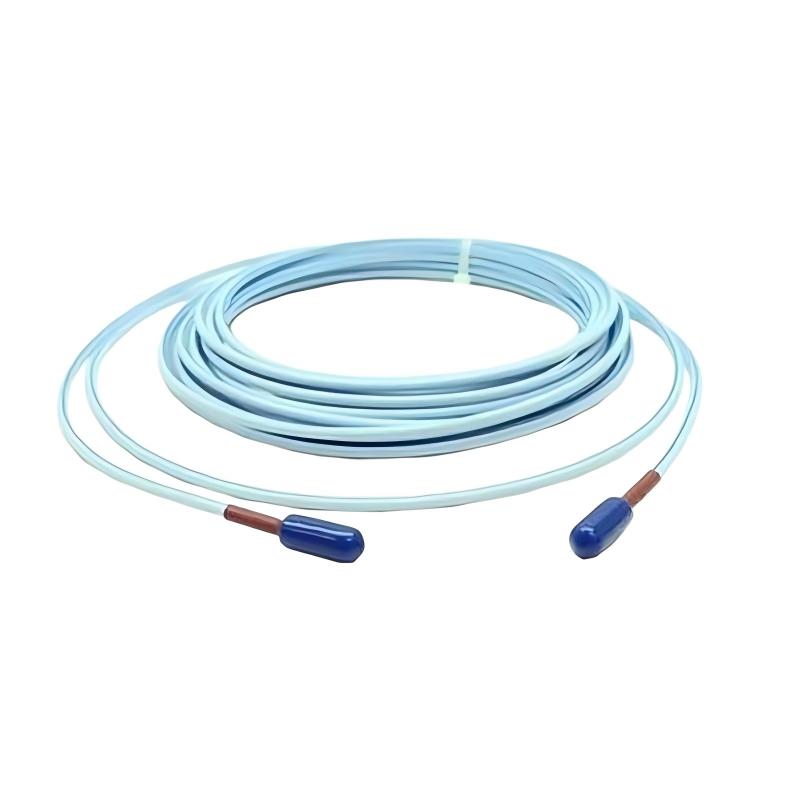

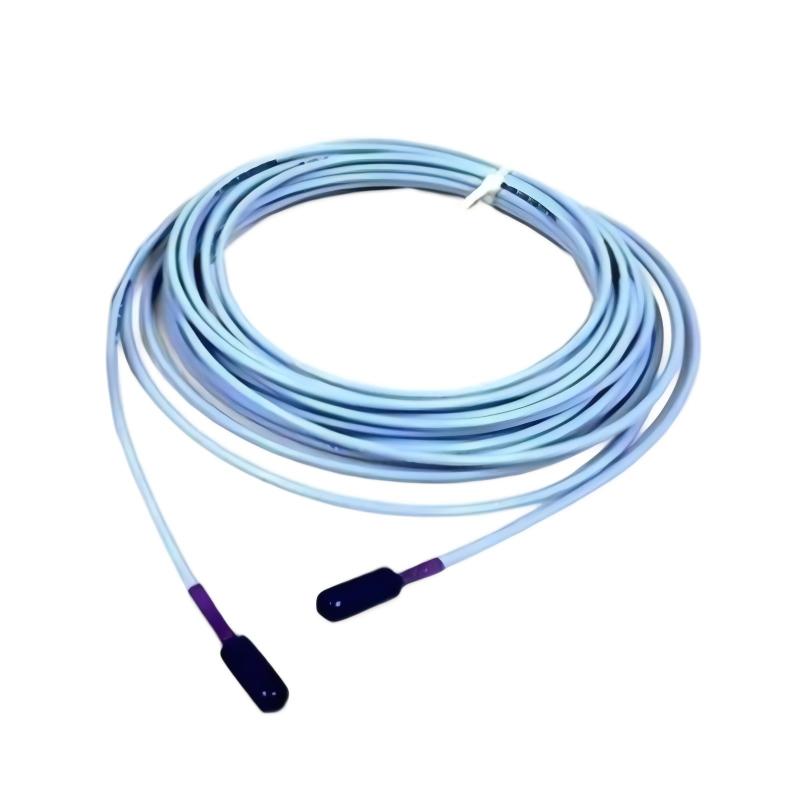

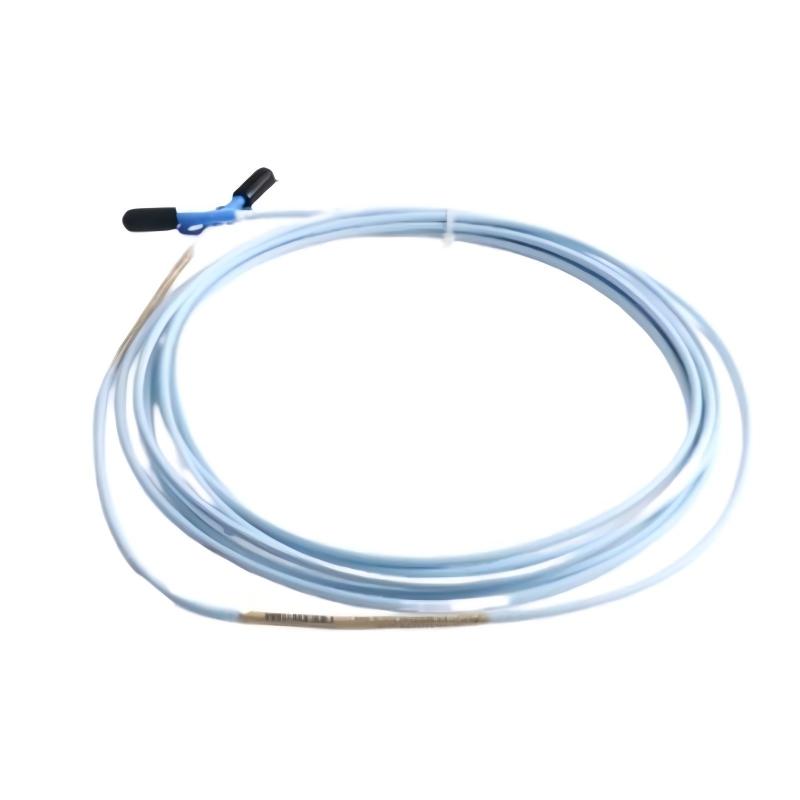

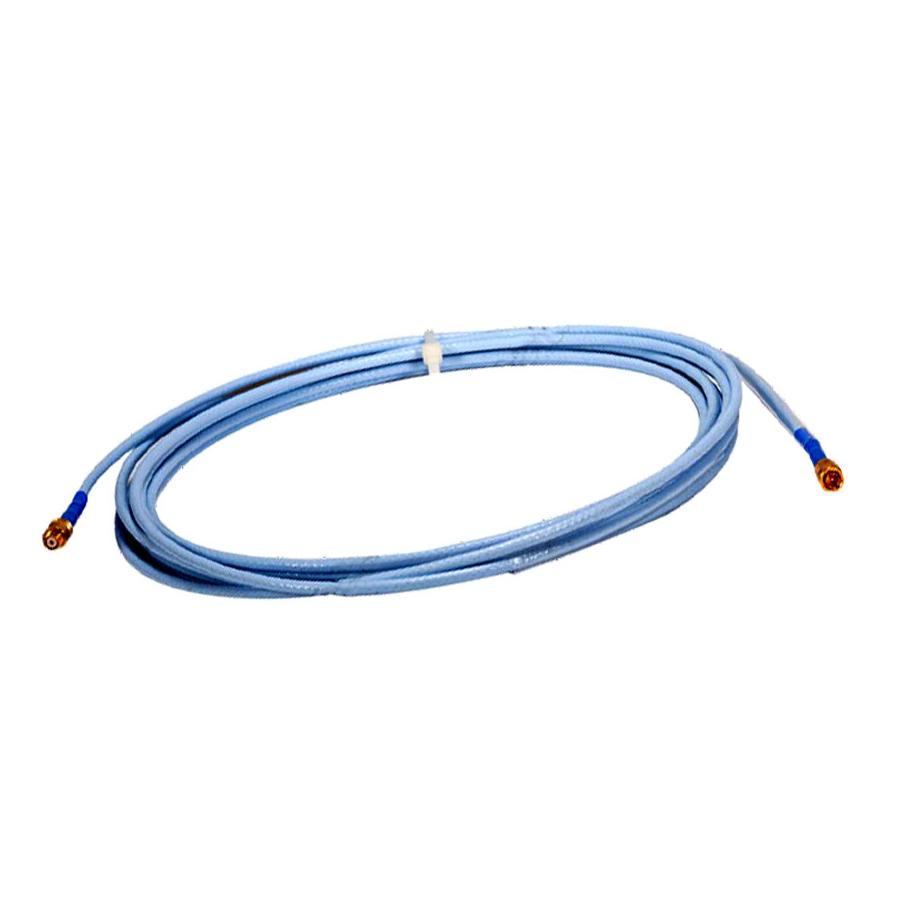

The Bently Nevada 330130-080-02-CN is a 3300 XL Standard Extension Cable designed for use with the Bently Nevada 3300 XL 8 mm Proximity Transducer System.

It serves as the signal transmission link between the 3300 XL proximity probe and the Proximitor sensor, ensuring reliable transfer of vibration, displacement, and Keyphasor signals for continuous machinery condition monitoring and protection.

With an 8-meter cable length, this extension cable is suitable for installations requiring extended routing while maintaining excellent signal integrity. The “-CN” suffix identifies a specific configuration or regional ordering variant within the Bently Nevada product series.

Technical Specifications

Function and Working Principle

The 330130-080-02-CN functions as a precision low-loss coaxial extension cable, transmitting the analog signal generated by the proximity probe to the Proximitor sensor while preserving measurement accuracy.

Signal Transmission Process

1. The proximity probe detects shaft movement using eddy-current technology.
2. The probe converts mechanical displacement into an analog electrical signal.
3. The extension cable transfers the signal with minimal attenuation.
4. The Proximitor sensor conditions the signal for monitoring and protection systems.

Vprobe→VProximitorV_{probe} \rightarrow V_{Proximitor}Vprobe​→VProximitor​

Key Functions

• Provides reliable transmission of proximity probe signals
• Maintains signal integrity across an 8-meter cable length
• Supports vibration, displacement, and Keyphasor measurements
• Reduces signal loss and electromagnetic interference (EMI)
• Forms an essential part of the calibrated 3300 XL transducer system

System Role

The cable operates as part of the 3300 XL monitoring system, consisting of:

• 3300 XL 8 mm Proximity Probe
• 330130-080-02-CN Standard Extension Cable
• 3300 XL Proximitor Sensor

Together, these components provide:

• Shaft vibration monitoring
• Radial displacement measurement
• Rotor dynamic analysis
• Machinery protection
• Predictive maintenance support

Industrial Applications

• Steam turbines
• Gas turbines
• Centrifugal compressors
• Pumps
• Electric generators
• Industrial motors
• Fans and blowers
• Petrochemical facilities
• Oil and gas processing plants
• Power generation systems

Installation Guidelines

• Secure connectors using the ClickLoc locking mechanism.
• Avoid excessive bending or twisting during installation.
• Route separately from high-voltage power cables to minimize EMI.
• Ensure proper grounding and shielding.
• Use only with compatible 3300 XL probes and Proximitor sensors to maintain system calibration.

Compatible Components

• Bently Nevada 3300 XL 8 mm Proximity Probes
• Bently Nevada 3300 XL Proximitor Sensors
• Bently Nevada 3500 Machinery Protection System
• Bently Nevada 3300 Monitoring System
• Industrial vibration monitoring systems

Key Advantages

• Reliable signal transmission over 8 meters
• Low signal attenuation for accurate measurements
• Excellent resistance to industrial electromagnetic interference
• Durable construction for demanding operating environments
• Fully compatible with 3300 XL monitoring systems
• Supports predictive maintenance and machinery protection

Technical FAQs

Q1: What is the function of this extension cable?
It transmits analog signals from the 3300 XL proximity probe to the Proximitor sensor.

Q2: What does the “-CN” suffix represent?
It identifies a specific configuration or regional ordering option within the Bently Nevada product family.

Q3: Can this cable operate independently?
No. It must be used as part of a complete 3300 XL transducer system.

Q4: What equipment commonly uses this cable?
It is widely used with turbines, compressors, generators, pumps, motors, and other critical rotating machinery.

Conclusion

The Bently Nevada 330130-080-02-CN 3300 XL Standard Extension Cable is a precision-engineered 8-meter extension cable designed to provide dependable signal transmission within the 3300 XL proximity transducer system. Its robust design, excellent signal integrity, and compatibility with Bently Nevada monitoring equipment make it an ideal solution for industrial machinery protection and predictive maintenance.
