Product Overview

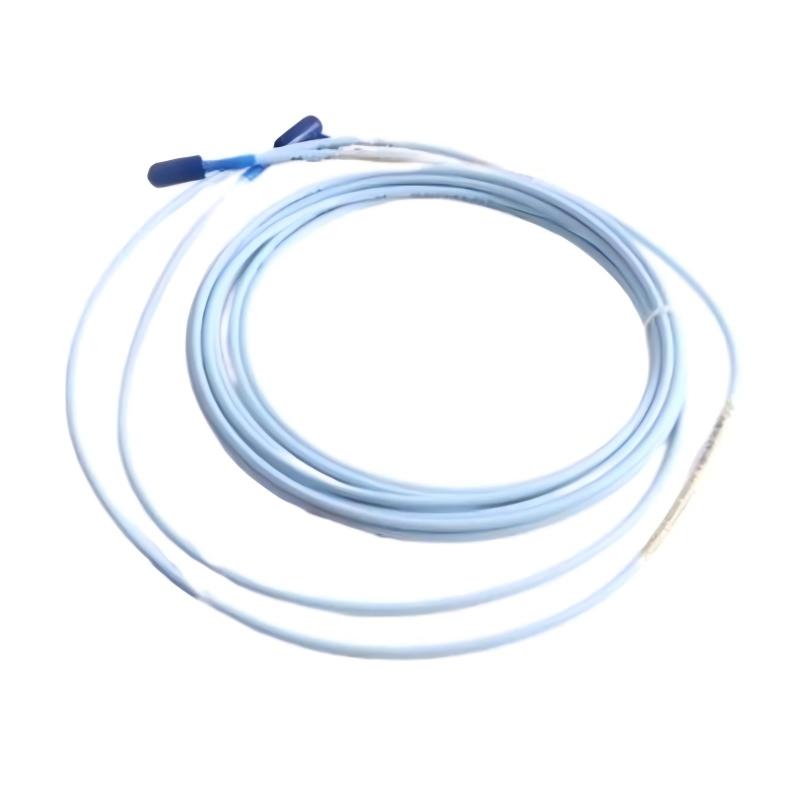

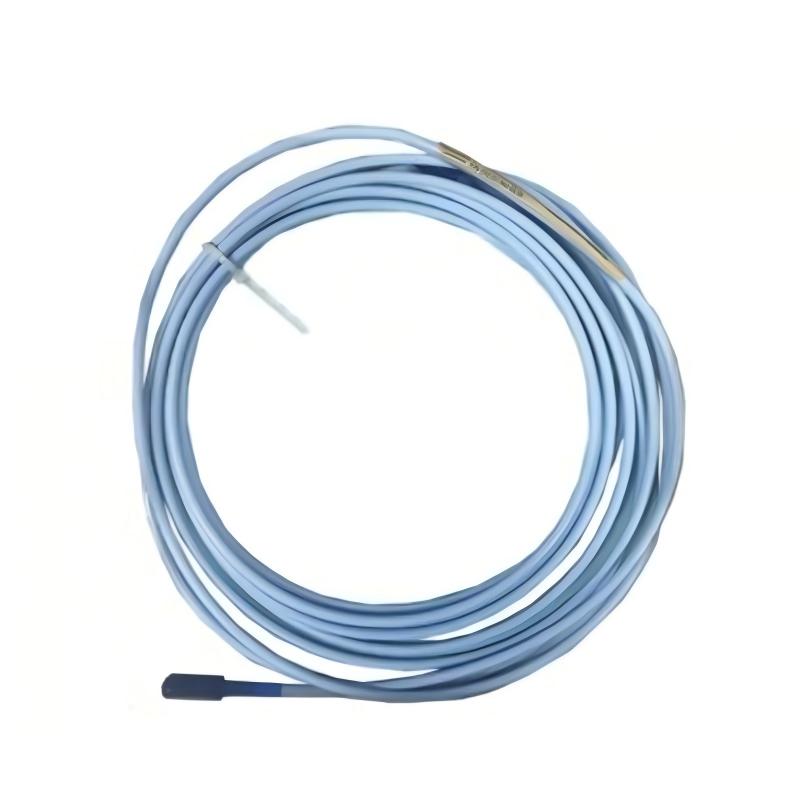

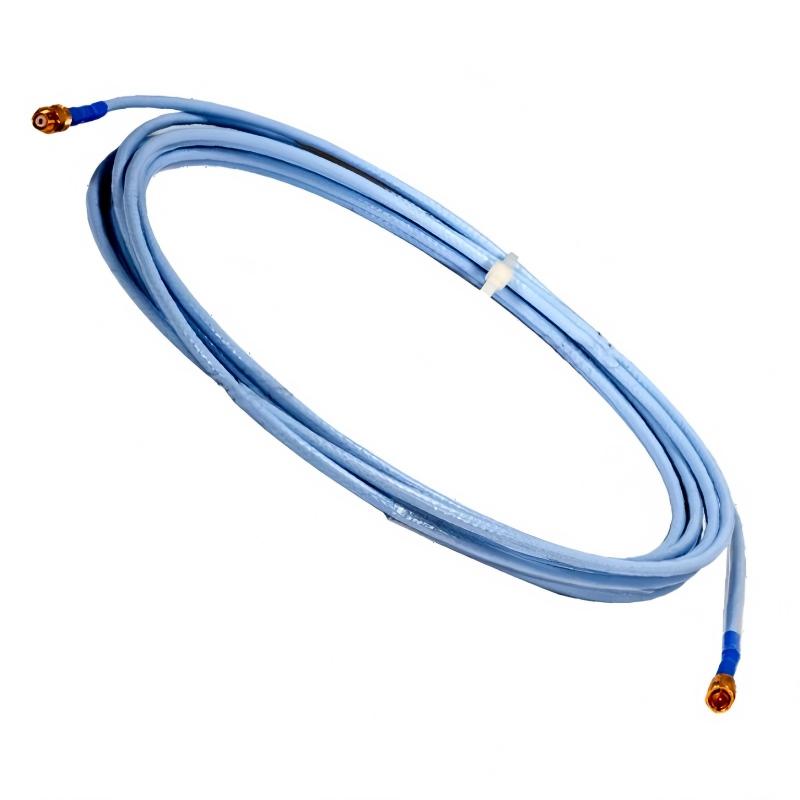

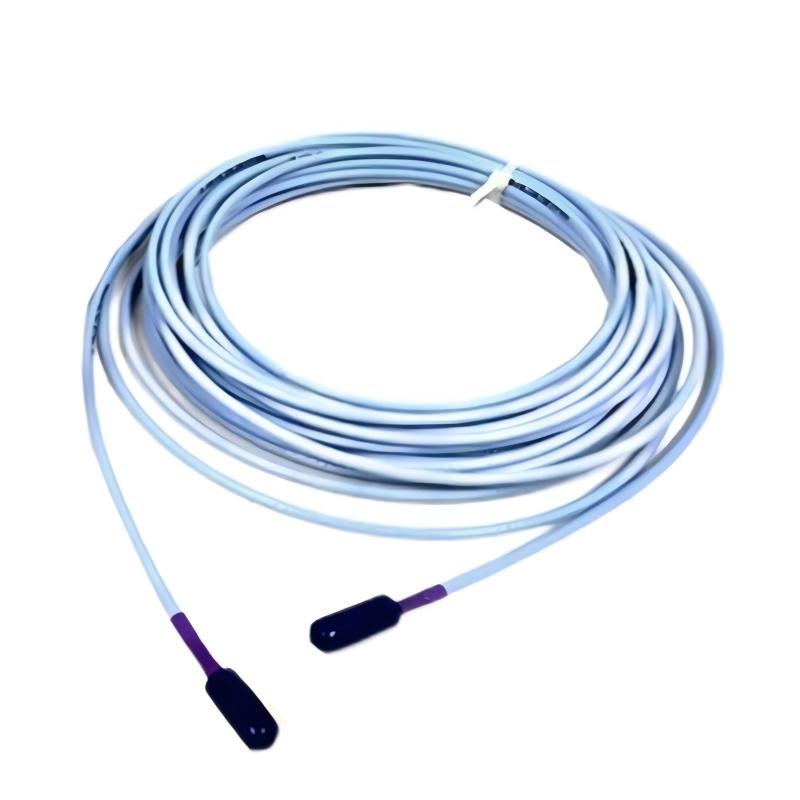

The Bently Nevada 330130-080-02-AE is a 3300 XL Standard Extension Cable designed for use with the Bently Nevada 3300 XL 8 mm Proximity Transducer System.

It provides the signal connection between the 3300 XL proximity probe and the Proximitor sensor, ensuring accurate transmission of vibration, displacement, and Keyphasor signals for rotating machinery condition monitoring and protection.

Featuring an 8-meter cable length, this model is suitable for installations requiring extended cable routing while maintaining signal integrity. The “-AE” suffix denotes a specific configuration or regional ordering variant within the product series.

Technical Specifications

Function and Working Principle

The 330130-080-02-AE functions as a low-loss coaxial transmission cable, carrying the analog signal generated by the proximity probe to the Proximitor sensor while preserving signal quality.

Signal Transmission Process

1. The proximity probe detects shaft movement using eddy-current technology.
2. The probe converts shaft displacement into an analog electrical signal.
3. The extension cable transmits the signal with minimal attenuation.
4. The Proximitor sensor conditions the signal for monitoring and protection systems.

Vprobe→VProximitorV_{probe} \rightarrow V_{Proximitor}Vprobe​→VProximitor​

Key Functions

• Transfers proximity probe signals with high accuracy
• Maintains signal integrity over an 8-meter cable length
• Supports vibration, displacement, and Keyphasor measurements
• Minimizes signal loss and electromagnetic interference (EMI)
• Forms part of the calibrated 3300 XL transducer system

System Role

The cable is an integral component of the 3300 XL monitoring system, which includes:

• 3300 XL 8 mm Proximity Probe
• 330130-080-02-AE Standard Extension Cable
• 3300 XL Proximitor Sensor

Together, these components provide:

• Shaft vibration monitoring
• Radial displacement measurement
• Rotor dynamic analysis
• Machinery protection
• Predictive maintenance data

Industrial Applications

• Steam turbines
• Gas turbines
• Centrifugal compressors
• Pumps
• Electric generators
• Industrial motors
• Fans and blowers
• Petrochemical facilities
• Oil and gas processing plants
• Power generation systems

Installation Guidelines

• Connect securely using ClickLoc coaxial connectors.
• Avoid excessive bending or twisting during installation.
• Route separately from high-voltage power cables.
• Ensure proper grounding and cable shielding.
• Use only with compatible 3300 XL probes and Proximitor sensors to maintain calibration accuracy.

Compatible Components

• Bently Nevada 3300 XL 8 mm Proximity Probes
• Bently Nevada 3300 XL Proximitor Sensors
• Bently Nevada 3500 Machinery Protection System
• Bently Nevada 3300 Monitoring System
• Industrial vibration monitoring systems

Key Advantages

• Reliable signal transmission over 8 meters
• Low signal attenuation
• Excellent resistance to electromagnetic interference
• Durable construction for industrial environments
• Fully compatible with 3300 XL monitoring systems
• Supports long-term predictive maintenance strategies

Technical FAQs

Q1: What is the purpose of this extension cable?
It connects a 3300 XL proximity probe to a Proximitor sensor, transmitting vibration and displacement signals.

Q2: What does the “-AE” suffix indicate?
It represents a specific configuration or regional ordering variant within the Bently Nevada product family.

Q3: Can this cable be used independently?
No. It is intended for use only as part of a complete 3300 XL transducer system.

Q4: Which equipment typically uses this cable?
It is commonly installed on turbines, compressors, generators, pumps, motors, and other critical rotating machinery.

Conclusion

The Bently Nevada 330130-080-02-AE 3300 XL Standard Extension Cable is a precision-engineered 8-meter extension cable designed for dependable signal transmission within the 3300 XL proximity transducer system. Its robust construction and excellent signal integrity make it an ideal choice for machinery protection and condition monitoring in demanding industrial environments.
