📘 Product Overview: Bently Nevada 330130-080-00-05

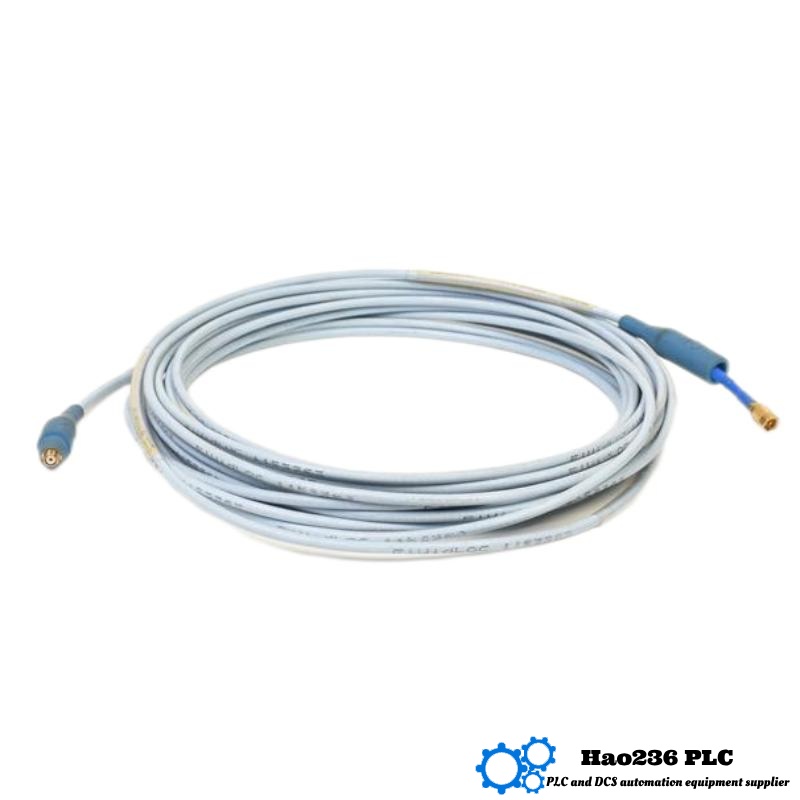

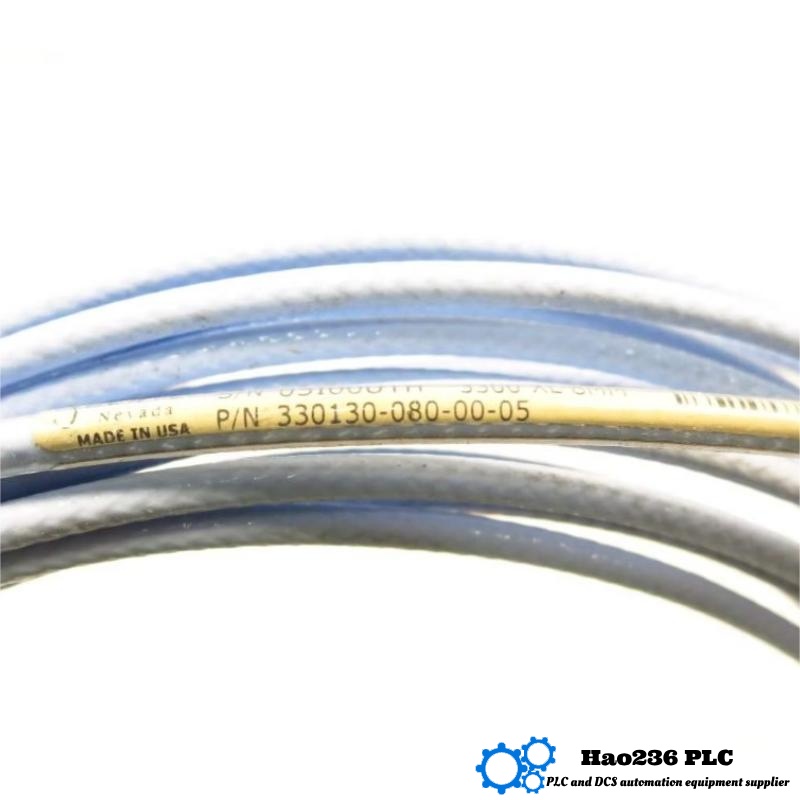

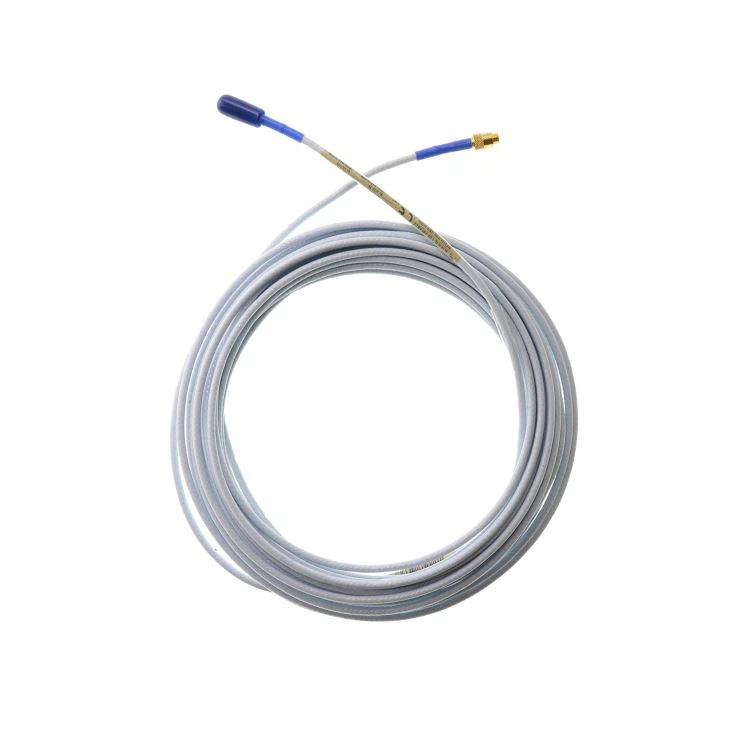

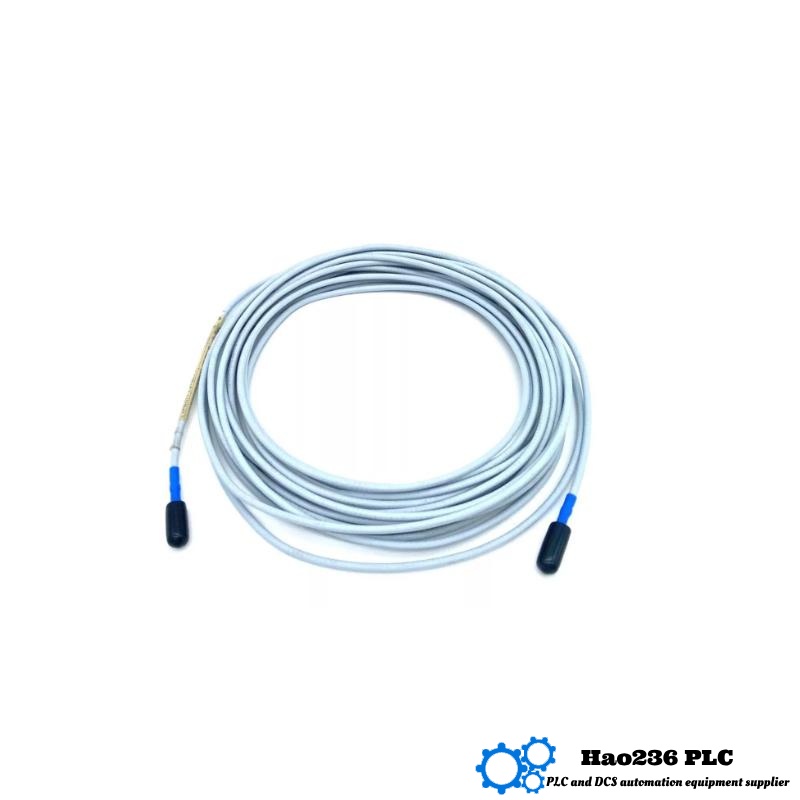

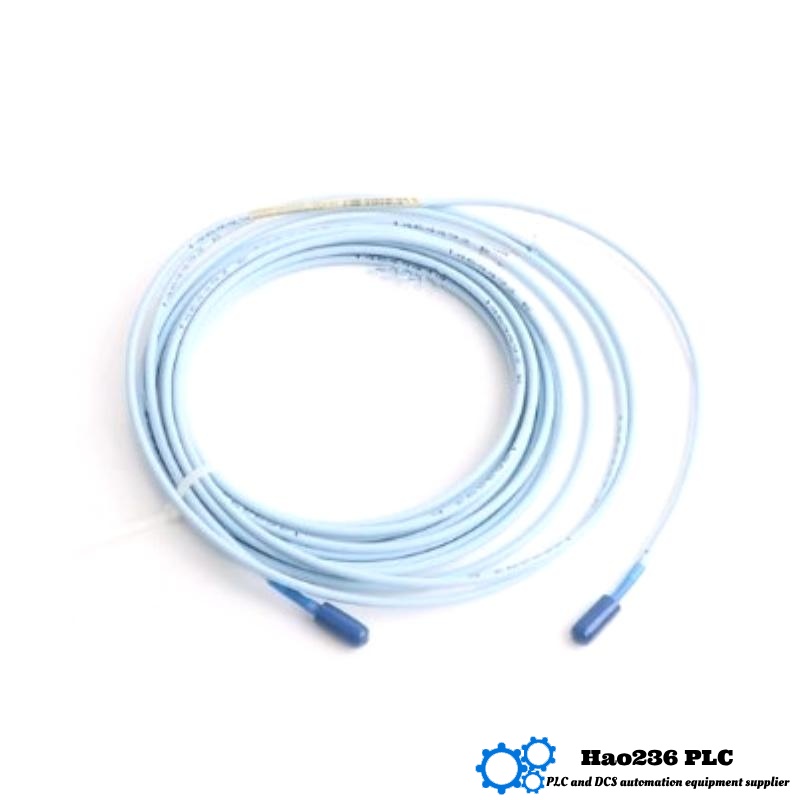

The 330130-080-00-05 is a premium coaxial extension cable used to connect eddy current proximity probes to their respective Proximitor sensors in the 3300 XL Series machinery monitoring system. With an 80-foot (24.4 meters) length, this model is designed for installations that require long-distance signal transmission across complex or large industrial equipment setups.
The model suffix “00-05” indicates its specific connector orientation and field-configurable interface, offering greater flexibility during installation, especially when used in areas with spatial constraints or directional routing challenges. Built with fluoropolymer jacketing and braided copper shielding, the cable is engineered for durability, high EMI resistance, and consistent signal fidelity in demanding environments.
📐 Technical Specifications
| Parameter | Details |
|---|---|
| Model Number | 330130-080-00-05 |
| Cable Type | Coaxial Extension Cable |
| Series | 3300 XL Series |
| Cable Length | 80 ft (24.4 meters) |
| Cable Diameter | 4.2 mm (nominal) |
| Connector Type (Probe End) | Bayonet (angled orientation – “05”) |
| Connector Type (Sensor End) | Bayonet (standard) |
| Impedance | 95 Ohms (nominal) |
| Capacitance | <30 pF/ft |
| Temperature Range | -51°C to +177°C |
| Voltage Rating | Up to 30 VDC |
| Cable Jacket Material | Fluoropolymer (high-temp, chemical resistant) |
| Shielding | Braided copper (full coverage) |
| EMI Protection | Yes |
| Field Replaceable | Yes (with compatible accessories) |
| Use Case | Long-distance transmission of probe signal |
| Dimensions (L×W×H) | 24400 mm × 4.2 mm × 4.2 mm |
| Weight (kg) | 0.78 kg |
🏭 Applications
-
Steam and Gas Turbines
Ideal for routing vibration and position signals from probe to monitor cabinet across long mechanical housings. -
Compressors
Supports installations where proximity probes must be located far from control panels due to vibration or temperature conditions. -
Large Motors and Generators
Facilitates monitoring in distributed machine architectures where proximity probes are installed at extended distances. -
Industrial Pumps and Blowers
Enables secure, EMI-resistant signal transmission in wet or chemically active zones. -
Hazardous or High-EMI Environments
Shields sensitive analog signals from surrounding electrical noise and interference.
🌟 Product Advantages
-
Extended Reach with Signal Integrity
Maintains precise analog signal quality over 80 feet using low-capacitance, impedance-matched coaxial design. -
High-Temperature Performance
Operates reliably up to 177°C, making it ideal for environments with heat-intensive processes. -
Field-Optimized Connector Orientation
The “00-05” configuration enables easy routing and connection in confined or complex machinery layouts. -
Full EMI Shielding
Braided copper shield prevents interference from surrounding equipment or power systems. -
Durable and Chemically Resistant
Fluoropolymer jacketing ensures long-term resistance against oil, chemicals, and abrasives. -
Zero Signal Loss Design
Matched impedance and low capacitance protect signal fidelity even at maximum cable length. -
Plug-and-Play Integration
Fully compatible with 3300 XL series probes and Proximitor sensors, with no recalibration required.
🏷️ Brand Overview
-
Brand: Bently Nevada
-
Core Competence: Machinery protection and condition monitoring solutions
-
Industry Role: A trusted name in asset reliability across energy, manufacturing, and heavy industries
📂 Series Overview – 3300 XL Series
-
Type: Proximity Transducer System
-
Includes: Proximity probes, extension cables, Proximitor sensors
-
Purpose: Non-contact measurement of vibration, shaft position, and thrust
-
Industries Served: Oil & gas, power generation, petrochemical, marine, pulp & paper
-
System Features: Modular design, field serviceable, EMI-resistant, long-term stability
🔁 Related Models in the Same Series
| Model | Type | Length | Connector Style | Temp Range | Weight (kg) |
|---|---|---|---|---|---|
| 330130-080-00-05 | Extension Cable | 80 ft | Bayonet + angled | -51°C to +177°C | 0.78 |
| 330130-045-02-05 | Extension Cable | 45 ft | ClickLoc™ + Bayonet | -51°C to +177°C | 0.48 |
| 330130-060-00-00 | Extension Cable | 60 ft | Bayonet | -51°C to +177°C | 0.65 |
| 330130-025-00-00 | Extension Cable | 25 ft | Bayonet | -51°C to +177°C | 0.39 |
| 330130-010-00-05 | Extension Cable | 10 ft | Bayonet + angled | -51°C to +177°C | 0.29 |
🔝 Top 5 Popular Models from Same Brand
| Model | Type | Length/Size | Key Application | Temp Range | Weight (kg) |
|---|---|---|---|---|---|
| 330130-080-00-05 | Extension Cable | 80 ft | Remote probe connection | -51°C to +177°C | 0.78 |
| 330106-05-30-10-02-05 | Proximity Probe | 762 mm | Large shaft monitoring | -51°C to +177°C | 0.38 |
| 330105-02-12-10-02-05 | Proximity Probe | 305 mm | General vibration monitoring | -51°C to +177°C | 0.26 |
| 330500-02-00 | Proximitor Sensor | – | Signal processing for probes | – | 0.30 |
| 3500/42M | Vibration Monitor Card | – | Machinery protection system | – | 1.20 |
❓ Frequently Asked Questions (FAQ)
Q1: What is the function of the 330130-080-00-05 cable?
A1: It connects a proximity probe to a Proximitor sensor across long distances while preserving signal fidelity.
Q2: What does the “00-05” indicate in the model number?
A2: It refers to a specific connector orientation that allows better cable routing during field installations.
Q3: Is this cable shielded?
A3: Yes, it features a full braided copper shield for maximum protection against EMI.
Q4: Can I use this cable in hot environments?
A4: Yes, it supports temperatures up to 177°C, suitable for most industrial applications.
Q5: Is this cable compatible with all 3300 XL Proximitor sensors?
A5: Yes, it is fully compatible with the standard 3300 XL series sensors and probes.
Q6: Is this cable field replaceable?
A6: Yes, it can be replaced or routed on-site using standard installation tools.
Q7: How flexible is this cable for routing?
A7: The cable offers moderate flexibility and is suitable for both conduit and open installations.
Q8: Does it require calibration?
A8: No, it is pre-tested and requires no on-site calibration.
Q9: What’s the weight of the 80-foot cable?
A9: The cable weighs approximately 0.78 kg.
Q10: What material is the jacket made from?
A10: It uses a fluoropolymer jacket that resists chemicals, abrasion, and heat.
