- Bently Nevada
- 330130-080-00-00
- 3300 XL Standard Extension Cable Sensor Probe Cable
- USA
- 4.2 mm
- 0.76kg
- Xiamen, China
- New & In Stock
- T/T, PayPal, Western Union
- 1 Year
- 1-3 Working Days
- DHL, UPS, TNT, FedEx and EMS.
- 24-Hour Service
- COO
- 64
Our advantage
Global Logistics
We have a 10-year logistics and express cooperation agreement, so our products can be shipped to any place in the world.
Brand new and original
Our products are imported in bulk from the place of origin. Because of the cooperative relationship, our products are all original and 100% new.
24-hour service
We provide 7*24 hours service to our customers. We will be there whenever you need us.
Price advantage
All our products are priced very favorably because we have our own warehouse and supply.
| Company Information | |||
| sales@plc-automations.com | |||
| Mobile | +8615980777398 | ||
| +8615980777398 | |||
| 15980777398 |

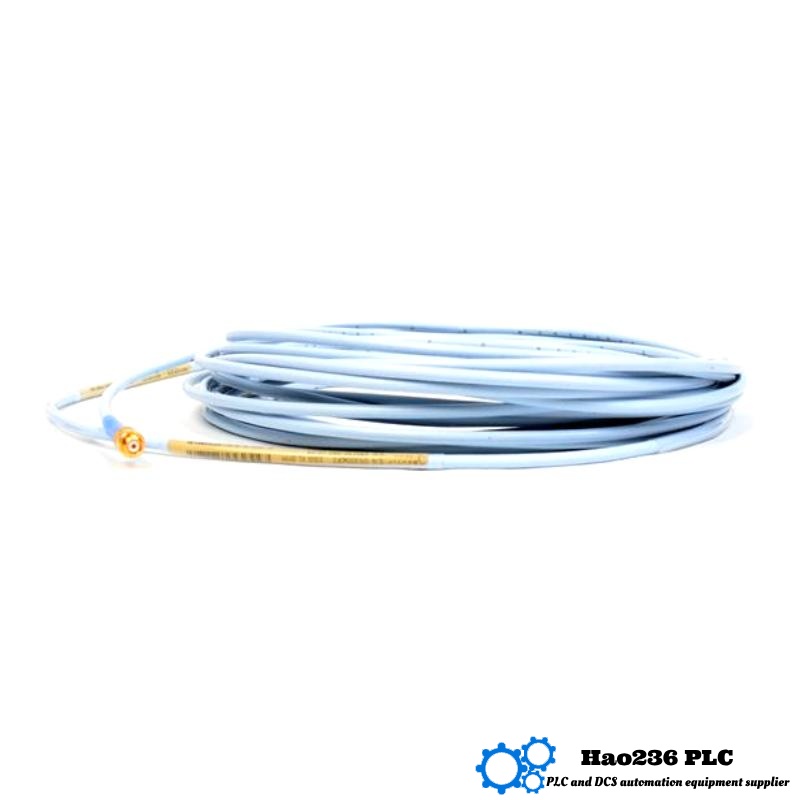

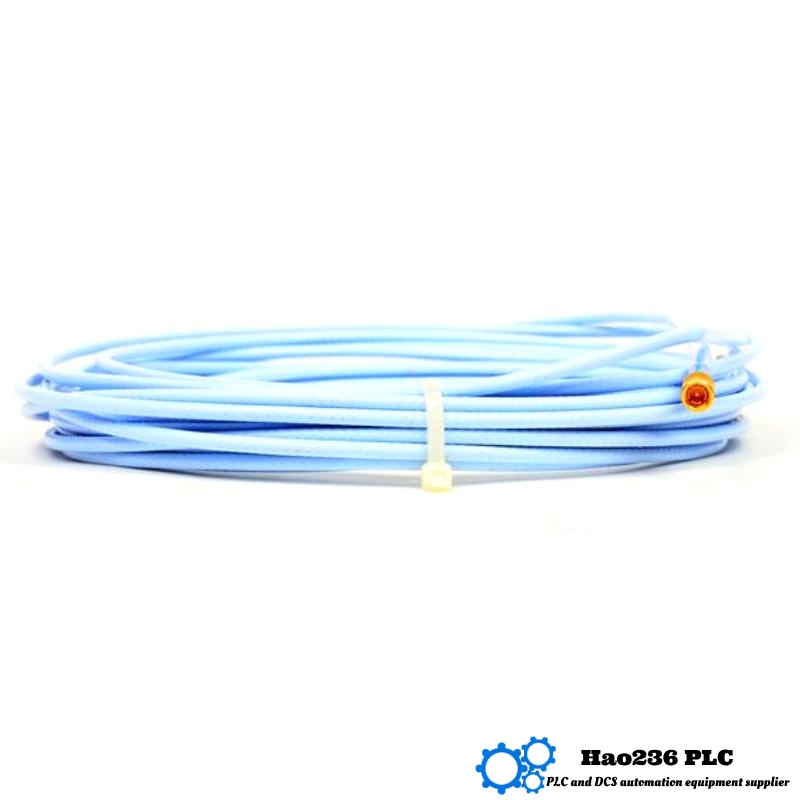

📘 Product Overview: Bently Nevada 330130-080-00-00
The 330130-080-00-00 is a high-quality coaxial extension cable, purpose-built to connect proximity probes to Proximitor sensors within the 3300 XL Series monitoring system. This model has a total length of 80 feet (24.4 meters) and is engineered for industrial-grade signal transmission across extended distances.
Constructed with fluoropolymer jacketing and braided shielding, the cable ensures exceptional electromagnetic interference resistance and maintains high-fidelity analog signal delivery. It uses standard coaxial bayonet connectors, offering broad compatibility with existing 3300 XL series systems and reducing installation time in the field.
The 330130-080-00-00 is widely used in turbomachinery, compressors, and generators, where signal routing distance and environmental ruggedness are critical.
📐 Technical Specifications
| Parameter | Details |
|---|---|
| Model Number | 330130-080-00-00 |
| Cable Type | Coaxial Extension Cable |
| Series | 3300 XL Series |
| Cable Length | 80 feet (24.4 meters) |
| Outer Diameter | 4.2 mm (typical) |
| Connector Type (Both Ends) | Coaxial bayonet-style connectors |
| Impedance | 95 Ohms (nominal) |
| Capacitance | <30 pF/ft |
| Voltage Rating | Up to 30 VDC |
| Temperature Range | -51°C to +177°C |
| Cable Jacket Material | Fluoropolymer (chemically resistant) |
| Shielding | Braided copper shield |
| Flexibility Rating | Medium; suitable for conduit and open routing |
| EMI Protection | Yes (full shield coverage) |
| Compliance | CE, RoHS |
| Use Case | Links probe to Proximitor across long distances |
| Dimensions (L×W×H) | 24400 mm × 4.2 mm × 4.2 mm |
| Weight (kg) | 0.76 kg |
🏭 Applications
-
Gas Turbines and Steam Turbines
Ideal for environments where monitoring systems are located away from the rotating shaft. -
Industrial Compressors
Enables signal transmission through machine housings or across equipment platforms. -
Large Electric Motors and Generators
Supports vibration and axial position sensing systems requiring extended reach. -
Pumps and Fans in Harsh Environments
Withstands high temperatures, vibration, and electromagnetic noise. -
Remote Vibration Monitoring Cabinets
Allows sensor signals to reach central control panels in hazardous or distant areas.
🌟 Product Advantages
-
Extended Signal Reach
With an 80-foot length, it enables flexible system architecture and remote sensor deployment. -
Superior Signal Quality
95-ohm impedance and low capacitance preserve signal integrity over long distances. -
Robust Environmental Resistance
Operates in extreme industrial conditions, withstanding heat, chemical exposure, and vibration. -
Flexible Integration
Bayonet connectors offer compatibility with standard 3300 XL Proximitor interfaces. -
Low Noise, High Accuracy
Braided shielding prevents external interference and ensures clean signal transmission. -
Industrial Durability
Rugged jacket and internal construction designed for continuous use in mission-critical assets. -
Zero Maintenance Required
Pre-calibrated and field-ready — no adjustment or tuning necessary.
🏷️ Brand Overview
-
Brand: Bently Nevada
-
Core Strength: Rotating machinery monitoring, protection, and diagnostics
-
Market Position: Trusted in critical industries like power generation, oil & gas, and manufacturing
📂 Series Description – 3300 XL Series
-
Type: Proximity Transducer System
-
Components: Proximity probes, extension cables, Proximitor sensors
-
Use Case: Non-contact monitoring of vibration and shaft position
-
System Benefits: High reliability, modular deployment, long-term stability
-
Industry Use: Steam turbines, compressors, motors, pumps, gearboxes, and other rotating machinery
🔁 Related Models in Same Series or Function
| Model | Type | Length | Connector Type | Temp Range | Weight (kg) |
|---|---|---|---|---|---|
| 330130-080-00-00 | Extension Cable | 80 ft | Bayonet-Bayonet | -51°C to +177°C | 0.76 |
| 330130-060-00-00 | Extension Cable | 60 ft | Bayonet-Bayonet | -51°C to +177°C | 0.65 |
| 330130-045-00-00 | Extension Cable | 45 ft | Bayonet-Bayonet | -51°C to +177°C | 0.52 |
| 330130-025-00-00 | Extension Cable | 25 ft | Bayonet-Bayonet | -51°C to +177°C | 0.39 |
| 330130-010-00-00 | Extension Cable | 10 ft | Bayonet-Bayonet | -51°C to +177°C | 0.29 |
🔝 Top 5 Popular Models from the Same Brand
| Model | Type | Length/Size | Use Case | Temp Range | Weight (kg) |
|---|---|---|---|---|---|
| 330130-080-00-00 | Extension Cable | 80 ft | Long-distance probe connection | -51°C to +177°C | 0.76 |
| 330105-02-12-10-02-05 | Proximity Probe | 305 mm | Shaft vibration monitoring | -51°C to +177°C | 0.26 |
| 330106-05-30-10-02-05 | Proximity Probe | 762 mm | Large machinery applications | -51°C to +177°C | 0.38 |
| 330500-02-00 | Proximitor Sensor | – | Probe signal conditioning | – | 0.30 |
| 3500/42M | Vibration Monitor Card | – | Continuous machine protection | – | 1.20 |
❓ Frequently Asked Questions (FAQ)
Q1: What is the purpose of the 330130-080-00-00 cable?
A1: It transmits the signal from a proximity probe to a Proximitor sensor over long distances, maintaining accuracy and reliability.
Q2: Is this cable suitable for outdoor installations?
A2: While not waterproof, the cable’s fluoropolymer jacket offers chemical resistance and durability. Outdoor use is possible with proper conduit protection.
Q3: What type of connectors are used?
A3: Both ends feature standard coaxial bayonet-style connectors compatible with the 3300 XL system.
Q4: Does the cable degrade signal over long distances?
A4: No, the cable is impedance-matched (95 Ohms) and low-capacitance to ensure clean signal transmission even at 80 feet.
Q5: Can it be used in high-heat environments?
A5: Yes, it supports continuous use in temperatures up to +177°C.
Q6: What does the “00-00” in the model mean?
A6: It typically refers to standard connector configuration at both ends, without special orientation requirements.
Q7: Is the cable shielded from EMI?
A7: Yes, it features a full braided copper shield for electromagnetic interference protection.
Q8: How flexible is the cable for routing?
A8: The cable offers medium flexibility, making it suitable for both conduit and open routing.
Q9: Is this cable compatible with other series?
A9: It is designed specifically for 3300 XL systems but may be compatible with similar legacy systems using the same connector standards.
Q10: How much does the 330130-080-00-00 cable weigh?
A10: Approximately 0.76 kg.
