Product Overview

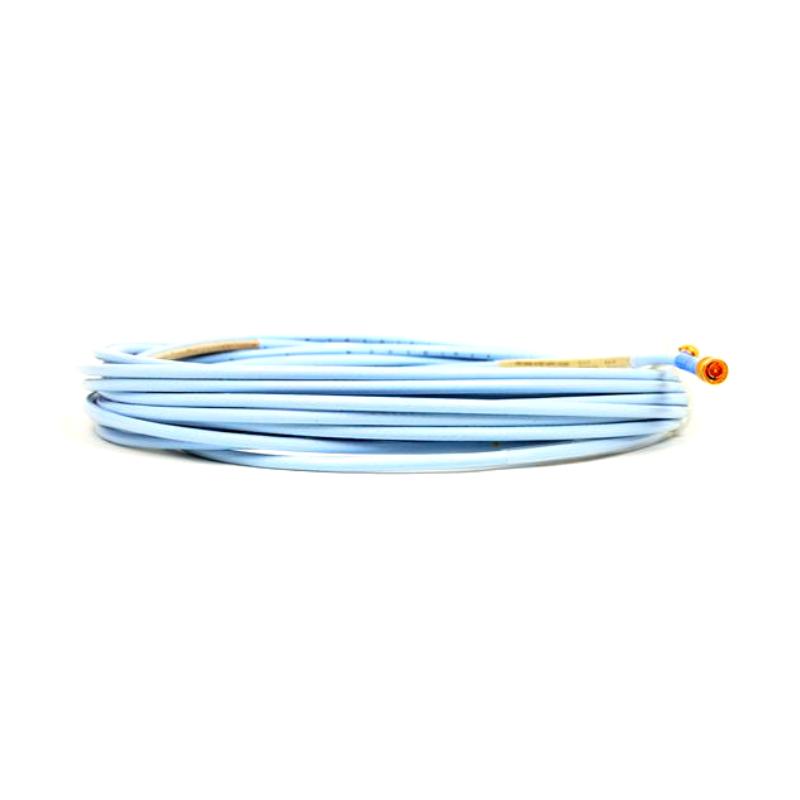

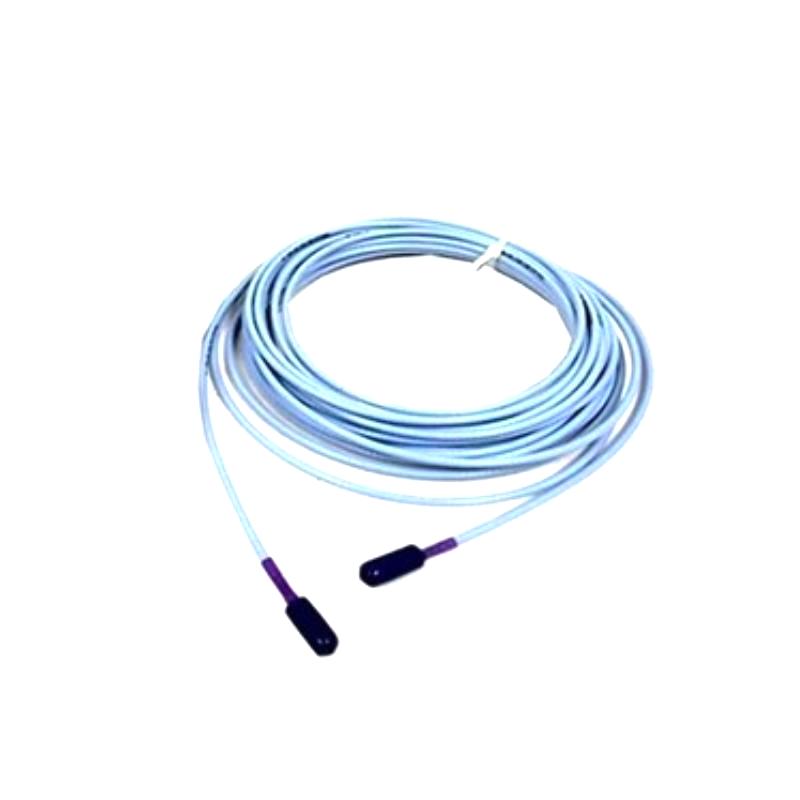

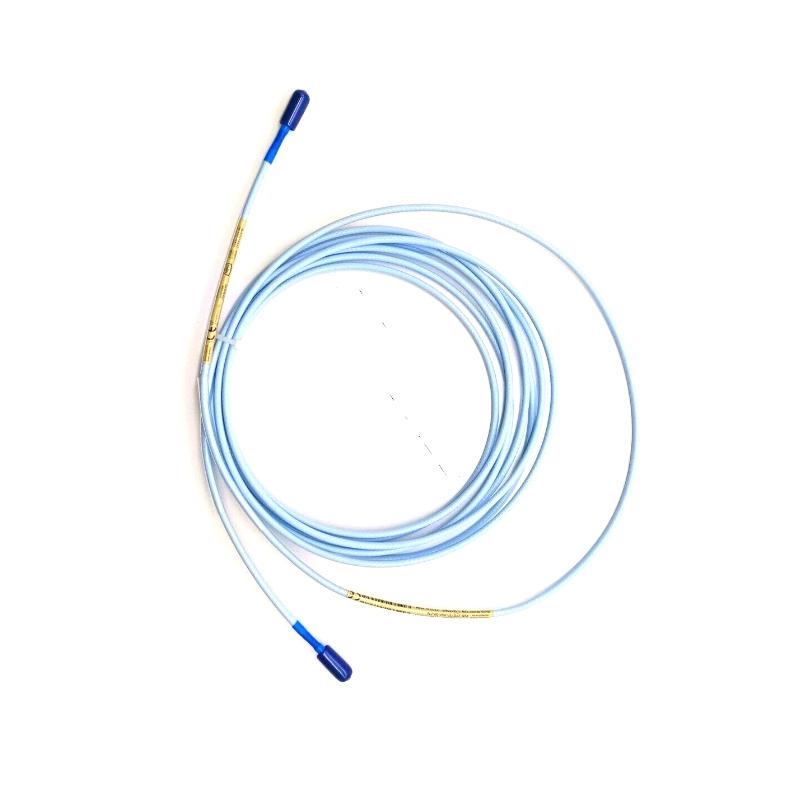

The Bently Nevada 330130-075-02-RU is a 3300 XL standard extension cable used in the Bently Nevada 3300 XL proximity transducer system.

It provides the essential connection between the proximity probe and the Proximitor sensor, ensuring accurate transmission of vibration, displacement, and Keyphasor signals in rotating machinery monitoring systems.

This model supports a 7.5-meter cable length, making it suitable for medium-to-long distance routing in industrial equipment such as turbines, compressors, and generators.

The “-RU” suffix indicates a specific regional or configuration variant within the Bently Nevada ordering system.

Technical Specifications

Function and Working Principle

The extension cable does not perform measurement itself. Instead, it acts as a precision signal transmission pathway within the 3300 XL monitoring chain.

Signal Flow

1. Proximity probe detects shaft motion using eddy-current sensing
2. Electrical analog signal is generated at the probe
3. Extension cable transmits the signal with minimal loss
4. Proximitor sensor converts and conditions the signal into calibrated output

Vout→Proximitor conditioning stageV_{out} \rightarrow \text{Proximitor conditioning stage}Vout​→Proximitor conditioning stage

Key Functions

• Transmits high-frequency proximity probe signals
• Maintains signal integrity over 7.5-meter routing distance
• Supports shaft vibration and displacement measurement
• Enables Keyphasor phase reference signal transmission
• Compatible with API 670 machinery protection systems

System Role

The 3300 XL proximity measurement system consists of:

• Proximity probe (sensor head)
• Extension cable (this component)
• Proximitor sensor (signal conditioning module)

Together, they enable:

• Shaft vibration monitoring
• Radial displacement measurement
• Rotor dynamic analysis
• Machinery protection and shutdown logic inputs

Industrial Applications

• Steam turbines
• Gas turbines
• Compressors
• Pumps
• Generators
• Industrial fans
• Petrochemical rotating equipment
• Power generation systems

Installation Guidelines

• Use proper ClickLoc connector engagement (hand-tight only)
• Avoid sharp bends or mechanical stress on cable
• Keep cable separated from high-voltage or high-noise electrical lines
• Ensure proper grounding and shielding practices
• Verify full system compatibility (probe + cable + Proximitor)
• Confirm correct system length configuration for calibration accuracy

Key Advantages

• Stable signal transmission over 7.5 meters
• High resistance to electromagnetic interference (EMI)
• Designed for Bently Nevada 3300 XL system compatibility
• Supports reliable condition monitoring and predictive maintenance
• Flexible installation for industrial machinery layouts

Technical FAQs

Q1: Does this cable measure vibration?
No. It only transmits signals between the probe and the Proximitor sensor.

Q2: What does “RU” mean?
It indicates a specific configuration or regional ordering variant in the Bently Nevada coding system.

Q3: Can it be used alone?
No. It must be used as part of a complete probe–cable–Proximitor system.

Q4: Where is it used?
In turbines, compressors, pumps, generators, and other rotating machinery systems.

Conclusion

The Bently Nevada 330130-075-02-RU 3300 XL Standard Extension Cable is a 7.5-meter precision interconnect component designed for industrial vibration monitoring systems. It ensures stable, low-noise signal transmission, supporting accurate machine protection and predictive maintenance in critical rotating equipment environments.
