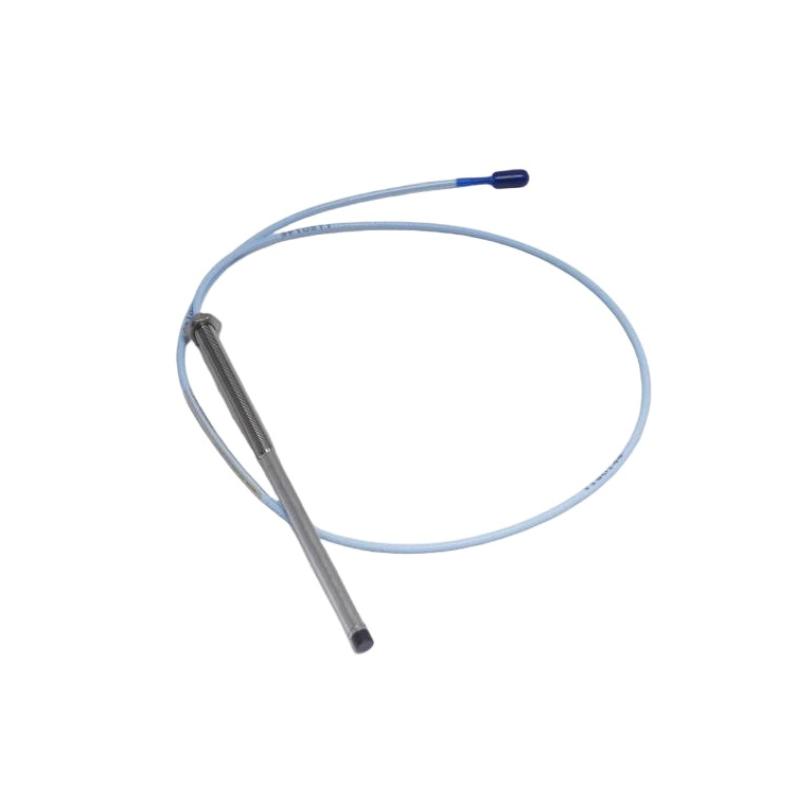

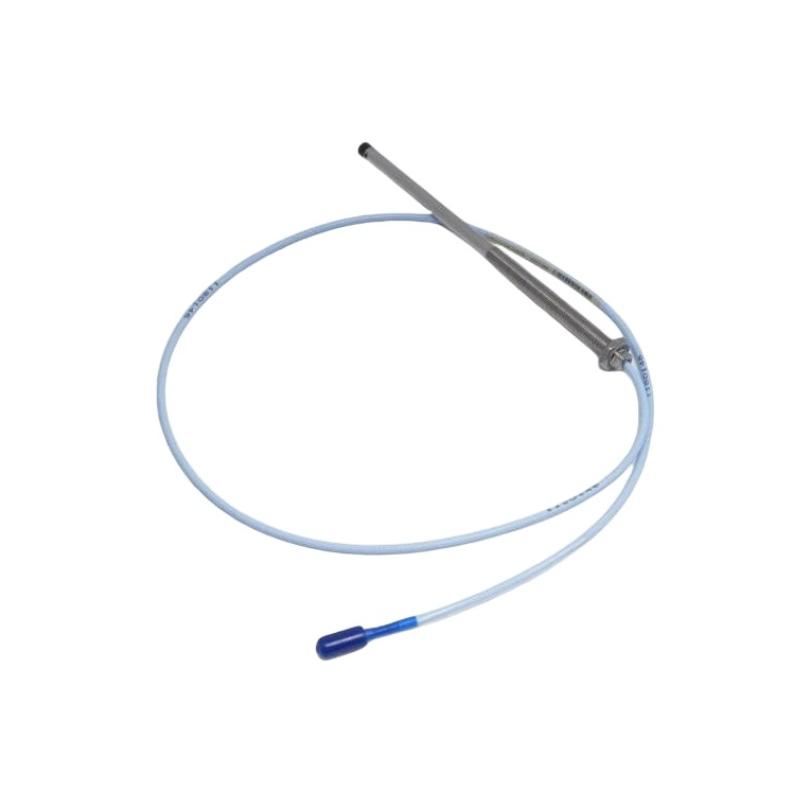

Bently Nevada 330104-00-12-05-02-00
Comprehensive Product Overview and Technical Guide
1. Product Introduction
The model 330104-00-12-05-02-00 belongs to a widely used industrial vibration monitoring system. It is part of a proximity probe assembly designed for precise shaft vibration and position measurement in rotating machinery.
This type of sensor is engineered to operate in demanding environments such as turbines, compressors, pumps, and motors. It works based on eddy current principles, allowing non-contact measurement with high accuracy and reliability.
The probe is typically integrated into a complete monitoring system consisting of a probe, extension cable, and proximitor sensor, forming a critical part of condition monitoring and predictive maintenance strategies.
2. Product Series
- Series Name: 3300 XL 8 mm Proximity Probe System
This series is known for improved signal strength, extended temperature range, and enhanced resistance to harsh industrial conditions.
3. Brand
- Brand: Bently Nevada
A globally recognized name in machinery protection and condition monitoring, known for high-precision vibration analysis solutions.
4. Technical Specifications
| Parameter | Specification |
|---|---|
| Model | 330104-00-12-05-02-00 |
| Probe Diameter | 8 mm |
| Measurement Type | Non-contact eddy current |
| Measurement Range | Typically 2 mm (80 mils) |
| Sensitivity | 7.87 V/mm (200 mV/mil) |
| Frequency Response | 0 – 10 kHz |
| Operating Temperature | -35°C to +177°C |
| Cable Length | 12 ft (approx. 3.6 m) |
| Connector Type | Standard coaxial |
| Material | Stainless steel probe tip |
| Mounting Thread | 3/8-24 UNF |
| Protection Rating | Industrial grade |
| Dimensions | Approx. 8 mm diameter probe tip |
| Weight (kg) | ~0.3 kg |
5. Product Applications
This model is widely applied in industrial rotating machinery monitoring:
- Steam and gas turbines
- Centrifugal compressors
- Electric motors
- Pumps and fans
- Gearboxes
- Oil & gas processing equipment
It is particularly useful in detecting early signs of mechanical faults such as imbalance, misalignment, and bearing wear.
6. Product Advantages
High Accuracy
Provides precise, real-time measurements of shaft vibration and displacement.
Non-contact Measurement
Eliminates mechanical wear and increases service life.
Strong Environmental Adaptability
Operates reliably under high temperature, oil contamination, and vibration conditions.
Interchangeability
Fully compatible with standard 3300 XL system components.
Enhanced Signal Quality
Improved noise immunity ensures stable readings in electrically noisy environments.
Long Service Life
Durable construction minimizes maintenance frequency.
7. Recommended Models (Same Series / Related)
| Model | Probe Diameter | Cable Length | Temp Range | Sensitivity | Weight (kg) |
|---|---|---|---|---|---|
| 330104-00-06-10-02-00 | 8 mm | 6 ft | -35°C to 177°C | 7.87 V/mm | 0.28 |
| 330104-00-08-05-02-00 | 8 mm | 8 ft | -35°C to 177°C | 7.87 V/mm | 0.29 |
| 330104-00-16-10-02-00 | 8 mm | 16 ft | -35°C to 177°C | 7.87 V/mm | 0.35 |
| 330103-00-05-10-02-00 | 5 mm | 5 ft | -35°C to 177°C | 7.87 V/mm | 0.25 |
| 330105-02-12-10-02-00 | 11 mm | 12 ft | -35°C to 177°C | 3.94 V/mm | 0.40 |
8. Recommended Popular Models (Same Brand)
| Model | Type | Measurement Range | Frequency Response | Temp Range | Weight (kg) |
|---|---|---|---|---|---|
| 330180-90-00 | Proximitor Sensor | 2 mm | 0–10 kHz | -35°C to 85°C | 0.5 |
| 330130-040-00-00 | Extension Cable | N/A | N/A | -35°C to 177°C | 0.6 |
| 3500/42M | Monitor Module | Multi-channel | 0–20 kHz | 0°C to 65°C | 1.2 |
| 3500/22M | Transient Data Interface | High-speed | N/A | 0°C to 65°C | 1.0 |
| 1900/65A | General Purpose Monitor | Multi-parameter | 0–5 kHz | -20°C to 70°C | 0.8 |
9. FAQ (Q&A Format)
Q1: What does this model mainly measure?
A: It measures shaft vibration and displacement using non-contact eddy current technology.
Q2: Is this probe suitable for high-temperature environments?
A: Yes, it can operate up to 177°C, making it suitable for harsh industrial conditions.
Q3: Can it be used with other series components?
A: It is designed specifically for compatibility within the 3300 XL system.
Q4: What industries typically use this product?
A: Power generation, oil & gas, petrochemical, and heavy manufacturing industries.
Q5: Does it require frequent calibration?
A: No, it maintains stable performance and typically requires minimal recalibration.
Q6: What is the typical lifespan of the probe?
A: With proper installation, it can operate reliably for many years.
Q7: Is installation complicated?
A: Installation is straightforward but should follow proper alignment and gap setting procedures.
Q8: How does it handle electrical interference?
A: It has strong shielding and noise immunity for stable signal output.
Q9: What is the difference between 5 mm and 8 mm probes?
A: The 8 mm probe offers a larger measurement range and stronger signal output.
Q10: Can it be used for predictive maintenance?
A: Yes, it is widely used in predictive maintenance systems to detect early machine faults.
