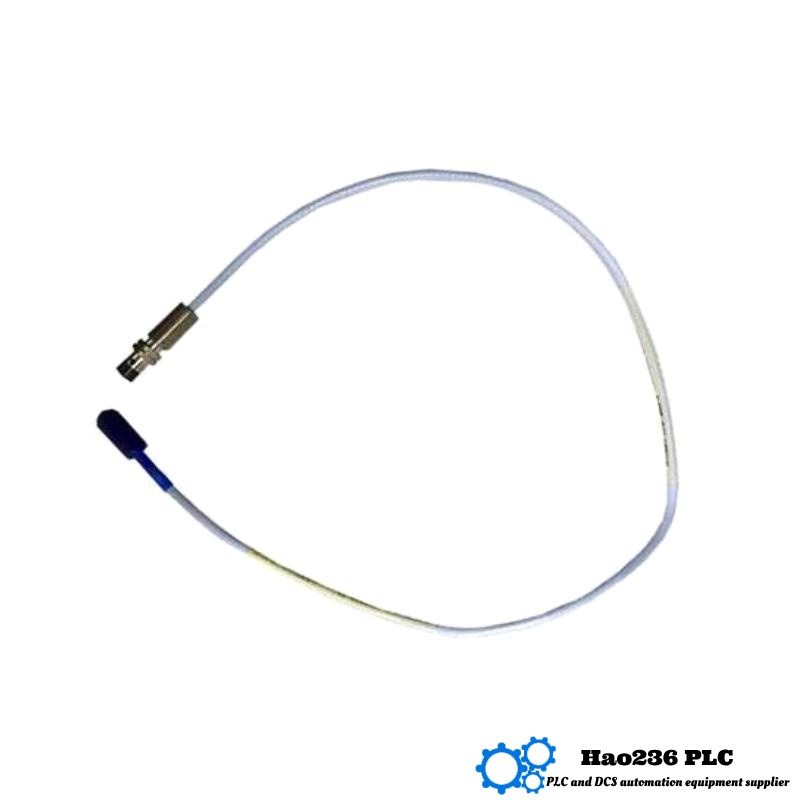

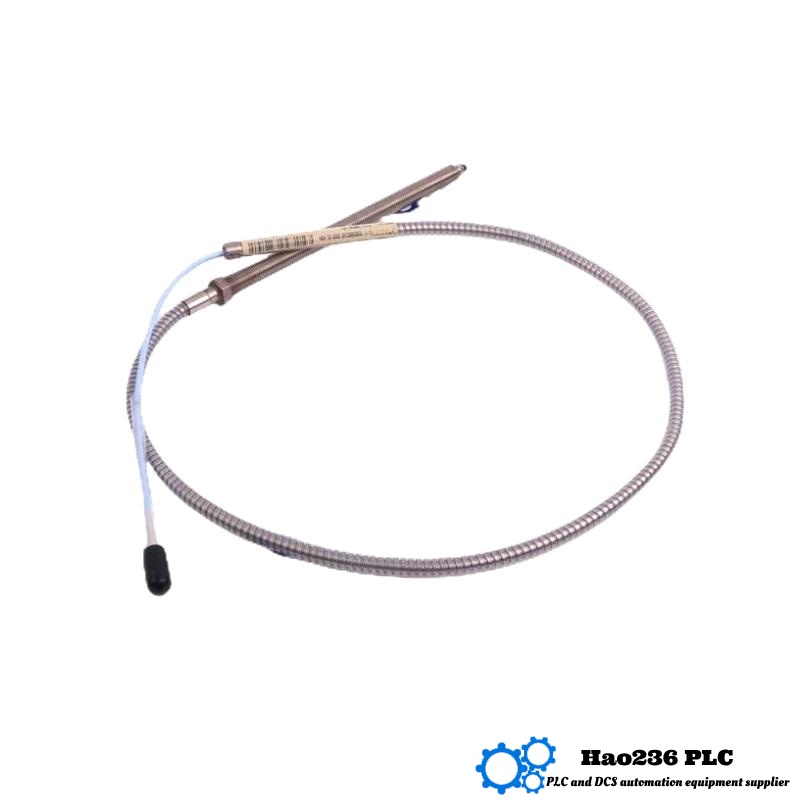

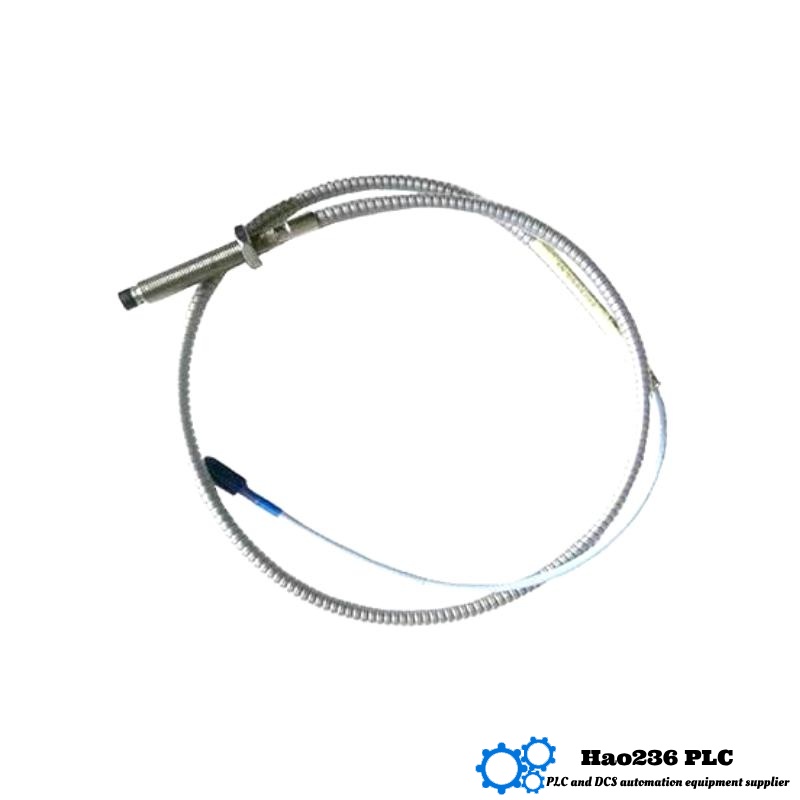

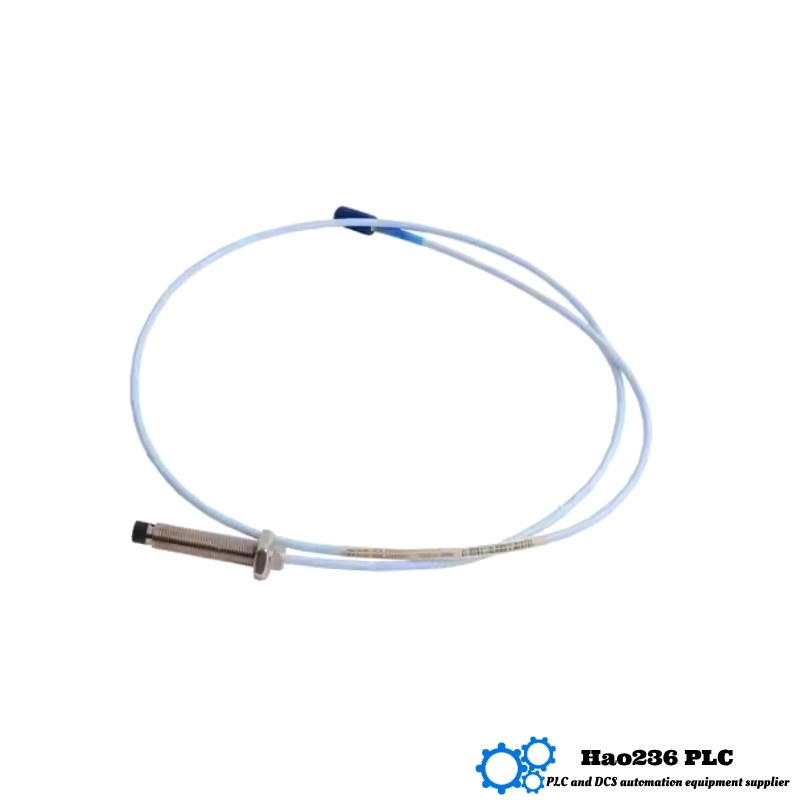

The Bently Nevada 330104-00-08-10-02-00 is an 8 mm diameter proximity probe designed for high-precision, non-contact measurement of shaft displacement and vibration in rotating machinery. As part of the 3300 XL series, this probe delivers reliable, real-time data for condition monitoring systems, enabling early detection of misalignment, imbalance, or bearing wear. Its robust construction ensures long-term performance in demanding industrial environments.
Parameter | Value |
---|---|
Probe Diameter | 8 mm |
Total Length | 1.0 meter |
Weight | 0.323 kg |
Output Signal | 4-20 mA |
Temperature Range | –40 °C to +120 °C |
Vibration Range | ±0.25 mm |
Cable Type | Coaxial, shielded |
Mounting Type | Integral mount |
Mechanical Seal | O-ring sealed |
Environmental Rating | IP 67 |
Turbines: Monitor shaft position to prevent catastrophic failures in power generation.
Compressors: Detect early signs of imbalance or misalignment to optimize performance.
Pumps & Fans: Provide continuous vibration feedback to avoid unexpected downtime.
Electric Motors: Track shaft displacement to ensure smooth operation and longevity.
General Machinery: Integrate into plant-wide condition monitoring programs for predictive maintenance.
High Accuracy: Eddy-current sensing delivers ±0.25 mm resolution for early fault detection.
Durability: Stainless-steel housing and IP67 rating protect against dust, moisture, and vibration.
Wide Temperature Tolerance: Operates reliably from –40 °C to +120 °C.
Non-Contact Measurement: Eliminates wear on both sensor and target, reducing maintenance.
Easy Integration: Seamlessly connects to Bently Nevada 3300 XL monitors via standard 4-20 mA output.
Brand: Bently Nevada
Series: 3300 XL Series
Bently Nevada’s 3300 XL series is the industry standard for monitoring rotating equipment health, providing proven accuracy and reliability across oil & gas, power, and manufacturing sectors.
Model | Total Length | Weight | Output | Notes |
---|---|---|---|---|
330104-00-08-10-02-01 | 1.5 meters | 0.325 kg | 4-20 mA | Extended cable for large machinery |
330104-00-08-05-02-00 | 0.5 meter | 0.162 kg | 4-20 mA | Short-range probe for compact installations |
330104-00-08-10-01-00 | 1.0 meter | 0.323 kg | 4-20 mA | Standard version with high durability |
330101-00-08-10-02-00 | 8 mm, 1.0 meter | 0.30 kg | 4-20 mA | 5 mm sensor variant for higher sensitivity |
330500-01-01-10-01-05 | 0.5 meter | 0.2 kg | 4-20 mA | Broad-band vibration transducer |
Model | Total Length | Weight | Output | Application |
---|---|---|---|---|
330104-00-08-10-02-00 | 1.0 meter | 0.323 kg | 4-20 mA | General vibration & displacement monitoring |
330104-00-07-10-01-05 | 1.0 meter | 0.323 kg | 4-20 mA | High-temp turbine monitoring |
330500-00-05-01-05 | 0.5 meter | 0.175 kg | 4-20 mA | High-sensitivity vibration sensor |
330700-00-07-01-05 | 1.2 meter | 0.28 kg | 4-20 mA | Long-range displacement monitoring |
330110-00-09-10-01-05 | 2.0 meters | 0.45 kg | 4-20 mA | Extended cable for power plant turbines |
Q1: What is the primary use of the 330104-00-08-10-02-00 probe?
A1: It measures shaft displacement and vibration for predictive maintenance of rotating machinery.
Q2: What is the probe’s total length and weight?
A2: The probe is 1.0 meter long and weighs 0.323 kg.
Q3: What output signal does it provide?
A3: It provides a standard 4-20 mA industrial output.
Q4: Can it operate in extreme temperatures?
A4: Yes, from –40 °C to +120 °C.
Q5: What is its environmental protection rating?
A5: It is rated IP67, offering dust and water resistance.
Q6: How is the probe mounted?
A6: It uses an integral mounting flange and O-ring seal.
Q7: What industries use this probe?
A7: Oil & gas, power generation, petrochemical, and general manufacturing.
Q8: How does non-contact measurement benefit me?
A8: It prevents wear on both sensor and shaft, extending service life.
Q9: What maintenance does the probe require?
A9: Minimal—periodic cleaning and inspection are usually sufficient.
Q10: How does it integrate with monitoring systems?
A10: It connects directly to Bently Nevada 3300 XL series monitors via the 4-20 mA loop.
