Bently Nevada 330101-46-65-10-02-05 8 mm Proximity Probe
Product Introduction

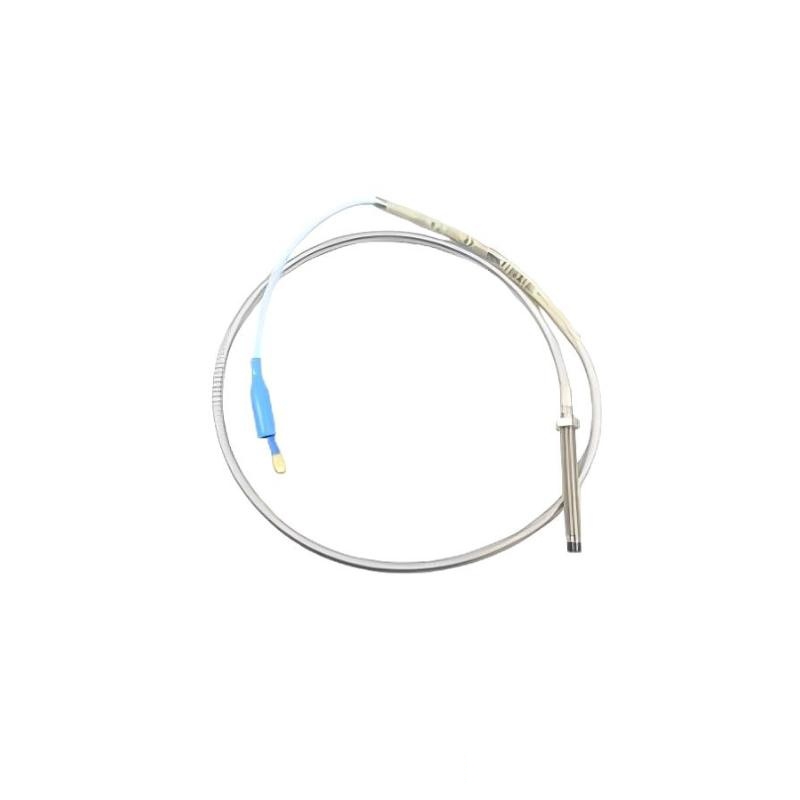

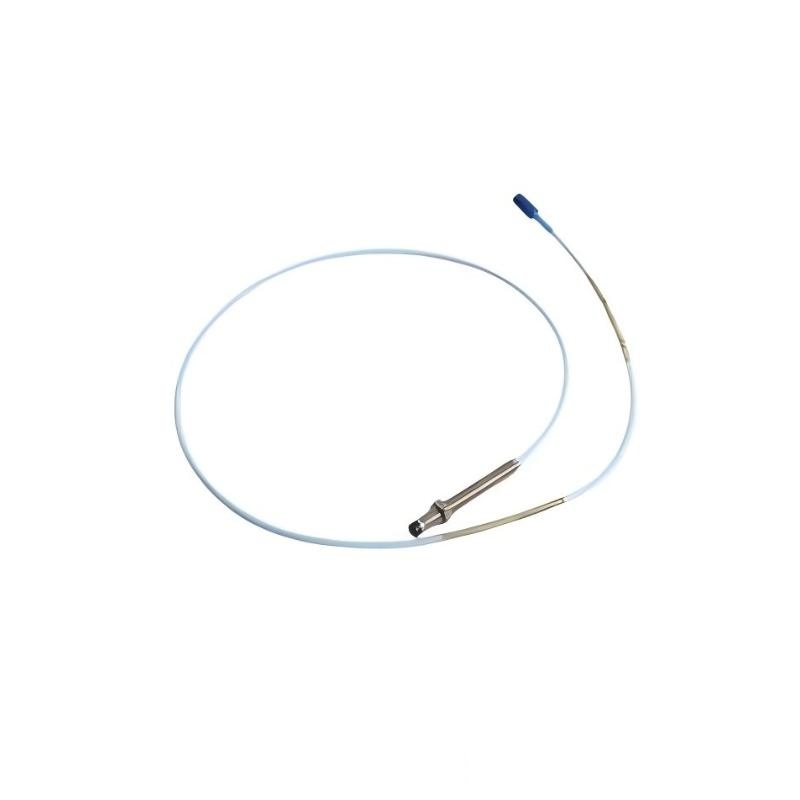

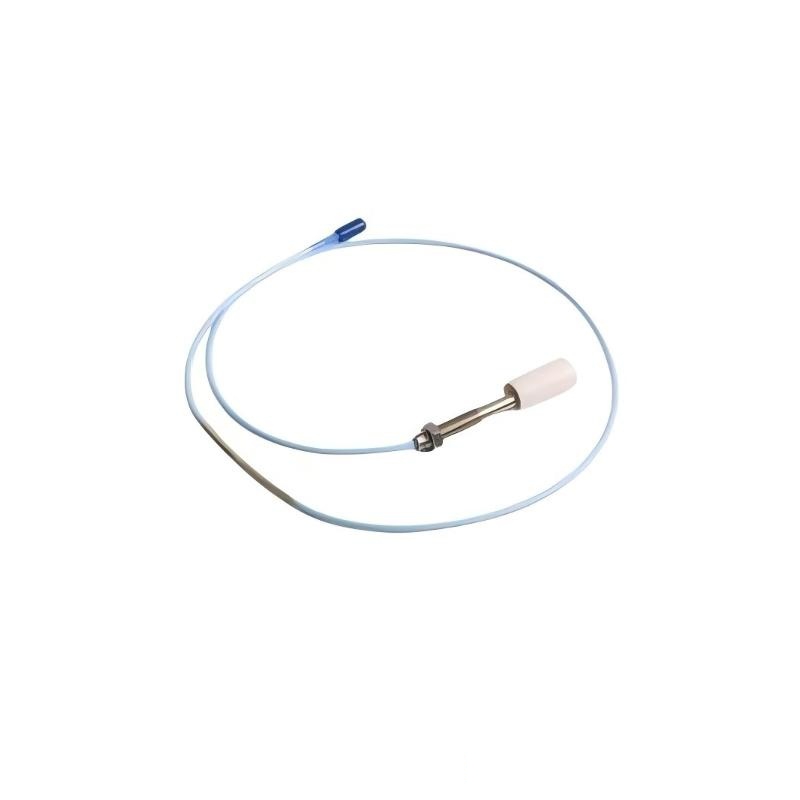

The Bently Nevada 330101-46-65-10-02-05 is a premium-grade 8 mm proximity probe, part of the well-established 3300 XL series, specifically designed for accurate non-contact vibration and position measurements in industrial rotating machinery. This probe is highly suitable for monitoring radial and axial shaft position and vibration in turbines, compressors, motors, pumps, and other high-speed rotating equipment.
It features a rugged design, EMI resistance, and superior linearity characteristics to meet demanding requirements in harsh environments. The probe works in conjunction with extension cables and Proximitor sensors to form a complete proximity transducer system.
Product Specifications
| Parameter | Specification |
|---|---|
| Model | 330101-46-65-10-02-05 |
| Series | 3300 XL |
| Sensing Element | 8 mm tip with encapsulated construction |
| Target Material | 4140 steel (or equivalent) |
| Linear Range | 2 mm (80 mils) typical |
| Sensitivity | 7.87 mV/μm (200 mV/mil) |
| Thread Size | 3/8-24 UNF |
| Connector Type | ClickLoc coaxial connector |
| Cable Jacket | PFA jacket, abrasion and oil-resistant |
| Temperature Range | –35°C to +177°C |
| Total Length | 1.0 meter |
| Weight | 0.323 kg |
Product Applications
This proximity probe is widely used in the following areas:
-
Vibration monitoring of critical rotating equipment
-
Shaft position and phase reference measurements
-
Condition-based maintenance and diagnostics
-
Integration with Bently Nevada 3500 monitoring systems
-
Suitable for power generation, oil & gas, petrochemical, and paper industries
Product Advantages
-
High Precision: Ensures accurate, reliable measurements over an extended range.
-
Harsh Environment Compatibility: Operates in extreme industrial conditions without degradation.
-
EMI Shielding: Excellent protection against electromagnetic interference.
-
Robust ClickLoc Connector: Provides secure and reliable field installation.
-
Part of Modular System: Integrates seamlessly with extension cables and Proximitor sensors.
Brand Overview
Bently Nevada, is globally renowned for its condition monitoring systems and vibration sensing technologies. With decades of leadership in machinery protection, Bently Nevada products like the 3300 XL series are engineered for precision, durability, and integration across complex rotating equipment. Their instrumentation supports predictive maintenance and enhances operational safety worldwide.
Related Models from 3300 XL Series
| Model | Description | Total Length | Weight |
|---|---|---|---|
| 330101-00-12-10-02-05 | 8 mm probe with 1.2 m cable, straight connector | 1.2 m | 0.32 kg |
| 330101-00-18-10-02-05 | 8 mm probe with 1.8 m cable, straight connector | 1.8 m | 0.33 kg |
| 330101-29-50-10-02-05 | 8 mm probe with 5 m cable, 90° connector | 5.0 m | 0.34 kg |
| 330101-25-44-10-02-05 | 8 mm probe with 4.4 m cable, straight connector | 4.4 m | 0.33 kg |
| 330101-48-90-10-02-05 | 8 mm probe with 9 m cable, straight connector | 9.0 m | 0.36 kg |
Popular Bently Nevada Models
| Model | Description | Cable Length (m) |
|---|---|---|
| 330102-00-20-10-01-00 | Proximity probe with 20 ft cable, straight connector | 6.1 |
| 330102-00-20-10-01-05 | Same as above with 5 mm tip length | 6.1 |
| 330102-00-20-10-02-00 | Proximity probe with 20 ft cable, 90° connector | 6.1 |
| 330102-00-20-10-02-05 | 90° connector version, 5 mm tip length | 6.1 |
| 330102-00-15-10-01-00 | Proximity probe with 15 ft cable, straight connector | 4.6 |
FAQ (Q&A)
Q1: What is the diameter of this proximity probe’s sensing tip?
A1: The probe has an 8 mm diameter sensing tip.
Q2: Is this probe compatible with 3500 monitoring systems?
A2: Yes, it is fully compatible with Bently Nevada 3500 systems.
Q3: What is the length of the cable included?
A3: This model includes a 1.0 meter cable.
Q4: What connector type does it use?
A4: It features the patented ClickLoc coaxial connector.
Q5: What material is recommended as the target surface?
A5: The standard target is 4140 steel or equivalent.
Q6: What is the probe’s operating temperature range?
A6: It operates from –35°C to +177°C.
Q7: Can it be used in outdoor applications?
A7: Yes, the PFA cable jacket offers resistance to oil, chemicals, and environmental wear.
Q8: What is its linear measurement range?
A8: The probe has a linear range of approximately 2 mm.
Q9: Is it suitable for high-speed turbines?
A9: Yes, it is commonly used for vibration and position monitoring in turbines and compressors.
Q10: How much does this proximity probe weigh?
A10: The total weight is approximately 0.323 kg.
