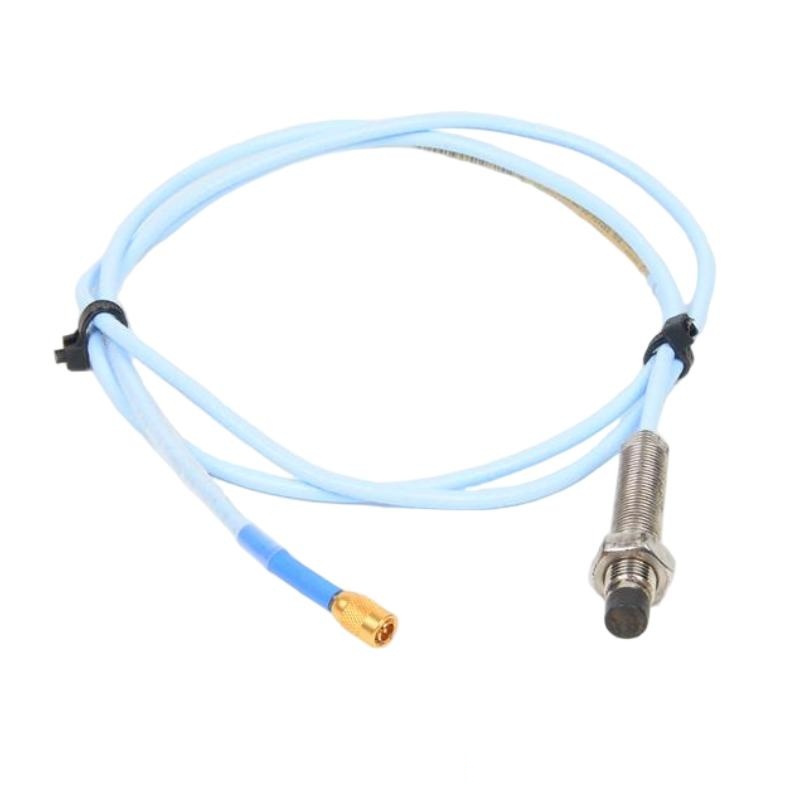

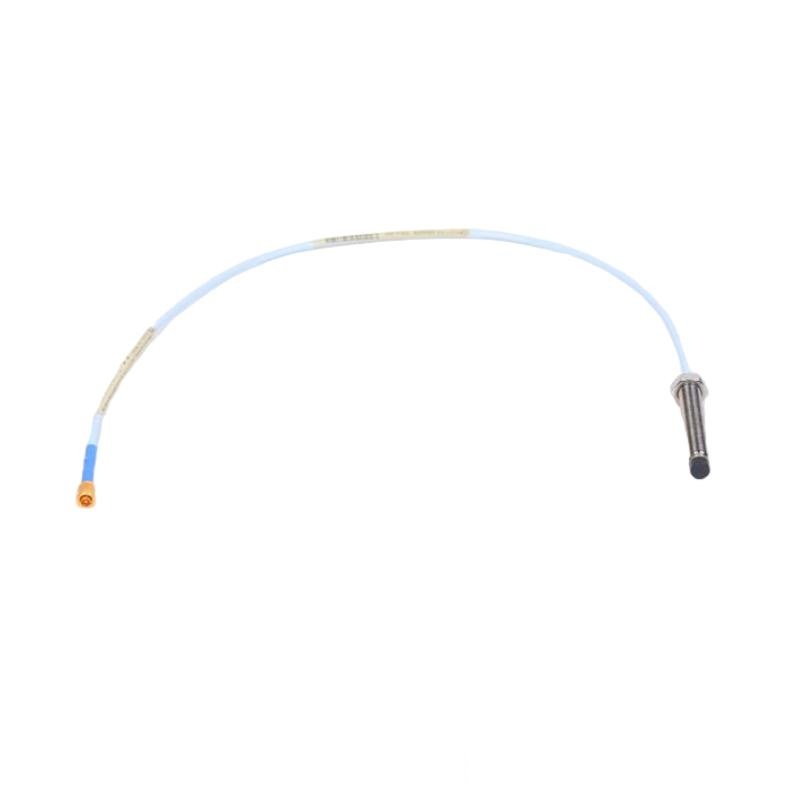

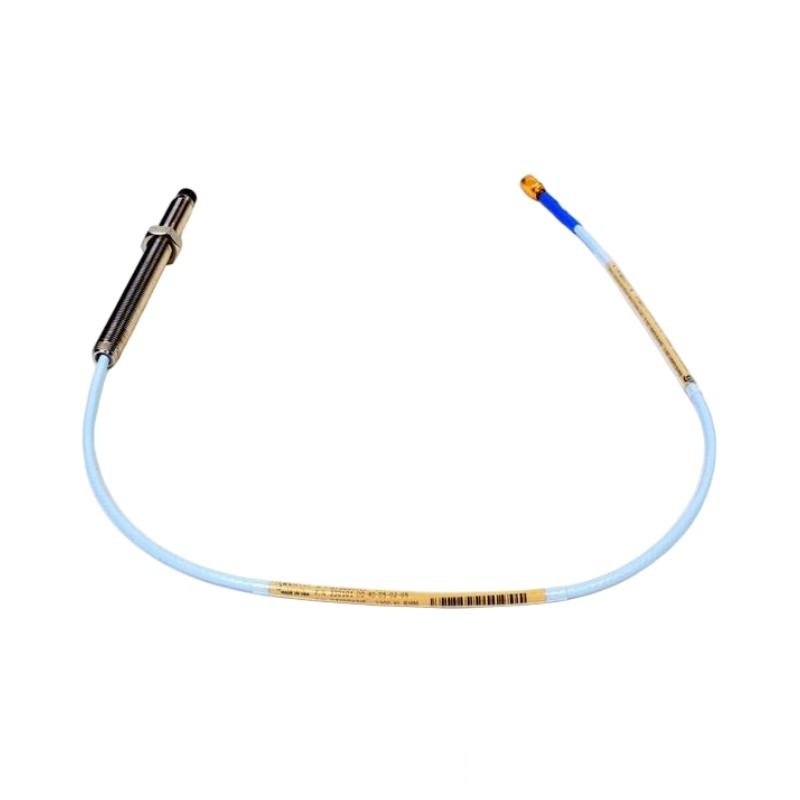

Bently Nevada 330101-00-12-20-02-05 8 mm Proximity Probe
Product Overview
The Bently Nevada 330101-00-12-20-02-05 is an 8 mm non-contacting eddy-current proximity probe specifically designed for the 3300 XL series of machinery protection and condition monitoring systems. With its precision stainless-steel sensing tip, integrated spring assembly, and robust PTFE-insulated, shielded cable, this probe delivers high-resolution displacement and vibration measurements. It is engineered to maintain a stable air gap and provide repeatable ±10 V output signals under the most demanding industrial conditions.
Technical Specifications
| Parameter | Specification |
|---|---|
| Model Number | 330101-00-12-20-02-05 |
| Series | 3300 XL |
| Probe Diameter | 8 mm |
| Gap Range | 0.25–2.54 mm |
| Output Signal | ±10 V proportional to gap |
| Total Length | 2 meters |
| Cable Type | Shielded PTFE-insulated coaxial |
| Connector | 10-pin MIL-C-26482 stainless-steel |
| Operating Temperature | –40 °C to +120 °C |
| Shock Resistance | 100 g, 11 ms half-sine |
| Weight | 0.646 kg |
| Material | 316 stainless steel |
| EMI Immunity | Integrated grounding spring and braid shield |
Applications
This probe is widely used for machinery protection and predictive maintenance in:
-
Rotating Equipment such as turbines, compressors, and large motors for vibration and position monitoring.
-
Power Generation plants to track shaft clearance and detect rub-through events.
-
Oil & Gas installations for flow-induced vibration analysis in pipelines and rotating machinery.
-
Pumps and Fans to monitor imbalance, misalignment, and bearing wear through real-time displacement data.
-
Gearboxes and Turbomachinery for early detection of mechanical looseness and shaft bow.
Advantages
-
High Linearity & Accuracy
Maintains better than 1 % full-scale linearity across its recommended gap range, ensuring precise diagnostics. -
Rugged Stainless-Steel Construction
Withstands mechanical shock, vibration, and corrosive atmospheres while preserving measurement integrity. -
Superior EMI Protection
PTFE-insulated, shielded cable and integrated grounding spring guard against electromagnetic interference. -
Hot-Swap Capability
Standard 10-pin connector and spring assembly enable rapid field replacement without system shutdown. -
Wide Temperature Endurance
Operates reliably from –40 °C to +120 °C, suitable for extreme process and outdoor applications.
Brand
Bently Nevada is a leader in machinery protection and condition monitoring. The 3300 XL series is renowned for its modular design, hot-swappable electronics, and advanced diagnostic capabilities, safeguarding critical rotating assets around the globe.
Related Models in the 3300 XL Series
| Model | Part Number | Probe Dia. | Total Length | Weight (kg) |
|---|---|---|---|---|
| 330101-00-12-20-02-05 | 330101-00-12-20-02-05 | 8 mm | 2 m | 0.646 |
| 330101-00-08-20-02-CN | 330101-00-08-20-02-CN | 8 mm | 2 m | 0.646 |
| 330101-00-11-20-02-05 | 330101-00-11-20-02-05 | 8 mm | 2 m | 0.646 |
| 330100-00-18-20-02-CN | 330100-00-18-20-02-CN | 18 mm | 2 m | 0.680 |
| 330101-00-08-30-02-CN | 330101-00-08-30-02-CN | 8 mm | 3 m | 0.700 |
Popular Bently Nevada Models
| Model | Part Number | Description | Key Spec |
|---|---|---|---|
| 330100-00-18-00-02 | 330100-00-18-00-02 | 18 mm probe, 2 m cable | Weight 0.680 kg |
| 330100-00-58-60-02 | 330100-00-58-60-02 | 58 mm probe, 6 m cable | Weight 0.980 kg |
| 330101-00-08-60-02 | 330101-00-08-60-02 | 8 mm probe, 6 m cable | Weight 0.850 kg |
| 330100-00-18-12-02 | 330100-00-18-12-02 | 18 mm probe, 12 m cable | Weight 1.10 kg |
| 305472-00-02-10-02 | 305472-00-02-10-02 | Expansion cable, 10 m | Weight 1.25 kg |
Frequently Asked Questions (FAQ)
Q1: What is the sensing principle of this probe?
A1: It uses eddy-current induction to convert shaft proximity into a proportional AC voltage signal.
Q2: Can I customize the cable length?
A2: Yes, cable lengths ranging from 0.1 m up to 12 m are available to suit your installation needs.
Q3: How does the probe connect to the monitor card?
A3: It connects via a 10-pin MIL-C-26482 stainless-steel connector directly into a 3300 XL probe input.
Q4: What is the optimal gap setting?
A4: A gap of 0.25–1.0 mm provides the best linearity and sensitivity.
Q5: Does this probe require external power?
A5: No, it is powered and conditioned by the 3300 XL monitor electronics.
Q6: How resistant is it to EMI?
A6: The shielded PTFE cable and grounding spring assembly ensure excellent EMI immunity.
Q7: What temperature extremes can it endure?
A7: Rated for continuous operation from –40 °C up to +120 °C.
Q8: Can it withstand mechanical shocks?
A8: Yes, it is rated for 100 g half-sine shocks of 11 ms duration.
Q9: How often should it be calibrated?
A9: Factory-calibrated at shipment; recommended field recalibration intervals depend on operating hours and environmental stress.
Q10: Where can I find detailed installation guides?
A10: Comprehensive datasheets, installation manuals, and calibration certificates are available through Bently Nevada’s support portal.
