Product Overview

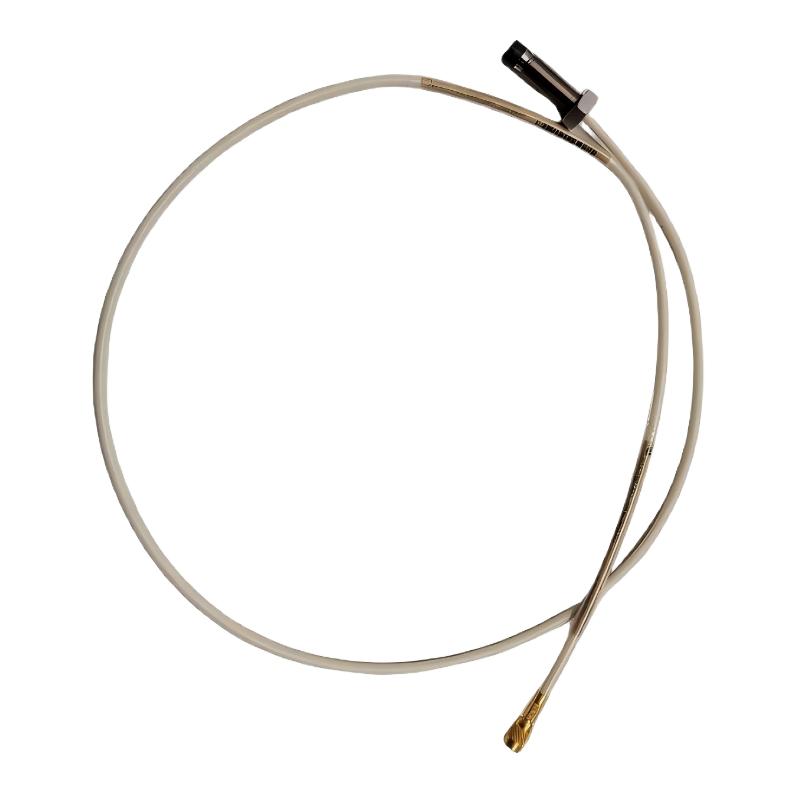

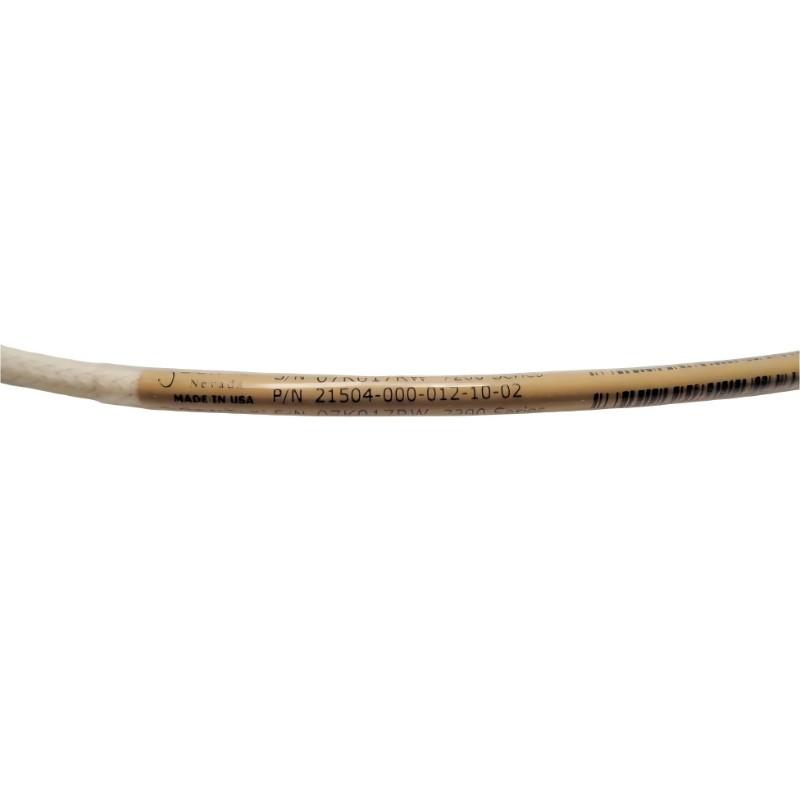

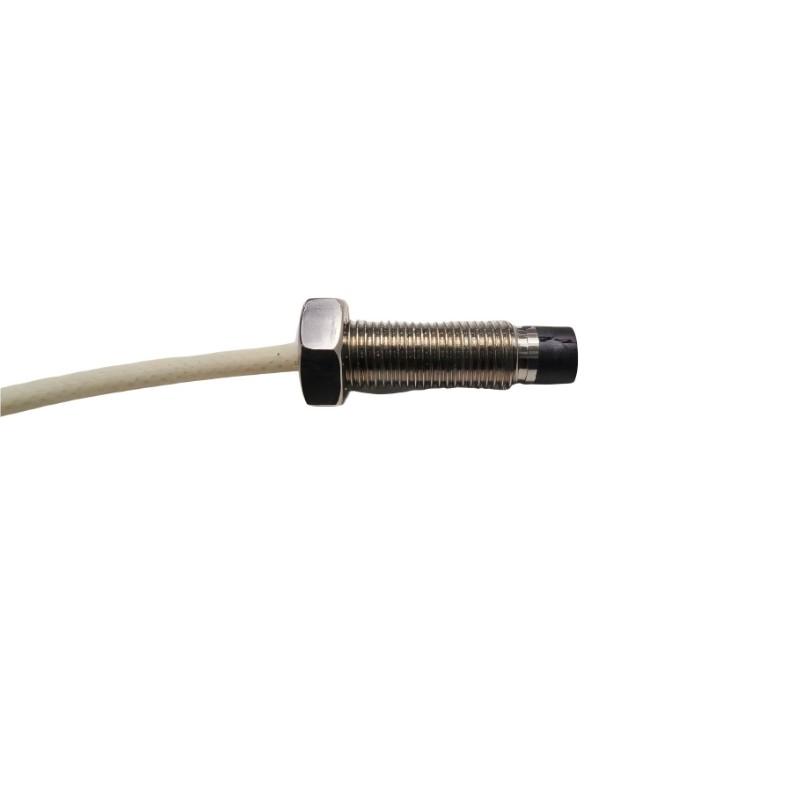

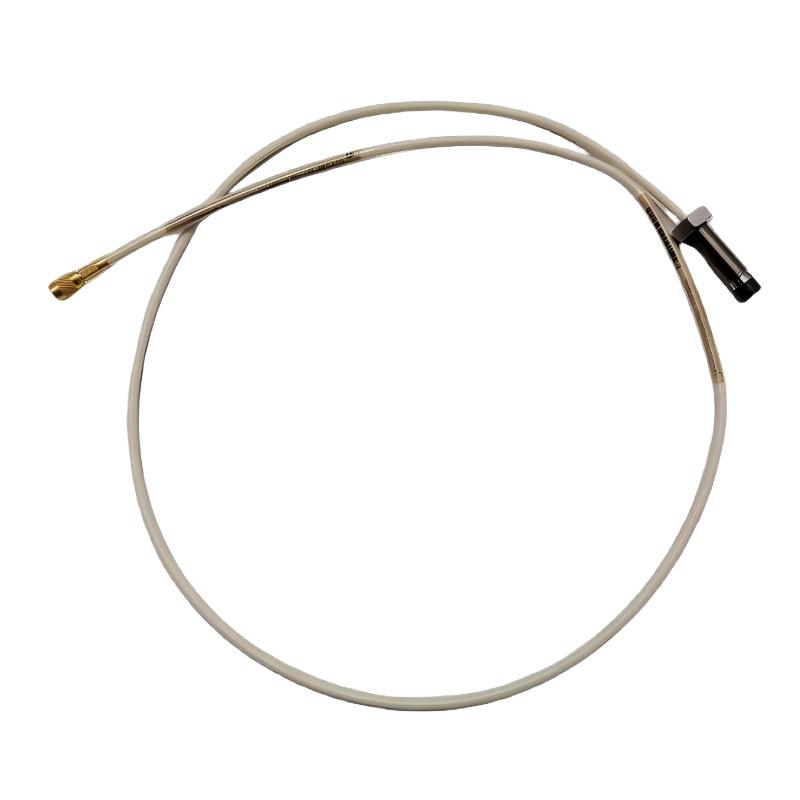

The Bently Nevada 21504-000-012-10-02 is a 7200 Series 8 mm Standard Mounting Proximity Probe designed for non-contact measurement of shaft vibration, displacement, and position in industrial rotating machinery.
With eddy-current sensing technology, this probe provides highly accurate and reliable monitoring of critical equipment. Its 8 mm probe diameter and 1-meter total length make it suitable for standard mounting applications, combining flexibility in installation with precise measurement performance.
Technical Specifications
| Parameter | Details |
|---|---|
| Manufacturer | Bently Nevada |
| Model | 21504-000-012-10-02 |
| Product Type | 7200 Series Proximity Probe |
| Series | 7200 |
| Probe Diameter | 8 mm |
| Total Length | 1 meter |
| Mounting Type | Standard Mounting |
| Measurement Principle | Eddy-current, non-contact sensing |
| Shipping Weight | 0.22 kg |
| Measurement Type | Shaft vibration, displacement, and position |
| Linear Measurement Range | 2–3 mm (typical) |
| Sensitivity | 200 mV/mil (typical) |
| Frequency Response | Up to 10 kHz |
| Application | Machinery protection, condition monitoring, and diagnostics |
Function and Working Principle
The 21504-000-012-10-02 operates using eddy-current sensing:
- The probe tip emits a high-frequency electromagnetic field.
- When near a conductive target, such as a rotating shaft, eddy currents are induced in the target.
- Changes in the gap between the probe and the target alter the electromagnetic field.
- These changes are converted into electrical signals proportional to shaft vibration, displacement, and position.
Being non-contact, this probe reduces mechanical wear and ensures long-term reliability.
Key Features
- 8 mm probe diameter for standard applications
- 1-meter total length for flexible installation
- Non-contact eddy-current sensing
- Accurate shaft vibration and displacement measurement
- Rugged industrial construction
- High frequency response for dynamic machinery monitoring
- Compatible with 7200 Series monitoring systems
- Suitable for continuous online monitoring
Industrial Applications
- Steam and gas turbine shaft monitoring
- Compressor vibration and displacement measurement
- Pump shaft condition monitoring
- Generator vibration and position measurement
- Electric motor diagnostics
- Gearbox monitoring
- Power generation and oil & gas facilities
Installation Overview
- Standard mounting configuration
- Positioned close to the shaft without contact
- Connected to an extension cable and Proximitor sensor
- Requires proper gap adjustment during installation
- Suitable for radial and axial vibration/position measurement
Compatible Components
| Component | Description |
|---|---|
| 7200 Series Extension Cable | Connects probe to Proximitor or signal conditioner |
| Proximitor Sensor | Converts probe signals to usable electrical outputs |
| Machinery Protection System | Provides alarms and shutdown functionality |
| Probe Housing Assembly | Mechanical protection and mounting support |
| Diagnostic Software | Condition monitoring and analysis |
Alternative Models
| Model | Description |
|---|---|
| 21502-01 | 8 mm Eddy Current Probe |
| 21502-04 | 7200 5 mm Probe |
| 21504-000-012-05-02 | 8 mm Probe with shorter length variant |
| 21500-04-32-05-02 | 7200 5 mm Probe |
Key Advantages
- High-precision non-contact shaft measurement
- Reliable for critical rotating machinery
- Flexible 1-meter length for standard mounting
- Rugged, durable construction suitable for industrial environments
- Supports predictive maintenance programs
- Long operational life
- Reduces unexpected downtime in machinery
Conclusion
The Bently Nevada 21504-000-012-10-02 7200 8 mm Standard Mounting Probe is a high-precision, durable, and flexible device for monitoring shaft vibration, displacement, and position. Its eddy-current technology, 8 mm diameter, and 1-meter length make it ideal for standard mounting in industrial machinery across turbines, compressors, pumps, and generators.
