Product Overview

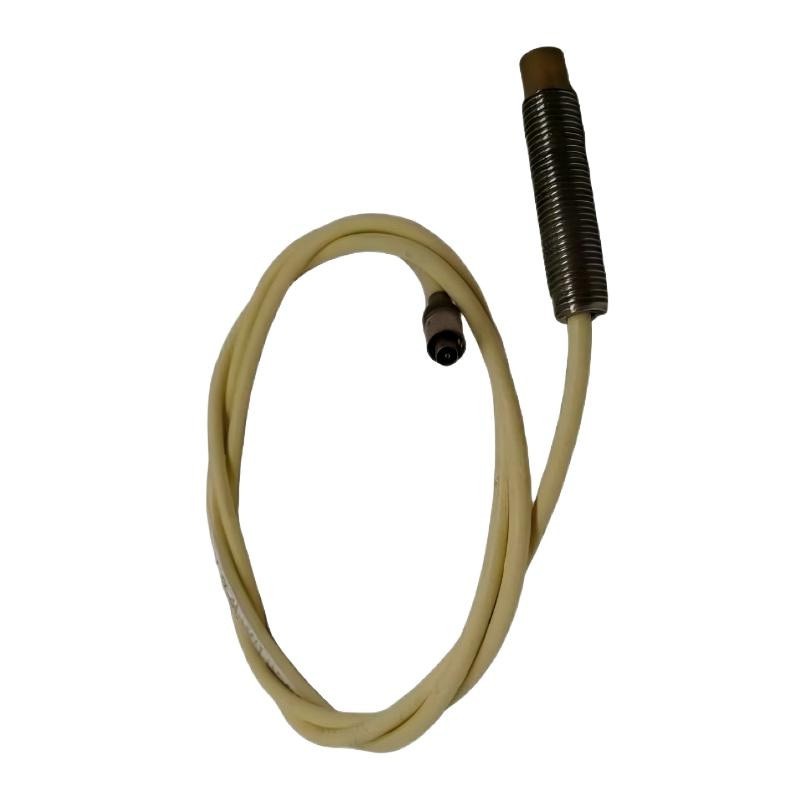

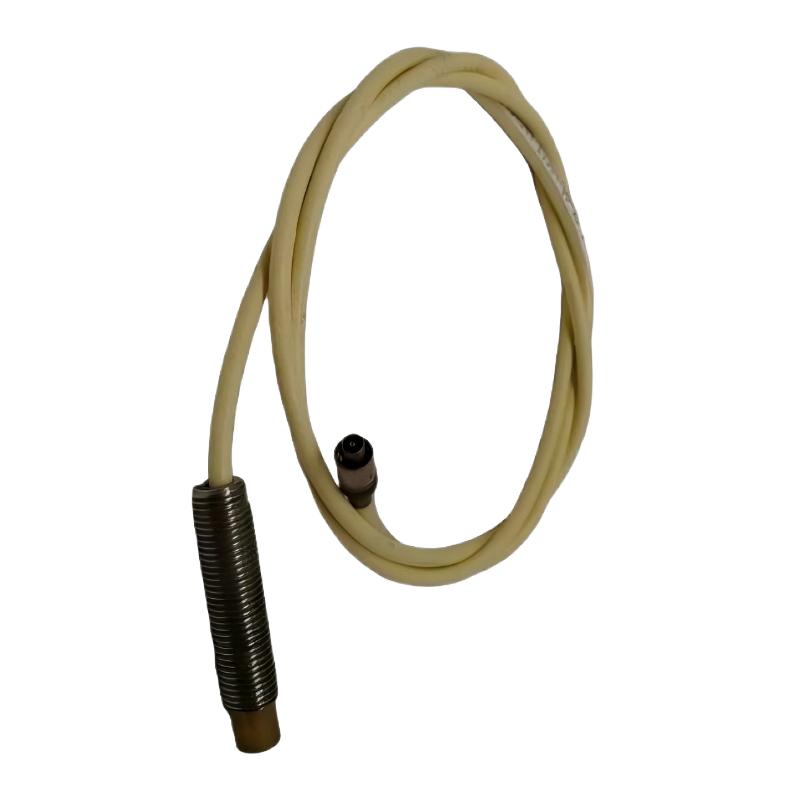

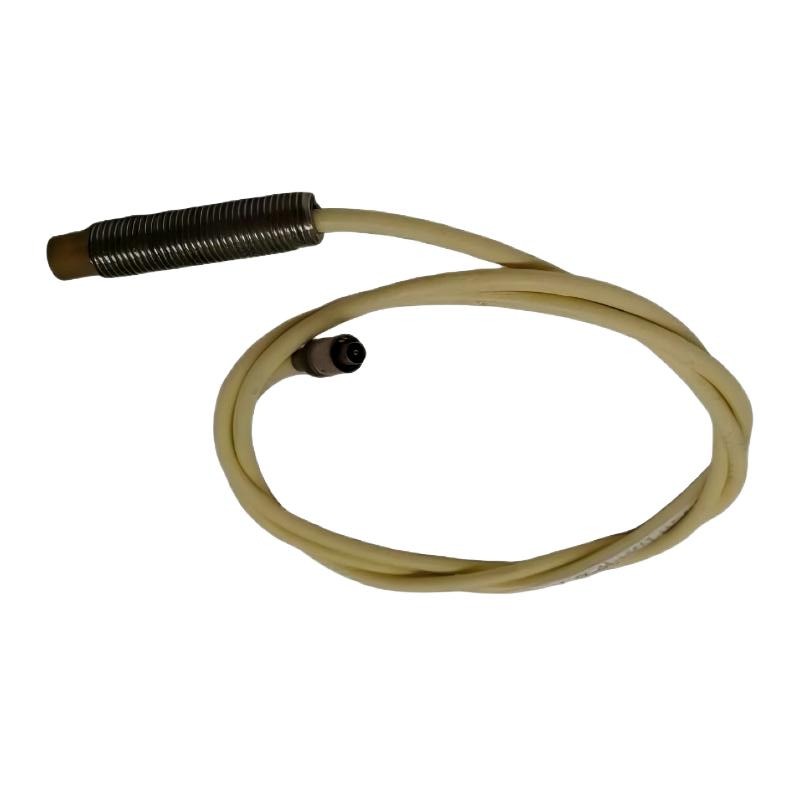

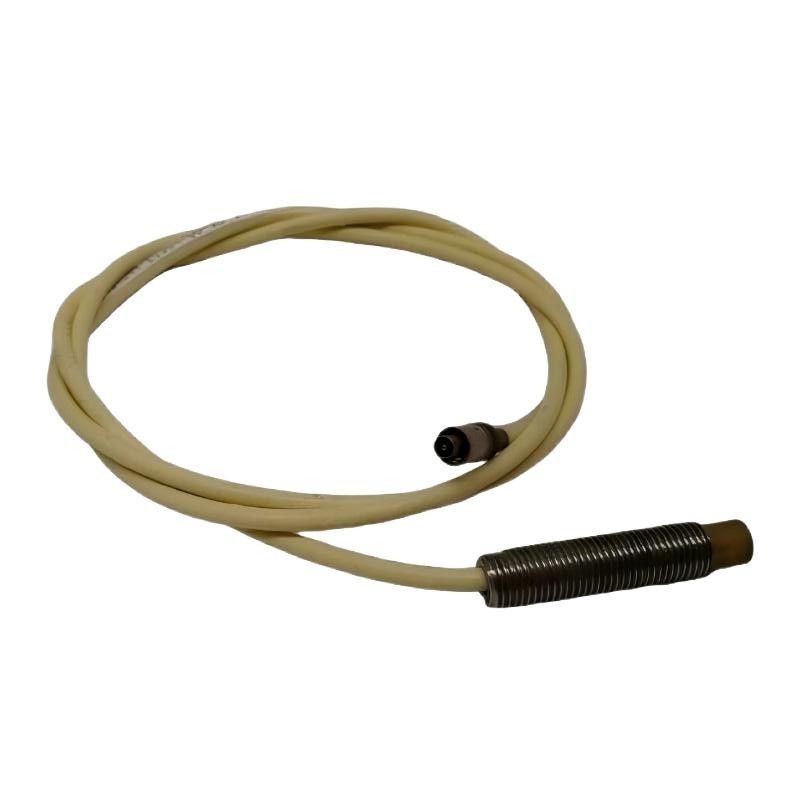

The Bently Nevada 21504-00-16-10-02 is an 8 mm standard mounting proximity probe from the 7200 Series, designed for non-contact measurement of shaft vibration, displacement, and position in rotating machinery.
Using eddy-current sensing technology, it provides accurate and reliable monitoring for turbines, compressors, pumps, generators, and other critical rotating equipment. Its 1-meter total length allows flexible routing and standard industrial installation.
Technical Specifications
| Parameter | Details |
|---|---|
| Manufacturer | Bently Nevada |
| Model | 21504-00-16-10-02 |
| Product Type | 7200 Series Proximity Probe |
| Series | 7200 |
| Probe Diameter | 8 mm |
| Total Length | 1 meter |
| Mounting Type | Standard Mounting |
| Measurement Principle | Eddy-current, non-contact sensing |
| Shipping Weight | 0.22 kg |
| Measurement Type | Shaft vibration, displacement, and position |
| Linear Measurement Range | 2–3 mm (typical) |
| Sensitivity | 200 mV/mil (typical) |
| Frequency Response | Up to 10 kHz |
| Application | Machinery protection and condition monitoring |
Function and Working Principle
The 21504-00-16-10-02 operates using eddy-current technology:
- The probe emits a high-frequency electromagnetic field at its tip.
- Conductive rotating shafts induce eddy currents in response.
- Variations in the probe-to-shaft gap alter the electromagnetic field.
- These changes are converted into electrical signals proportional to shaft vibration and displacement.
The non-contact measurement ensures long-term reliability and eliminates mechanical wear.
Key Features
- 8 mm eddy-current proximity probe
- Standard mounting configuration
- 1-meter total length for flexible installation
- High-accuracy vibration and displacement measurement
- Rugged industrial construction
- Stable long-term performance
- Compatible with 7200 Series monitoring systems
- Ideal for continuous online condition monitoring
Industrial Applications
- Steam turbine monitoring
- Gas turbine protection systems
- Compressor shaft vibration analysis
- Pump condition monitoring
- Generator vibration and position measurement
- Electric motor diagnostics
- Gearbox condition monitoring
- Oil & gas production facilities
- Power generation plants
Installation Overview
- Mounted using standard probe housing or threaded fittings
- Positioned close to the shaft without physical contact
- Connected to extension cable and Proximitor sensor
- Requires precise gap calibration during installation
- Suitable for both radial and axial measurements
Compatible Components
| Component | Description |
|---|---|
| 7200 Series Extension Cable | Transmits probe signal to Proximitor or monitoring system |
| Proximitor Sensor | Converts probe signal into electrical output |
| Machinery Protection System | Provides alarms and shutdown protection |
| Probe Housing Assembly | Mechanical mounting and environmental protection |
| Diagnostic Software | Machinery condition monitoring and analysis tools |
Alternative Models
| Model | Description |
|---|---|
| 21504-00-16-05-02 | 8 mm Probe – 0.5 m length variant |
| 21504-00-12-05-02 | 8 mm Probe – 0.5 m variant |
| 21504-00-08-10-02 | 8 mm Probe – 1 m variant |
| 21502-01 | 8 mm Eddy Current Probe |
Key Advantages
- High-precision non-contact shaft measurement
- Reliable performance in harsh industrial environments
- 1-meter length for flexible installation
- Long operational life with minimal maintenance
- Supports predictive maintenance strategies
- Reduces the risk of unexpected machinery failure
Conclusion
The Bently Nevada 21504-00-16-10-02 7200 8 mm Standard Mounting Probe is a durable and precise eddy-current sensor designed for continuous monitoring of shaft vibration, displacement, and position. Its 1-meter length and robust construction make it ideal for industrial installations requiring both reliability and flexible routing in critical rotating machinery.
