Product Overview

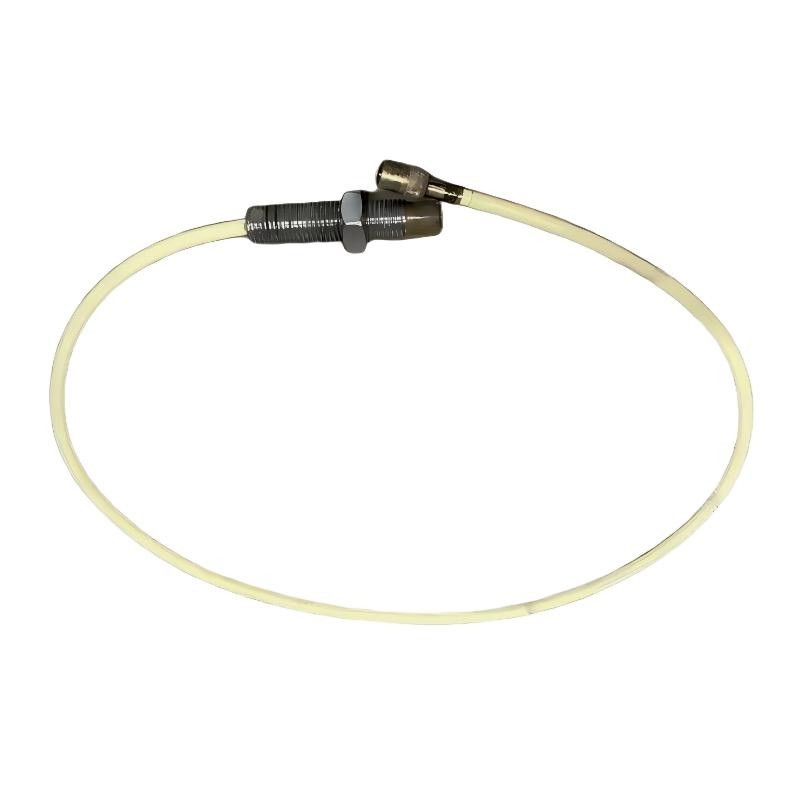

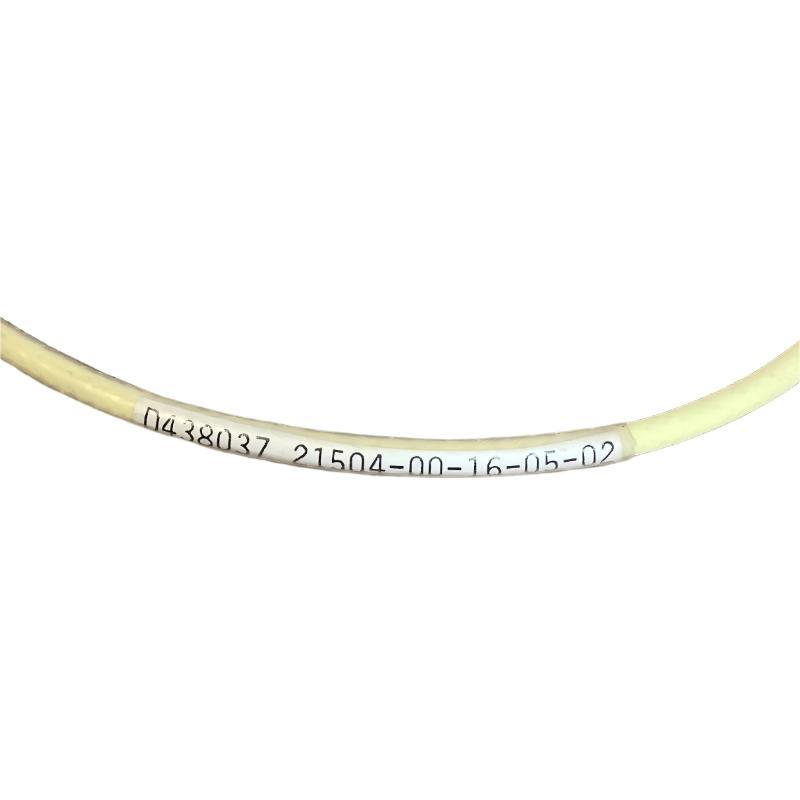

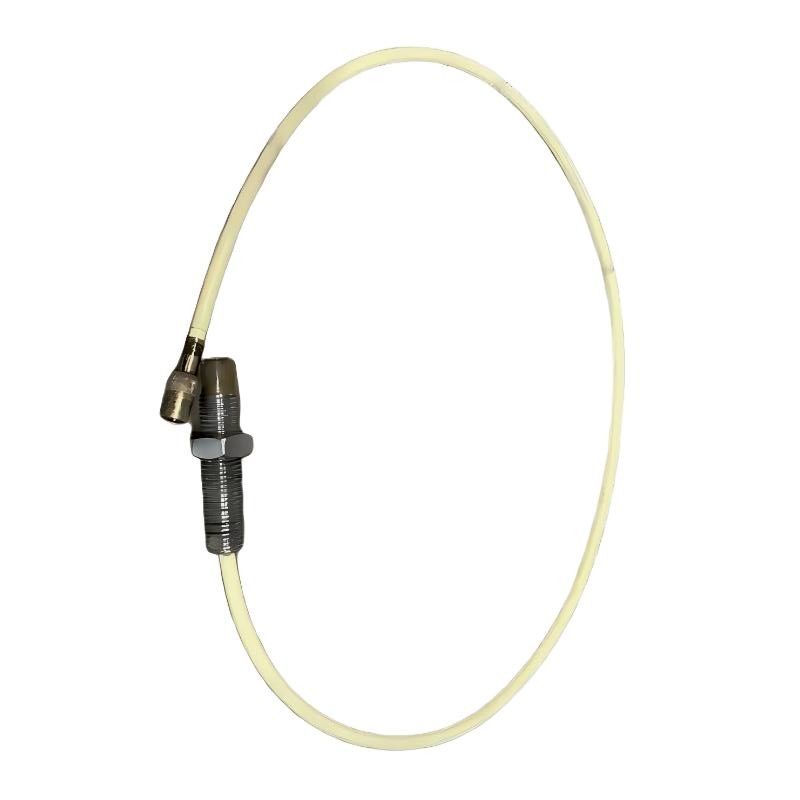

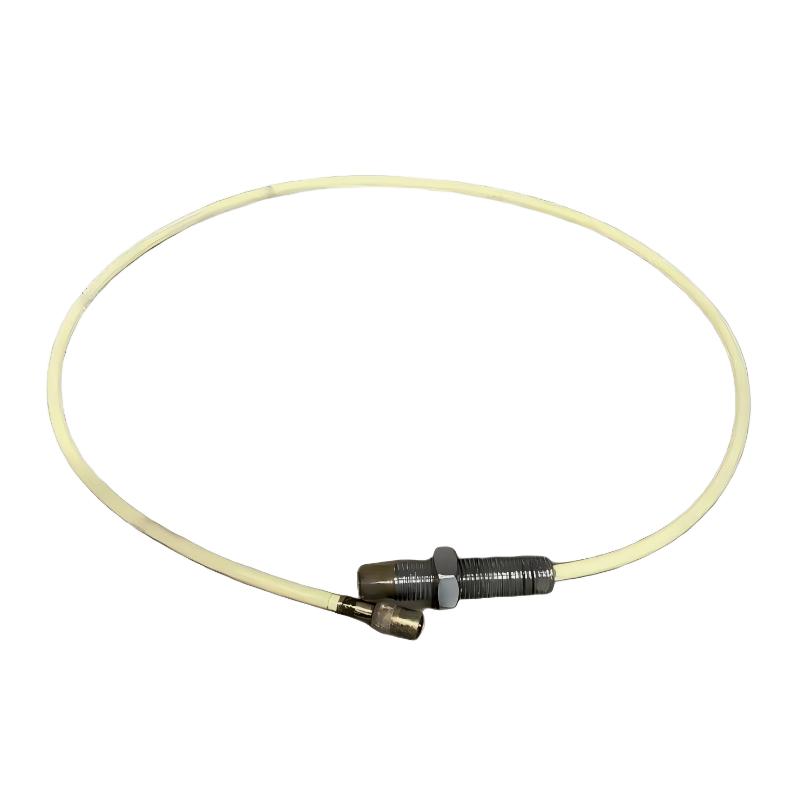

The Bently Nevada 21504-00-16-05-02 is an 8 mm standard mounting proximity probe from the 7200 Series, designed for non-contact measurement of shaft vibration, displacement, and position in rotating machinery.
It is part of Bently Nevada’s eddy-current proximity measurement system, widely used for continuous condition monitoring and machinery protection in turbines, compressors, pumps, generators, and other rotating equipment. The 0.5-meter total length makes it suitable for compact installations or short routing paths.
Technical Specifications
| Parameter | Details |
|---|---|
| Manufacturer | Bently Nevada |
| Model | 21504-00-16-05-02 |
| Product Type | 7200 Series Proximity Probe |
| Series | 7200 |
| Probe Diameter | 8 mm |
| Total Length | 0.5 meters |
| Mounting Type | Standard Mounting |
| Measurement Principle | Eddy-current, non-contact sensing |
| Shipping Weight | 0.22 kg |
| Measurement Type | Shaft vibration, displacement, and position |
| Linear Measurement Range | 2–3 mm (typical) |
| Sensitivity | 200 mV/mil (typical) |
| Frequency Response | Up to 10 kHz |
| Application | Machinery protection and condition monitoring |
Function and Working Principle
The 21504-00-16-05-02 operates using eddy-current technology:
- The probe emits a high-frequency electromagnetic field from its tip.
- When near a conductive rotating shaft, eddy currents are induced in the surface.
- Changes in the probe-to-shaft gap modify the electromagnetic field.
- These variations are converted into electrical signals proportional to shaft vibration and displacement.
Because it is non-contact, the probe avoids mechanical wear and ensures stable long-term performance.
Key Features
- 8 mm eddy-current proximity probe
- Compact 0.5-meter total length for short installation routing
- Non-contact measurement technology
- High-accuracy vibration and displacement monitoring
- Rugged industrial-grade construction
- Stable long-term performance
- Compatible with 7200 Series monitoring systems
- Suitable for continuous online condition monitoring
Industrial Applications
- Steam turbine monitoring
- Gas turbine protection systems
- Compressor vibration and displacement analysis
- Pump condition monitoring
- Generator shaft vibration measurement
- Electric motor diagnostics
- Gearbox monitoring systems
- Oil & gas production facilities
- Power generation plants
Installation Overview
- Standard mounting configuration
- Installed close to the rotating shaft without physical contact
- Connected to extension cable and Proximitor sensor
- Requires proper gap calibration during installation
- Suitable for radial vibration and axial position measurement
Compatible Components
| Component | Description |
|---|---|
| 7200 Series Extension Cable | Signal transmission between probe and system |
| Proximitor Sensor | Converts probe signals into usable electrical output |
| Machinery Protection System | Provides alarm and shutdown functionality |
| Probe Housing Assembly | Mechanical mounting and environmental protection |
| Diagnostic Software | Machinery condition monitoring and analysis |
Alternative Models
| Model | Description |
|---|---|
| 21504-00-12-05-02 | 8 mm Probe – 0.5 m variant |
| 21504-000-024-10-02 | 8 mm Probe – 1 m variant |
| 21504-000-052-10-02 | 8 mm Probe – 1 m variant |
| 21502-01 | 8 mm Eddy Current Probe |
Key Advantages
- High-precision non-contact measurement
- Reliable operation in harsh industrial environments
- Compact 0.5-meter design for space-limited installations
- Long service life with minimal maintenance
- Supports predictive maintenance strategies
- Reduces risk of unexpected machinery failure
Conclusion
The Bently Nevada 21504-00-16-05-02 7200 8 mm Standard Mounting Probe is a compact, durable, and high-accuracy eddy-current sensor designed for continuous monitoring of shaft vibration, displacement, and position. Its short 0.5-meter configuration and robust industrial construction make it highly suitable for tight installation environments in critical rotating machinery applications.
