Product Overview

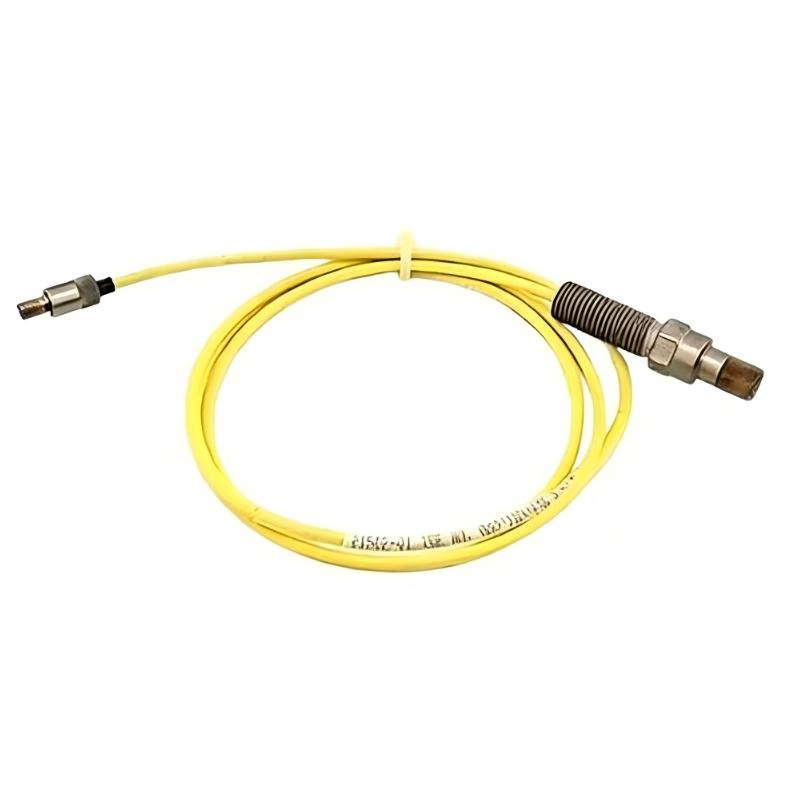

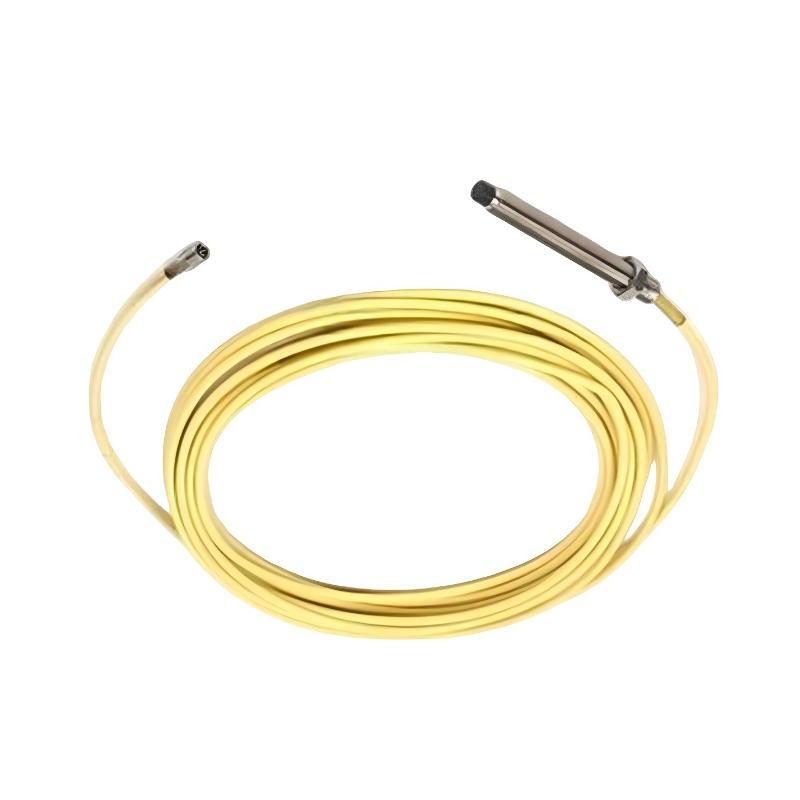

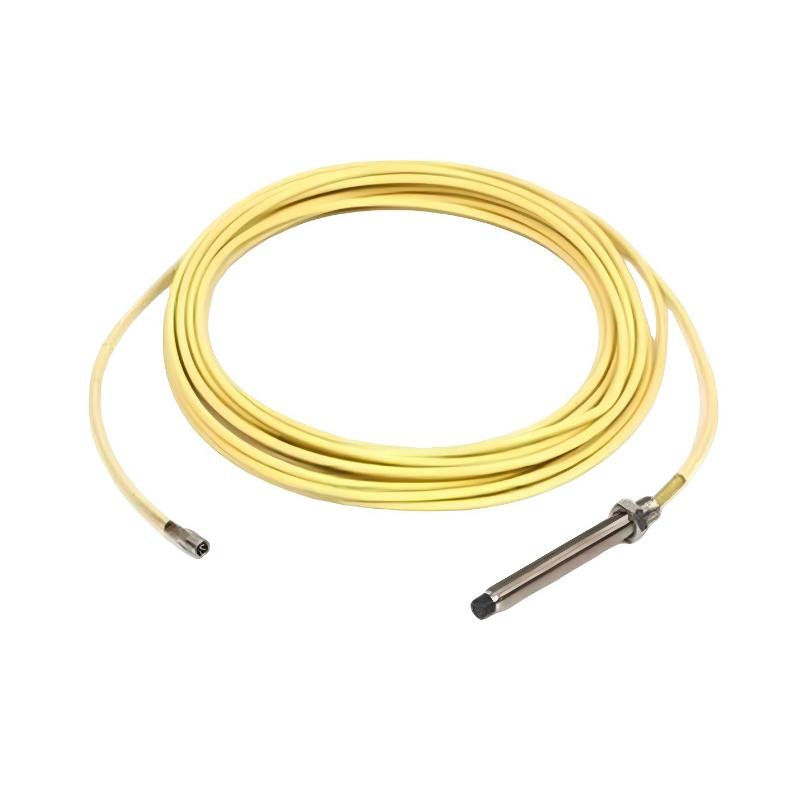

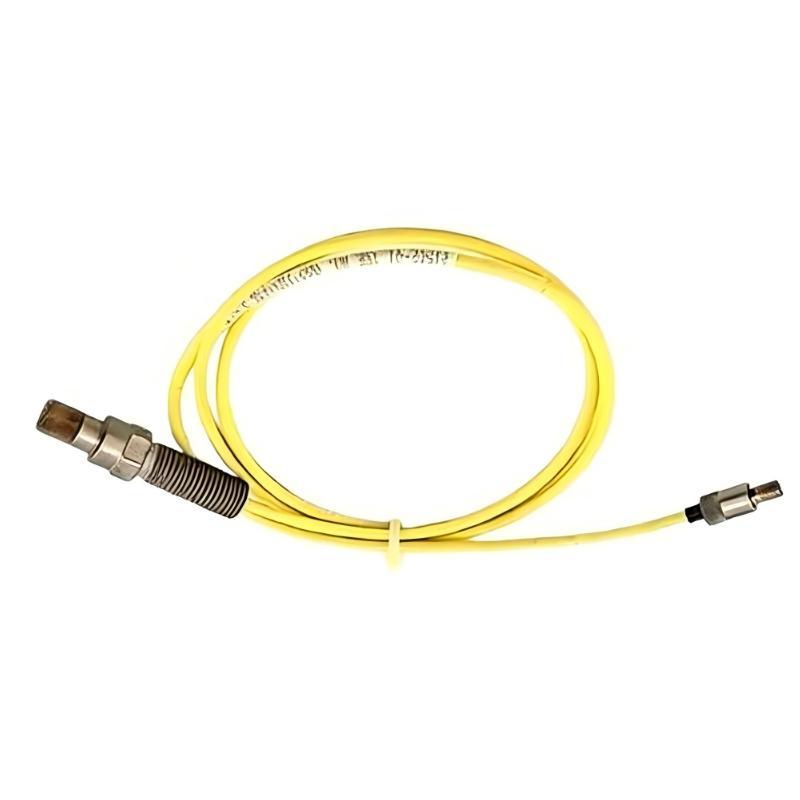

The Bently Nevada 21504-00-12-05-02 is an 8 mm standard mounting proximity probe from the 7200 Series, designed for non-contact measurement of shaft vibration, displacement, and position in rotating machinery.
It uses eddy-current sensing technology to deliver continuous, accurate, and reliable monitoring of machinery condition. The 0.5-meter total length makes it suitable for compact installations or short routing requirements in industrial environments.
Technical Specifications
| Parameter | Details |
|---|---|
| Manufacturer | Bently Nevada |
| Model | 21504-00-12-05-02 |
| Product Type | 7200 Series Proximity Probe |
| Series | 7200 |
| Probe Diameter | 8 mm |
| Total Length | 0.5 meters |
| Mounting Type | Standard Mounting |
| Measurement Principle | Eddy-current, non-contact sensing |
| Shipping Weight | 0.22 kg |
| Measurement Type | Shaft vibration, displacement, and position |
| Linear Measurement Range | 2–3 mm (typical) |
| Sensitivity | 200 mV/mil (typical) |
| Frequency Response | Up to 10 kHz |
| Application | Machinery protection and condition monitoring |
Function and Working Principle
The 21504-00-12-05-02 operates using eddy-current technology:
- The probe generates a high-frequency electromagnetic field at its sensing tip.
- A conductive target such as a rotating shaft induces eddy currents.
- Changes in the gap between probe and target modify the electromagnetic field.
- These variations are converted into electrical signals proportional to shaft vibration and displacement.
This non-contact measurement ensures long-term reliability and eliminates mechanical wear.
Key Features
- 8 mm eddy-current proximity probe
- Compact 0.5-meter total length for short routing applications
- Non-contact measurement technology
- High-precision vibration and displacement monitoring
- Rugged industrial construction
- Stable long-term performance
- Compatible with 7200 Series monitoring systems
- Suitable for continuous online condition monitoring
Industrial Applications
- Steam turbine shaft monitoring
- Gas turbine protection systems
- Compressor vibration analysis
- Pump condition monitoring
- Generator vibration and position measurement
- Electric motor diagnostics
- Gearbox condition monitoring
- Oil & gas production systems
- Power generation facilities
Installation Overview
- Standard mounting configuration
- Installed close to the rotating shaft without contact
- Connected to extension cable and Proximitor sensor
- Requires precise gap calibration during installation
- Suitable for radial vibration and axial position measurement
Compatible Components
| Component | Description |
|---|---|
| 7200 Series Extension Cable | Signal transmission to monitoring system |
| Proximitor Sensor | Converts probe signal into electrical output |
| Machinery Protection System | Provides alarm and shutdown functions |
| Probe Housing Assembly | Mechanical mounting and environmental protection |
| Diagnostic Software | Condition monitoring and analysis tools |
Alternative Models
| Model | Description |
|---|---|
| 21504-00-08-10-02 | 8 mm Probe – 1 m length |
| 21504-000-016-05-02 | 8 mm Probe – 0.5 m variant |
| 21504-000-024-10-02 | 8 mm Probe – 1 m variant |
| 21502-01 | 8 mm Eddy Current Probe |
Key Advantages
- High-precision non-contact measurement
- Reliable performance in harsh industrial environments
- Compact 0.5 m length for tight installations
- Long service life with minimal maintenance
- Supports predictive maintenance strategies
- Reduces risk of unexpected equipment failures
Conclusion
The Bently Nevada 21504-00-12-05-02 7200 8 mm Standard Mounting Probe is a compact, durable, and precise eddy-current sensor designed for monitoring shaft vibration, displacement, and position. Its short 0.5-meter configuration and robust industrial design make it well suited for space-constrained installations in critical rotating machinery.
