Product Overview

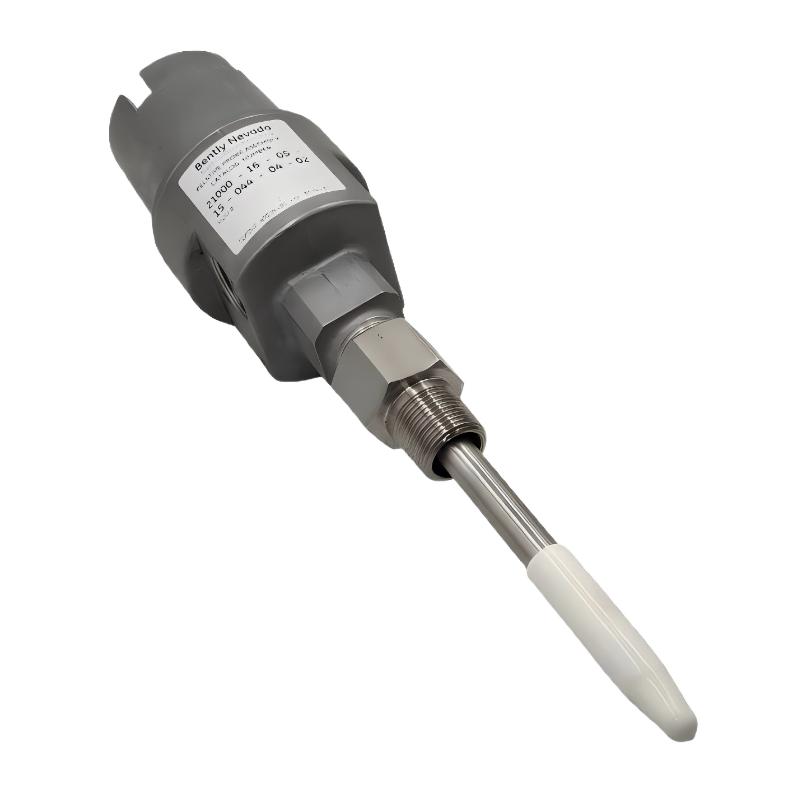

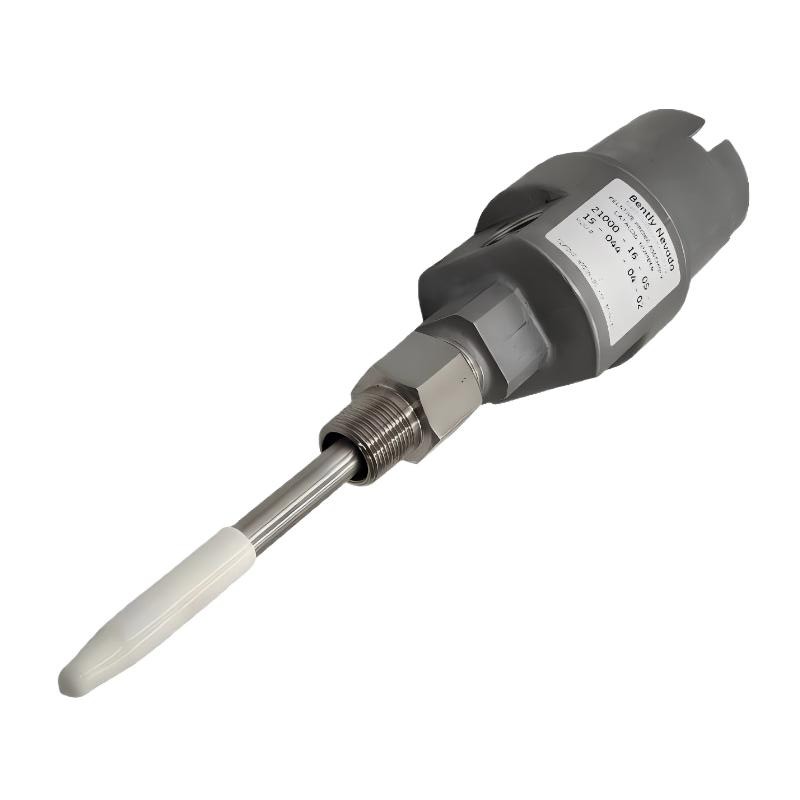

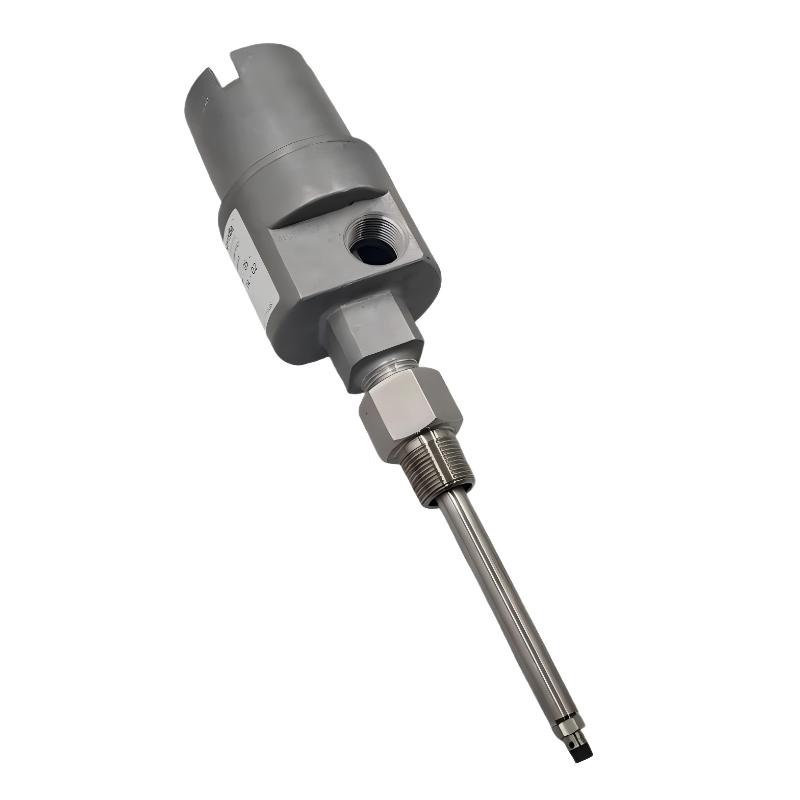

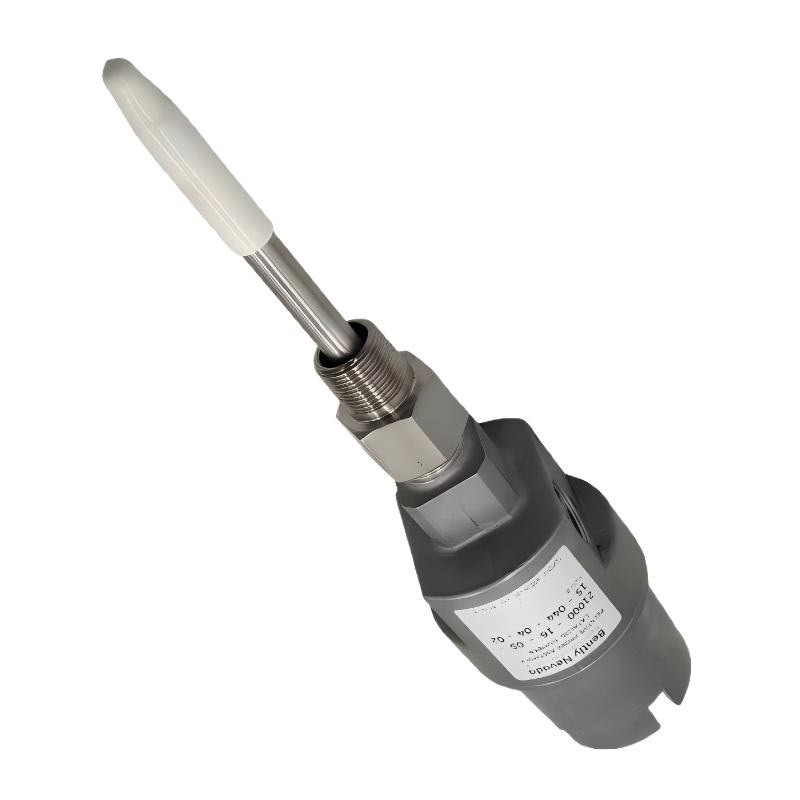

The Bently Nevada 21000-16-05-00-019-03-02 Proximity Probe Housing Assembly is a rugged industrial enclosure designed for the installation and protection of 3300 XL proximity probes in rotating machinery monitoring systems. The assembly provides a secure mounting platform that supports accurate non-contact measurement of shaft vibration, shaft displacement, eccentricity, and rotor position.
Engineered for industrial reliability, this housing assembly helps maintain probe alignment while allowing convenient access for inspection, adjustment, and maintenance.
Technical Specifications
| Parameter | Details |
|---|---|
| Manufacturer | Bently Nevada |
| Model | 21000-16-05-00-019-03-02 |
| Product Type | Proximity Probe Housing Assembly |
| Compatible System | 3300 XL Proximity Transducer System |
| Housing Body Diameter | 83.3 mm |
| Weight | 1.1 kg |
| Mounting Type | External machine mounting |
| Housing Construction | Industrial-grade metal enclosure |
| Probe Compatibility | 3300 XL proximity probes |
| Cable Entry Type | Threaded conduit connection |
| Measurement Support | Shaft vibration, shaft displacement, rotor position |
| Application Category | Machinery protection and condition monitoring |
| Environmental Suitability | Industrial operating environments |
Function and Working Principle
The housing assembly serves as a protective and mechanical support structure for proximity probes installed on rotating equipment.
Working Principle
- A 3300 XL proximity probe is installed within the housing assembly.
- The probe is positioned near the rotating shaft without making physical contact.
- The probe continuously detects changes in shaft position and movement.
- Signals are transmitted to monitoring and protection systems for analysis.
- The housing maintains proper probe alignment and protects the installation from environmental exposure.
This arrangement enables accurate monitoring of critical machine operating conditions.
Role in Condition Monitoring Systems
The housing assembly supports machinery monitoring systems by:
- Providing secure probe installation
- Maintaining accurate probe positioning
- Supporting continuous shaft vibration monitoring
- Enabling shaft displacement measurement
- Protecting probes and wiring from industrial contaminants
- Improving overall monitoring system reliability
Industrial Applications
- Steam turbines
- Gas turbines
- Hydroelectric turbines
- Centrifugal compressors
- Industrial pumps
- Electric motors
- Gearboxes
- Power generation facilities
- Oil and gas processing plants
- Petrochemical production systems
Installation Guidelines
Installation Requirements
- Securely mount on machine casing or bearing housing
- Ensure proper alignment between the probe and shaft surface
- Maintain specified probe gap settings
- Route cables through approved conduit fittings
- Protect wiring from vibration and mechanical damage
- Follow applicable machinery monitoring installation procedures
Proper installation helps ensure long-term measurement accuracy and operational reliability.
Compatible Components
- 3300 XL proximity probes
- Extension cables
- Proximitor sensor systems
- Machinery protection systems
- Turbine supervisory instrumentation (TSI) systems
- Industrial vibration monitoring platforms
Recommended Alternative Models
| Model | Description |
|---|---|
| 21000-16-05-00-019-03-02 | Standard 3300 XL probe housing assembly |
| 21000 Series Variants | Alternative housing configurations |
| 24701 Series | Stainless steel probe housing assemblies |
| Compact Housing Assemblies | Limited-space installations |
| Heavy-Duty Housing Assemblies | Severe industrial operating environments |
Key Advantages
- Durable industrial-grade construction
- Supports accurate non-contact shaft monitoring
- Provides reliable probe protection
- Simplifies maintenance and probe replacement
- Compatible with 3300 XL monitoring systems
- Suitable for critical rotating machinery applications
- Enhances long-term monitoring performance
Technical FAQs
What is the primary function of this housing assembly?
It provides a protected and stable mounting location for 3300 XL proximity probes used in shaft vibration and position monitoring.
Does the housing perform measurements itself?
No. The housing supports and protects the proximity probe, which performs the actual measurements.
What machinery can use this housing assembly?
It is commonly installed on turbines, compressors, pumps, motors, and other rotating equipment.
Why is proper probe alignment important?
Correct alignment ensures accurate vibration and shaft position measurements.
Is it suitable for industrial environments?
Yes. It is designed for continuous operation in demanding industrial applications.
Conclusion
The Bently Nevada 21000-16-05-00-019-03-02 Proximity Probe Housing Assembly is a reliable solution for mounting and protecting 3300 XL proximity probes in machinery condition monitoring systems. Its rugged construction, stable mounting design, and compatibility with industrial monitoring platforms make it an essential component for shaft vibration and position monitoring across power generation, oil and gas, petrochemical, and manufacturing industries.
