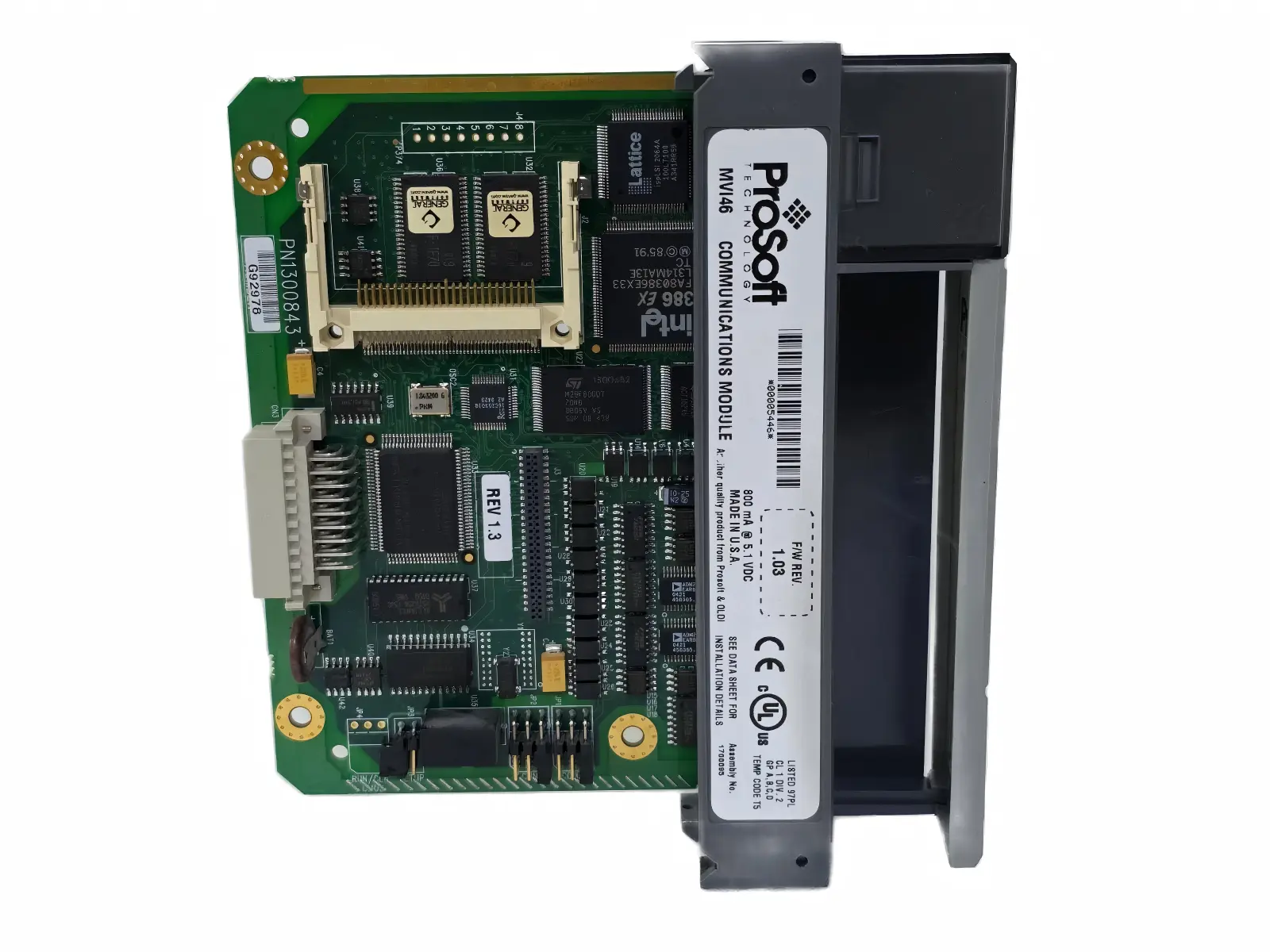

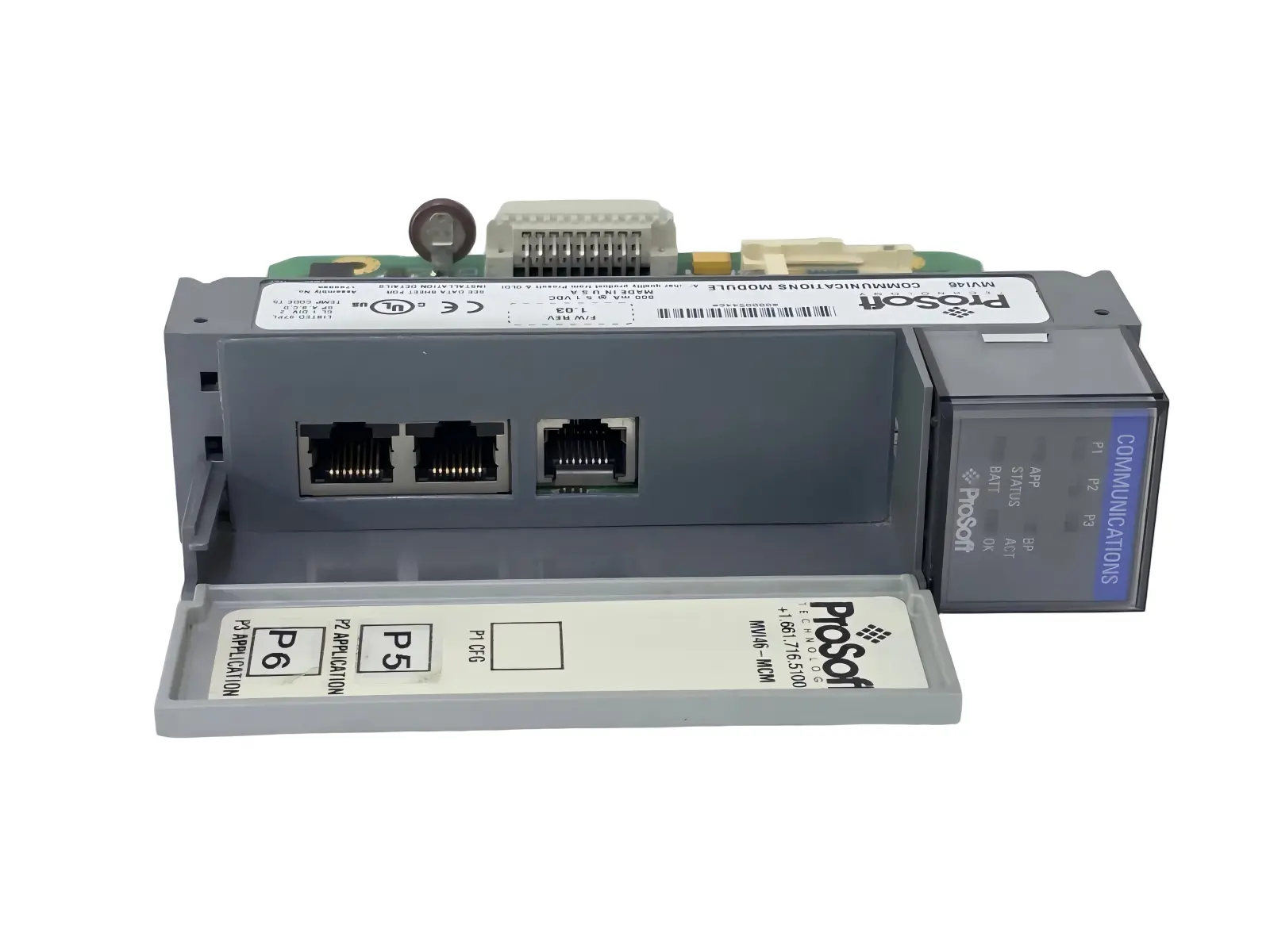

Industrial Communication Module – MVI46-ADMNET
1. Product Overview
The MVI46-ADMNET is a communication interface module designed for industrial automation control systems. It is used to enable seamless data exchange between a programmable automation controller and legacy or third-party industrial networks.
The module operates as a high-performance gateway, supporting real-time data transfer, diagnostic functions, and deterministic communication required in process control, manufacturing lines, and industrial monitoring environments.
It is typically installed in a backplane chassis and functions as an intelligent communication bridge, reducing CPU load and improving network efficiency.
2. Technical Parameters
| Parameter | Specification |
|---|---|
| Model | MVI46-ADMNET |
| Communication Protocol | Ethernet-based industrial communication |
| Function Type | Advanced data bridge / network adapter |
| Slot Requirement | Single chassis slot module |
| Power Consumption | 800 mA @ 5 VDC (typical) |
| Backplane Support | Compatible with modular control chassis |
| Data Handling | High-speed cyclic and acyclic data transfer |
| Diagnostics | Built-in status and fault monitoring |
| Operating Temperature | 0°C to 60°C |
| Storage Temperature | -40°C to 85°C |
| Humidity | 5% – 95% non-condensing |
| Dimensions (H × W × D) | Approximately 137 × 33 × 145 mm |
| Weight | 0.28 kg |
| Mounting Type | DIN rail / chassis slot mounted |
| Protection | Industrial-grade EMI resistance |
3. Product Introduction
The MVI46-ADMNET is designed to act as a high-efficiency communication gateway in industrial automation systems where multiple controllers and devices need to exchange data reliably.
It enables integration between modern Ethernet-based systems and legacy industrial networks, ensuring continuity in older production environments without requiring full system replacement.
The module operates independently from the main processor once configured, handling communication tasks in the background. This improves overall system performance by reducing controller workload and increasing deterministic response time.
Configuration is typically performed through dedicated software tools, allowing mapping of input/output data blocks, diagnostics, and communication parameters.
4. Applications
The MVI46-ADMNET is widely used in the following industrial environments:
- Manufacturing automation lines
- Process control systems (chemical, oil & gas, water treatment)
- Packaging machinery control systems
- Material handling and conveyor systems
- Power generation monitoring systems
- Industrial data acquisition networks
- Legacy system modernization projects
- SCADA and distributed control integration
It is especially valuable in environments where older PLC systems must communicate with modern Ethernet-based infrastructure.
5. Advantages
- Reduces load on main controller by handling communication independently
- Enables integration between legacy and modern industrial networks
- High-speed deterministic data transfer for real-time control
- Easy configuration and diagnostics
- Rugged industrial design suitable for harsh environments
- Supports system expansion without major hardware redesign
- Improves reliability of multi-network communication architecture
- Compact form factor saves cabinet space
6. Related Models (Same Series / Closely Related Modules)
| Model | Key Function | Communication Type | Size (mm) | Weight (kg) |
|---|---|---|---|---|
| MVI46-DFNT | Ethernet data bridge module | Ethernet/IP | 137 × 33 × 145 | 0.27 |
| MVI46-MCM | Modbus communication module | Modbus RTU / TCP | 137 × 33 × 145 | 0.28 |
| MVI46-PDPMV1 | Profibus DP master module | Profibus | 137 × 33 × 145 | 0.30 |
| MVI46-GSC | General serial communication module | RS-232 / RS-485 | 137 × 33 × 145 | 0.26 |
| MVI46-DNPNET | Device-level network gateway | DeviceNet | 137 × 33 × 145 | 0.29 |
7. Popular Models (Same Manufacturer Ecosystem – Industrial Control Modules)
| Model | Function | System Type | Size (mm) | Weight (kg) |
|---|---|---|---|---|
| 1756-EN2T | High-speed Ethernet communication module | Control system networking | 137 × 30 × 145 | 0.25 |
| 1756-IF8 | Analog input module | Process signal acquisition | 137 × 35 × 145 | 0.30 |
| 1756-OB16E | Digital output module | Machine control output | 137 × 28 × 145 | 0.27 |
| 1756-IB16 | Digital input module | Field signal processing | 137 × 28 × 145 | 0.26 |
| 1756-OF8 | Analog output module | Control signal output | 137 × 35 × 145 | 0.31 |
